Operating Instructions

⚠ Safety instructions

i Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

CE This appliance conforms with the following EU Directives: -73/23/EEC dated 19.02.1973 Low Voltage Directive -89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC -93/68/EEC dated 22.07.1993 CE Marking Directive

Correct use

• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
  •Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended.
• Switch the cooking zones off after each use.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

Cooking surface layout

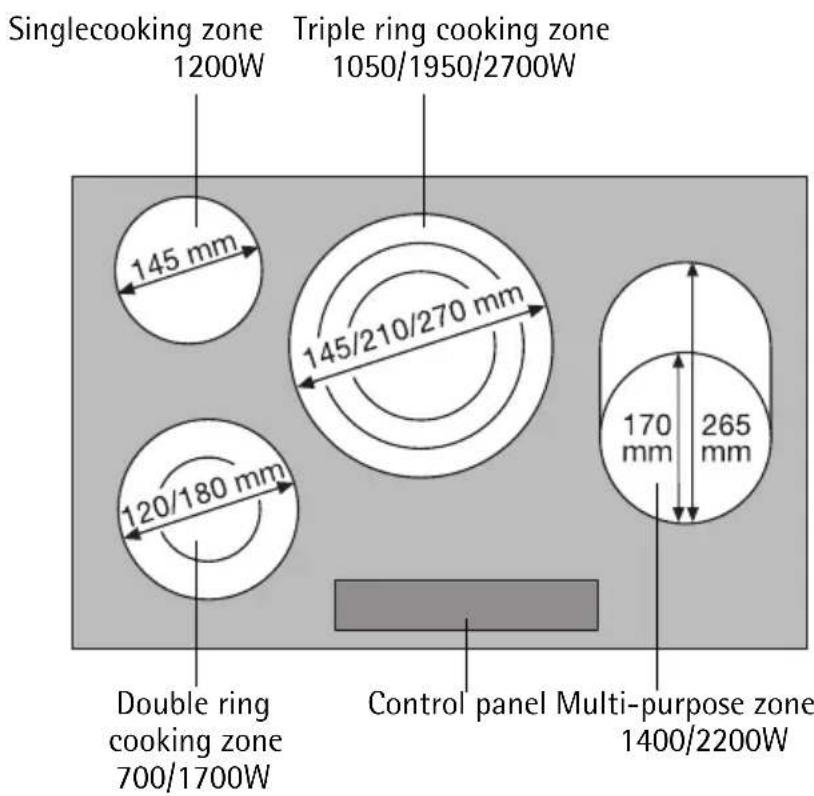

Singlecooking zone 1200W Triple ring cooking zone 1050/1950/2700W 145 mm 145/210/270 mm 120/180 mm Double ring cooking zone 700/1700W Control panel Multi-purpose zone 1400/2200W 170 mm 265 mm

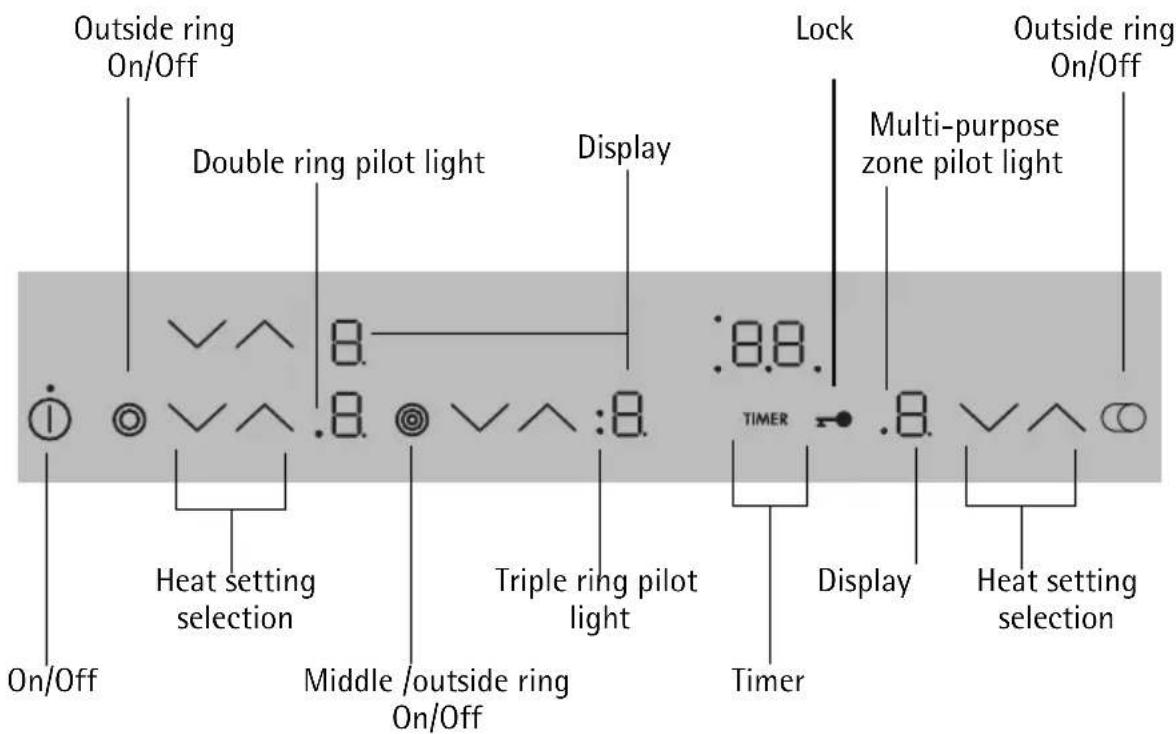

Control panel layout

Outside ring On/Off Double ring pilot light Display Multi-purpose zone pilot light Outside ring On/Off 8.8. 8.8. Timer 8.8. Timer Display Heat setting selection Middle /outside ring On/Off On/Off Heat setting selection Triple ring pilot light Heat setting selection

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

Sensor field Function
➊	On / Off To switch the appliance on and off
↖	Increase settings Increasing heat setting/time
↖	Decrease settings Decreasing heat setting/time
TIMER Timer Timer selection
←●	Lock Locking/unlocking the control panel
◎	Triple ring switch To switch outer rings on and off
◎	Double ring switch Switches outside ring on and off
◎	Multi-purpose zone switch	To switch the outside ring on and off

Displays

Display Description
0 Cooking zone is switched off
u	Keep warm setting	Keep warm setting is set
1 - 9	Heat settings	Heat setting is set
2 - 6	Heating setting plus decimal point	Intermediate heat setting is set
8 Automatic warm up function		Automatic warm-up function is activated
E	Fault	Malfunction has occurred
H	Residual heat	Cooking zone is still hot
Display		Description
L	Child safety device	Lock/child safety device is engaged
-	Safety cut-out	Safety cut-out has been activated

Residual heat indicator

Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator Ⓗ.

Residual heat can be used for melting and keeping food warm.

Operating the appliance

Switching the appliance on and off

	Control panel Display Pilot light
Switch on	Touch 1 for 2 seconds	∅ / H	lights up
Switch off	Touch 1 for 1 second	H / none	goes out

After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

	Control panel	Indicator
To increase	Touch ↗	☐ to ☑
To decrease	Touch ↕	☐ to ☐
To switch off	Touch ∧ and √ at the same time	☐

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switched on.

Triple cooking zone Sensor panel Power indicator
To switch on middle ring	Touch ☎ for 1-2 seconds.	One power indicator is lit.
To switch on outside ring	Touch ☎ for 1-2 seconds.	Two power indicators are lit.
To switch off outside ring	Touch ☎ for 1-2 seconds.	Second power indicator goes out.
To switch off middle ring	Touch ☎ for 1-2 seconds.	First power indicator goes out.

Double ring cooking zone	Sensor field Pilot light
To switch on outside ring	Touch ☑ for 1-2 seconds is lit
To switch off outside ring	Touch ☑ for 1-2 seconds goes out

Roasting zone Sensor	panel Power indicator
To switch on outside ring	Touch 📄 for 1-2 seconds.	is lit
To switch off outside ring	Touch 📄 for 1-2 seconds.	goes out

Locking/unlocking the control panel

The control panel, with the exception of the "On/Off" sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

	Control panel Display
Switch on	Touch	(for 5 seconds)
Switch off Touch previously set heat setting

When you switch the appliance off, the locking function is automatically switched off.

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm up function. When setting a heat setting using ⚠ when starting from Ⓗ, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

	Control panel	possible heat set- tings	Display
Switch on(only when starting at ☐)	Touch ↗	☐ to ☐	☐ (after 5 sec- onds)
Switch off	Touch ↙	☐ to ☐ / ☐	☐ to ☐
Not used	Touch ↘	☐ to ☐	☐ to ☐

If during the automatic warm up ☐ a higher heat setting is selected, e.g. from ☐ to ☐, the automatic warm up is adjusted.

If there is still residual heat on the cooking zone (display H), the automatic warm up is not performed.

The length of time that the automatic warm up function operates depends on the heat setting selected.

Heat setting	Length of the automatic warm up [min:sec]	Intermediate heat setting	Length of the automatic warm up [min:sec]
0 0:30
1 1:00
2 1:40 2. 2:40
3 4:50 3. 5:30
4 6:30 4. 8:10
5 10:10 5. 12:20
6 2:00 6. 2:30
7 3:30
8 4:30
9 ---

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Setting the child safety device

Step Control panel Display/Signal
1. Switch on the appliance
3. Touch
Appliance switches off. The child safety device is engaged.

Releasing the child safety device

Step	Control panel	Display/Signal
1.	Switch on the appliance
2. Touch	until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is released.

Overriding the child safety device

The child safety device can be released in this way for a single cooking session; it remains activated afterwards.

Step	Control panel	Display/Signal
1.	1 Switch on the appliance	L
2.	Touch ∧ and √ at the same time	∅ / acoustic signal
Until the appliance is next switched off, it can used as normal.

After overriding the child safety device, a heat setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches itself off.

Using the timer

Function	Pre-requisite	Result after time has elapsed
Automatic cut-out	With heat setting set Acoustic signal00 flashesCooking zoneswitches off
Countdown timer	Cooking zones are not switched on	Acoustic signal00 flashes

While the countdown timer is activated, no cooking zone can be used.
The countdown timer basically cannot be used if a cooking zone is switched on.
If a cooking zone is switched off, the timer function set is also switched off.

Selecting a cooking zone

Step Control panel Display
1. Touch	TIMER once Pilot light	of the first cooking zone flashes
2. Touch	TIMER once Pilot light	of the second cooking zone flashes
3. Touch	TIMER once Pilot light	of the third cooking zone flashes
4. Touch	TIMER once Pilot light	of the fourth cooking zone flashes

If the pilot light is flashing more slowly, the heat setting can be set or modified.
If other timer functions are set, after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes.

Setting the time

Step	Control panel	Indicator
1. Select TIMER cooking zone		Pilot light for the cooking zone selected flashes
2.	Touch ⊕ or ⊖	00 to 99 minutes
After a few seconds the pilot light flashes more slowly.The time is set.The time counts down.

Switching off the timer function

Step	Control panel	Indicator
1. Select TIMER cooking zone		Pilot light of cooking zone selected flashes fasterTime remaining is displayed
2. Touch	The time remaining counts backwards to 00.
The pilot light goes out.The Timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel Indicator
1. Select TIMER cooking zone		Pilot light of the selected cooking zone flashes fasterTime remaining is displayed
2.	Touch ⊕ or ⊖	0 / to 99 minutes
After a few seconds, the pilot light flashes more slowly.The time is set.The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display
1. TIMER	Select cooking zone	Pilot light of the cooking zone selected flashes fasterThe time remaining is displayed
After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step Control panel field Acoustic signal
1.	Touch TIMER	Acoustic signal to acknowledge.
Acoustic signal stops.

Safety cut-out

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered for longer than approx. 10 seconds, e.g. by a pan placed upon it, a signal sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Control panel

Moisture (e.g. a wet cloth) or liquid boiling over onto the control panel immediately switches all cooking zones off.

Cooking zones

- If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically.

Heat setting Switches off after

u, 1-2	6 hours
3-4	5 hours
5	4 hours
6-9	1.5 hours

Tips on Cooking and Frying

Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

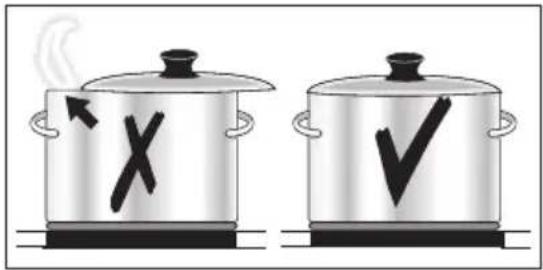

If possible, always place lids on the pans.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

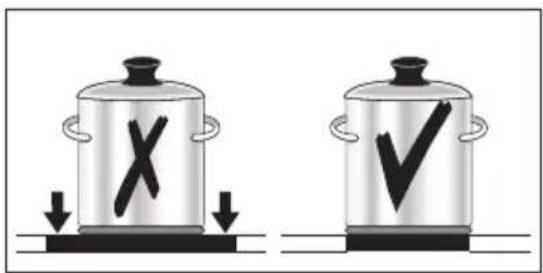

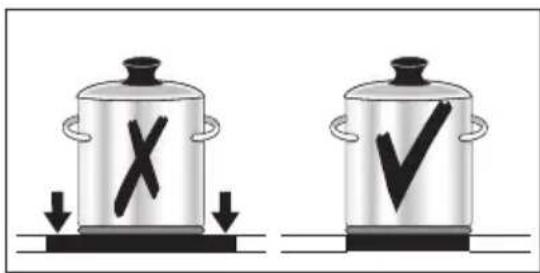

Bottom of pans and cooking zones should be the same size.

Illustration of two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking process.

Illustration showing two cooking pots with checkmarks and X and ✓ symbols indicating cooking instructions or actions.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting	Cooking-process	suitable for	Cooking time	Tips/Hints
0		Residual heat, Off position
1	Keeping food warm	Keeping cooked foods warm	as required	Cover
1-2	Melting	Hollandaise sauce, melting butter, chocolate, gelatine	5-25 mins.	Stir occasionally
	Solidifying	Fluffy omelettes, baked eggs	10-40 mins.	Cook with lid on
2-3	Simmer-ing on low heat	Simmering rice and milk-based dishesHeating up ready-cooked meals	25-50 mins.	Add at least twice as much liquid as rice, stir milk dishes part way through cooking
3-4	Steaming Braising	Steaming vegetables, fish braising meat	20-45 mins.	With vegetables add only a little liquid (a few tablespoons)
4-5 Boiling		Steaming potatoes 20-60 mins.		Use only a little liquid, e. g.: max. 1/4 l water for 750 g potatoes
		Cooking larger quantities of food, stews and soups	60-150 mins.	Up to 3 l liquid plus ingredients
6-7	Gentle Frying	Frying escalopes, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts	Steady frying	Turn halfway through cooking
7-8	Heavy Frying	Hash browns, loin steaks, steaks, Flädle (pancakes for garnishing soup)	5-15 mins. per pan	Turn halfway through cooking
9	Boiling Searing Deep frying	Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

Cleaning and Care

Take care! Risk of burns from residual heat. Let the appliance cool down.

Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.

Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

	Remove
Type of dirt	imme-diately	when the appliance has cooled down	using
sugar, food containing sugar yes ---			a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes			cleaner for glass ce-ramic or stainless steel*
fat splashes --- yes
shiny metallic discolorations --- yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops

Remove stubborn residues with a cleaner for glass ceramic or stainless steel.

Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if ...

Problem Possible cause Remedy
The cooking zones will not switch on or are not functioning	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
	The child safety device is switched on [L]	Deactivate the child safety device (See the section "Child safety device")
	Several sensor fields were touched at the same time	Only touch one sensor field
	The sensor fields are partly covered by a damp cloth or with liquid	Remove the cloth or the liquid.Switch the appliance on again.
	Safety cut-out has been triggered	Switch the appliance on again
	The lock is switched on [L]Switch off the lock (See the section "Locking/un-locking the control panel")
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
The automatic warm up function is not switching itself on	There is still residual heat on the cooking zone [H]	Let the cooking zone cool down
	The highest heat setting is set [9]	The highest heat setting has the same power as the automatic warm up function
	The heat setting was set using the sensor field [IMAGE]	1. Switching off the cooking zone1. Set the cooking zone using the sensor field [IMAGE]
Acoustic signal sounds and appliance switches itself on and then off again; after 5 seconds another acoustic signal sounds	The On/Off sensor field has been covered up, e.g. by a cloth	Do not place any objects on the control panel
[IMAGE] is lit Overheating protection for the cooking zone has been triggered		Switch off the cooking zone. Switch the cooking zone on again
E and number are displayed	Electronics fault Disconnect	the appliance from the electrical supply for a few minutes (Take the fuse out of the house's wiring system)If after switching on again,E is displayed again, call the customer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

Safety instructions

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Installation may only be carried out by a qualified electrician.

The minimum distances to other appliances are to be observed.

Drawers may only be installed with a with protective board directly under the appliance.

The cut surfaces of the work top are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

WARNING!

Risk of injury from electrical current.

•The electrical mains terminal is live.
- Make electrical mains terminal free of voltage.
- Observe connection schematic.
- Observe electrical safety rules.

- Ensure anti-shock protection through correct installation by a qualified electrician.

- The appliance must be connected to the electrical supply by a qualified electrician.

IMPORTANT!

Risk of injury from electrical current.

Loose and inappropriate plug and socket connections can make the terminal overheat.

• Have the clamping joints correctly installed by a qualified electrician.
• Use strain relief clamp on cable.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm.

Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

- In order to facilitate access if servicing is required, there must be a space the size of the cut-out section in the worktop and 150mm high under the hob. Anything installed in this area, e.g. anti-shock protection, must be easily removable.

Built-in installation

• Clean the rabbit in the work surface.
• Stick the one-sided self-adhesive sealing tape supplied onto the upper surface of the rabbit along the edges of the cut-out section.

- Cut the sealing tape into four pieces relating to the length of the edges of the rabbit.

- For the four corners of the rabbet the ends of the sealing tapes must be cut into mitres. Do not stick the ends over one another.

- Stick the sealing tape flush into the corner of the rabbit, so that no silicon compound can get under the glass ceramic when grouting.

-Don't stretch the tapes when sticking them on.

Guarantee/Customer Service

Further after-sales service agencies overseas

In these countries our AEG agents' own guarantee conditions are applicable. Please obtain further details direct.

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if...").

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

-Model description

-Product number (PNC)

-Serial number (S No.) (for numbers see rating plate)

-Type of fault

-Any error messages displayed by the appliance

-three digit letter-number combination for glass ceramic

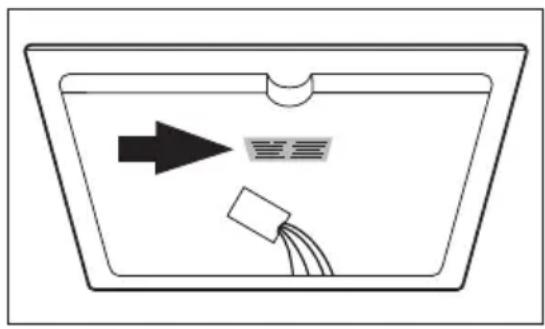

So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:

Simple line drawing of a device with an arrow pointing to a screen and cable, no text or symbols present.

Model description: ....

PNC: ....

S No: ....

Touche sensitive "Touch Control" 34

Voyants 35

Touche sensitive "Touch Control"

Illustration of two cooking pots with checkmarks and crossed-out X symbols, likely indicating cooking or cooking advice.

Illustration showing two cooking pots with checkmarks and X and ✓ symbols, indicating a cooking step or solution.

Electrolux Home Products France S.A.S.

Info Conso Electrolux

43 avenue Félix Louat - BP 50142

60307 Senlis Cedex

Tél. : [phone] (0,15 € TTC/mn)

Simple line drawing of a device with an arrow pointing to a screen and cable (no text or symbols)

Touch-control-sensorvelden 63

Indicaties. 63

Restwarmte-indicatie....64

Touch-control-sensorvelden

Illustration of two cooking pots with checkmarks and X symbols, one steaming and the other checked with a checkmark.

Illustration showing two cooking pots with X and ✓ symbols indicating cooking process or inspection, each with downward arrows.

Simple line drawing of a container with an arrow pointing to a rectangular object and a connector attached (no text or symbols)

Modelaanduiding: ....

PNC: ....

S-No: ....

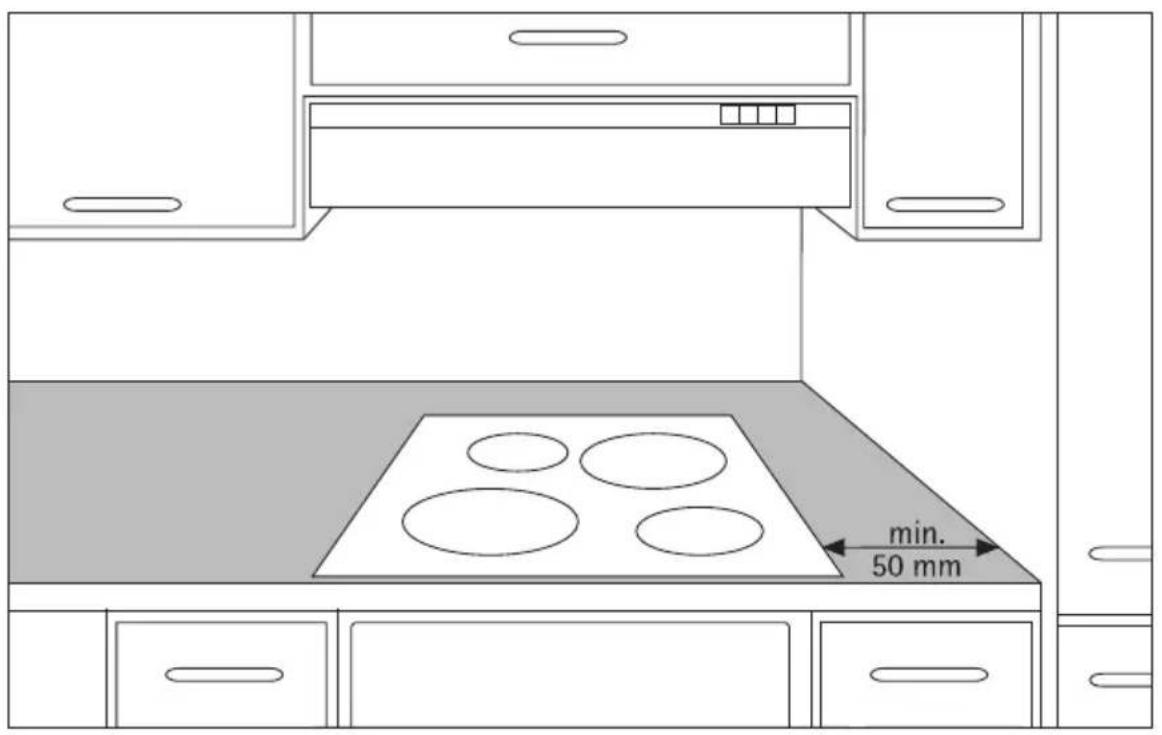

Assembly / Montage

min. 50 mm

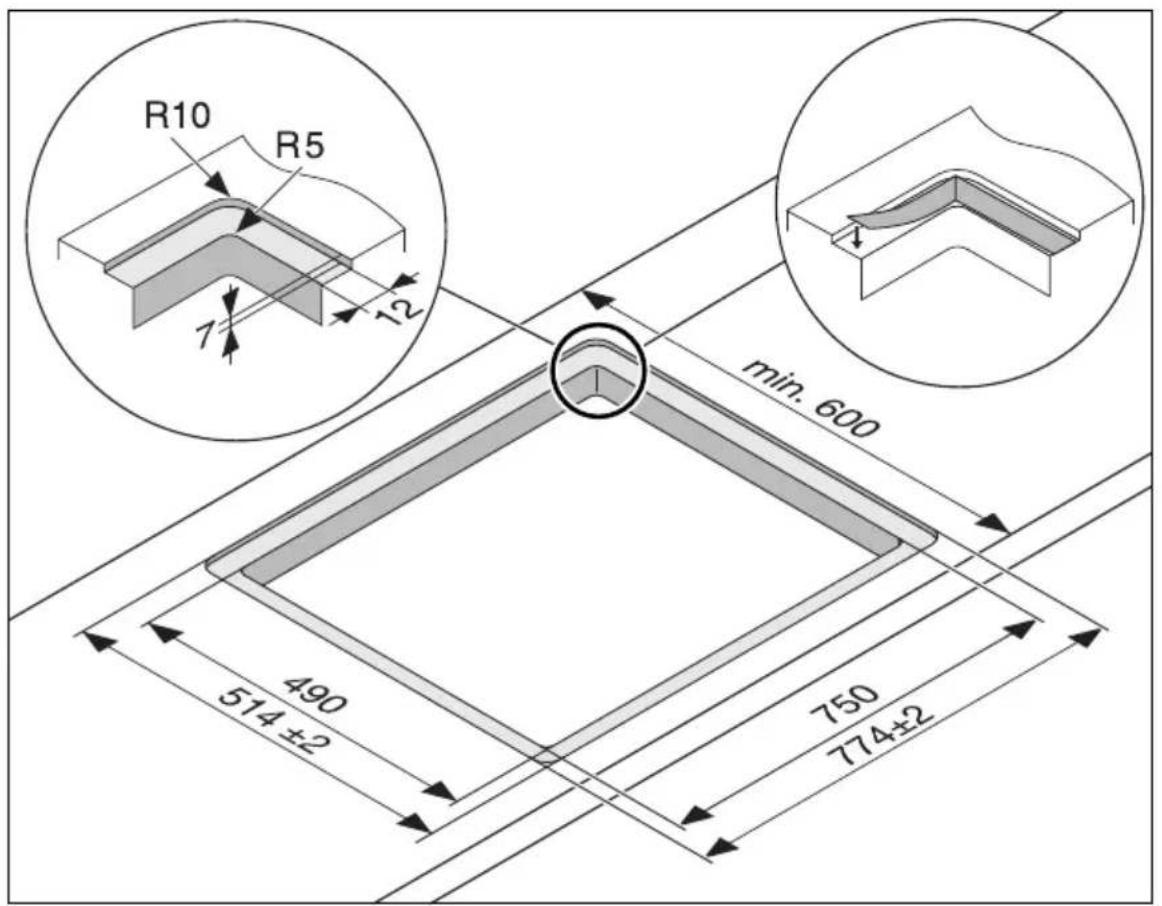

R10 R5 7 12 min. 600 490 514 ±2 750 774±2

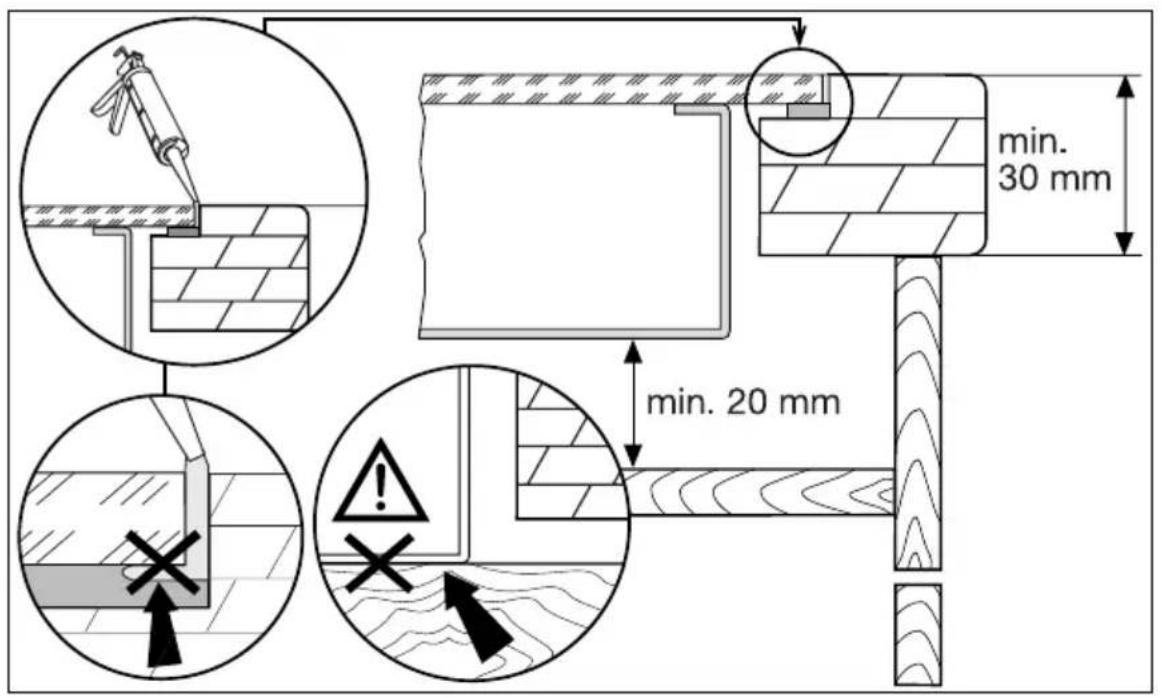

min. 30 mm min. 20 mm

Rating Plate / Plaque signalétique / Typeplaatje

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

AEG Hausgeräte GmbH

Postfach 1036

D-90327 Nürnberg

Subject to change without notice
