USER MANUAL 88101 KFN AEG-ELECTROLUX

Please read these user instructions carefully and keep them to refer to later.

Please pass the user instructions on to any future owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Information that affects your personal safety.

Important! Information that prevents damage to the appliance.

Useful tips and hints

Environmental information

Contents

Safety instructions. 4

Description of the Appliance 6

Cooking surface layout 6

Control panel layout 6

Touch Control sensor fields 7

Displays 8

Residual heat indicator 8

Operating the appliance. 9

Switching the appliance on and off 9

Setting the heat setting 9

Switching the STOP+GO function on and off. 10

Using the automatic warm-up function 10

Locking/unlocking the control panel. 11

Using the child safety device 12

Switching the power function on and off 13

Using the timer 14

Safety cut-out 17

Tips on Cooking and Frying 18

Cookware for induction cooking zones. 18

Tips on energy saving 19

Examples of cooking applications 19

Cleaning and Care 21

What to do if 22

Disposal 24

Installation Instructions 25

Service 27

Operating Instructions

!Safety instructions

i Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.
CE This appliance conforms with the following EU Directives:
-73/23/EEC dated 19.02.1973 Low Voltage Directive
-89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC
-93/68/EEC dated 22.07.1993 CE Marking Directive

Correct use

• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
• Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended.
• Switch the cooking zones off after each use.
• Users with implanted pacemakers should keep their upper body at least 30~cm from induction cooking zones that are switched on.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• Do not use the cooking zones with empty cookware or without cookware.
  The ventilation gap of 5mm between the worktop and front of the unit underneath it must not be covered.

Description of the Appliance

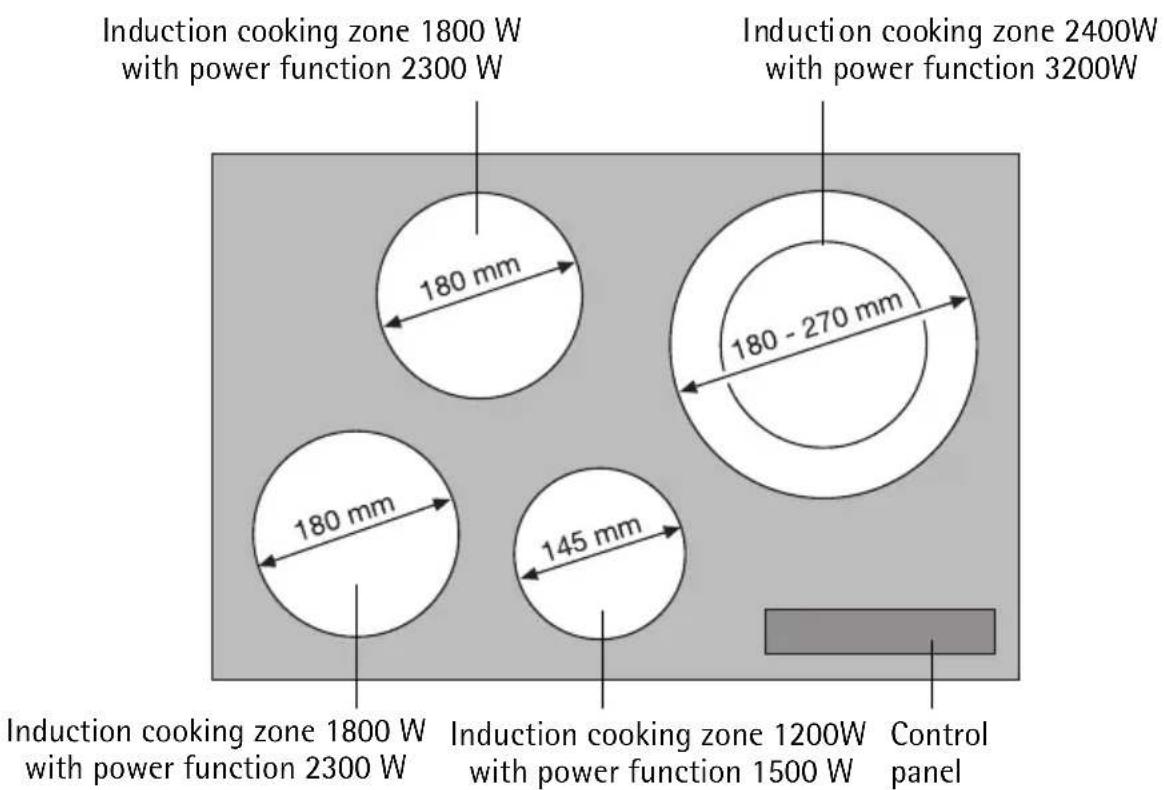

Cooking surface layout

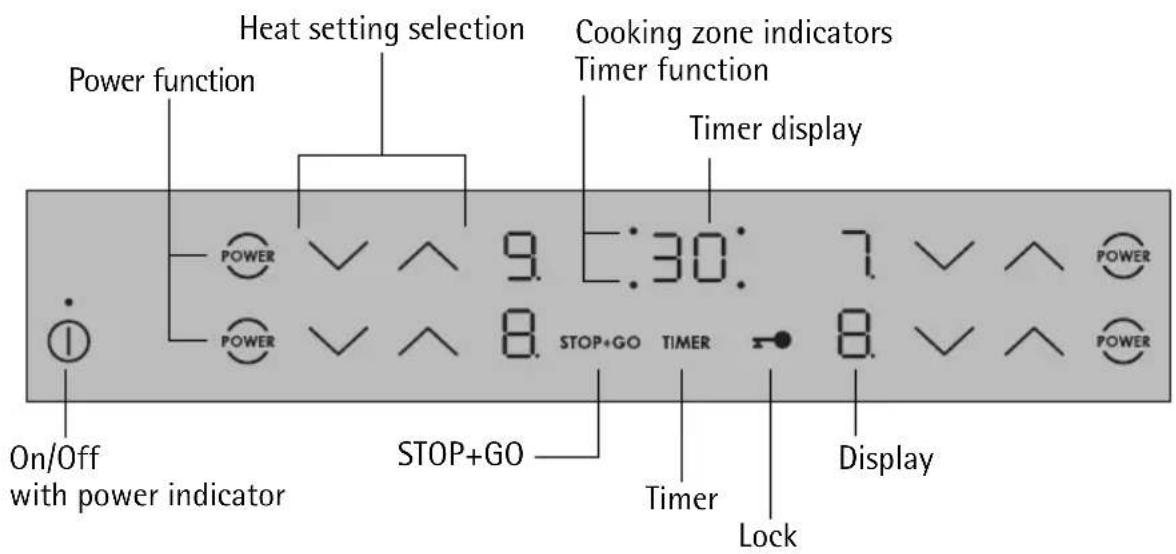

Control panel layout

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

Sensor field Function
①	On / Off To switch the appliance on and off
○	Increase settings Increasing heat setting/time
✓	Decrease settings Decreasing heat setting/time
TIMER Timer Timer selection
●	Lock Locking/unlocking the control panel
POWER	Power Switching the power function on and off
STOP+GO	Stop+Go To switch the Keep Warm setting on/off

Displays

Display Description
Cooking zone is switched off
Keep warm setting		Keep warm setting/STOP+GO function is set
Heat settings		Heat setting is set
Heating setting plus decimal point		Intermediate heat setting is set
Automatic warm up function		Automatic warm-up function is activated
Malfunction has occurred
Pan detection		Cookware is unsuitable or too small or no cookware has been placed on the cooking zone
Residual heat		Cooking zone is still hot
Child safety device		Lock/child safety device is engaged
Power		Power function is switched on
Safety cut-out		Safety cut-out has been activated

Residual heat indicator

Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator .

Residual heat can be used for melting and keeping food warm.

The induction cooking zones create the heat required for cooking directly in the base of the cookware. The glass ceramic is merely heated by the residual heat of the cookware.

The cooling fan switches itself on and off depending upon the temperature of the electronics.

Operating the appliance

Use the induction cooking zones with suitable cookware.

Switching the appliance on and off

	Control panel Display Pilot light
Switch on	Touch ① for 2 seconds	⑧	lights up
Switch off	Touch ① for 1 second	H / none	goes out

After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

	Control panel Display
Increase	Touch	to / P
Decrease	Touch	to
Switch off	Touch and at the same time

Switching the STOP+GO function on and off

The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set. This function can be used to briefly interrupt and then continue the cooking process e.g. to take a telephone call.

	Control panel Display
To switch on	Touch STOP+GO
To switch off	Touch STOP+GO heat setting that was previously set (not automatic warm up function)

i Timer functions are not stopped by STOP+GO.
STOP+GO locks the whole control panel except the sensor field ①.

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm up function When setting a heat setting using when starting from, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

	Control panel	possible heat set-tings	Display
Switch on (only when starting at 0)	Touch	1 to 8	8 (after 5 sec-ons)
Switch off	Touch	8 to 1 / 0	8 to 0
Not used	Touch	9 to 0	9 to 0

If during the automatic warm up a higher heat setting is selected, e.g. from to, the automatic warm up is adjusted.
If there is still residual heat on the cooking zone (display H), the automatic warm up is not performed.

The length of time that the automatic warm up function operates depends on the heat setting selected.

Heat setting	Length of the automatic warm up [min.]	Interme- diate heat set- ting	Length of the automatic warm up [min.]
0
1
1.7 2.	3
3 4.8 3.	5.5
4 6.5 4.	8.2
5 10.2 5.	12.3
6 2 6.	2.5
7 3.5
8 4.5
9 ---

Locking/unlocking the control panel

The control panel, with the exception of the "On/Off" sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

	Control panel Display
Switch on	Touch	L (for 5 seconds)
Switch off Touch previously set heat setting

When you switch the appliance off, the locking function is automatically switched off.

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Setting the child safety device

Step Control panel Display/Signal
1. Switch on the appliance (Do not set a heat setting)		☐
2. Touch until the signal sounds Acoustic signal
3. Touch	L ☑
Appliance switches off.

Releasing the child safety device

Step	Control panel	Display/Signal
1.	① Switch on the appliance	L
2. Touch	until the signal sounds Acoustic signal
3. Touch	√
Appliance switches off.

Overriding the child safety device

The child safety device can be released in this way for a single cooking session; it remains activated afterwards.

Step	Control panel	Display/Signal
1.	① Switch on the appliance	L
2.	Touch and at the same time	/ acoustic signal
Until the appliance is next switched off, it can used as normal.

Switching the power function on and off

The power function makes more power available to the cooking zones, e.g. to bring a large quantity of water to the boil quickly. The power function is activated for 10 minutes. After that the cooking zone automatically switches back to heat setting 9.

	Control panel Display
Switch on Touch	POWER
Switch off Touch	POWER
	Touch

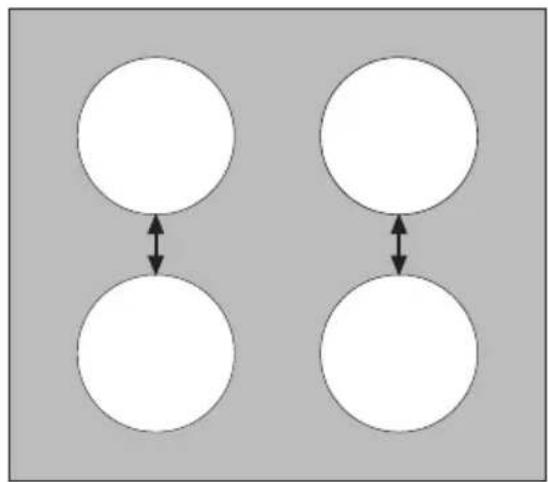

Power Management

The cooking zones have a maximum power available to them.

If this power range is exceeded by switching on the power function, Power Management reduces the heat setting of another cooking zone.

The display for this cooking zone alternates for two minutes between the set heat setting and the maximum possible heat setting. Thereafter the actual heat setting is displayed.

Example:

Last cooking zone switched on	Other cooking zone
set heat setting	set heat setting	display actual	heat setting
P	9	6 alternating with 9	6

If the power function has ended, the cooking zones automatically switch back to the heat setting set previously.

Using the timer

All cooking zones can use each use one of the two timer functions at the same time.

Function Condition Outcome after the	time has elapsed
Safety cut-out a heat setting is set acoustic signal 00 flashes Cooking zone switches off
Countdown timer cooking zones not in use acoustic signal 00 flashes

i If a cooking zone is switched off, the timer function set is also switched off.
i If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.

Selecting a cooking zone

Step Control panel Display
1. Touch TIMER once Pilot light		of the first cooking zone flashes
2.°	Touch TIMER once	Pilot light of the second cooking zone flashes
3. Touch TIMER once Pilot light		of the third cooking zone flashes
4. Touch TIMER once Pilot light		of the fourth cooking zone flashes

If the pilot light is flashing more slowly, the heat setting can be set or modified.

If other timer functions are set, after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes.

Setting the time

Step	Control panel field	Display
1. TIMER	Select cooking zone	Pilot light of the cooking zone selected flashes
2. Touch	or far the cooking zone selected	oo to 99 minutes
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.

Switching off the timer function

Step Control panel field Display
1. TIMER	Select cooking zone	Pilot light of the cooking zone selected flashes faster The time remaining is displayed
2. Touch	for the cooking zone selected	The time remaining counts down to 00.
The pilot light goes out. The timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel field Display
1. TIMER	Select cooking zone	Pilot light of the cooking zone selected flashes faster The time remaining is displayed
2. Touch	of(for the cooking zone selected)	0 to 99 minutes
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display
1. TIMER	Select cooking zone	Pilot light of the cooking zone select- ed flashes faster The time remaining is displayed
After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step Control panel field Acoustic signal
1.	Touch TIMER	Acoustic signal to acknowledge.
Acoustic signal stops.

Safety cut-out

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered for longer than approx. 10 seconds, e.g. by a pan placed upon it, a signal sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Control panel

Moisture (e.g. a wet cloth) or liquid boiling over onto the control panel immediately switches all cooking zones off.

Cooking zones

• In the event of overheating (e.g. when a pan boils dry) the cooking zone automatically switches itself off. is displayed. Before being used again, the cooking zone must be set to and allowed to cool down.
• If cookware that is not suitable is used, flashes in the display and after 10 minutes the display for the cooking zone switches itself off.
• If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically.

Heat setting Switches off after
v. 1-2	6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hours

Tips on Cooking and Frying

Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.

Cookware for induction cooking zones

Cookware made of suitable
Steel, enamelled steel yes
Cast iron yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, copper, brass ---
Glass, ceramic, porcelain ---

Cookware for induction cooking zones is labelled as suitable by the manufacturer.

Test of suitability

Cookware is suitable for induction, if ...

• ... a little water is heated on an induction cooking zone set to heat setting 9 within a few seconds.
• ... a magnet sticks to the bottom of the cookware.

i Certain cookware can make noises when being used on induction cooking zones. These noises are not a fault in the appliance and do not affect operation in any way.

Pan size

Induction cooking zones adapt automatically to the size of the cookware bottom up to a certain limit. However the magnetic part of the cookware bottom must have a minimum diameter depending upon the size of the cooking zone.

On the 270 mm cooking zone, the minimum pan base diameter of 180 mm is marked by the inner circle.
The cookware must be placed centrally on the cooking zone.

Tips on energy saving

Place cookware on the cooking zone before it is switched on.

If possible, always place a lid on the cookware.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting	Cooking-process	suitable for	Cooking time	Tips/Hints
0 Off position
u	Keeping food warm	Keeping cooked foods warm	as required Cover
1-2	Melting	Hollandaise sauce, melting butter, chocolate, gelatine	5-25 mins. Stir occasionally
	Solidifying	Fluffy omelettes, baked eggs	10-40 mins. Cook with lid on
2-3	Simmer-ing on low heat	Simmering rice and milk-based dishes Heating up ready-cooked meals	25-50 mins.	Add at least twice as much liquid as rice, stir milk dishes part way through cooking
3-4	Steaming Braising	Steaming vegetables, fish braising meat	20-45 mins.	With vegetables add only a little liquid (a few tablespoons)
4-5 Boiling		Steaming potatoes 20-60 mins.		Use only a little liquid, e. g.: max. 1/4 l water for 750 g potatoes
		Cooking larger quantities of food, stews and soups	60-150 mins.	Up to 3 l liquid plus in-contents
6-7	Gentle Frying	Frying escalopes, veal cordon bleu, cutlets, ris-soles, sausages, liver, roux, eggs, pancakes, dough-nuts	Steady frying	Turn halfway through cooking
Heat set-ting	Cooking-process	suitable for	Cooking time	Tips/Hints
7-8	Heavy Frying	Hash browns, loin steaks, steaks, Flädle (pancakes for garnishing soup)	5-15 mins. per pan	Turn halfway through cooking
9	Boiling Searing Deep frying	Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

The power function is suitable for heating large quantities of liquid.

Cleaning and Care

Take care! Risk of burns from residual heat. Let the appliance cool down.
Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.
Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

	Remove
Type of dirt	imme-diately	when the appliance has cooled down	using
sugar, food containing sugar yes ---			a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes			cleaner for glass ce-ramic or stainless steel*
fat splashes --- yes
shiny metallic discolorations --- yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops

i Remove stubborn residues with a cleaner for glass ceramic or stainless steel.
i Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if …

Problem Possible	cause Remedy
The cooking zones will not switch on or are not functioning	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
	The lock is switched on Switch off the lock (See the section "Locking/un-locking the control panel")
	The child safety device is switched on	Deactivate the child safety device (See the section "Child safety device")
	Several sensor fields were touched at the same time	Only touch one sensor field
	The sensor fields are partly covered by a damp cloth or with liquid	Remove the cloth or the liquid. Switch the appliance on again.
	Safety cut-out has been triggered	Switch the appliance on again
	STOP+GO is activated Switching off STOP+GO
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
The automatic warm up function is not switching itself on	There is still residual heat on the cooking zone	Let the cooking zone cool down
	The highest heat setting is set	The highest heat setting has the same power as the automatic warm up function
	The heat setting was set using the sensor field	1. Switching off the cooking zone2. Set the cooking zone using the sensor field
Repeated acoustic signal (6x), appliance switches off	One or more sensor fields have been covered for longer than 10 seconds	Uncover sensor field
Display is switching between two heat settings	Power management is reducing the power of this cooking zone	See the section "Switching the power function on and off"
F flashes	Unsuitable cookware	Use suitable cookware
	No cookware on the cooking zone	Place cookware on the cooking zone
	The diameter of the bottom of the cookware is too small for the cooking zone	Move onto a smaller cooking zone
		Use suitable cookware
- is lit Overheating protection for the cooking zone has been triggered		Switch off the cooking zone. Switch the cooking zone on again
E and number are displayed	Electronics fault Disconnect	the appliance from the electrical supply for a few minutes (Take the fuse out of the house's wiring system)If after switching on again,E is displayed again, call the customer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

Please dispose of your old appliance in line with the guidelines for disposal in your community.

Installation Instructions

Safety instructions

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Installation may only be carried out by a qualified electrician.

The minimum distances to other appliances are to be observed.

Drawers may only be installed with a with protective floor directly under the appliance.

The cut surfaces of the work top are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap.

Do not use silicon sealant between the appliance and the work top.

When building in, protect the underside of the appliance from steam and moisture, e.g. from a dishwasher or oven.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

WARNING! Risk of in

Risk of injury from electrical current.

The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

-Observe connection schematic.

• Observe electrical safety rules.

• Ensure anti-shock protection through correct installation by a qualified electrician.

• The appliance must be connected to the electrical supply by a qualified electrician.

IMPORTANT! Pick of injui

Risk of injury from electrical current.

Loose and inappropriate plug and socket connections can make the terminal overheat.

• Have the clamping joints correctly installed by a qualified electrician.

• Use strain relief clamp on cable.

• In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90^ (or higher) must be used.

• If this appliance's mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90^ ; or higher). The latter is available from the Customer Care Department.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm .

Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

Appliance dimensions

Width 766 mm

Depth 506mm

Height 55mm

Service

In the "What to do if ..." section a number of malfunctions are listed that you can rectify yourself Look there first if a fault occurs.

Is it a technical fault?

If so, please contact your customer service centre. (You will find addresses and telephone numbers in the section "Customer Service Centres".)

Always prepare in advance for the discussion. This will make diagnosis of the problem easier and also make it easier to decide if a customer service visit is necessary:

Please make a note of the following information as accurately as possible:

What form does the fault take?
- Under what circumstances does the fault occur?

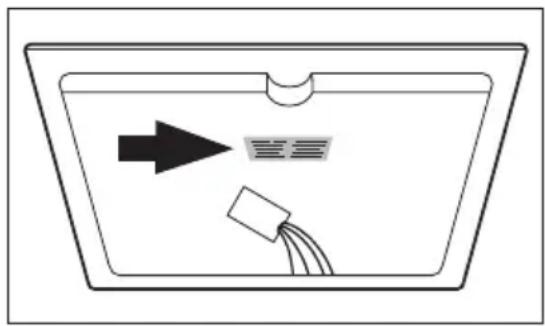

Prior to the telephone call it is important that you make a note of the following appliance code numbers that are given on the rating plate:

-model description,
- PNC code (9 digits),
S No code (8 digits).

We recommend that you record the code numbers here so that you always have them to hand:

Model:

PNC:

S-No:

When do you incur costs even during the warranty period?

• if you could have remedied the fault yourself using the fault table (see section "What to do if ..."),
• if the customer service technician has to make several journeys because he was not provided with all the relevant information before his visit and therefore,forexample,has to fetch spare parts.These multiple trips can be avoided if you prepare your phone call as described above.

Chere cliente, cher client,

Touche sensitive "Touch Control" 33

Voyants 34

Touch sensitive "Touch Control"

Touch-control-sensorvelden 61

Indicaties. 62

Restwarmte-indicatie. 62

Touch-control-sensorvelden

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

Subject to change without notice
