USER MANUAL GSNF 235 A++ WE HISENSE

1. Retire as tampas dos buracos de

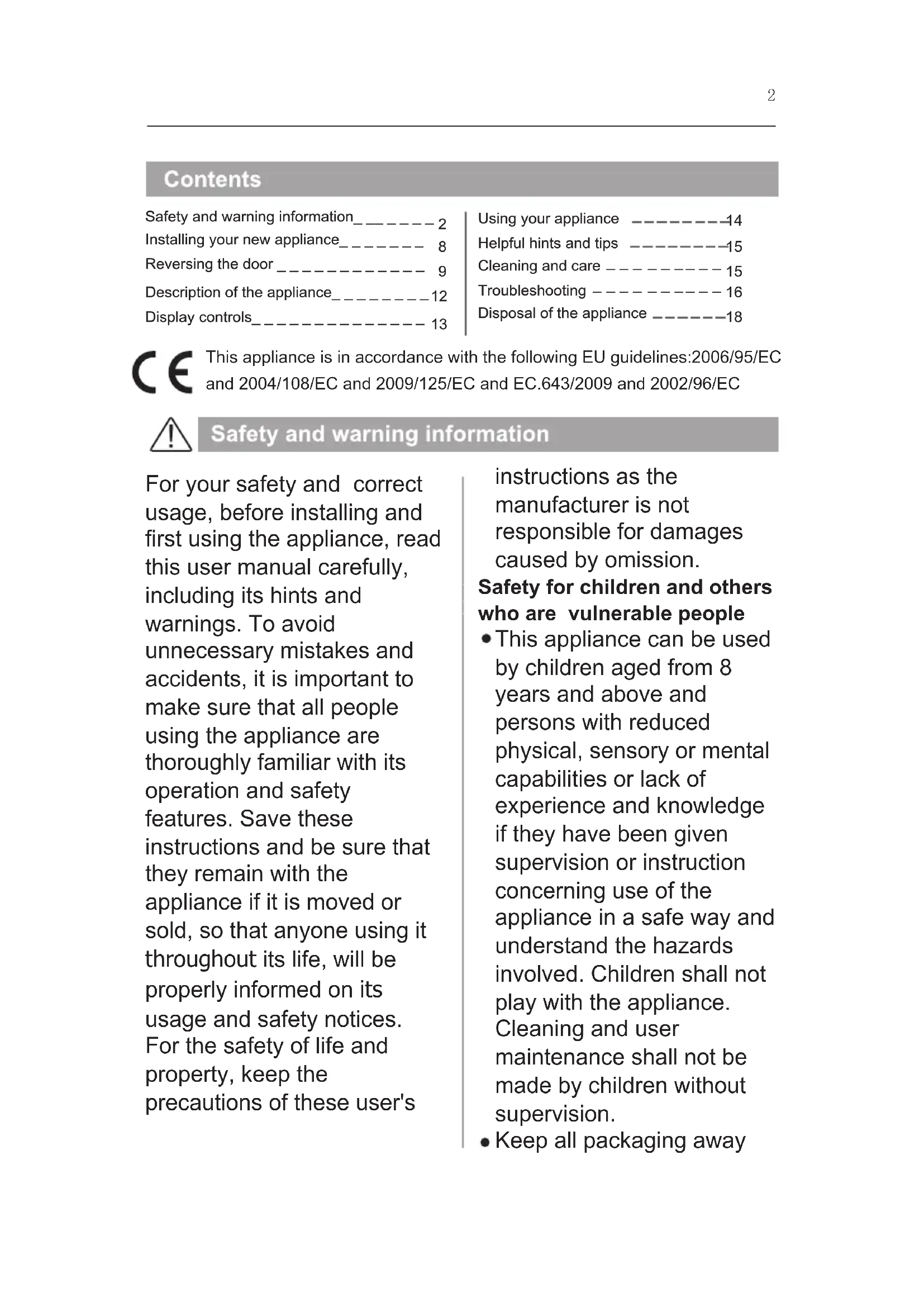

Helpful hints and tips Cleaning and care Troubleshooting Disposal of the appliance Using your appliance

from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety This appliance is intended WARNING — to be used in and similar applications such as household -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non- retail applications WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.4

2. Make sure that the power

plug is not or damaged. A or damaged power plug may overheat and cause a fire.

3. Make sure that you can

plug of the appliance.

4. Do not pull the main

is loose, do not insert the power plug. There is a risk of electric shock or fire. 6.You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must The power cord must not crushed crushed access the main Electrical safety WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. Refrigerant Any damage to the cord may cause a shortcircuit, fire, and/or electric shock. If the refrigerant circuit should be damaged: -Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Caution:risk of fireemploy a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Do not store flammable gass or liquids in the appliance,There is a risk of an explosion. Do not operate any electrical appliances in the appliance(e.g.electric ice cream makers,mixers etc.). When unplugging always pull the plug from the mains socket,do not pull on the cable. Do not place hot items near the plastic components of this appliance. Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to.Refer to relrelevant Daily use instructions for Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. storage. Frozen food can cause frost burns if consumed straight from the freezer compartment. Do not place the appliance in direct sunlight. Never use the base, 5Report possible damages immediately to the place you bought it. In this case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation. The appliance must not be locate close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. Installation Important! caution! Care and cleaning Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. 6Service serviced by an authorized Service Center, and only genuine spare parts must be used. 1)If the appliance is Frost Free. 2)If the appliance contains freezer compartment. Any electrical work required This product must be to do the servicing of the appliance should be carried out by qualified electrician or competent person. 7Stand your appliance in a dry place to avoid high moisture. Keep the appliance out of direct sunlight， rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

It may not work properly if being left at a temperature above or below the indicated range for a long period. Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest :It is advisable for there to be at least 75mm of space from the back to the wall, at least 100mm from its top,at last 100mm from its side to the wall and a clear space in front to allow the doors to open 135°. As shown in following figures. Note: This appliance performs well within the climate class from showed in the table below. SN to T

Leveling of appliance For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner. To allow the door to self-close, tilt the top backwards by about 10mm.

Installing the door handle For the convenience of transportation, the door handles are separately provided in a plastic bag, you can install the door handles as follows.

1. Lever the screw hole covers on the

side which you want to install the handle of the door, and then put them back to the plastic bag.

2. Take the handle match on the right

side of the door as the example, keeping axes of screw holes in the handle and the door in a line, as the picture shows. SymbolAmbient Temperature range( )°C

+10 to +32+16 to +32+16 to +38+16 to +43ClassExtendedTemperateTemperateSubtropicalTropical

free ze r do orscre w ho le c ovehand le p ar tscre whand le c ov er

3. Fix the handle with the screws

provided in the plastic bag. And then install the handle covers

as the above figure showsThe side at which the door opens can be changed, from the left side (as supplied) to the right side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket. Tools you will need: 8mm socket wrenchCross-shaped screwdriver8mm wrenchThin-blade screwdriver Note: Before you start lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.

1. Stand the refrigerator upright.

2. Remove part ① and part ② from

the refrigerator body, and then take down part ③ on the door in the same way. Remove the part screws ④ ,then take off part ⑤ as the picture below. Note: Please hold the freezer door by hand during step 2 to prevent door dropping.

3. Take off the door ① and place it

on smooth surface with panel upwards. Screw out the hinge axis ② (include washer) as show figure Ⅱ and Ⅲ ， and then turn the upper hinge fixed board ③ over as show figure Ⅳ . Finally fix part ②on part ③ as show figure Ⅴ and Ⅵ,then place it at side for use.

① Upper hinge cover② Top cover block

Cover plateSpecial flange self-tapping screwUpper hinge part

⑤5. Place refrigerator flatwise, remove part③ and then loose screws④ . Remove part ② and part① as the picture. 4.Lever handle covers ① and loose screws ② , remove the handle ③ as show figure Ⅰ ,then place it at side for use. Take the screw hole covers ④ down as show figure Ⅱ , and install them in the right side as show figure Ⅲ . Change handle to left, install it as show figure Ⅳ . Detach door stopper ⑤ and limit block ⑥ and then install door stopper and limit block to right as show figure Ⅴ and Ⅵ. ① Handle covers ② Screws ③ Handle ④ Screw hole covers ⑤ Door stopper ⑥ Limit block⑦ Self-tapping screws

6. Screw out lower hinge axis, change

it to the near hole site as the picture below, and then screw up and mount washer as the picture below.

8. Take off the part ①, place it at side

for use as show figure Ⅰ . Move the freezer door to appropriate position, adjust part ② and door, then fix part ② by screws as show figure Ⅱ . (Please hold upper door by hand when installing). Fix the part ③ as show figure Ⅱ (which is in the plastic bag) . Reverse part ① by 180°and install it onto the left corner of the door as show figure Ⅲ . Finally mount part ④ as show figure Ⅳ.( which was taken down in step 2) 9.Finally install part ① and part ② (both of which are taken down in step

2) in the refrigerator body as the

7.Just remount to the step 5,change part① to right and part② to left and then fix them with screws④ . Finally install part③. Note: washer m

ⅠDescription of the appliance View of the appliance Upper cover of door

6. Upper freezer drawer

9. Lower freezer drawer

14. Functional board part

Note: Due to constant improvement of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same. To get more space in the freezer, you can remove drawer(except lower freezer drawer), installation bracket and integrative ice maker/twistable ice tray. Note: To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above. 12Display controls We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to -18°C. If you want to change the temperature, follow the instructions below. Controlling the temperature This feature also helps to keep the vitamins and nutrition of fresh food for longer period.

super freeze function. The light will come on and the freezer temperature setting displays -24℃. ● Super freeze automatically switches off after 26 hours and the freezer temperature will revert back to the previous setting. ● When super freeze function is on, you can switch off super freeze function by pressing “Super” or “Temp” button, then the freezer temperature setting or function mode will revert back to the previous setting. Press “Super” button to activate the Super will quickly lower the temperature within the freezer so food will freeze faster.

All functions and controls of the unit are accessible from a control panel conveniently located on the roof refrigerator body. A display circuit board allows easy configuration of features and settings in a simple and intuitive manner. Important! When the refrigerator is energized, all the pilot lights will turn on for 3 sec and you will also heard a long sound of “beep”. The display board consists of four buttons and eight pilot lights. You will heard a short sound of “beep” when you press the button. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperature inside the compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. -18℃-20℃-16℃-24℃ -22℃-14℃

Press “Temp” button to set freezer temperature between - 14℃ and -24℃ as needed, and the light of the comparable t e m p e r a t u r e w i l l b e l i g h t e n corresponding values according to the following sequence.3. Alarm In case of alarm, “Alarm” icon will light up and a buzzing sound will start. Press “Alarm” button to stop alarm and buzzing then “Alarm” icon will turn off. Caution! When the refrigerator is turned on after a period of inactivity, the Alarm may be activated. In this case, press “Alarm” button to cancel it. Door Alarm The alarm light on and a buzzing sound indicate abnormal conditions, such as accidentally a door left open. Leaving the door of refrigerator open for over 2 minutes will activate a door alarm and buzzer. The buzzer will beep 3 times per minute for 10 minutes. Closing the door cancels the door alarm and buzzer. To save energy, please avoid keeping the door open for a long time when using refrigerator. The door alarm can also be cleared by closing the door. Temperature alarm This is an important feature that alerts

● When the appliance is power off, you can switch the appliance on by pressing “Power” button for 1 second, and the refrigerator returns to the previous temperature setting. users of potential damage to stored food. If a power failure occurs, for example a blackout in your area of residence while you are away, the temperature alarm may be activated when power is restored to be the unit.

If you want to stop using it, you can turn the appliance off by pressing “Power” button.

can switch the appliance off by pressing “Power” button for above 5 seconds, meanwhile the display panel will be turned off. Important! Do not store any food in the fridge during this time. If you will not use the refrigerator for a long time, please pull the plug. When the refrigerator is working, you

Using your appliance This section explains that how to use the refrigerator features. We recommend that you read through carefully before using the appliance. You can turn the flap cover upwards when you want to take out the food in the top chamber. Before you open or close the flap cover, you must lift it to the guide track first. Then, the flap cover can slide along the guide track to the top or the bottom. Flap cover

Freezer Drawer It is used to store food which needs to be frozen, including meat, fish, ice cream, etc. ●Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

2. Remove the power plug from the

3. Clean and dry the interior thoroughly.

4. Ensure that all the doors are wedged

open slightly to allow air to circulate. Hints for the storage of frozen food Ensure that frozen food has been stored correctly by the food retailer. Once defrosted，food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Hints for fresh food refrigeration Do not place hot food directly into t h e r e f r i g e r a t o r , t h e i n t e r n a l temperature will increase resulting in the compressor having to work hard e r and will consu m e mor e energy. Do cover or wrap the food， particularly if it has a strong flavor. Place food properly so that air can circulate freely around it.

Hints for freezing When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.

Helpful hints and tips Energy saving tips We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat. (Direct sunlight, electric oven or cooker etc.) Don't set the temperature colder than necessary. Don't store warm food or evaporating liquid in the appliance.

Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

I c e d p ro d uc t s , i f c o n s u m e d immediately after removal from the freezer compartment, will probably cause frost burns to the skin. It is recommended to label and date each frozen package in order to keep track of the storage time.

Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. Wrap up the food in aluminum foil or polyethylene food wraps which are airtight. Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.

Cleaning and care Cleaning and care For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months. Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. 15Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning. Caution! Only after the door seals are completely dry should the appliance be powered on. Door seal cleaning Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. Caution! -Don't use sharp objects as they are likely to scratch the surface. -Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire. Interior cleaning -Wipe the digital panel and display panel with a clean, soft cloth. -Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. -Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Exterior cleaningExterior cleaning To maintain good appearance of your appliance, you should clean it regularly. You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows: 1 . R e m o v e e x i s t i n g f o o d a n d accessories baskets, unplug the appliance from the mains power and appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

2. When defrosting is completed, clean

your freezer as described above. Caution! Don't use sharp objects to rem o ve fr ost f rom t he fr e ezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. 16Appliance is not working correctly

Problem Odours from the compartments Noise from the appliance The motor runs continuously A layer of frost occurs in the compartment Temperature inside is too warm Possible cause & Solution Check whether the power cord is plugged into the power outlet properly. Check whether the “Power” funtion is on by pressing the “power” button for 1 second. Check the fuse or circuit of your power supply, replace if necessary. The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem. It is normal that the refrigerator is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor. The interior may need to be cleaned. Some food, containers or wrapping cause odours. The sounds below are quite normal: Compressor running noises. Air movement noise from the small fan motor in the fridge compartment or other compartments. Gurgling sound similar to water boiling. Popping noise during automatic defrosting. Clicking noise before the compressor starts. Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not level. The back of appliance touches the wall. Bottles or containers fallen or rolling. It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances: Temperature setting is set colder than necessary Large quantity of warm food has recently been stored within the appliance. The temperature outside the appliance is too high. Doors are kept open too long or too often. After your installing the appliance or it has been switched off for a long time. Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to cleaning and care chapter. You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top. 17Increase the temperature by following the “Display controls” chapter. Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing. The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout （located underneath the top of the compressor depot）may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout. Temperature inside is too cold Doors can't be closed easily Water drips on the floor Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance

1. Pull out the mains plug from the mains socket.

2. Cut off the power cord and discard with the mains plug.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Correct Disposal of this product This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product.
