USER MANUAL FC405MHW BRANDT

FR MANUEL D'INSTRUCTION
EN INSTRUCTION MANUAL

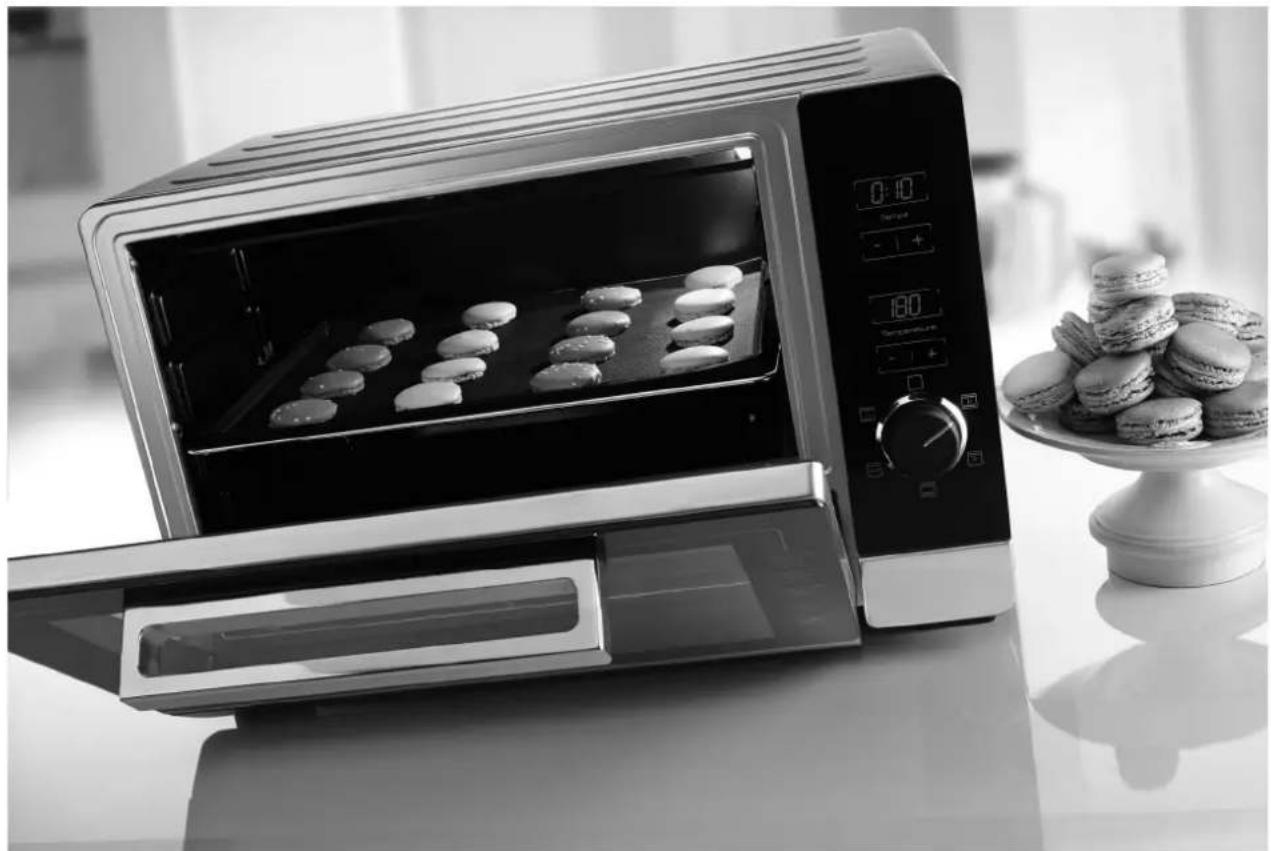

Four compact 40L Compact oven 40L

FC405MH

Brandt

Chere Cllente, Cher Client

ENGLISH INSTRUCTION MANUAL 15

1. A L'ATTENTION DE L'UTILISATEUR

- RELATIONS CONSOMMATEURS

You have just purchased a BRANDT compact oven and we would like to thank you.

We have placed in this appliance all our passion and know-how in order to meet at best your need. Innovative and efficient: we designed it to be always easy to use.

In the BRANDT products line, you will also find a wide range of small domestic appliances that can be coordinated to your new BRANDT compact oven.

Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service is at your disposal and at your listening to answer to all your questions and suggestions.

You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information.

BRANDT

As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development.

Caution: Before installing and using your appliance, please read carefully this installation and user's guide to quickly familiarise yourself with its functioning.

TABLE OF CONTENTS

1. INFORMATION FOR THE USER 17

A. Safety recommendations 17
B. Technical data 20
C. Protecting the environment 20

2. SETTING UP YOUR APPLIANCE 21

A. Installing your oven in complete safety 21
B. Electrical connection 22
C. Description of your appliance 22

3. USE OF YOUR APPLIANCE 23

A. Before using your appliance for the first time 23
B. Temperature control 23
C. Cooking time setting 23
D. Cooking function selection 24
E. Use recommendations 26

4. MAINTENANCE OF YOUR APPLIANCE 26

A. Cleaning instructions 26
B. Changing the interior light bulb 26
C. Storage instructions 27
D. Warranty and after-sales service 27

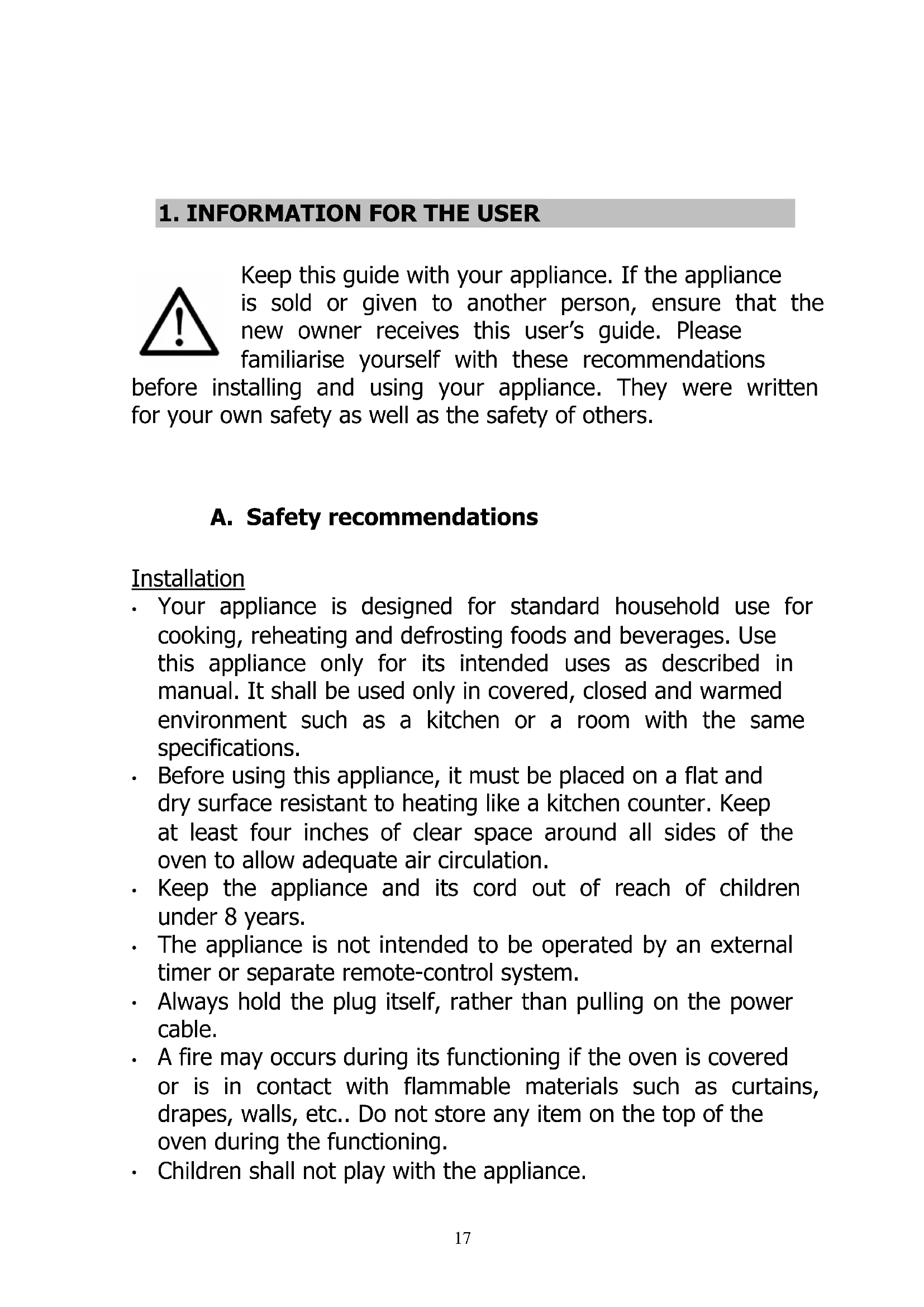

1. INFORMATION FOR THE USER

Keep this guide with your appliance. If the appliance is sold or given to another person, ensure that the new owner receives this user's guide. Please familiarise yourself with these recommendations

before installing and using your appliance. They were written for your own safety as well as the safety of others.

A. Safety recommendations

Installation

• Your appliance is designed for standard household use for cooking, reheating and defrosting foods and beverages. Use this appliance only for its intended uses as described in manual. It shall be used only in covered, closed and warmed environment such as a kitchen or a room with the same specifications.
• Before using this appliance, it must be placed on a flat and dry surface resistant to heating like a kitchen counter. Keep at least four inches of clear space around all sides of the oven to allow adequate air circulation.
• Keep the appliance and its cord out of reach of children under 8 years.
• The appliance is not intended to be operated by an external timer or separate remote-control system.
• Always hold the plug itself, rather than pulling on the power cable.
• A fire may occurs during its functioning if the oven is covered or is in contact with flammable materials such as curtains, drapes, walls, etc.. Do not store any item on the top of the oven during the functioning.
  Children shall not play with the appliance.

Use

• This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Children under 8 years old shall be kept away unless continuously supervised.
• Care should be taken to avoid touching heating elements during the use.
• Do not store any item on top of the oven during operation.
• Do not cover any part of the oven with metal foil. This may cause overheating of the oven. A fear or some dysfunctions may occur.
• Keep cord away from heated surface and do not cover any events on the oven.
• Do not place any of the following materials in the oven; cardboard, plastic, paper or other similar materials.
• Large food items and metal utensils must not be placed in the oven as they may lead to a fire or create a risk of electric shock. Keep away utensils and food items from heated surfaces.
• Your appliance is designed for standard household use for cooking, reheating and defrosting foods and beverages. The drying of food or linen and the heating of heating pillows, slippers, sponges, wet linen and other similar goods could bring risks of wounds, inflammation or fire.
• The use of accessory attachments not recommended by the appliance's manufacturer may cause hazard or injury.

Maintenance

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Unplug the appliance when not in use or before cleaning. Allow the appliance to cool down before adding or removing any parts and before cleaning.
• To protect against electric shock, do not place any part of this oven in water or other liquid.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

However, this product is covered by a 2-year warranty. For more details, please refer to the warranty conditions supplied by your retailer.

• This appliance has been tempered, safety glass door. Tempered glass does not split but break in pieces will not have sharp edges. Avoid scratching the door surface or nicking edges. Call the service Center before any use.
• The light is only for the oven. Do not use it to enlighten rooms.
• For cleaning surfaces in contact with food, please refer "Cleaning instructions" section.

Improper use

• The appliance is intended for domestic use only in private housing. The use of this appliance in common or professional's area such as a room for a break for work, a premise in a campsite or hotel are not a proper use as defined by the manufacturer.
• The manufacturer accepts no responsibility in case of improper use.

• Use this appliance only for its intended uses as described in manual.

• Please become familiar with these recommendations before installing and using your appliance.

Caution: External surfaces may become very hot during operation of the appliance. Always wear protective insulated oven gloves when touching the hot oven or hot dishes and food, or when inserting or ring racks, pans...

B. Technical data

Model no FC405MHB / FC405MHW / FC405MHS
Power supply 220-240 V~50/60Hz
Energy consumption 2100W
Dimensions (HxLxD) 373 x 578 x	435 mm
Net weight 12,5 kg

C. Protecting the environment

Arrived in end of life, this product should not be thrown with household waste. It must be brought in a recycling center or to your retailer. It allows avoiding negative effects on the environment and health of the inappropriate elimination. By respecting this process, materials can be recycled with a view to realise significant resources and energy savings.

A symbol reminds you that you must not throw your appliance with the household waste apps on the product. For further information, contact your city council or the shop where you bought the product.

2. SETTING UP YOUR APPLIANCE

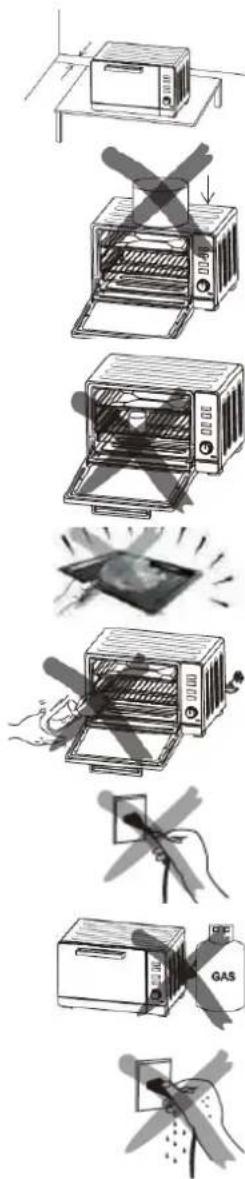

A. Installing your oven in complete safety

If the oven is positioned too close to a wall, this wall can be burned or discoloured. Ensure that curtains, etc. are not in contact with the oven.

Do not put anything between the base of the oven and the surface on which it is set. Any object placed under the oven may be burned. Do not put anything on the top of the oven when it is in use because the heat can deform, crack or otherwise damage the item.

Do not heat food directly in the bottle or tin because the container may break and the content can burn the user.

Always use the handle when inserting or removing the tray. Touching the tray may cause severe burns.

Never pour water on the oven door when it is hot, the glass can shatter.

When unplugging the oven, always take hold of the plug itself. Never pull on the cord; this could break the wires inside the cord.

During the use, do not position the oven near a gas burner or any other heat source. Doing this could affect the temperature control.

Do not touch the power cable or unit with wet hands. Always unplug the cord after use and whenever the unit is left unattended. A malfunction while the plug is inserted into the mains could cause a fire.

When cooking fat-spitting dishes such as roast chicken, it is recommended to use 2 sheets of aluminium foil in order to reduce face spitting. Place one sheet on the tray and the other over the food. The oil will drip into the gap between the sheets of foil.

Caution :

Ensure that your appliance had not suffered any damage during transportation (deformed seal or door, etc.). If you see any kind of damage, contact your retailer before doing anything further with the appliance.

B. Electrical connection

The oven must be connected to a property wired outlet. Insert the plug into the socket. If it is not properly connected, it could overheat. Do not use an electric light outlet. Never connect multiple plugs to the same power outlet.

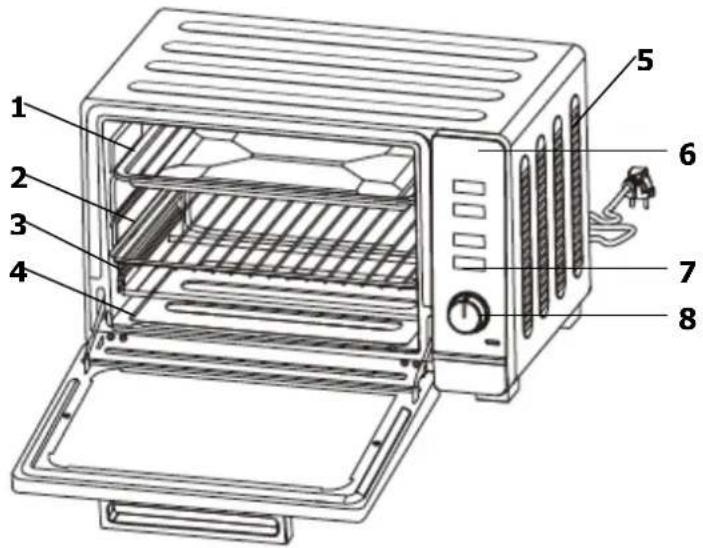

C. Description of your appliance

Oven :

1. Drip pan
2. Wire rack
3. Rack support
4. Heating element
5. Ventilation air intake
6. Control panel
7. Sensitive touch
8. Selector of cooking functions

Accessories :

1. Rotisserie fork

2. Rotisserie handle

3. Tray handle
4. Drip pan
5. Wire rack

3. USE OF YOUR APPLIANCE

A. Before using your appliance for the first time

• Unpack your appliance and check that all elements and accessories are present and undamaged.
• Check that all wrap elements (plastic, cardboard box, polystyrene) have been removed.
• Clean all the parts according to the instructions given in the "Maintenance of your appliance" section.
  Dry all parts thoroughly and assemble them, the oven is now ready to use.

Heat the empty oven:

• Insert the tray and wire track.
• Set the cooking function on and set the temperature control knob to 250^ then heat the empty oven for about 10 minutes.
• Then, let it cool down, remove the plug from the power socket and clean all the detached parts again.

Note:

There may be some smoke and a burning smell during the first use, however it is normal.

B. Temperature control

Adjust the temperature depending on the dish you will cook.

Press on + / - to adjust the temperature 10 by 10^ according to the dish you want to cook (temperature between 70^ and 250^ ). After having adjusted the thermostat, the cooking starts after 5 seconds of inactivity. Then, the screen will show the temperature of cooking.

C. Cooking time setting

Press on + / - to adjust the time from 0 to 120min . Time can be increased/decreased 1 by 1 until 20min;5 by 5 increase/decrease above 20 min to 90min . After having adjusted the cooking time, the oven starts the cooking after 5 seconds of inactivity. Then, the screen will show the remaining time of cooking. The oven can be turned off manually during cooking by turning the timer anti-clockwise to the "0" position.

Note: If the inside of the oven is dirty, cooking may take slightly longer than usual.

D. Cooking function selection

Séquences Cooking mode
		Multifunction Upper heat + Lower heat + Fan function
		Ventilated Grill Upper heat + Fan function
		Natural convection Upper heat + Lower heat
		Grill Upper heat + Rotisserie
		Multifunction + Rotisserie : Upper heat + Lower heat + Rotisserie + Fan function

Select the suitable cooking function for the dish you are cooking. During the selection of the cooking function, recommendations of time and temperature are automatically made. These can be adjusted with the buttons of control + / -

Specific functions :

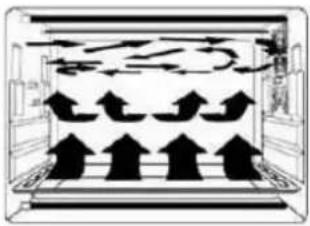

1. Fan Function (Upper & Lower Heating + Fan function)

Thanks to the fan function on the side of the cavity, the hot air circulates in the entirety of the oven, so the heat is better distributed and the cook is more uniform.

2. Rotisserie function

This function allows even cooking, use with Rotisserie Forks.

1. Install the rotisserie forks To operate, the rotisserie must be positioned on the correct side: with the small hook on the left side of the oven

Left

Right

2. Install the rotisserie forks

Fit the rotisserie forks in the rotisserie holes and then install the drip pan under the rotisserie

3. Remove the rotisserie forks

Use the rotisserie handle to remove the rotisserie forks from the rotisserie tray and then remove it from the rotisserie hole

Rotisserie handle

To avoid the possibility of a burn, always use the rotisserie handle to remove the rotisserie from the oven

Recommended baking time :

SEQUENCE		TYPE OF FOOD TEMPERATURE		RACK SUPPORT	TIMER (min)
		FISH 180°C /	200°C 2 15-20
		ROAST BEEF 230°C* 2 30 for 1000g
		CHICKEN 220°C	Rotisserie 55 for	1000g
		QUICHE 200°C	2 40-45
		GRATIN DAUPHINOIS	180°/200°C 2	40-45
		LASAGNA 180°C / 200°C 2 40-45
		PIZZA 220°C*	2		15-20 depending on thickness
		PIES	200°C 2 30-35
		TOASTED BREAD	180°C* 4	5-8
		CAKE	170°C 2 45-55
		CUPCAKES 160°C 2		25

SHORTBREAD BISCUIT

170°C* 3 10

• preheat the oven

E. Use recommendations

1. Drip pan and Wire Rack :

Accessories Food (for reference only) How to use Tray handle?
Drip pan Roast chicken wings, hamburgers, gratin, cakes and most other oven-cooked foods
Note: We recommend you to use it as a crumb tray.
Wire rack	Baked potatoes, dry food

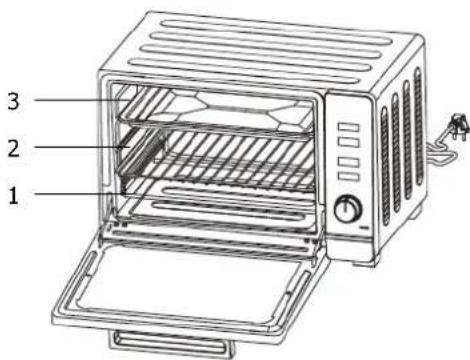

2. Rack support :

There are 3 different positions for the tray which can adjust according to the dish you are cooking. For example, when you are cooking a gratin and you want to have the top part cooked the most, use the third position. To roast a chicken, use the first or the second position.

3. MAINTENANCE OF YOUR APPLIANCE

A. Cleaning instructions

Always unplug and allow the oven to cool completely before cleaning or moving.

Clean the grill pan, the wire rack, the handle and the drip pan after each use.

Clean the interior of your oven and all removable parts with a mild non-abrasive cleaning product and a plastic scouring pad after each use.

Rinse and dry thoroughly. Do not rub too hard the interior surfaces of the oven as this could scratch the finish. Clean the glass oven door exterior with glass cleaner or a mild detergent and a damp cloth or plastic scouring pad. Do not use abrasive cleaning products or pads as they might scratch the glass of the appliance.

Rinse and dry thoroughly with a clean cloth. Allow to dry before closing the glass door.

B. Changing the interior light bulb

To replace the light :

1. Unplug the oven and allow the oven to cool completely

2. To move the porthole, turn it counter clockwise

3. Clean with hot water and detergent
4. Converse the light and change it (25W E14/25x17)
5. Then, put the porthole back on

C. Storage instructions

Unplug the appliance, allow it to cool and clean it before storing. Store the oven in its original box in a clean and dry place. Never store the appliance while it is hot or still plugged in. Never wrap the power cable tightly around the appliance. Do not put any stress on the cable where it joins the appliance, as this could cause the cable to fry and break.

D. Warranty and after-sales service

This product is covered by a 2-year warranty by your retailer. For more details, please refer to the warranty conditions supplied by your retailer.

- SERVICE CALLS

Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand.

When you call, mention your appliance's "Service" reference, as well as its serial number "Nr".

This information appears on the manufacturer's nameplate which can be found stuck behind the machine.

CUSTOMER RELATIONS

To find out more about all the brand's products you can visit our website: www.brandt.com

To communicate:

You may visit our website www.brandt.com and go to the "CONTACT" section
You may e-mail us: [e-mail]
You may write us at the following address: Service Consommateurs BRANDT 5 av des Béthunes, CS 69 526 95 060 CERGY PONTOISE CEDEX

Or phone us from Monday to Friday from 8:30 am to 6:00 pm : 0892 02 88 01 0.337HTTC/mm depus un paste fio
