Brand	Progress
Model	PAI6105E
Product type	Built-in induction hob
Number of cooking zones	4 induction zones
Zone types	Front left (210 mm), Rear left (180 mm), Front right (145 mm), Rear right (180 mm)
Maximum power per zone	Up to 3200 W (with Booster)
Power supply	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	Approx. 60 x 52 x 5 cm
Weight	Approx. 8 kg
Main functions	Automatic start, Booster, STOP+GO, Timer, Lock, Child lock
Surface material	Ceramic glass
Cleaning	Soft cloth and mild detergent; scraper for stubborn residue
Safety	Automatic shutdown, residual heat, lock, child lock
Repairability index	7/10 (estimated)
Availability of spare parts	Available through after-sales service

Frequently Asked Questions - PAI6105E PROGRESS

How to turn the hob on and off?

Press the ① button for 1 second to turn the appliance on or off.

How to adjust the cooking level?

Use the selection strip by sliding your finger or directly pressing the desired level (1 to 9).

What is the Booster function for?

The Booster function increases the power of a cooking zone to maximum for a limited time (10 minutes). Activate it by pressing the P button.

How to use the timer?

Select the cooking zone with the ⏲ button, then press + or - to set the duration (0-99 minutes). The countdown starts automatically.

How to lock the control panel?

Press the ⑥ button for 4 seconds. The L symbol lights up. To unlock, repeat the operation.

What to do in case of an 'E' error message?

Unplug the appliance for a few minutes, then plug it back in. If the error persists, contact after-sales service.

What types of pots to use on an induction hob?

Use containers made of cast iron, enameled steel or stainless steel with a flat, magnetic bottom. Avoid aluminum, copper or glass.

How to clean the ceramic glass surface?

Wait for the surface to cool. Use a soft cloth with a mild detergent. For burnt-on residue, use a special scraper.

Why does the appliance turn off by itself?

This may be due to a timeout (automatic shutdown), overheating, or an object placed on the controls. Check and restart.

How to activate the child lock?

Turn on the appliance, do not select any zone, then press the ⑥ button for 4 seconds. The L symbol appears. Turn off the appliance to confirm.

USER MANUAL PAI6105E PROGRESS

BESCHRIJVING VAN HET PRODUCT

Algemeen overzicht

Öko Timer (Eco-timer)

Induction 7.4 kW Made in Germany

Ser.Nr. 7.4 kW

PROGRESS

Safety instructions 17

Product description 19

Daily use 20

Helpful hints and tips 22

Care and cleaning 24

Troubleshooting

Installation

Technical information 27

Environment concerns 28

Subject to change without notice.

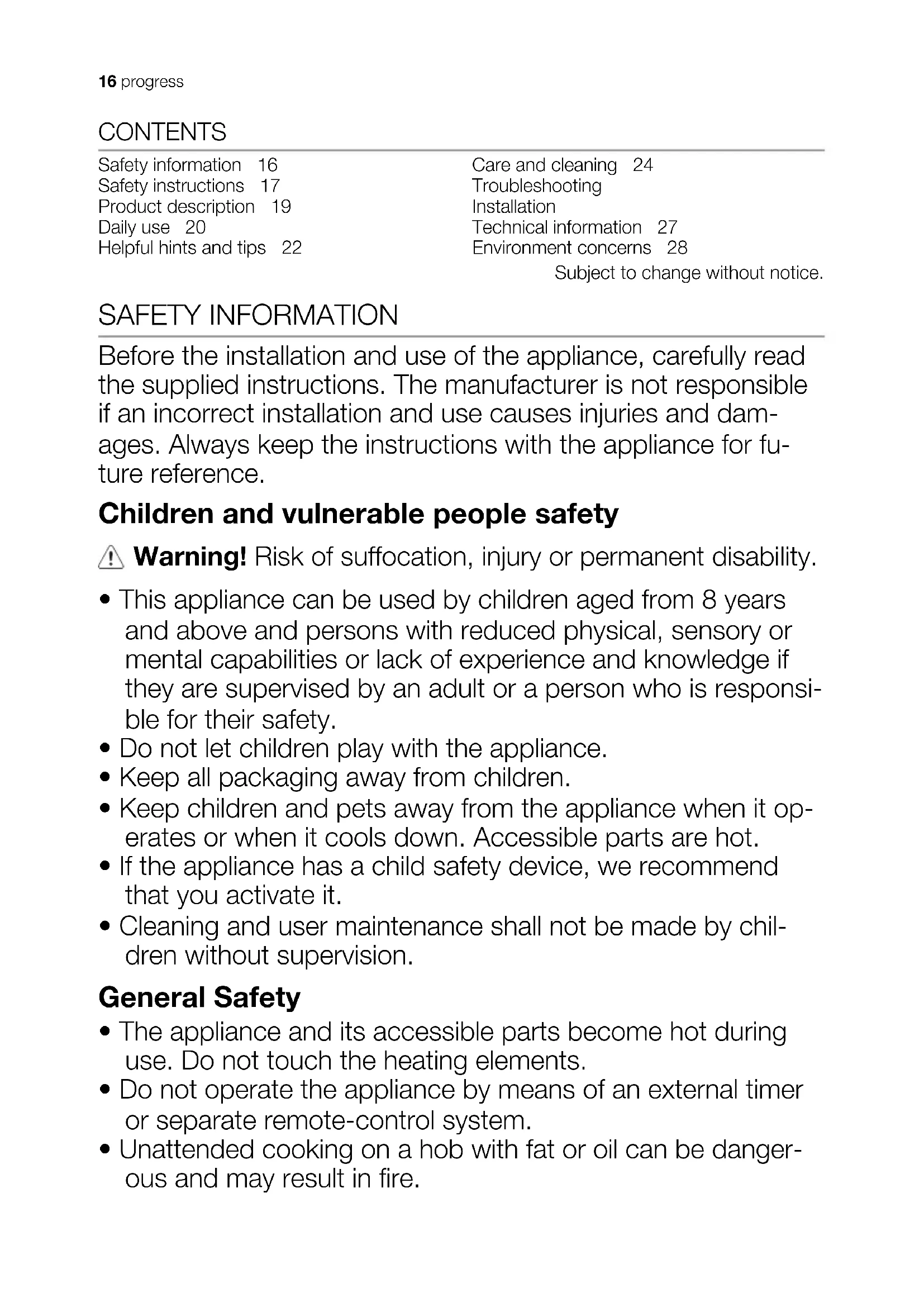

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control and do not rely on the pan detector.

SAFETY INSTRUCTIONS

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.

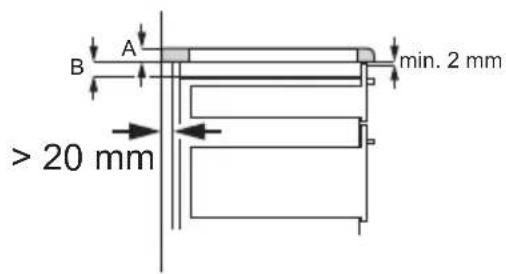

• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

• The bottom of the appliance can get hot. We recommend to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation makesure that the appliance is disconnectedfrom the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on cable.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

Use

Warning! Risk of injury, burns or electric shock.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Do not use an external timer or a separate remote-control system to operate the appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Set the cooking zone to "off" after each use. Do not rely on the pan detector.
• Do not use the appliance as a work surface or as a storage surface.
• If there is a crack on the surface, disconnect power supply to prevent the electrical shock.
• Users with a pacemaker must keep a distance of minimum 30~cm from the induction cooking zones when the appliance is in operation.

Warning! Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not try to extinguish a fire with water. Disconnect the appliance and cover the flame with a lid or a fire blanket.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

Care and Cleaning

Warning! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

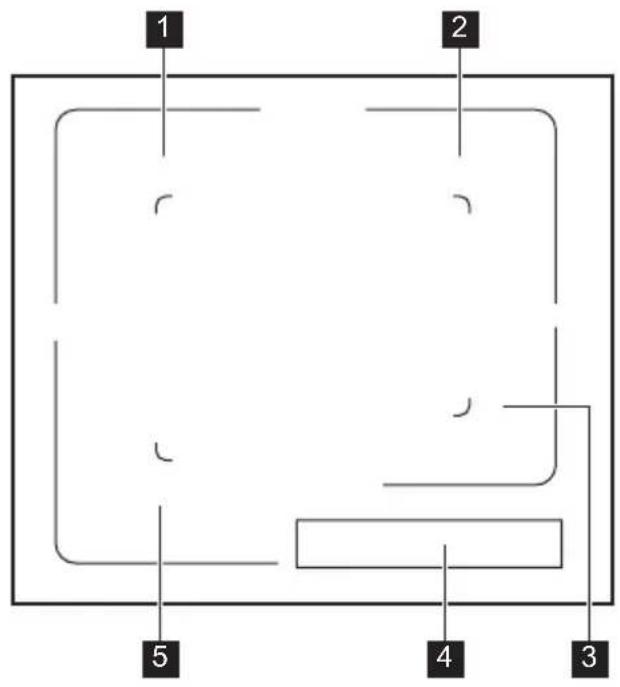

General overview

1 Induction cooking zone
2 Induction cooking zone
3 Induction cooking zone
4 Control panel
5 Induction cooking zone

Control panel layout

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

Sensor field Function
1	①	To activate and deactivate the appliance.
2	②	To lock / unlock the control panel.
3	||	To activate and deactivate the STOP+GO function.
4	Timer indicators of cooking zones To show for which cooking zone you set the time.
5	The timer display	To show the time in minutes.
6	P	To activate the Power function.
7	A heat setting display	To show the heat setting.
8	A control bar	To set a heat setting.
9	+/-	To increase or decrease the time.
10	◎	To set a cooking zone.

Heat setting displays

Display Description
0	The cooking zone is deactivated.
1 - 9	The cooking zone operates.
u	The function operates.
R	The Automatic Heat Up function operates.
P	Power function operates.
E + digit	There is a malfunction.
H	A cooking zone is still hot (residual heat).
L	Lock / The Child Safety Device operates.
F	Not correct cookware or too small or no cookware on the cooking zone.
-	The Automatic Switch Off function operates.

Residual heat indicator

Warning! The risk of burns from residual heat!

The induction cooking zones make the heat necessary for cooking directly in the bottom of the cookware. The glass ceramic is hot from the heat of the cookware.

DAILYUSE

Activation and deactivation

Touch ① for 1 second to activate or deactivate the appliance.

Automatic Switch Off

The function deactivates the appliance automatically if:

• All cooking zones are deactivated (0).
• You do not set the heat setting after you activate the appliance.
• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An acoustic signal sounds some time and the appliance deactivates. Remove the object or clean the control panel.
• The appliance becomes too hot (e.g. when, a saucepan boils dry). Before you use the appliance again, wait for the cooking zone to cool down.

• You use incorrect cookware. The symbol comes on and the cooking zone deactivates automatically after 2 minutes.

• You do not deactivate a cooking zone or change the heat setting. After some time comes on and the appliance deactivates. See below.
  The relation between heat setting and times of the Automatic Switch Off function:

• 6 hours

• 3 - 4 - 5 hours
• [5] - 4 hours
• 6 - 9 - 1.5 hours

The heat setting

Touch the control bar at the heat setting. Move your finger along the control bar to change the setting. Do not release before you have a correct heat setting. The display shows the heat setting.

Automatic Heat Up

You can get a necessary heat setting in a shorter time if you activate the Automatic Heat Up function. This function sets the highest heat setting for some time (see the diagram), and then decreases to the necessary heat setting.

To start the Automatic Heat Up function for a cooking zone:

1. Touch P (comes on in the display).
2. Immediately touch the necessary heat setting. After 3 seconds comes on in the display.

To stop the function change the heat setting.

Power function

The Power function makes more power available to the induction cooking zones. The Power function can be activated for a limited period of time ( see Technical Information chapter). After that, the induction cooking zone automatically sets back to highest heat setting. To activate, touch P comes on. To deactivate, change the heat setting.

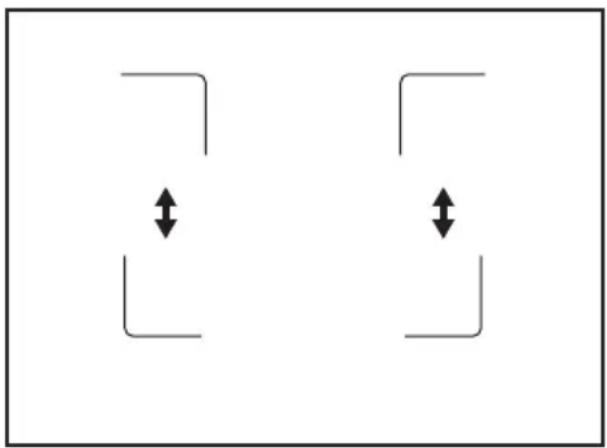

Power management

The power management divides the power between two cooking zones in a pair (see the illustration). The power function increases the power to the maximum level for one cooking zone in the pair. The power in the second cooking zone automatically decreases. The heat setting display for the reduced zone changes between two levels.

Timer

Count Down Timer

Use the Count Down Timer to set how long the cooking zone operates for only this one time.

Set the Timer after the selection of the cooking zone.

You can set the heat setting before or after you set the timer.

To set the cooking zone: touch again and again until the indicator of a necessary cooking zone comes on.
To activate or change the Timer: touch + or - of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slow, the time counts down.
- To deactivate the Timer: set the cooking zone with and touch to deactivate the Timer. The remaining time counts back to 00. The indicator of the cooking zone goes out.
- To see the remaining time: set the cooking zone with . The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.

To stop the sound: touch

Minute Minder

You can use the Timer as a Minute Minder while the cooking zones do not operate.

Touch . Touch - er to-set the time.

When the time comes to an end, the sound operates and 00 flashes

To stop the sound: touch

STOP+GO

The STOP + GO function sets all cooking zones that operate to the lowest heat setting ( ).

When STOP + GO operates, you cannot change the heat setting.

The STOP + GO function does not stop the timer function.

To activate this function touch | | . The symbol comes on.
To deactivate this function touch | | The heat setting that you set before comes on.

Lock

When the cooking zones operate, you can lock the control panel, but not ① . It prevents an accidental change of the heat setting.

First set the heat setting.

To start this function touch 0 . The symbol comes on for 4 seconds.

HELPFUL HINTS AND TIPS

i INDUCTION COOKING ZONES

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Cookware for induction cooking zones

Important! Use the induction cooking zones with correct cookware.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).
  not correct: aluminium, copper, brass, glass, ceramic, porcelain.

The Timer stays on.

To stop this function touch 品 . The heat setting that you set before comes on.

When you stop the appliance, you also stop this function.

The Child Safety Device

This function prevents an accidental operation of the appliance.

To activate The Child Safety Device

• Activate the appliance with ①. Do not set the heat settings.
• Touch for 4 seconds. The symbol comes on.
• Deactivate the appliance with ① .

To deactivate The Child Safety Device

• Activate the appliance with ①. Do not set the heat settings. Touch ② for 4 seconds. The symbol ③ comes on.
• Deactivate the appliance with ① .

To override The Child Safety Device for only one cooking time

• Activate the appliance with ①. The symbol L comes on.
• Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the appliance.
• When you deactivate the appliance with ① , The Child Safety Device operates again.

Cookware is correct for an induction hob if ...

... some water boils very quickly on a zone set to the highest heat setting..
- ... a magnet pulls on to the bottom of the cookware.

The bottom of the cookware must be as thick and flat as possible.

The noises during operation

If you can hear

• crack noise: cookware is made of different materials (Sandwich construction).
• whistle sound: you use one or more cooking zones with high power levels and

the cookware is made of different materials (Sandwich construction).

• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not refer to appliance malfunction.

Energy saving

How to save energy

• If it is possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.
• Use the residual heat to keep the food warm or to melt it.

The cooking zone efficiency

The cooking zone efficiency is related to the diameter of the cookware. The cookware with a smaller diameter than the minimum receives only a part of the power generated by the cooking zone. For the minimum di

ameters see the Technical Information chapter.

Öko Timer (Eco Timer)

To save energy, the heater of the cooking zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

The Examples of cooking applications

The relation between the heat setting and the cooking zone consumption of power is not linear.

When you increase the heat setting it is not proportional to the increase of the cooking zone consumption of power.

It means that the cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting	Use to: Time Hints	Nominal		power consumption
1	Keep warm the food you cooked	as required Put a lid on a cookware 3 %
1 - 2 Hollandaise sauce, melt: butter, chocolate, gelatine		5 - 25 min Mix from time to time 3 - 5 %
1 - 2 Solidify: fluffy omelettes, baked eggs		10 - 40 min Cook with a lid on 3 - 5 %
2 - 3 Simmer rice and milkbased dishes, heating up ready-cooked meals		25 - 50 min Add	the minimum twice as much liquid as rice, mix milk dishes part procedure through	5 - 10 %
3 - 4 Steam vegetables, fish, meat		20 - 45 min Add	some tablespoons of liquid	10 - 15 %
4 - 5	Steam potatoes	20 - 60 min	Use max. ¼ l water for 750 g of potatoes	15 - 21 %
4 - 5	Cook larger quantities of food, stews and soups	60 - 150 min Up	to 3 l liquid plus ingredients	15 - 21 %
6 - 7 Gentle fry: escalope, veal cordon bleu, cutlets, ris-soes, sausages, liver, roux, eggs, pancakes, doughnuts		as necessary	Turn halfway through	31 - 45 %
7 - 8 Heavy fry, hash browns, loin steaks, steaks		5 - 15 min	Turn halfway through	45 - 64 %
9	Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips			100 %
P	Boil large quantities of water. Power management is activated.

CARE AND CLEANING

Clean the appliance after each use.

Always use cookware with clean bottom.

Scratches or dark stains on the glassceramic cause no effect on how the appliance operates.

To remove the dirt:

1. • Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special scraper for the glass. Put the scraper on the glass surface at an acute angle and move the blade on the surface.

2. Remove after the appliance is

sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

1. Clean the appliance with a moist cloth and some detergent.

2. At the end rub the appliance dry with a clean cloth.

TROUBLESHOOTING

Problem Possible Remedy
You cannot activate the appli- ance or operate it.	Activate the appliance again	and set the heat setting in less than 10 seconds.
You touched 2 or more sensor fields at the same time.	Touch only one sensor field.
The STOP+GO function oper- ates.	Refer to the chapter “Daily Use”.
There is water or fat stains on the control panel.	Clean the control panel.
An acoustic signal sounds and the appliance deactivates. An acoustic signal sounds when the appliance is deactiva- ted.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The appliance deactivates. You put something on the sen- sor field ①.	Remove the object from the sensor field.
The residual heat indicator does not come on.	If the cooking zone operated sufficiently long to be hot, speak to the service centre.
The Automatic Heat Up func- tion does not operate.	The cooking zone is hot. Let the cooking zone become sufficiently cool.
	The highest heat setting is set.	The highest heat setting has the same power as the Auto- matic Heat Up function.
The heat setting changes be- tween two levels.	The Power management is ac- tivated.	Refer to "Power management".
The sensor fields become hot. The cookware is too large or you put it too near to the con- trols.		Put large cookware on the rear cooking zones if necessary.
□ comes on	The Automatic Switch Off oper- ates.	Deactivate the appliance and activate it again.
□ comes on	The Child Safety Device or the Lock function operates.	Refer to the chapter "Daily Use".
□ comes on	No cookware is on the cooking zone.	Put cookware on the cooking zone.
Incorrect cookware. Use the correct cookware.
The diameter of the bottom of the cookware is too small for the cooking zone.		Move cookware to a smaller cooking zone.
□ and number comes on.	There is an error in the appli- ance.	Disconnect the appliance from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again. If □ comes on again, speak to the service centre.
□4 comes on	There is an error in the appli- ance because a cookware boils dry. The overheating protection for the cooking zones and the Automatic Switch Off operate.	Deactivate the appliance. Re- move the hot cookware. After approximately 30 seconds, ac- tivate the cooking zone again. If the cookware was the problem, the error message goes out of the display, but the residual heat indicator can stay. Let the cookware become sufficiently cool and refer to "Cookware for the induction cooking zone" to see if your cookware is com- patible with the appliance.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on.

Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer will not be free of charge, also during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

INSTALLATION

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

Model
- PNC
- Serial number

Built-in appliances

• Only use the built-in appliances after you assemble the appliance into correct built

Assembly

B

12 mm 28 mm 38 mm

A

57 mm
41 mm
31 mm

B

12mm 28mm 38mm

A

57 mm
41 mm
31 mm

in units and work surfaces that align to the standards.

Connection cable

• The appliance is supplied with the connection cable.
• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90^ ; or higher). Speak to your local Service Centre.

R 5mm

min.

12 mm

490+1mm 560+1mm

min.

2 mm

min.

38 mm

min.

2 mm

TECHNICAL INFORMATION

Induction 7.4 kW Made in Germany

Ser.Nr. 7.4 kW

PROGRESS

Cooking zones power

Right rear - 180

mm

1800W2500W10145

Right front - 145

mm

1400W 125

Left rear - 180

mm

1800W 145

Left front - 210

mm

2200W3200W10180

The power of the cooking zones can be different in some small range from the data in

ENVIRONMENT CONCERNS

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please

the table. It changes with the material and dimensions of the cookware.

contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<, >PS< , etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

SOMMAIRE

Induction 7.4 kW Made in Germany

Ser.Nr. 7.4 kW

PROGRESS

Induction 7.4 kW Made in Germany

Ser.Nr. 7.4 kW

PROGRESS

Kochzonenleistung
