Product type	Built-in ceramic hob
Brand	Baumatic
Model	B10ITX
Number of cooking zones	4
Zone type	Radiant plates (2 x 1200 W, 2 x 1700 W)
Electrical supply	230 V ~ 50 Hz
Rated current	26 A
Maximum total power	5.8 kW
Power cable	H05RR-F 3 x 2.5 mm²
Dimensions (W x D x H)	590 x 520 x 50 mm
Net weight	Approximately 10 kg
Surface material	Ceramic glass
Control type	Rotary knobs with energy regulator (positions 0 to 6)
Voltage presence indicator	Yes (lights up when a heating element is on)
Residual heat indicator	Yes (for each zone, lit if temperature > 50 °C)
Child safety	Not specified but recommended to keep children away
Cleaning and maintenance	Clean after cooling, use mild detergent, avoid abrasives
Warranty	2 years (warranty certificate provided)

Frequently Asked Questions - B10ITX BAUMATIC

How to connect the Baumatic B10ITX hob?

Check that the mains voltage corresponds to 230 V. Connection must be carried out by a professional. Use a H05RR-F 3x2.5 mm² cable. The earth conductor (yellow-green) must be 10 mm longer. For a fixed connection, insert an omnipolar disconnection device with a contact gap of at least 3 mm.

What to do if the hob does not turn on?

Before calling customer service, check that the plug is properly connected and that the circuit breaker has not tripped. If the problem persists, turn off the appliance and contact customer service.

How to clean the ceramic glass surface?

Wait for the surface to cool down. Use a damp cloth or warm soda water for light dirt. For water stains, use vinegar or lemon. Incrustations can be removed with a glass scraper. Avoid abrasive sponges and steam cleaners.

What to do if the ceramic glass surface cracks?

Immediately disconnect the appliance from the electrical network to avoid any risk of electric shock. Contact customer service. Do not use the hob until it has been repaired.

How to use the control knobs?

Turn the knob clockwise. Numbers 1 to 6 correspond to power levels, 1 being minimum and 6 maximum. Position 0 turns off the zone.

What is the residual heat indicator for?

Each cooking zone has an indicator that lights up automatically when the temperature exceeds 50 °C. It stays on after the zone is turned off until it cools below 50 °C, indicating a risk of burns.

Can I use Pyrex or porcelain pots?

Yes, provided the bottom is smooth and the container is suitable for fire. Follow the manufacturer's instructions for the container.

How to eliminate the new smell during first use?

Before first use, clean the hob then turn on each cooking zone at maximum power without a pan for 5 minutes. This eliminates the new smell and accumulated moisture.

What is the warranty for the Baumatic B10ITX hob?

The appliance comes with a warranty certificate. Keep it along with proof of purchase (invoice, receipt) to benefit from authorized after-sales service. The standard warranty period is 2 years.

Where to find the serial number of my appliance?

The serial number and electrical data are on the rating plate located on the bottom of the hob.

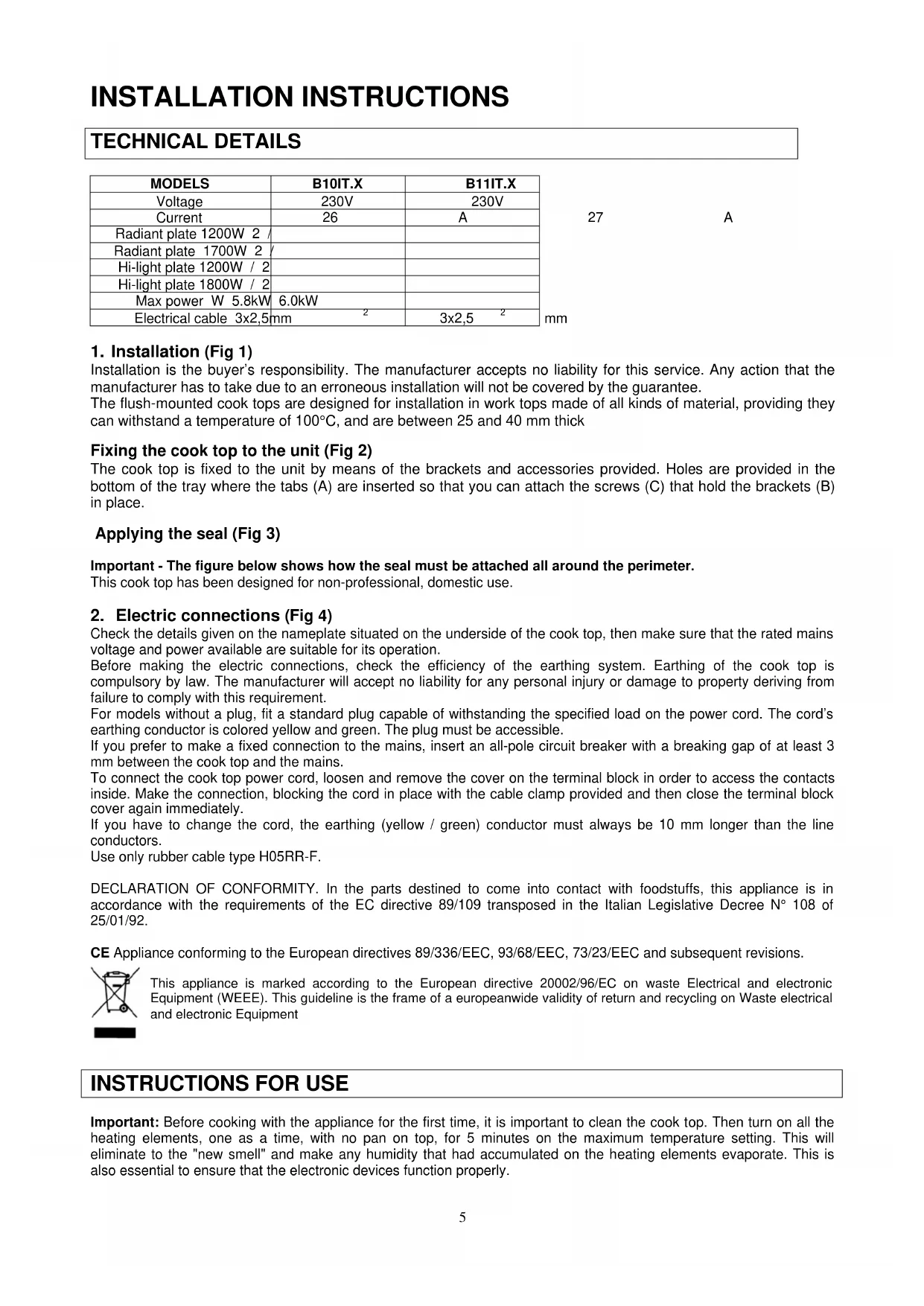

USER MANUAL B10ITX BAUMATIC

1. Installation (Fig 1)

Installation is the buyer's responsibility. The manufacturer accepts no liability for this service. Any action that the manufacturer has to take due to an erroneous installation will not be covered by the guarantee.

The flush-mounted cook tops are designed for installation in work tops made of all kinds of material, providing they can withstand a temperature of 100^ , and are between 25 and 40mm thick

Fixing the cook top to the unit (Fig 2)

The cook top is fixed to the unit by means of the brackets and accessories provided. Holes are provided in the bottom of the tray where the tabs (A) are inserted so that you can attach the screws (C) that hold the brackets (B) in place.

Applying the seal (Fig 3)

Important - The figure below shows how the seal must be attached all around the perimeter.

This cook top has been designed for non-professional, domestic use.

2. Electric connections (Fig 4)

Check the details given on the nameplate situated on the underside of the cook top, then make sure that the rated mains voltage and power available are suitable for its operation.

Before making the electric connections, check the efficiency of the earthing system. Earthing of the cook top is compulsory by law. The manufacturer will accept no liability for any personal injury or damage to property deriving from failure to comply with this requirement.

For models without a plug, fit a standard plug capable of withstanding the specified load on the power cord. The cord's earthing conductor is colored yellow and green. The plug must be accessible.

If you prefer to make a fixed connection to the mains, insert an all-pole circuit breaker with a breaking gap of at least 3 mm between the cook top and the mains.

To connect the cook top power cord, loosen and remove the cover on the terminal block in order to access the contacts inside. Make the connection, blocking the cord in place with the cable clamp provided and then close the terminal block cover again immediately.

If you have to change the cord, the earthing (yellow / green) conductor must always be 10mm longer than the line conductors.

Use only rubber cable type H05RR-F.

DECLARATION OF CONFORMITY. In the parts destined to come into contact with foodstuffs, this appliance is in accordance with the requirements of the EC directive 89/109 transposed in the Italian Legislative Decree N^ 108 of 25/01/92.

CE Appliance conforming to the European directives 89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions.

This appliance is marked according to the European directive 20002/96/EC on waste Electrical and electronic Equipment (WEEE). This guideline is the frame of a Europeanwide validity of return and recycling on Waste electrical and electronic Equipment

INSTRUCTIONS FOR USE

Important: Before cooking with the appliance for the first time, it is important to clean the cook top. Then turn on all the heating elements, one as a time, with no pan on top, for 5 minutes on the maximum temperature setting. This will eliminate to the "new smell" and make any humidity that had accumulated on the heating elements evaporate. This is also essential to ensure that the electronic devices function properly.

CONTROL KNOBS (Fig 5)

COOKING ZONES ARE CONTROLLED BY KNOBS CONNECTED TO AN ENERGY REGULATOR NUMBERS 1 TO 6 ARE USED TO INDICATE COOKING SETTINGS, TURNING CLOCKWISE WHERE 1 IS THE MINIMUM SETTING AND 6 THE MAXIMUM SETTING. NUMBER 0 SIGNIFIES THE OFF POSITION.

THE ZONE CONTROLLED BY EACH KNOB IS IDENTIFIED BY THE ADJACENT COOKING ZONE IDENTIFICATION.

1. CONTROL KNOB
2. MAINS INDICATOR LIGHT
3. RESIDUAL HEAT INDICATOR
4. COOKING ZONE IDENTIFICATION
5. COOKING ZONE

MAINS INDICATOR LIGHT

THE MAINS INDICATOR LIGHT IS SWITCHED ON WHEN ONE OR MORE OF THE HEATING ELEMENTS ARE OPERATING.

RESIDUAL HEAT INDICATOR (HOT HOB INDICATOR)

EACH HEATING ELEMENT HAS A CORRESPONDING RESIDUAL HEAT INDICATOR LIGHT. THIS SWITCHES ON AUTOMATICALLY ONCE THE CORRESPONDING COOKING ZONE HAS REACHED A TEMPERATURE OF 50^ AND ABOVE. ONCE A COOKING ZONE HAS BEEN TURNED OFF, THE CORRESPONDING LIGHT WILL STAY ON FOR A PERIOD OF TIME NECESSARY FOR THE ZONE TO COOL DOWN TO 50^

CLEANING AND MAINTENANCE

A few cooking tips

Use only saucepans and frying pans with a sturdy, preferably thick bottom. This is particularly important when preparing food requiring high cooking temperatures, such as fried foods. If the bottom of the pan is not perfectly flat, the food takes longer to cook and uses up more energy. The best heat transfer is obtained when the saucepan and burner are the same size.

You can also use Pyrex and porcelain pans on the burners, providing the bottom of the pan is smooth. Refer to the instructions of the pan manufacturer on this point.

Any spillages from the pans should be wiped away immediately.

Important notes

Warning: the burner surface becomes red hot when in use, so it is always advisable to keep children well away from the cook top.

Avoid dropping any hard object on the cook top surface. In some conditions, the material is sensitive to mechanical loading. The shock of a sharp or pointed object can damage the cooking surface. In the event of any breakage, cracking or other damage being accidentally caused to the ceramic top, it is essential to stop using the cook top immediately and contact customer care.

Ceramic glass cook tops must never be used as a work surface or to prepare food wrapped in aluminium foil or packaged in plastic. Never use the burner without a saucepan on it. Never place flammable, explosive or deformable objects in the vicinity of the cook top.

Fats and oils can catch fire if they are overheated: that is why foods requiring the use of fat or oil, e.g. French fries, must always be supervised while they are cooking.

Moreover, it is essential to make sure that the power cords and plugs of any other domestic appliances attached to sockets near the cook top can never come into contact with the hot cook top surfaces.

No part of the power supply cable must reach an ambient temperature which is over 50^ .

If damaged, the cable must be replaced with one supplied by the technical assistance service.

If the glass surface breaks, unplug the device from the mains supply in order to avoid getting an electric shock.

The cook top must never be cleaned with steam or other such cleaning devices.

It is essential to clean the cook top - once it has cooled down - every time it has been used. Even the smallest food scraps would burn the next time it is used. Use only the recommended detergents. Wire wool, abrasive pads and powders will cause scratching. Oven-cleaning products are unsuitable because they are corrosive.

Mild soiling can be removed with the aid of a damp cloth or with hot soda. Any traces of detergent must be removed with cold water and the surfaces must then be accurately dried. Any signs of water that cannot be removed with boiling water can be eliminated with vinegar and lemon juice, or with a scale-remover fluid. If any of these detergents comes into contact with the cook top frame, it must be cleaned off immediately with a wet cloth, to avoid damaging the seal.

Any tenacious dirt can easily be removed with the aid of a glass scraper. The scraper handle must not be made of plastic because it could become stuck to the hot surfaces. Pay attention while using to scraper: it can cause injury.

Sugar and foods containing caramelized sugar must be removed immediately from the hot burner.

TECHNICAL SUPPORT

Before calling in the technician:

• if the cook top does not work, we recommend you first make sure that the plug is fitted properly in the power socket. If you cannot find any reason for the malfunction:

• turn off the appliance and do not manhandle it. Call in the technical support service.

The appliance comes with a guarantee certificate that entitles you to use the technical support service.

The guarantee must be duly completed, kept in a safe place, and exhibited to the authorized technician in case of need, together with the fiscally valid document issued by the retailer at the time of purchase (delivery bill, invoice, cash register receipt, etc.) indicating the name of the retailer, the date of delivery, details for identifying the product and the purchase price.

INSTRUCTIONS POUR LE MONTAGE

DONNÉES TECHNIQUES

MODELES B10IT.X B11IT.X
Tension	230V	230V
Courant	26	A
Plaque radiant 1200W /	2
Plaque radiant 1700W /	2
Plaque hi-light 1200W 2 /
Plaque hi-light 1800W 2 /
Puisance maximum W 5	8kW 6.0kW
Câble électrique 3x2,5 mm2		3x2,5 2

27

A

1. Montage (Fig.1)

Application joint (Fig.3)

CE Appareil conforme aux directives européennes 89/336/CEE, 93/68/CEE, 73/23/CEE et modifications successives.

SCHALTKNOPFE (Abb.5)
