PXY801DW4E - Cooker BOSCH - Free user manual and instructions

Product type	Cooker
Brand	Bosch
Model	PXY801DW4E
Power supply	Electric (cooking hob)
Hob type	Induction (wireless temperature sensor)
Wireless temperature sensor	Yes, with CR2032 battery
Number of cooking zones	Not specified but compatible with assistance functions
Main functions	Assisted cooking with temperature sensor, keep warm, automatic shut-off
Silicone patch	Included, for attaching sensor to pan
Sensor battery	CR2032, replaceable
Cleaning the sensor	Damp cloth, do not immerse in water
Cleaning the patch	Dishwasher safe
Sensor window	Clean with soft cloth or cotton swab and glass cleaner
Safety - Children	Do not play with the appliance, cleaning by children 8+ under supervision
Safety - Magnetism	Minimum distance of 10 cm for wearers of electronic implants
Safety - Temperature	Remove sensor after cooking, do not expose to heat
Spare parts available	Temperature sensor (HEZ39050), silicone patch (00577921)
Compliance	RED Directive 2014/53/EU
Intended use	Domestic, preparation of food and drinks

Frequently Asked Questions - PXY801DW4E BOSCH

How to stick the silicone patch on the pan?

Clean and degrease the area with alcohol. Remove the protective film from the patch, stick it using the provided stencil on the outside of the pan. Press firmly over the entire surface and allow to dry for 1 hour before using the pan.

How to replace the temperature sensor battery?

Remove the silicone cover at the bottom of the sensor, unscrew the two screws, open the housing. Replace the used battery with a new CR2032 battery respecting polarity. Close and screw back, then replace the cover.

Is the temperature sensor compatible with all pans?

Yes, provided you stick the silicone patch on the pan. The patch serves as a support for the sensor. For first use, stick the patch on the chosen pan.

How to clean the wireless temperature sensor?

Clean the sensor with a damp cloth only. Never immerse it in water, do not put it in the dishwasher and avoid abrasive cleaners.

How to clean the sensor window?

Use a soft cloth or a cotton swab with glass cleaner to remove dirt and grease splashes. Do not touch the window with fingers and do not use an abrasive sponge.

Can the silicone patch go in the dishwasher?

Yes, the silicone patch is dishwasher safe. Clean and dry it before sticking it on the sensor. However, avoid leaving the pan with the patch too long in the cleaning product.

What safety precautions should I take with the sensor?

The sensor contains a battery and is magnetic. People wearing electronic implants must maintain a distance of at least 10 cm. Remove the sensor after cooking and keep it away from heat sources.

How to use the temperature sensor for cooking?

Place the sensor on the silicone patch attached to the pan. Make sure the selected cooking zone matches the pan. The sensor transmits the temperature to the hob for assisted cooking. Refer to the 'Cooking assistance functions' chapter in the manual.

Where can I buy spare parts like the sensor or patches?

Parts are available from specialist retailers or Bosch after-sales service. References: silicone patch (00577921) and sensor + patches (HEZ39050). You can also order from www.bosch-eshop.com.

What to do if the sensor does not turn on?

The battery is probably discharged. Replace it with a high-quality CR2032 battery. If the problem persists, contact customer service.

USER MANUAL PXY801DW4E BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Wireless Temperature Sensor

HEZ39050

Important safety information. . . .9

Environmental protection . . . .10

Environmentally-friendly disposal . . . 10

Wireless temperature sensor . .10

Preparing and maintaining the wireless temperature sensor 11 Cleaning. 12 Declaration of Conformity. 13

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

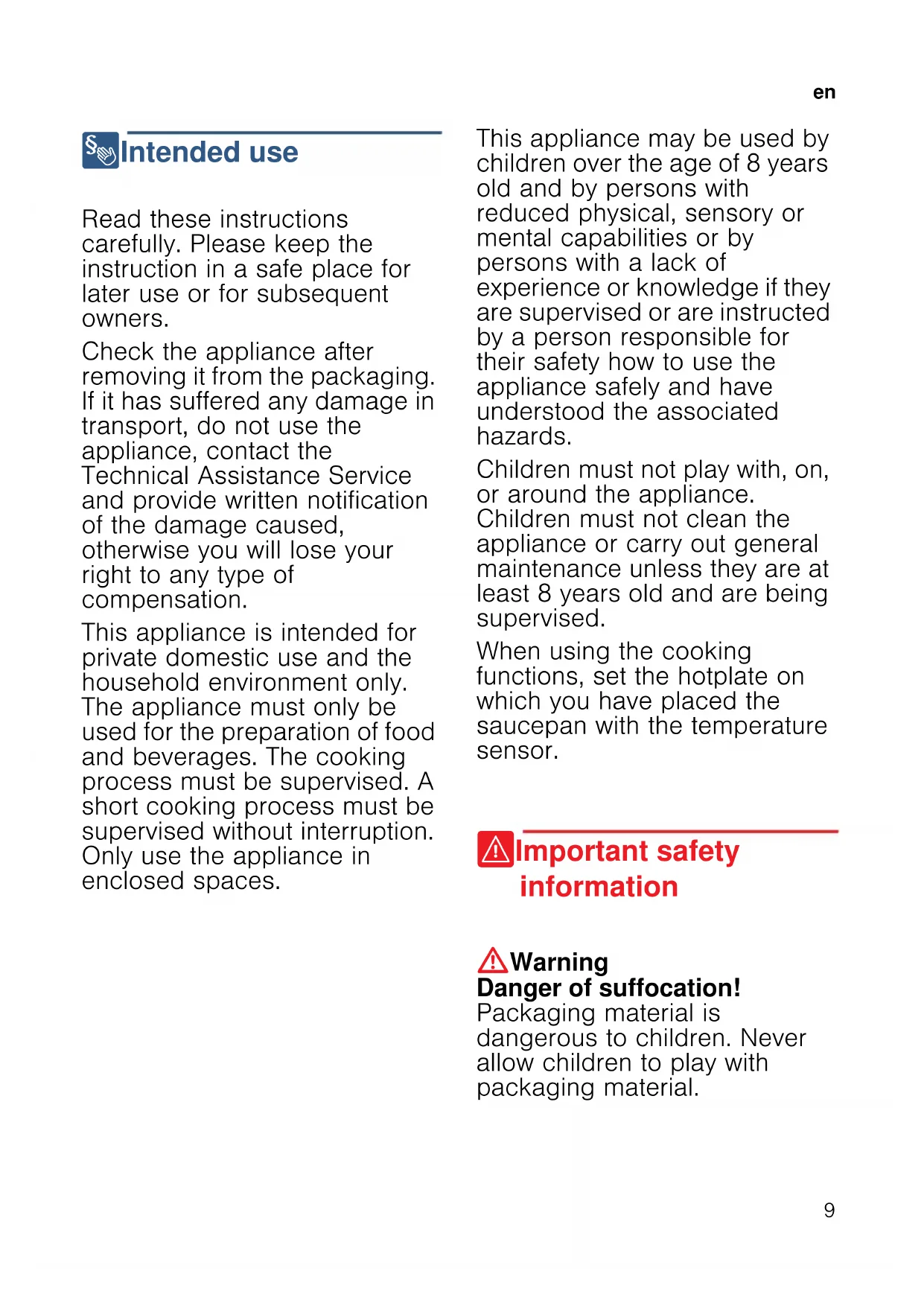

Intended use

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

Warning

Risk of injury!

The wireless cooking sensor is equipped with a battery, which may become damaged if it is exposed to high temperatures. Remove the sensor from the cookware and store it away from any heat sources.

The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

Adhering the silicone patch
Using the wireless temperature sensor
Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

HEZ39050 Temperature sensor and set of 5 silicone patches

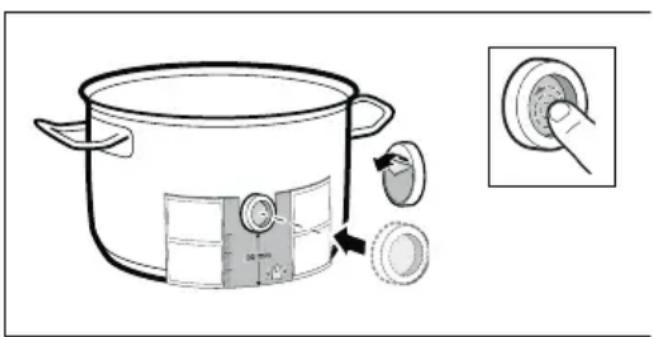

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

When a pan is used for the first time with the cooking functions, the silicone patch must be adhered directly to the pan. It is important

1. that the adhesive area on the pan is free from grease. Clean the pan, dry it thoroughly and wipe the adhesive area with a spirit.
2. Remove the protective film from the silicone patch. Adhere the silicone patch to the outside of the pan in the correct place using the enclosed template as a guide.

1. Press down all over the surface of the silicone patch, including in the centre.

The adhesive requires one hour to fully harden. Do not use or clean the pan during this time.

Notes

• Do not leave the pan with the silicone patch to soak soapy water for long periods of time.
  If the silicone patch comes off, attach a new one.

Fitting the wireless temperature sensor

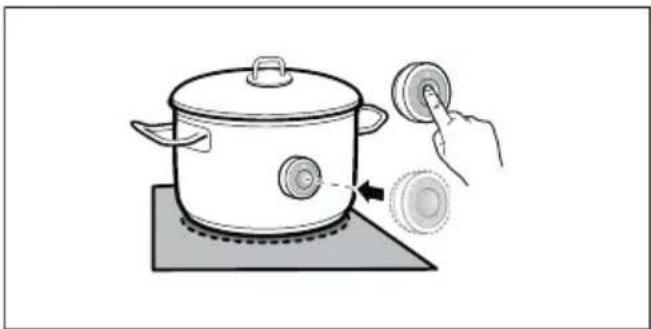

Attach the temperature sensor to the silicone patch and align it correctly.

Notes

Make sure that the silicone path is completely dry before attaching the temperature sensor.
Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.
To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot.
- Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If the temperature sensor does not light up when the symbol is pressed, the battery is flat.

en

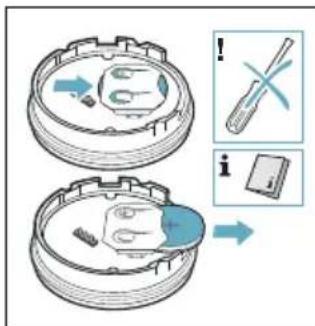

Changing the battery:

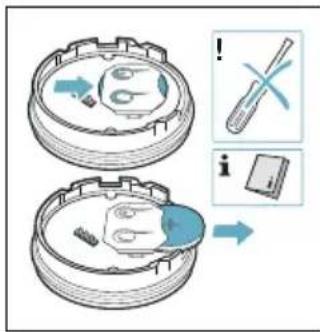

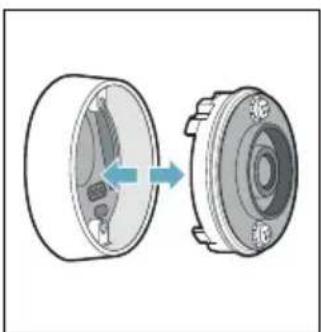

1. Remove the silicone cover from the lower section of the temperature sensor housing and remove both screws using a screwdriver.

1. Open the closure of the temperature sensor. Remove the battery from the lower section of the housing and insert a new battery (pay attention to the correct orientation of the battery poles).

Caution!

Do not use any metal objects to remove the battery. Do not touch the battery connection points.

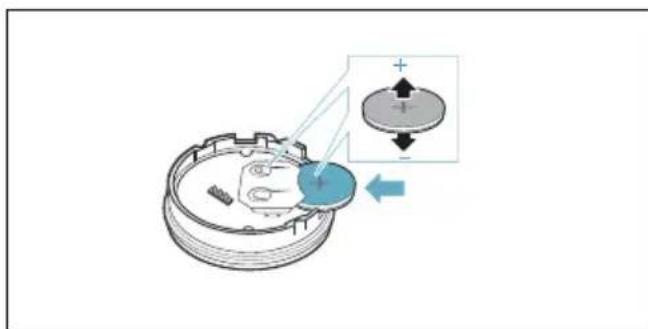

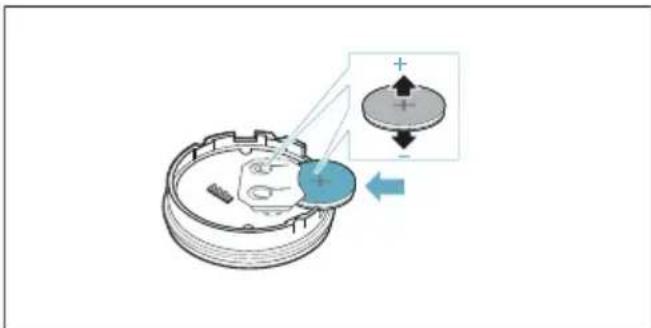

1. Close the closure of the temperature sensor (the notches for the screws on the closure must align with the notches on the lower section of the housing). Tighten the screws with a screwdriver.

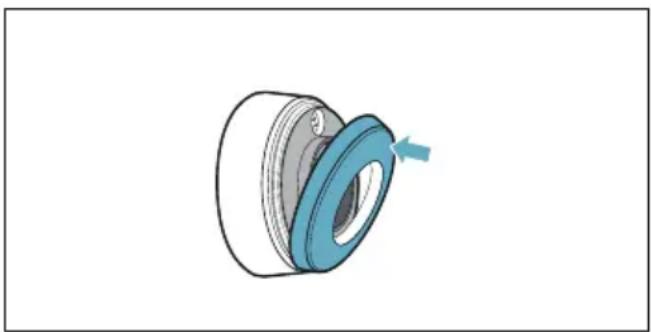

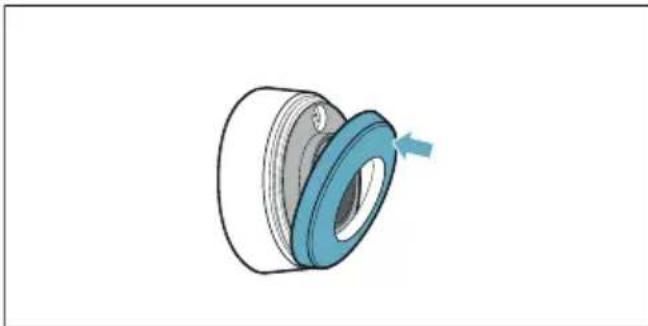

1. Reattach the silicone cover to the lower section of the temperature sensor housing.

Note:

Use only high-quality batteries of the type CR2032 in order to guarantee a long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note:

Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

• Remove dirt and oil splatters regularly.
  Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

• Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
• Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.bosch-home.com/de on the product page for appliance in the additional documents.

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Robert Bosch Hausgeräte GmbH under licence. All other trademarks and brand names are owned by the respective companies.
