Product type	2-way coaxial car speaker
Brand	Focal
Model	Universal ISC 130
Diameter	130 mm (5.25 inches)
Nominal power (RMS)	60 W
Peak power	120 W
Impedance	4 Ω
Sensitivity	90 dB (2.83 V/1 m)
Frequency response	60 Hz - 20 kHz
Membrane type	Polypropylene
Tweeter	Dome (integrated)
Magnet	Ferrite
Weight	0.5 kg
Power supply	Via external amplifier (not included)
Warranty	2 years
Cleaning	Dust with a soft, dry cloth
Safety	Do not listen at excessive volume (above 110 dB) - risk of hearing damage
Installation	Mounting in original location or flush mounting with cutout
Included accessories	Protection grille, screws, connection cables
Repairability	Spare parts available from Focal after-sales service

Frequently Asked Questions - Universal ISC 130 FOCAL

How to install the Focal Universal ISC 130 in my car?

First check the available space for flush mounting (refer to the diagrams on the packaging). Make the necessary cutouts. For mounting in an original location, ensure sufficient space between the speaker and the protection grille. Mount the woofer respecting polarity (+ and -) and fix it securely.

What amplifier do you recommend for this speaker?

An amplifier delivering 60 W RMS at 4 Ω per channel is ideal. Focal offers suitable amplifiers, but any quality amp with similar power will work.

What is the RMS power of this speaker?

The nominal power (RMS) is 60 W and the peak power is 120 W.

Can I use this speaker with an original car radio?

Yes, but the power of the car radio is often limited. For optimal performance, use an external amplifier.

How to clean the speaker?

Use a soft, dry cloth to dust the grille and membrane. Avoid any liquid or abrasive products.

What is the warranty for this product?

The warranty is 2 years from the date of purchase. It is non-transferable and does not cover damage due to misuse or incorrect wiring. To validate, return the coupon within 10 days or register your product online at www.focal.com/warranty.

Is the kit compatible with my car (make/model)?

The Universal ISC 130 is designed to fit most original 130 mm diameter locations. Check the diagrams on the packaging for available space. For Toyota, Jeep, Dodge, Ford vehicles, specific kits exist (models ISC 570/690).

What to do if the sound is distorted?

Check the connections (polarity), impedance (4 Ω), and amplifier power. Ensure the speaker is not obstructed and the membrane is not damaged. Avoid pushing the volume beyond the speaker's limits.

Can I replace the tweeter separately?

The tweeter is integrated into the coaxial module. To replace it, contact Focal after-sales service for a specific spare part.

Where to find spare parts?

Contact your Focal dealer or after-sales service: Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France. You can also visit www.focal.com.

USER MANUAL Universal ISC 130 FOCAL

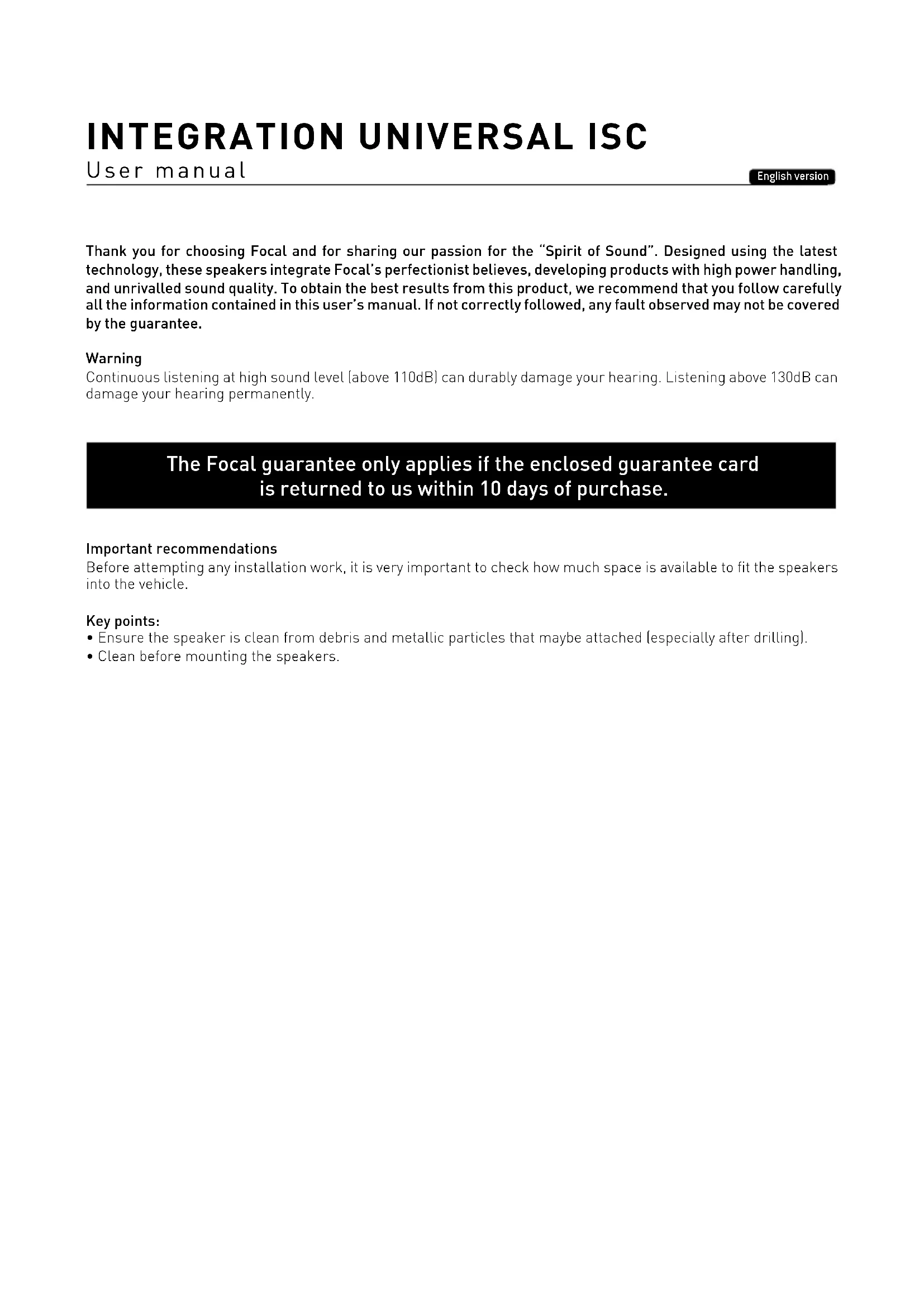

Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

INTEGRATION UNIVERSAL ISC

User manual

3

Woofer ISC

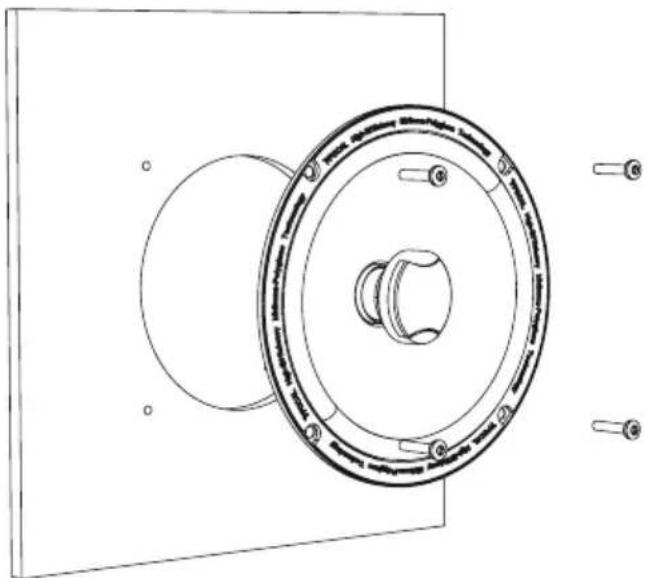

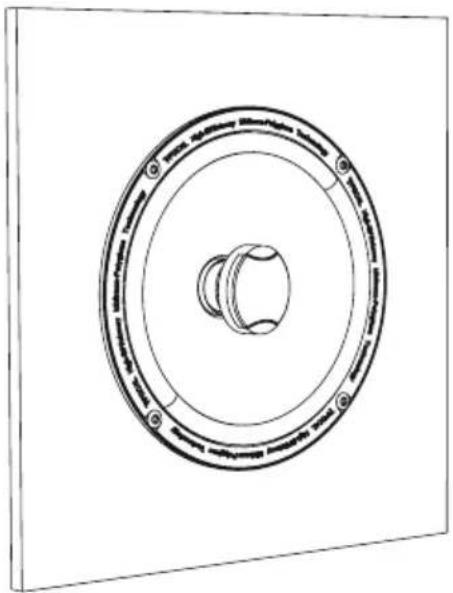

1/ Mounting the ISC 100 / 130 / 165 woofer in original space.

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

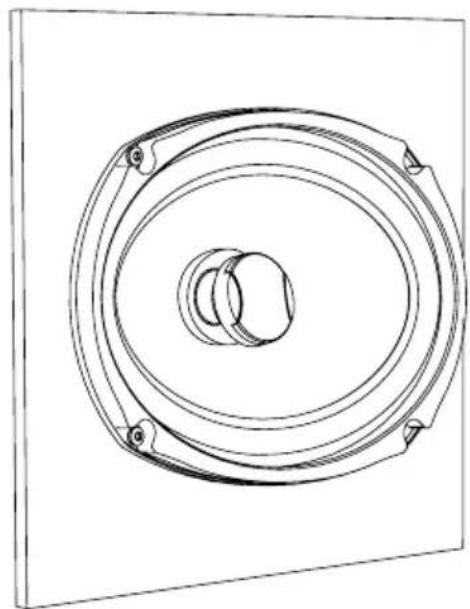

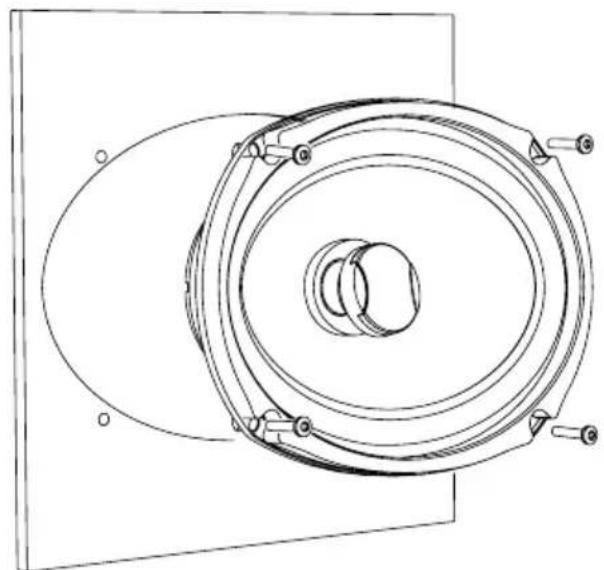

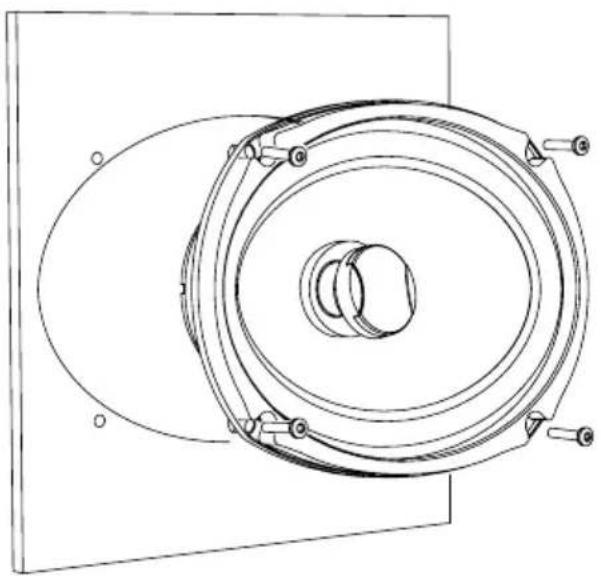

2/ Mounting the ISC 570 / 690 woofer in original space.

Technical line drawing of a circular mechanical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

These “elliptic” kits can be fitted into the following car models Toyota ^® , Jeep ^® , Dodge ^® , Ford ^® .

INTEGRATION UNIVERSAL ISC

User manual

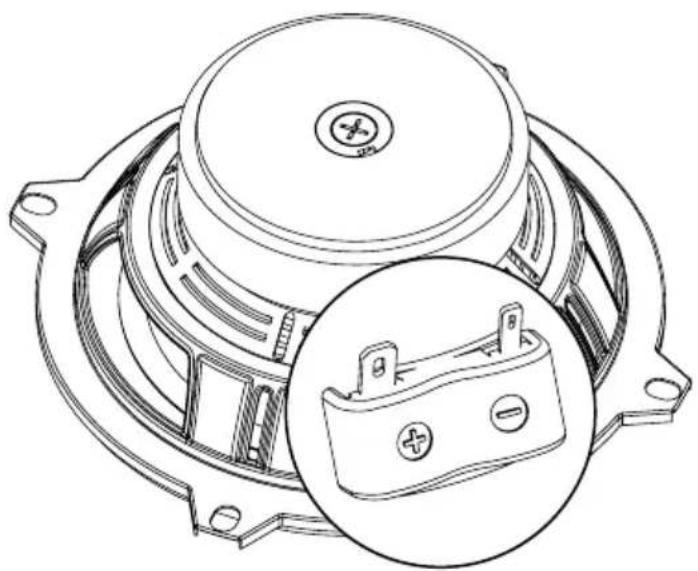

3/ Rear view of the terminal block (marked "+" and "-").

Technical line drawing of a speaker component with an inset close-up showing its internal components (no text or symbols)

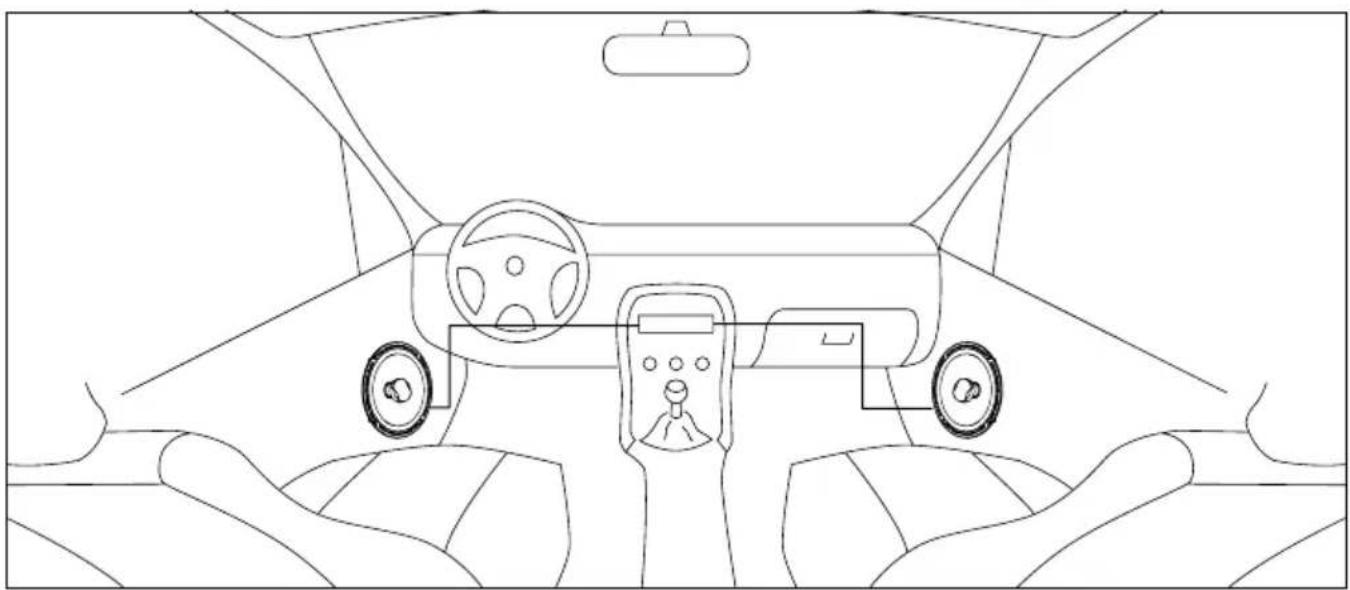

4/ View of the full installation in the vehicle.

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

INTEGRATION UNIVERSAL ISC

User manual

5

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

INTEGRATION UNIVERSAL ISC
