USER MANUAL KDX33MBTE JVC

MANUEL D'INSTRUCTIONS

DIGITAL-MEDIA-RECEIVER

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIButors BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

For Israel

nne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nannne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

nnae nnnnne nee (nX aen en) innn an nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

CE

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Declaration of Conformity with regard to the EMC Directive

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVC Technical Services Europe GmbH

Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

IpeCTaBtTeBCTBO B EC:

JVC Technical Services Europe GmbH

Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

English

Hereby, JVC KenWOOD declares that this unit K0-X330BT/KD-X33MBT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

1 Cancel the demonstration
2 Set the clock
3 Set the basic settings

RADIO 5

AUX 6

USB/iPod/Android 7

BLUETOOTH 9

AUDIO SETTINGS 14

DISPLAY SETTINGS 18

REFERENCES 19

Maintenance

More information

TROUBLESHOOTING 21

SPECIFICATIONS 23

INSTALLATION / CONNECTION 24

IMPORTANT

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
- Please keep the manual in a safe and accessible place for future reference.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

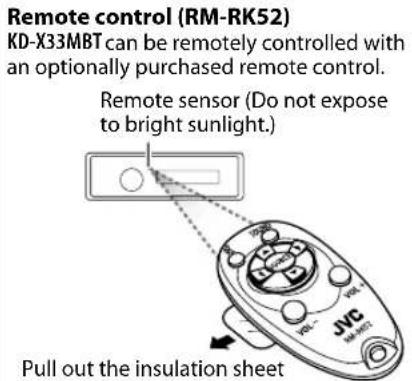

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispse of used batteries promptly. If swallowed, contact a physician immediately.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KD-X330BT.
• English indications are used for the purpose of explanation. You can select the display language from the menu. (→4)
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.

BASICS

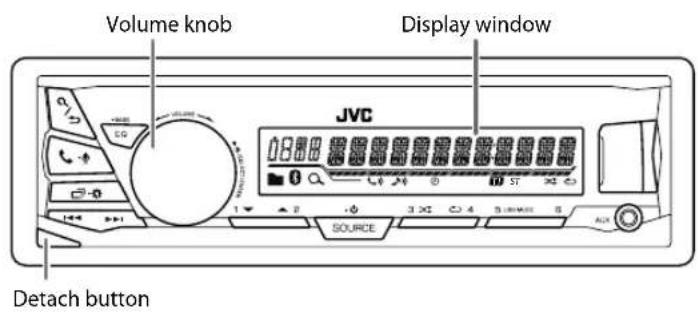

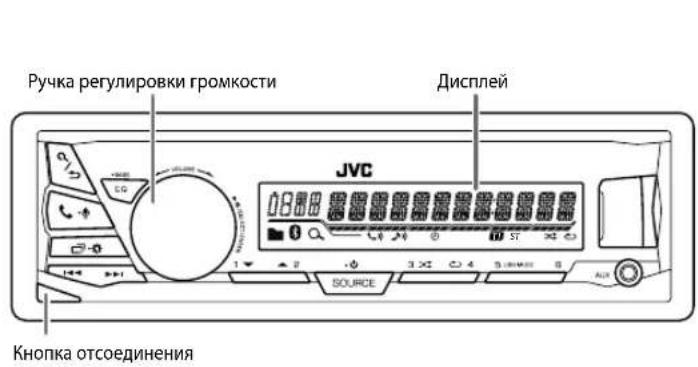

Faceplate

Pull out the insulation sheet when using for the first time.

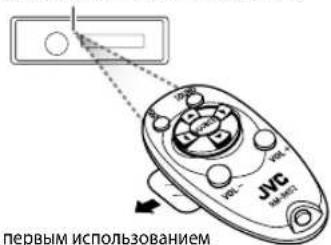

How to replace the battery

To On the faceplate On the remote control
Turn on the power	Press SOURCE-☐. • Press and hold to turn off the power.	(Not available)
Adjust the volume Turn the volume knob. Press		VOL + or VOL -
	Press the volume knob to mute the sound or pause playback. • Press again to cancel.	Press to mute the sound or pause playback. • Press again to cancel.
Select a source	Press SOURCE-☐ repeatedly. • Press SOURCE-☐, then turn the volume knob within 2 seconds.	Press SOURCE repeatedly.
Change the display information	Press ☑-☐ repeatedly. (20)	(Not available)

GETTING STARTED

Cancel the demonstration

When you turn on the power for the first time (or [FACTORY RST] is set to [YES]), the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB"

1 Press the volume kn
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

Set the clock

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [ CLOCK SET], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.

Day Hour Minute

5 Turn the volume knob to select [24H/12H], then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the knob.
7 Press to exit.

To return to the previous setting item, press /

Set the basic settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press /

Default: XX

SETTINGS
BEEP	(Not applicable when 3-way crossover is selected.)ON: Activates the keypress tone.; OFF: Deactivates.
SRC SELECT
AM*	ON: Enables AM in source selection.; OFF: Disables.
AUX*	ON: Enables AUX in source selection.; OFF: Disables.
F/W UPDATE
SYSTEM
F/W xxxx	YES: Starts upgrading the firmware.; NO: Cancels (upgrading is not activated).For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.
FACTORY RST YES : Resets the settings to default (except the stored station).; NO: Cancels.
CLOCK
CLOCK SYNC	AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal.; OFF: Cancels.
CLOCK DISP ON	: The clock time is shown on the display even when the unit is turned off.; OFF: Cancels.
ENGLISH
PYCKM	Select the display language for menu and music information if applicable. By default, ENGLISH is selected.
ESPANOL

• Not displayed when the corresponding source is selected.

RADIO

"ST" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press to select FM or AM.
2 Press (press on RM-R62) to search for a station automatically. (or)

Press and hold (press and hold on RM-RKS) until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6).

(or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press.
2 Turn the volume knob to select a preset number, then press the knob to confirm.

Other settings

1 Press and hold
2 Turn the volume knob to select [TUNER], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/ activated or follow the instructions stated on the selected item.
5 Press to exit.

To return to the previous setting item, press Q/

Default: XX

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.1 ONCE/DAILY/ WEEKLY/ OFF: Select how often the timer will be turned on.2 FM AM: Select the band.3 01 to 18(for FM)/ 01 to06 (for AM): Select the preset station.4 Set the activation day * 1 and time."◎" lights up when complete. Radio Timer will not activate for the following cases. The unit is turned off. [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. (▲)

SSM

SSM 01 - 06 / SSM 07 - 12 / SSM 13 - 18: Automatically resets up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select SSM 07 - 12 / SSM 13 - 18 to store the following 12 stations.

*1 Selectable only when ONCE] or [WEEKLY] is selected in step 1.

RADIO

Default: XX

LOCAL SEEK_ON	: Searches only FM stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
IF BAND AUTO	: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
MONO ON	: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.
NEWS-STBY*2	ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.
REGIONAL*2	ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.
AF SET*2	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.
TI SET*2	ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.
PTY SEARCH*2	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIORED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER FINANCE, CHILDREN SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

*2 Only for FM source.

AUX

Use a portable audio player

1 Connect a portable audio player (commercially available).

2 Select [ON] for [AUX] in [SRC SELECT]. ( 4)
3 Press to select AUX.
4 Turn on the portable audio player and start playback.

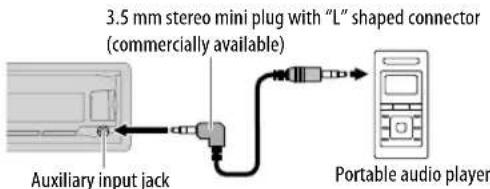

Use a 3-core plug head stereo mini plug for optimum audio output.

USB/iPod/Android

Start playback

The source changes automatically and playback starts.

USB input terminal

To On the faceplate On the remote control
Reverse / Fast-forward*3	Press and hold▶/▶	Press and hold▶.
Select a file Press	▶/▶.	Press▶.
Select a folder*4	Press 2 Press▼	▲/▼
Repeat play*5	Press repeatedly. TRACK RPT/ FOLDER RPT/ ALL RPT: MP3/WMA/AAC/WAV/FLAC file ONE RPT/ ALL RPT/ RPT OFF: iPod or ANDROID
Random play*5	Press repeatedly. FOLDER RND/ ALL RND/ RND OFF: MP3/WMA/AAC/WAV/FLAC file SONG RND/ ALL RND/ RND OFF: iPod or ANDROID

1 Do not leave the cable inside the car when not using.
2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. (→ 19)
3 For ANDROID: Applicable only when [AUTO MODE] is selected. (→8)
4 Only for MP3/WMA/AAC/WAV/FLAC files. This does not work for iPod/Android.
*5 For iPod/Android: Applicable only when [HEAD MODE]/[AUTO MODE] is selected. (→ 8)

USB/iPod/Android

Select control mode

While in USB-IPOD source, press repeatedly.

HEAD MODE: Control iPod from this unit.

IPHONE MODE Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit.

While inAndroid source, press repeatedly.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

Press repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device.

Select a file from a folder/list

1 Press.
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Not applicable for iPod.

Alphabet search (applicable only for iPod):

You can search for a file according to the first character.

Press or turn the volume knob quickly to select the desired character (A to Z/0 to 9/Others).

• Select "OTHERS" if the first character is other than A to Z, 0 to 9.

To return to the previous setting item, press
To cancel, press and hold
- For iPod, applicable only when [HEAD MODE] is selected.
- For ANDROID, applicable only when [AUTO MODE] is selected.

BLUETOOTH®

BLUETOOTH - Connection

Supported Bluetooth profiles
- Hands-Free Profile (HFP)
- Advanced Audio Distribution Profile (A2DP)
Audio/Video Remote Control Profile (AVRCP)
- Serial Port Profile (SPP)
Phonebook Access Profile (PBAP)
Supported Bluetooth codecs
- Sub Band Codec (SBC)
- Advanced Audio Coding (AAC)

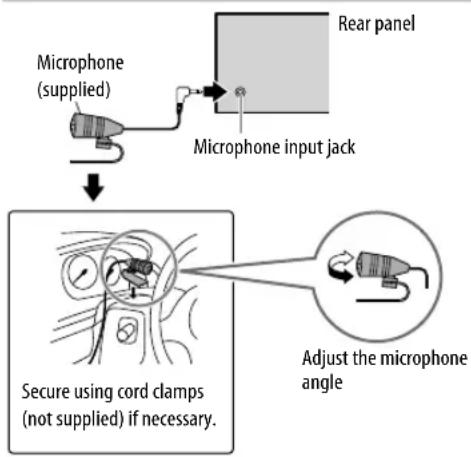

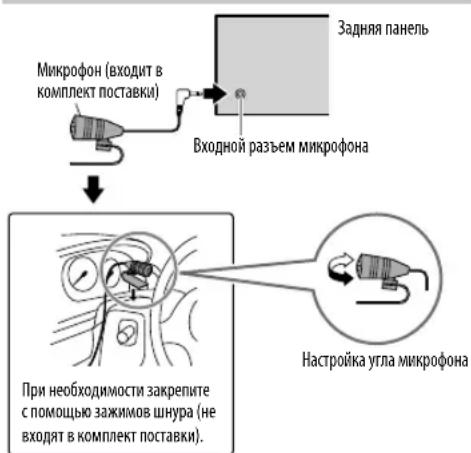

Connect the microphone

Pair and connect a Bluetooth device for the first time

1 Press Source for the unit.
2 Search and select "JVC UNIT" on the Bluetooth device.

"BT PAIRING" flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what scrolls on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) “[Device Name]” “XXXXXX” “V●L - YES” “BA●K - NO”

"XXXXXXXX" is a 6-digit passkey randomly generated during each pairing.

1 Ensure that the passkey which appears on the unit and Bluetooth device is the same.
Press the volume knob to confirm the passkey.
3 Operate the Bluetooth device to confirm the passkey.

(B) "[Device Name]" "VOL - YES" "BACK - NO"

Press the volume knob to start pairing.
2. If "PAIRING" "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.

You can change to a desired PIN code before pairing. (一 13)

• If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed and "8" will light up when the Bluetooth connection is established.

Lights up to show the battery strength and signal strength. *

• Functionality depends on the type of the phone used.

• This unit supports Secure Simple Pairing (SSP).

• Up to 10 devices can be registered (paired) in total.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 13, [DELETE PAIR].
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
  Refer to the instruction manual of the Bluetooth device for more information.

BLUETOOTH

Auto Pairing

When you connect the iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if: - Bluetooth function of the connected devcie is turned on.
[AUTO CNNT] is set to [ON]. (→ 13)
- JVC MUSIC PLAY application is installed on the Android device (→7) and [AUTO MODE] is selected (→8).

BLUETOOTH - Mobile phone

Receive a call

When there is an incoming call:

The buttons will blink in the blinking pattern you have selected in [RINGILLUMI]. ( 11)
The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→11)

During a call:

The buttons stop blinking.
- If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

To On the faceplate On the remote control
First incoming call...

Answer a call	Press - or the volume knob.	Press ▲/▼/▲/▲.
Reject a call	Press and hold - or the volume knob.	Press and hold ▲/▼/▲/▲.
End a call	Press and hold - or the volume knob.	Press and hold ▲/▼/▲/▲.

BLUETOOTH

To On the faceplate On the remote control
While talking on the first incoming call...
Answer another incoming call and hold the current call	Press or the volume knob.	(Not available)
Reject another incoming call	Press and hold or the volume knob.	(Not available)
While having two active calls...
End current call and activate held call	Press and hold or the volume knob.	Press and hold ▲/▼/▲.
Swap between the current call and held call	Press -.	(Not available)
Adjust the phone volume [00] to [35] (Default: [15])	Turn the volume knob during a call. ·This adjustment will not affect the volume of the other sources.	(Not available)
Switch between hands-free and private talk modes	Press ▲/□ during a call. ·Operations may vary according to the connected Bluetooth device.	(Not available)

Improve the voice quality

While talking on the phone....
1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to etit.

To return to the previous setting item, press 12

Default:XX
MIC LEVEL	-10 —+10 (4): The sensitivity of the microphone increases as the number increased.
NOISE RDCT -5	—+5 (0): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL -5	—+5 (0): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to ehter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press Q /

Default: XX

SETTINS
AUTO ANSWER	01 SEC-30 SEC:The unit answers incoming call automatically in the selected time (in seconds).; OFF: Cancels.
RING ILLUMI BLINK 1	—BLINK 5 (BLINK 2):Selects the notification blinking pattern for the buttons when there is an incoming call.;OFF: Cancels.

BLUETOOTH

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

To return to the previous setting item, press Q /

RECENT CALL	(Applicable only if the phone supports PBAP)1 Press the volume knob to select a name or a phone number. ·“<” indicates call received, “>” indicates call made, “M” indicates call missed. ·“NO HISTORY” appears if there is no recorded call history or call number.2 Press the volume knob to call.
PHONEBOOK	(Applicable only if the phone supports PBAP)1 Press 2 □/▲ to select the desired letter (A to Z, 0 to 9, and OTHERS). ·“OTHERS” appears if the first character is other than A to Z, 0 to 9.2 Turn the volume knob to select a name, then press the knob.3 Turn the volume knob to select a phone number, then press the knob to call. ·The phonebook of the connected phone is automatically transferred to the unit when pairing.·This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U”).
DIAL NUMBER	1 Turn the volume knob to select a number (0 to 9) or character ( , , +).2 Press ↑ to move the entry position.Repeat stepsand 2 until you finish entering the phone number.3 Press the volume knob to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions. (→ Make a call using voice recognition)

Make a call using voice recognition

1 Press and hold to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK], or [DIAL NUMBER], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number.

If a contact is selected, press the volume knob to show the phone number.

4 Press and hold one of the number buttons (1 to 6).

"MEMORY P(select preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call. "NO PRESET" appears if there is no contacts stored.

BLUETOOTH

Bluetooth mode settings

1 Press and hold
2 Turn the volume knob to select [BLUETOOTH], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press to exit.

To return to the previous setting item, press /

Default: XX

PHONE*1	Selects the phone or audio device to connect or disconnect.
AUDIO*1	“*” appears in front of the device name when connected.
APPLICATION*1	Shows the connected phone name using the JVC Smart Music Control *2 app. “*” appears in front of the device name when connected.
DELETE PAIR	1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [ YES] or [ NO], then press the knob.
SET PINCODE (0000)	Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. 2 Press the enter the entry position. Repeat stepsand 2 until you finish entering the PIN code. 3 Press the volume knob to confirm.
AUTO CNT ON	: The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF: Cancels.
AUTO PAIR ON	: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.; OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.); NO: Cancels.
INFORMATION	MY BT NAME: Displays the unit name (JVC UNIT).; MY ADDRESS: Shows address of this unit.

1 You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.
^2 JVC Smart Music Control is designed to view JVC car receiver status and perform simple control operations on Android smart phones. For JVC Smart Music Control operations, visit JVC website: http://www.jvc.net/cs/car/.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.
  1 Press and hold.

"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING PHONE" "PIN IS 0000" scrolls on the display.

2 Search and select "JVC UNIT" on the Bluetooth device within 3 minutes.
3 Perform (A), (B) or (C) depending on what appears on the display.

(A) "PAIRING" "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.
(B) "PAIRING" "PIN IS 0000": Enter "0000" on the Bluetooth device.
(C) "PAIRING": Operate the Bluetooth device to confirm pairing.

After pairing is successful, "PAIRING OK" "[Device Name]" appears and Bluetooth compatibility check starts.

If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.

"TESTING" flashes on the display.

The connectivity result flashes on the display.

"PAIRING OK" and/or "H.FREE OK"1 and/or "A STREAM OK"2 and/or "PBAP OK"*3 : Compatible

1 Compatible with Hands-Free Profile (HFP)
^2 Compatible with Advanced Audio Distribution Profile (A2DP)
^*3 Compatible with Phonebook Access profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.
To cancel, press and hold SOURCE- to turn off the power, then turn on the power again.

BLUETOOTH

BLUETOOTH - Audio

Audio player via Bluetooth

1 Press separately to select BT AUDIO (or press SOURCE on RM-RK52).
2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control
Playback / pause Press the volume knob.		Press OK.
Select group or folder Press 2▲/1▼. Press .		▲/▼
Reverse / Forward skip	Press ←/▶	Press ←/▶.
Reverse / Fast-forward	Press and hold ←/▶.	Press and hold ←/▶.
Repeat play Press	4 repeatedly. TRACK RPT, ALL RPT, RPT OFF	(Not available)
Random play	Press 3 × repeatedly. GROUP RND, ALL RND, RND OFF	(Not available)
Select a file from a folder/list	Refer to “Select a file from a folder/list” on page 8.	(Not available)

Operations and display indications may differ according to their availability on the connected device.

AUDIO SETTINGS

Select a preset equalizer

Press Eq. 3546ly. (or)

Press EQ-BASS, then turn the volume knob within 5 seconds. Preset equalizer:

FLAT (default)/HARD ROCK / POP / HIP HOP / R&B/ JAZZ / CLASSICAL / USER

Store your own sound settings

1 Press and hold EQ-BASSE EASY EQ setting.
2 Turn the volume knob to select an item, then press the knob. Refer to EASY EQ for setting (一 15) and the result is stored to [USER].
To return to the previous setting item, press a /
To exit, press EQ-BASS.

Other settings

1 Press and hold
2 Turn the volume knob to select an item ( 15) , then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press a/

AUDIO SETTINGS

Default: XX

EQ SETTING
EQ PRESET	Select a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].)FLAT / HARD ROCK/POP/ HIP HOP/R&B/JAZZ /CLASSICAL /USER
EASY EQ	Adjust your own sound settings. The settings are stored to [USER].The settings made may affect the current settings of [ PRO EQ ].SUB.W SP*1*2: 00to +06(Default:03)SUB.W*1*3:-50 to+1000BASS LVL:-09 to+0900MID LVL:-09 to+0900TRE LVL:-09 to+0900)
PRO EQ	Adjust your own sound settings. The settings are stored to [USER].The settings made may affect the current settings of [ EASY EQ ].
62.5HZ
LVL -09to +09 (00): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
BASS EXT ON: Turns on the extended bass.;BASS EXT OFF: Cancels.
100HZ /160HZ /250HZ /400HZ /630HZ /1KHZ /1.6KHZ /2.5KHZ /4KHZ /6.3KHZ /10KHZ /16kHZ
LVL -09to +09 (00): (Refer above)
Q FACTOR
Q 1.35/Q 1.50/ Q 2.00 Adjust the quality factor.
AUDIO
BASS BOOST	+01- +05: Selects your preferred bass boost level.; OFF: Cancels.
LOUD 01	/ 02: Boosts low or high frequencies to produce a well-balanced sound at low volume.; OFF: Cancels.

SUB.W LEVEL*1	SPK-OUT*2 (Not applicable when 3-way crossover is selected.)00 to +06 (+03): Adjusts the output level of the subwoofer connected via speaker lead. (→ 26, 27)
	PRE-OUT*3 -50 to +10(00): Adjusts the output level of the subwoofer connected to the lineout terminals (SW or REAR/SW) through an external amplifier. (→ 26, 27)
SUB.W*3	ON / OFF: Turns on or off the subwoofer output.
FADER	(Not applicable when 3-way crossover is selected.)R15 — F15(00): Adjusts the front and rear speaker output balance.
BALANCE*4	L15 — R15(00): Adjusts the left and right speaker output balance.
VOL ADJUST -15	+06 00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust.
AMP GAIN LOW	POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ;HIGH POWER: The maximum volume level is 35.
SPK/PRE OUT	(Not applicable when 3-way crossover is selected.)Depending on the speaker connection method, select the appropriate setting to get the desired output. (→ 16, Speaker output settings)
SPK SIZE	Depending on the crossover type you have selected (see [X' OVER TYPE] below), 2-way crossover or 3-way crossover setting items will be shown.
X' OVER	(→ 17, Crossover settings)By default, 2-way crossover type is selected.

1 Displayed only when [SUB.W] is set to [ON].
2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (→16)
*3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (→16)
*4 This adjustment will not affect the subwoofer output.

AUDIO SETTINGS

X' OVER TYPE	Caution: Adjust the volume before changing the X' OVER TYPE to avoid the sudden increase or decrease of the output level.
X' OVER 2-WAY	(Displayed only when [X'OVER 3-WAY] is selected) YES: Selects two way crossover type.; NO:Cancels.
X' OVER 3-WAY	(Displayed only when [X'OVER 2-WAY] is selected) YES: Selects three way crossover type.; NO:Cancels.
SND EFFECT
ENHANCE	(Not applicable for TUNER source.) SML/ MED/ LRG: Virtually enhances the sound space.; OFF: Cancels.
RESPONSE LV1	/LV2 / LV3: Virtually makes the sound more realistic.; OFF: Cancels.
SOUND LIFT LV1	/LV2 / LV3: Virtually adjust the sound position heard from the speakers.; OFF: Cancels.
VOL LINK EQ ON	: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF: Cancels.
K2	(Not applicable for TUNER and AUX source.) ON: Improve the sound quality of compressed music.; OFF: Cancels.

Speaker output settings

(Only for X' OVER 2-WAY)

Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

Connection via lineup terminals

For connections through an external amplifier. (一 26,27)

(For KD-X330BT)

Setting on [SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT	REAR/SW
REAR/REAR	Front speakers output	Rear speakers output
REAR/SUB.W (default)	Front speakers output	Subwoofer output
SUB.W/SUB.W	Front speakers output	Subwoofer output

(For KD-X33MBT)

Setting on [SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT REAR SW
REAR/REAR (default)	Front speakers output	Rear speakers output Subwoofer output
REAR/SUB.W	(Not available) (Not available) (Not available)
SUB.W/SUB.W	Front speakers output	L (left): Subwoofer output R (right): (Mute)	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. (一 26,27)

Setting on [SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left) R (right)
REAR/REAR	Rear speakers output Rear speakers output
REAR/SUB.W	Rear speakers output Rear speakers output
SUB.W/SUB.W	Subwoofer output (Mute)

If [SUB.W/SUB.W] is selected:

• [FRQ 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available.
• [R02] is selected in [FADER] and selectable range is [R15] to [00].

AUDIO SETTINGS

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

Caution

Select a crossover type according to how the speakers are connected. (一 26,27)

If you select a wrong type:

The speakers may damage.

The output sound level may be extremely high or low.

SPK SIZE (speaker size)

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.
• If [NONE] is selected for [TWEETER] of [FRONT], [REAR] and [SUBWOOFER] for [SPK SIZE], the [X'OVER] setting of the selected speaker is not available.

X'OVER (crossover)

[FRQ]/[HPF FRQ]/[LPF FRQ]:
Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).
- If [THROUGH] is selected, all signals are sent to the selected speakers.

[SLOPE]/[HPF SLOPE]/[LPF SLOPE]:

Adjusts the crossover slope.

• Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE]:

Selects the phase of the speaker output to be in line with the other speaker output.

[GAIN LEFT] / [GAIN RIGHT] / [GAIN]:

Adjusts the output volume of the selected speaker.

2-way crossover setting items

SPK SIZE
FRONT SIZE	8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"/5×7"/6×8"/6×9"/7×10"
	TWEETER SML/ MID/ LRG/ NONE (not connected)
REAR*1	8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"/5×7"/6×8"/6×9"/7×10"/ NONE (not connected)
SUBWOOFER*2*3	16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE (not connected)
X'OVER
TWEETER FRQ	1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ/10KHZ/ 12.5KHZ
	GAIN LEFT -08DB to 00DB
	GAIN RIGHT -08DB to 00DB
FRONT HPF FRQ	30HZ/40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/120HZ/ 150HZ/180HZ/ 220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB/-18DB/-24DB
	GAIN -08DB to 00DB
REAR HPF*1	FRQ 30HZ /40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/120HZ/ 150HZ/180HZ/ 220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB/-18DB/-24DB
	GAIN -08DB to 10DB
SUB.W LPF*2*3	FRQ 30HZ /40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/120HZ/ 150HZ/180HZ/ 220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB/-18DB/-24DB
	PHASE REVERSE(180°)/ NORMAL (0°)
	GAIN -08DB to 00DB

1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W. (→ 16)
2 ForKD-X330BT: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W or [SUB.W/SUB.W]. (→16)
*3 Displayed only when [SUB.W] is set to [ON]. (→15)

AUDIO SETTINGS

3-way crossover setting items

SPK SIZE
TWEETER	SML/MID/LRG
MID RANGE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6" 5×7" 6×8" / 6×9"
WOOFER*	16CM/20CM/25CM/30CM/38CM OVER/ NONE (not connected)
X'OVER
TWEETER HPF FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL(0°)
	GAIN-08DB to 00DB
MID RANGE HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	HPF SLOPE -06DB/-12DB
	LPF FRQ 1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ/THROUGH
	LPF SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL(0°)
	GAIN-08DB to 00DB
WOOFER*	LPF FRQ 30HZ /40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL(0°)
	GAIN-08DB to 00DB

• Displayed only when [SUB.W] is set to [ON]. (→15)

DISPLAY SETTINGS

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press toexit.

To return to the previous setting item, press q/

Default: XX

DISPLAY

DIMMER

Dim the display and buttons illumination. OFF: Dimmer is turned off. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. (-49, [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 18:00 or 6:00 PM [OFF]: 6:00 or 6:00 AM) AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights.*1

DISPLAY SETTINGS

BRIGHTNESS Set the button and display brightness for day and night separately.

1 DAY/NIGHT:Select day or night.
2 Select a zone. (48)
3 Set the brightness level (00 to 31).
(Default: BUTTON ZONE: DAY:25; NIGHT:09
DISP ZONE DAY:31; NIGHT:12)

SCROLL*2 ONCE: Scrolls the display information once.; AUTO: Repeats scrolling at 5-second intervals.; OFF: Cancels.

^1 The illumination control wire connection is required. (26, 27)
2 Some characters or symbols will not be shown correctly (or will be blanked).

REFERENCES

■ Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

■ More information

Visit also the following website http://www.jvc.net/cs/car/ for:

• Latest firmware updates and latest compatible item list
  AndroidTM application JVC MUSIC PLAY
  Any other latest information

General

• Detailed information and notes about the playable audio files are stated in an online manual on the following website http://www.jvc.net/cs/car/.

Playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.
  The AAC (.m4a) file in a USB device encoded by iTunes cannot be played on this unit.

About USB devices

• This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5 A.

REFERENCES

About iPod/Phone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
  iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.

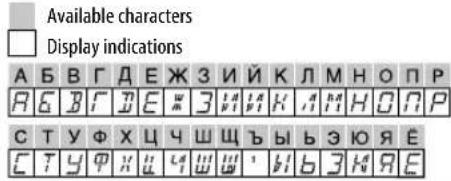

Available Cyrillic letters

Change the display information

Each time you press the display information changes.

• If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears.

FM or AM	Frequency - Day/Clock
	(For FM Radio Data System stations only)Station name (PS) - Frequency Program type (PTY)Radio text+Day/Clock (back to the beginning)
USB (For MP3/WMA/AAC/WAV/FLAC files)
Playing time - Day/Clock Album title/Artist Track titleFolder/file name- (back to the beginning)
USB-IPOD or ANDROID	Playing time - Day/Clock Album title/Artist Track title(back to the beginning)
AUX	AUX - Day/Clock (back to the beginning)
BT AUDIO	Playing time - Day/Clock Album title/Artist Track title(back to the beginning)

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard. · Adjust the volume to the optimum level. · Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears. Send the unit to the nearest service center.
	Source cannot be selected. Check the [ SRC SELECT] setting. (→4)
Radio	· Radio reception is poor. · Static noise while listening to the radio. Connect the antenna firmly.
USB/Pod	Playback order is not as intended. The playback order is determined by the file name.
	Elapsed playing time is not correct. This depends on the recording process earlier.
	"Not SUPPORT" appears and file skips. Check whether the file is a playable format. (→9)
	"READING" keeps flashing. Do not use too many hierarchical levels and folders. · Reattach the USB device.
	"CANNOT PLAY" flashes and/or connected device cannot be detected. Check whether the connected device is compatible with this unit and ensure the files are in supported formats. (→19) · Reattach the device.
	The iPod/iPhone does not turn on or does not work. Check the connection between this unit and iPod/iPhone. · Detach and reset the iPod/iPhone using hard reset.
	Correct characters are not displayed. This unit can only display uppercase letters, numbers, and a limited number of symbols. · Depending on the display language you have selected (→4), some characters may not be displayed correctly.

Symptom		Remedy
Android	·Sound cannot be heard during playback. ·Sound output only from the Android device.	·Reconnect the Android device. ·If in [AUDIO MODE], launch any media player application on the Android device and start playback. ·If in [AUDIO MODE], relaunch the current media player application or use another media player application. ·Restart the Android device. ·If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→20)
	Cannot playback at [AUTO MODE].	·Make sure JVC MUSIC PLAY APP is installed on the Android device. (→7) ·Reconnect the Android device and select the appropriate control mode. (→8) ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (→20)
	“NO DEVICE” or “READING” keeps flashing.	·Switch off the developer options on the Android device. ·Reconnect the Android device. ·If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (→20)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“CANNOT PLAY” · Make sure Android device contains playable audio files. ·Reconnect the Android device. ·Restart the Android device.

TROUBLESHOOTING

Symptom		Remedy
Bluetooth®	No Bluetooth device is detected.	Search from the Bluetooth device again. Reset the unit. (←8)
	Pairing cannot be made. • Make sure you have entered the same PIN code to both the unit and Bluetooth device. • Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (←9)
	Echo or noise occurs. • Adjust the microphone unit's position. (←10) • Check the [ECHO CANCEL] setting. (←11)
	Phone sound quality is poor.	Reduce the distance between the unit and the Bluetooth device. Move the car to a place where you can get a better signal reception.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player. Turn off, then turn on the unit and try to connect again. Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) Disconnect and connect the Bluetooth player again.

Symptom	Remedy
Bluetooth®	“PAIRING FULL” The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (43, DELETE PAIR)
	“PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
	“BT DEVICE NOT FOUND” The unit failed to search for the registered Bluetooth devices during [AUTO CNT]. Turn on Bluetooth from your device and connect manually. (43)
	“NOT SUPPORT” The connected phone does not support Voice Recognition feature.
	“ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“H/W ERROR” Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.

If you still have troubles, reset the unit. (→8)

SPECIFICATIONS

FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)

Usable Sensitivity (S / N = 26dB)0.71 V / 75

Quieting Sensitivity

2.0 V/75Ω

(DIN S/N = 46 dB)

Frequency Response (± 3dB) 30Hz -15 kHz

Signal-to-Noise Ratio (MONO) 64 dB

Stereo Separation (1 kHz) 40 dB

MW Frequency Range 531 kHz — 1611 kHz (9 kHz step)

Usable Sensitivity (S / N = 20dB) 28.2 V

LW Frequency Range 153 kHz — 279 kHz (9 kHz step)

Usable Sensitivity (S / N = 20dB) 50~ V

USB Standard USB 1.1, USB 2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/ 16/32

Maximum Supply Current DC 5 V -1.5 A

Digital Filter (D/A) Converter 24 Bit

Frequency Response (± 1dB) 20Hz - 20kHz

Signal-to-Noise Ratio (1 kHz) 105 dB

Dynamic Range 90 dB

Channel Separation 85 dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC“.aac” files

WAV Decode RIFF waveform Audio Format (Linear PCM only)

FLAC Decode FLAC_files

Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage 1 000 mV
	Input Impedance	30 kΩ
Bluetooth	Version	Bluetooth Ver.2.1+EDR/ Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Pairing	SSP (Secure Simple Pairing)
	Profile	HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)

SPECIFICATIONS

Audio	Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power (at less than 1 % THD)	22 W × 4
	Speaker Impedance 4 Ω — 8 Ω
	Preout Level/Load (USB) 4 000 mV/10 kΩ load
	Preout Impedance ≤ 600 Ω
General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption 10 A
	Operating Temperature Range -10°C — +60°C
	Installation Size (W × H × D) 182 mm × 53 mm × 107 mm
	Weight	0.6 kg

Subject to change without notice.

INSTALLATION / CONNECTION

Warning

• The unit can only be used with a 12VDC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (→15)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Connect the wires properly.

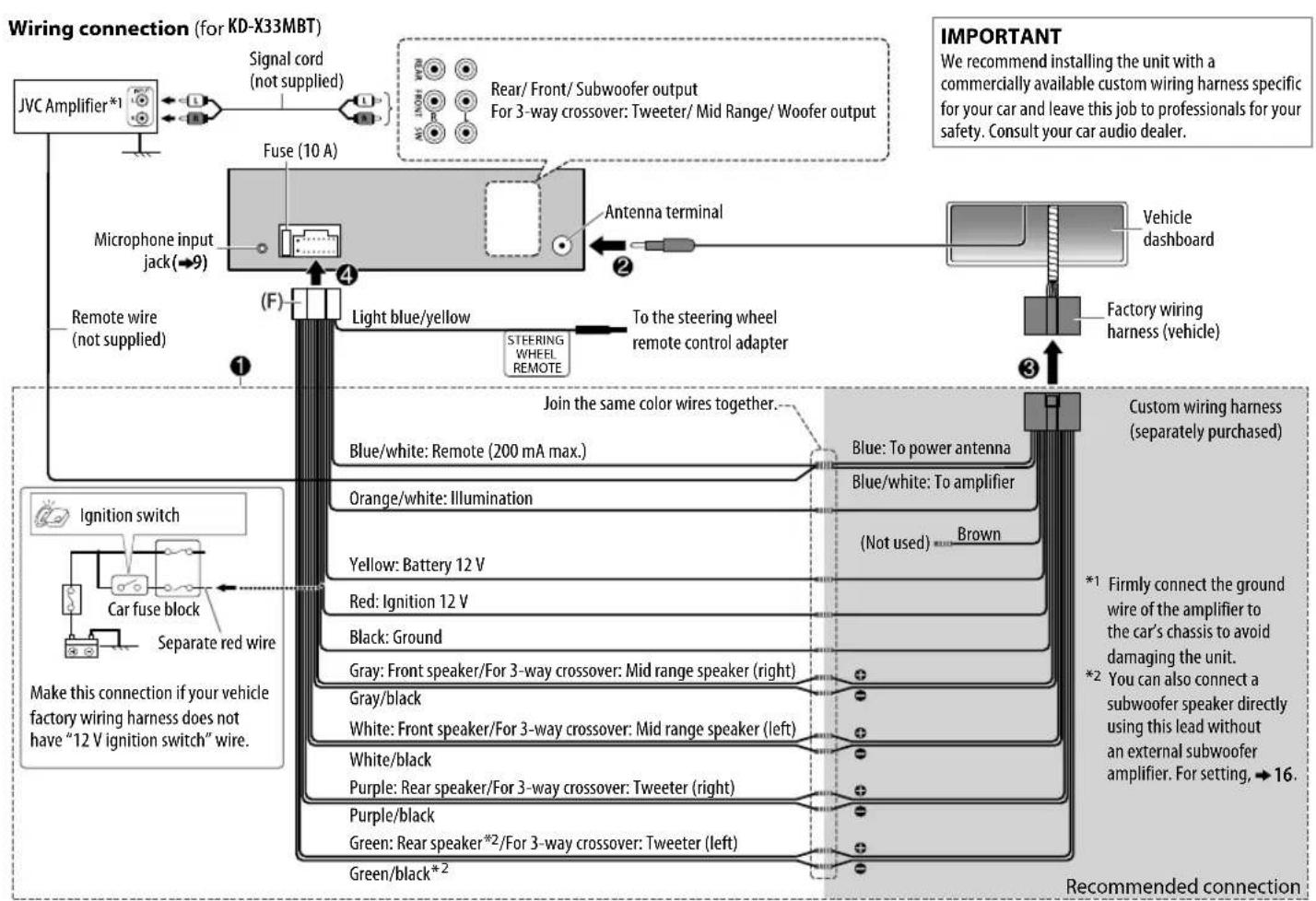

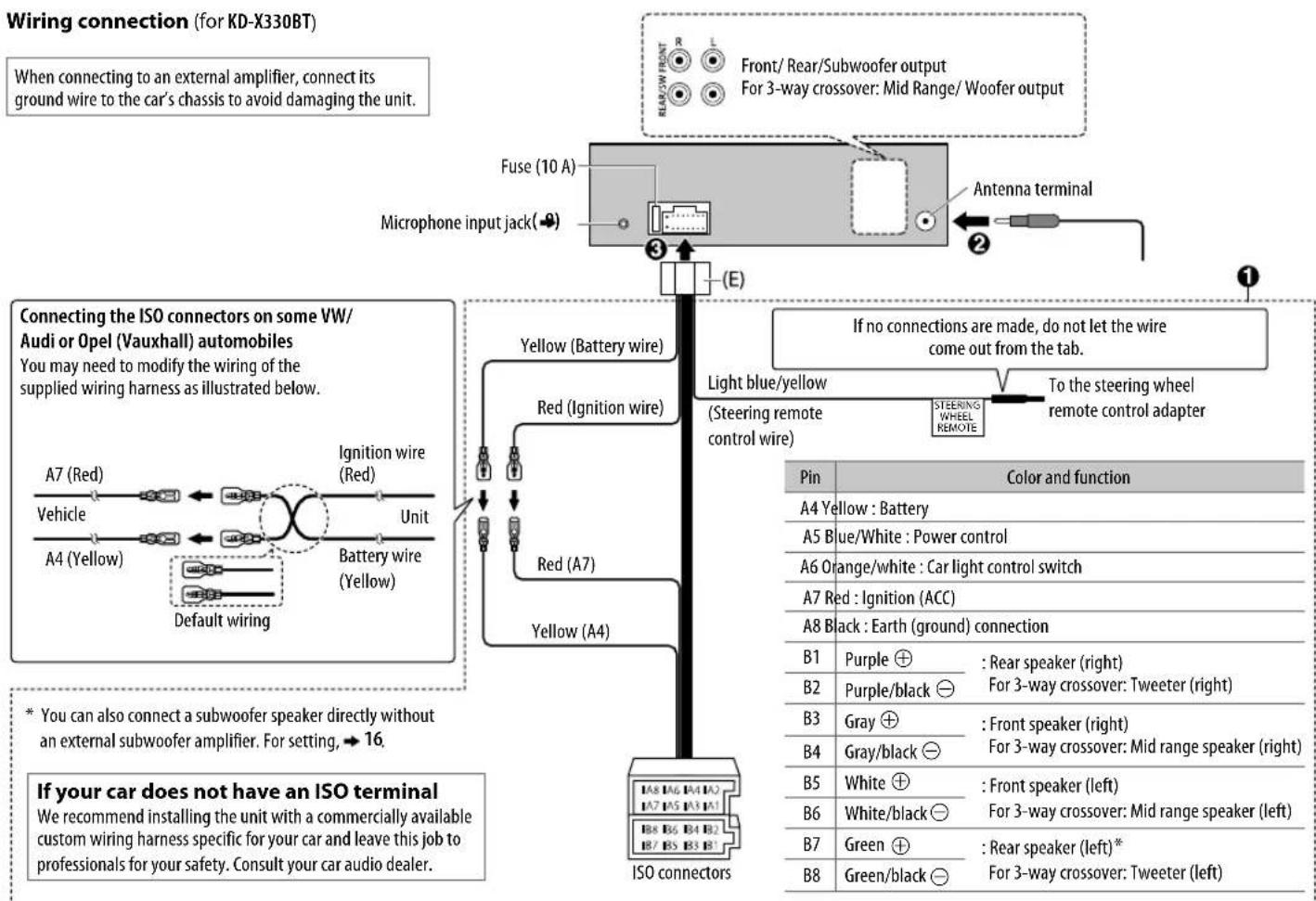

See Wiring connection 26,27
3 Install the unit to your car.

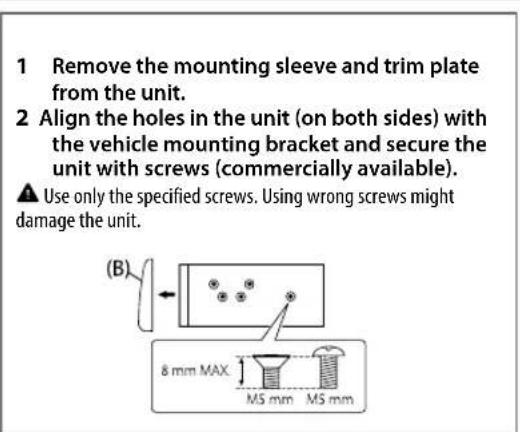

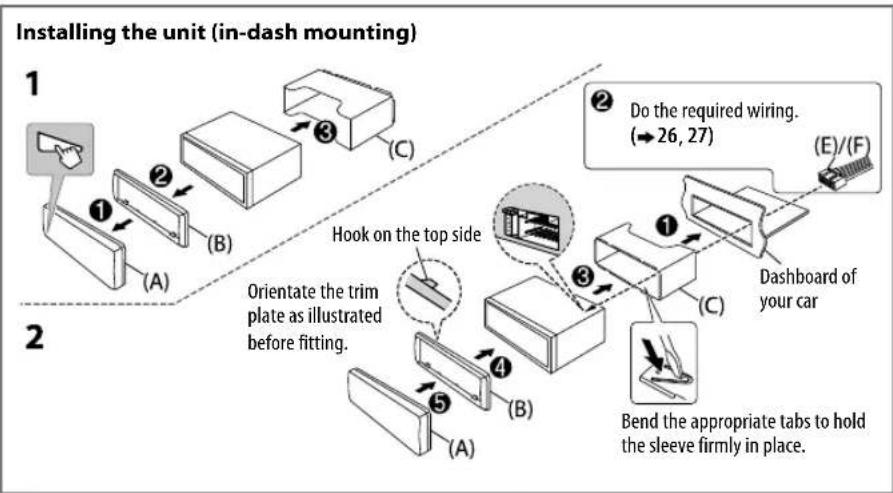

See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Press source the power.
6 Detach the faceplate and reset the unit within 5 seconds. (一 3)

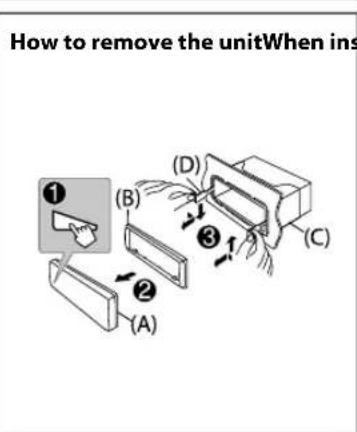

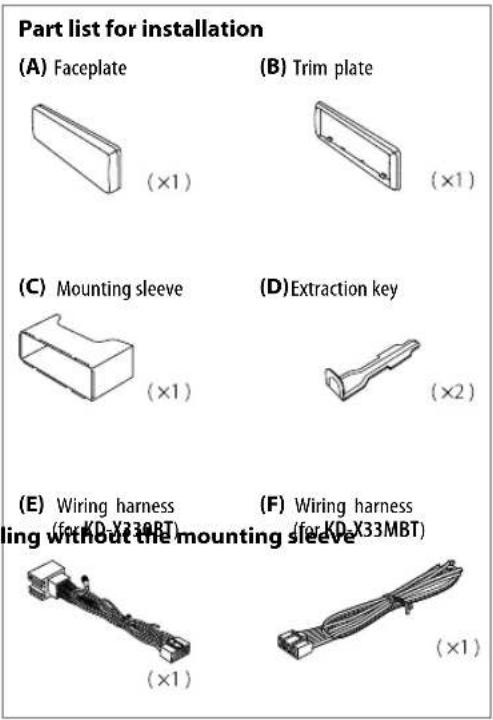

INSTALLATION / CONNECTION

TABLE DES MATIERES

AVANT L'UTILISATION

BLUETOOTH — Telephone portable

(SLOPE)/HPF SLOPE/LPF SLOPE;

(SLOPE)/HPF SLOPE/LPF SLOPE:

A E B F D E E E E E H A M H O P

CTYΦXU4Uu7b1b30R

C7yFxx 44 44 44 44 b 3N 9E

FEHLERSUCHE

He nCnoB3yIte fynkun, KOToPbIe OTBnEkaT BnHMaHne I MeaKaT 6e3onacHomy BoKdHIO.

BHHMaHne

HactpoKa rPOMKocTn:

OtperynpyTe rpmkocTb taKIM o6pa3OM, yTO6blcIbTaB 3ByKu 3a npedeJAMn ABTOMO6Hn Dn I npedOTBaPaeHn ABAPn.
- YmEnbIInTe rPOMKocTb Ipeep BOCpOn3BeDeHEm, YTO6bl IpeDoTbPaTb NOBpeXdHne DnHaMMKOB 13-3a BHe3aHNOr NOBbIeHnry yPOBnI rPOMKocTn Ha BBIXOe.
06une xapaKTepeNCTnK:
He nnonb3yTe BHeWnHye yCTpOeCTBa,ecnTo MoKeT OTMOKeT OPOuTaTeNbHO NOBmAryb Ha 6e3OnaNCHocTb DBNXeHna.
- y6eIntecb b TOM, yTO CO3daHbI pe3epBhble KOINN BceX BaXhIx daHHbx. Mbl He Hecem OTBeTCTBeHHOCTb 3a IOTepIO 3aINcaHHbx DaHHbx.
HnKOrda He octabIe MeTaJIInueCeNne npedMeTbI (HaNPIMep, MoHeTb IIN MTeaJIInueCeNne INCTpyMeHTbI) BHyTPn yCTpoiCTBa BO N36exKaHne KOPOTKnx 3AmbKaHn.
IyIbT IINCTaHIOHOHOrO ynpabneHn (RM-RK52):
He octablanTe npbT dncTaHOnHO ynpaBneHn B HaraepBaemx MeCTax, TaNX KaK npnbOpHa naHeb.
JNTNtBeBnAkkymyTOp MoKet 6bItb B3pblBOONacHbIM npn HnnpaBnBHO 3aMeHe. 3aMeHrTe TOnbKO aKKymyTApOM TaKOrO Xe NIN kKBBaJIeTHTOItna.
- 5nok akymnyrTopOB uIN akkymyraTopbI Heh3a NOBepraTb N36bIToHOMy HArpeBaHIO B CONHeuHbIX nyuaX, OrHe n T.I.
XpaHnTe 6aTapeB MeCTax, HeIOCTynbIX DnIeTei, n B OpIMNHaJIbHOYyakOBKe, eCN OHn HE mCNoJIb3yOTcH. HEmpeHNO ytnIN3IPoBaTB IcNOJb3OBAHbIe 6aTapeB. B cnyae npOrnaTbIBaHHr HEmpeHNO 06paTITBCR K bpaVy.

KaKnONb3OBAtbcraaHHbIMpyKOBOCTBOM

• Onpaunn 06brcnTcB OCHOBHOM CnCnONb3OBAHm KHOHn KapeHn NaHeN MoEe NKD-X330BT.
  B06bAHTeINbHbIX cENX INcONb3yOTcN INHdNkauN HA aHrnnckom 3bike. Bbl MoxTe BblpaTb 3bIK OTO6paKeHNn 13 MEHO.(4)
• [XX] 0603Haayet Bbl6paHHbIe 3JIEMeHTbl.
  -（X03Haayet，HTOMaTePnAblDocTyHbHa yka3aHHoCTpaHnce.

OCHOBHbIE CBeDEHnA

Ipeedna naheb

IynbT duCTaHmOHoro ynpabHeHH (RM-RK52)

YnpaBnTb KD-X33MBTMOKHO C NOMOIOB DONIOHNTeBHO npo6peTeHHoro pIbTa DmCTAHNOHORO ynpaBneHn.

TeMeMeTpueckn dattNK (He noDBepraIte BO3dEChTBIO pRmBbIX cOnHeHbIX nyuei.)

Neped npBbIM nCnObl3OBaHMe CHMNTe 3aunTHyIO NHeKy.

3aMeHa aKKyMylTopa

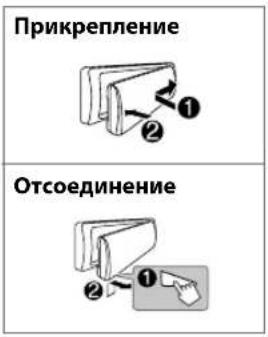

3aapaHa nepeedne naneHn npbte dctannoHHoro ynpabennnn

Вкlioочиね пitaимя	Hajtmite конь SOURCE-。(Hajtmite и уdeckавaite наточы, чтоы оTKлочип ретаиме.	(Нedoстуно)
Ностроча гомковские ПовернITE ручуpe reуларовки гомковские. Hajtmite конь	VOL + ви Vol -
	Hajtmite ручуpe reуларовки гомковские, чтоы вблочичы 3вук ви постановпь Восюзвашип.	Hajtmite конь (1), чтоы вблочичы 3вук ви постановпь Восюзвашип.
	Hajtmite конь opposite pa3, чтоы OTменичы Deястvene.	Hajtmite конь opposite BOCрочибendeши.
Выбоче мосточник	Hajtmite конь SOURCE.(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(Hajtmite конь SOURCE-(WФорmaци	Hajtmite конь SOURCE Heckолько pa3.
Изменения otobражемоу ифорmaци	Hajtmite конь (20)	(Нedoстуно)

HauAIO 3KcPJIyATAUIN

OTMeHa DEMOHCTpaUN

Пипспьв ВКIOчEHи рNTAHЯ (ИИЕСЛДАп napamETра [FACTORY RST] yCTaHOBNeH 3HAueHne [YES]) Na Иснлес OTОбракael cneIyOuяя nHΦoPmaIGN:“CANCE DEMO" "PRESS" VOLUME KNOB"

1 HaxMnte pyky perynipOBKn rpoMkOCTn. BkaeeTBe HaaybHn HactpOnKn Bb6paHO 3haeHneI
2 Haxmte pyky peynpobkn rpoMkOe npa3. OTo6paKaetaHnncb "DEMO OFF".

HactpoJa yacob

1 HaxMnte u ydepXnBaIte HaxaToN KhoNky
2 NObepHnTe pyuKy perynpOBKn rpomKoCTn nla Bb6opa 3neMeHTa [CLOCK], a 3aTeM haxmnte ee.
3 NObepHnTe pykny perynipOBKn rpomKoCTn nla Bbl6opa 3neMeHTa [CLOCK SET], a 3aTeM haxmnte ee.
4 NobopaNaBnapeykypepylnpOBKn rpoMkOcTn,HTo6bI Bbl6paTb 3HaHeHnnapaMeTpPo, a3TeM HaxMNTe ee. DeHb Yac MHyTA
5 Nobeprte pyky perynnpOBKn rpomkOCTn Iy Bb6opa 3neMeHTa [24H/12H], a 3aTeM haxmnte ee.
6 NOBepHnTe pyky perynnpOBKn rpomKoCTn Dna Bb6opa [ 12 HOUR] mIn [24 HOUR], a 3aTeM haxmnte ee.
7 Haxmnte bixoia.

IINB03Bpata K INpebduyeme My 3neMeHTy HAcTpoKn HaaKMTe KHONky/

3aahanhe6a0bBIX HacTpoek

1 HaKMTe n ydepKuBaIte HaxaToH KOnKy
2YTO6bI Bb6paTb 3nEMENT, NOBEPHNTe pyky perynnpOBKn rpoMKoCTN (cM. cnedyIOuOy TO tabniuy), 3aTeM HxMMTE ee.
3 NOBTOPAte DeIeCTBnE 2 Do tex nop, noka He 6yET Bbl6paH nn AKTUBNPOBAH Heo6XODMbI JAMEHT.
4 HaXMMTe 100000000000000000000000000000000000000000000000

IINBa BO3Bpata K npebdyuemy 3nemEny HAcTPOkHAnMTe KHOJky

NoymonHaHIO:XX

Hauano Bocnpon3BedeHH

PpOcXoMHT ABOMaTmUeCKA CMeHa NCTOuHnKa, HauHaTaC BOCpOu3BeDeHHe.

BxOДиоUSB-pa3bEm

iPod/iPhone

ANDROID*2

Pnepknaembe koeKn Bluteoth

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

IopknoueHne MnkpofoHa

Conpaxchenu noqkuiueHne yctpoCTBa Bluetooth B nepBpa3

1ДьВКЛЮЧЕнЯустуpoCTBaHaXmITE SOURCE-
2 Ha yctpoicTBe Bluetooth haaidnte N Bb6epute "JVC UNIT".

Ha dncnnee mraet haqncb "BT PAIRING".

-ДянгсOTOBxUcTPOiCTB BluTeoth MoXeTNotpe6ObaTbCBA BOD nepcoHaIbHOro IeHTnФkaUHOHORO Koda (PIN) HENOCPeDCTBeHNOncne NocKa.

3 B 3aBcMocTn OT npOKpyuBaembIX Ha 3KpaHe daHHbIX BbINONHtE JeIeCTBne (A) nnn (B).

Hekotopbye yctpoictBa Bluetooth mOyT nPoUeDpyCOnpaKeHn, KOtopaR OTmuaeTcR OYka3aHHoH Hmke.

(A) "[IMRAyctpOcTBa]" "XXXXXX" "VOL-YES" "BACK-NO"

"XXXXXX”-TOKIOUOCTyNA,COCTOaUNI36uOp,KOTOpBcNyaHbIMOBpa3OMoPmnpyeTcBO BVPMAKJDOCOPJKeHn.
1 Y6eHITecb, yTO KIOUHOOCYNA, OTO6paKaHOUneC H aYCTPOINCTBE N yCTPOINCTBE Bluetooth, OINHAKOBBI.
2 HaxmTe pyUkpeyIPOBKn rpmKoCTn IIN NOITBePKeHn KIOUa DoCTya.
3 NcnoB3yIte yCtpoIcTBo Bluetooth nIOaTBePckJeHnKIOuHa Doctyna.

(B) “[Имя устюп CTba]” “VOL - YES” “BACK - NO”

Haxmnte pyky perynipobKn rpoMKoCTn, yTo6bl 3anyCTntb cnpjKeHne.
2 -Пи npokpyke Ha ekpahe coo6eHnra "PAIRING" "PIN 0000" BBeIte PIN-KoD "0000"Ha yctpoictbe Bluetooth.петд сржкенem moxho yctahOBNTb hyxHbIy PIN-KoD. (13)
- Ecln OTo6paXaETcT TOnbKO coo6eHne "PARING", c nOmoIbU yctpoiCTBa Bluetooth noDTBepnTe cOpraKeHne.

Co06ueHne "PAIRING COMPLETED" oTo6paXaETc npu 3aBepWeHN cOpJxEHN, a npu yCTaHOBe coeDHeHN Bluteoth 3aropaeTc CmBON

3aropaetca, noka3bva3apd6batae m cmy curhana.*

*YHKNUHMOBAHME3ABHCNTOTTUNAHCN0b3yemoroTEeOHA.

JaHHoe yCTpoIcTBo NOIDepKmbaet SSP (Secure Simple Pairing).
Bcero moxho 3apeHCTpnpoBaT (BbInonHnHb cnpjKeHne) do 10 yctpoNCTB.
Pocne copraeHn yctpoCTBO Bluetooth octaHcTapeHCTpnpoBaHbM yctpoCTBe daKe npi c6poce erohactpoeK. Yo6bl ydaNTb copraeHnoe yctpoCTBO, 13, [DELETE PAIR].
- ODNOBPemeHNO MOryT 6bIb NpDKnIOueHb Ie 6Oone DByX TeneΦoHOB Bluetooth n oDHO ayDnOyCTpoCTBO Bluetooth.
- HeKoTOpbIe yctpoiCTBa Bluetooth Moryr ATOMaTHueCKN BbINONHrTb NODKIOHcHHe Nocn CoPRAKeHH. PNOKJIIOHTe Tako yctpoiCTBO BpyHyU.
- Pópo6HbIe CbeHeHrA CM. B pykoBODCTBe yctPoJcTBA Bluetooth.

BLUETOOTH

ABTomatnueckoe copxkeHne

Пи радсоединену усторь iPhone/iPod touch/Android KBxOДНOMy USB-равету AMTOMATUWECKNakTNBUPYETc3anpoHCoPnKHeHne(Yepe3Bluetooth).

HaxMMTe pyKu perynpOBKn rpOMKoCTn Ia n copJxEHH NoCte TORO, KaK NOdTBePdNte NMa yCTPOXCTBa.

ABTomaTneckn 3anpoc Ha copnpaKeHne aKTbnpyETc TOnBko npu ycNoBNM, YTO:
-Функua Bluetooth noCoeMHHeHOrO yCTpoIcTba BKIOUeHa.
-ДяnapaMeTpA[ATO CNNT]yCTaHOBHeHO 3HaueHne[ON].(→13)
-Пиюхене JVC MUSIC PLAY yctaHOBNeHoHa yctpoiCTBe Android (7) И вьбран оцURA [ATO MODE] (8).

BLUETOOTH—Mo6nBbHbTenefoh

PnemBbI3Oba

PnnoocTynneHm BxOaJzeroBb30Ba:

-KHONK6yuyT MURATB COOTBTCTBNN Csa6noHom MURAHB, Bb6paHHbIM BAIMB [RINGILLUMI].(→11)
YCTPOICTBOOTBEaETHaBb3OBABTOMaTnueckn,ecnnIpaMaTePa[AUTOANSWERyCTaHOBJeHO Bb6paHHoe Bpem.（11）

BoBpemBaBb30a:
- KhoKn npeKpaaaot MngtaTb.
- Ecnn Bbl OTKIOHTe yCTPOBCTBO mN OTcoEINHITe nepeHIO paHb, coEINHHe Nte Bluetooth 6yET pa3OpBaHO.

3aadaHa nepedne nane
Ha nybte ductaunhoHoro ynpablenn
PepBbB BXOJaun Bb3OB...

2 HAnMeIpyKpeyepyepnIOBKNpOMKoCT,THo6bblBbINONHTbBl30B.

PHONEBOOK

(TPnHMeHHMo,TOIbKOeCNTepeOHnoDnepeKNaBaETPBAP)
1 HaxMMTE 2 AaHbIpa HyxHoro 3HaKa (A-Z,0-9 N OTHERS).
OTHERS"OTOBPAaETCA,ecn npBbIM CMBON OTNMAeTcO A-2,O-9.
2NoBepHnTe pyky perynpoBKM rpoMOKCTIN DnBb6opa HmEH, a 3aTEM hAAMNTE pyky.
3 NopbHnTe pyuKpyepyunpOBKn TpOMKOCTn Dna Bbl6opa Hmepa TelefoHa, a 3aTeM HaKMnTe ee DnBb3OBA.
-Пин сponяжен.Teteфонная KMна NOДКИQUЕнHOrTo TetefoHa ABTOMaTHUeCKN NepeaTeCn Ha yCTPOHCTBO.
JaHHoe yCTPOCTBO MOKET OTO6paKaTb TOnbKO HEAKCUENTPOBAHnBHe 6yKBbl.(AkuTeHTPOBAHnMe 6yKBbl, TAKKe KAK "U", 6yDyT OTO6paKaTbCk KA "U".

DIAL NUMBER

1NoBepHnTe pykypeyHnPOKBn rpoMOKoTH N Bb6peHte uO 0do9)nn CMBOB（，+）
2 HaxMMTE1 1AepeHoc4 N03NIMBBOJa.
IobTOpRHTe 1nCTBn2 DoTexnop, noka He 3abeepmtBBOH HomepaTeoHa.
3 Haxmte pyky perynpOBK npMOKt, T06bblnONHt Bbi3OB.

VOICE

IPOHMESHEHMe KOTAKTa, KOtOPOMHy HxKHO N03BOHbTb, KINI rONOCBOYIO KOMAHyDy IyNpABNEHnA yHKUAMNH TELEOHa. (BblONHeHne Bb13Oba c nOMoubIO paCNO3HabHnra roJocla)

BbIOnHeHne BblOBA c NOMoUbIO paCNo3HaBaHnra roIocA

1 HaxMMTe N yapedKbAteTnKtNbauN nOdoeDnHeHOro TenefoHa.
2Ipon3heCnTe NMR KOHTaKa, KOTOPOMy HxKHO NO3BOHntb, INI ITOLOCOByIO KOMaHy DnA ynpabNeHnE FyHKUmaM TelefoHa.
PnDepxmbaembIyHKmPi pacno3HabHa rnooc3aBncat OT Telefoha. Pnpo6hble cBeHnM CM.B pykoBOCTBE noknIOeHHORo Telefoha.
3To yctpoiCTBO takke noDnepxmbaet fYHKuHIO HHTeNKeKtyaJbHO rHOro nHOro nomouhika iPhone.

HactpoKuBnarnT

CoxpaHeHne KOHTaKtBa B nAmrTH

AynonpounrpmbaTeB uepes Bluetooth

1 HaxMMTe SsURGEpa3, 4To6bI Bbl6paTb BT AUDIO (Hn HaXMnTe SOURCE Ha RM-RK52).
2 Nn Hauana Bocnpon3BedeHn BKnIOHTe aydnonponrpbBaTeN Bluetooth.

EcnBb6paHO SUB.W/SUB.W

[FRQ 120HZ Bb6paHO B [SUB.WLPF] nOpiu [THROUGH] HeoctynHa
- [RO2 Bb6paHO B [FADER] nДЯ Bb6opa DoCTyneH dIana3oH c [R15]do [00].

3BYKObIe HACTPOIKU

Hactpoikn KpoccoBepa

HnHex npBBeHeBIOCTyNtBHe 3nEmeHTb HAcTpoKn Dn2-nOncOBOro KpocCOBepa n3-nONOCOBOrO KpocCOBepa.

BHUMAHue

Bb6npaTne TnKpoccoBepa B COOTBeCTBm C KOHpyauee noKnIOUeHn HnHAMKO.B. (一 26,27)

EcnBbBb6epnte HnpabnHbHtn

-ДИнhamMIMMOrT NOBpeDNTbC.

• YpOBeHbBIXoHOrO3ByKaMOxKET6bTbUpe3MepHO BICOKM HINHNH3KM

SPK SIZE{pa3mepduhaAMnka}

BbIpaTcB CootBeCTBmC pa3MePOM NpKnHoeHHo DnHaMnKa dna 0eocneehnONtImaJIbHbIX XapakTePcTnK.

HactpoKu qactobI KpyTm3bI dIa Kpoccoepa Bb6paHHoro dmamka yctahabnBaHOcra botomTuWeckn.

Korda [NONE] BbipaHO JIA [TWEETER B [FRONT], [REAR] N [SUBWOOFER]

IN [SPK SIZE], HACTPOKA (X' OVER) Bb6paHHORO INHAMNAKHe DOCTYNHA.

X'OVER (kpoccoBep)

[FRQ]/[HPF FRQ]/[LPF FRQ]:

PerynpoBkA qactoIb KpoccoBepa IIN Bbl6paHHbIX INHAMKOB (fNtBtp BBICOKNX qactOT ININ fNtBTP H3KNX qactOT).

EcnBb6paHO[THROUGH],Bce CnHaJIbI nepeaIOCTHa Bbl6paHHbIe HnHaMnKn.

[SLOPE]/[HPF SLOPE]/[LPF SLOPE];

PerynpoBka KpyTn3HbI KpoccoBepa.

• DoctynhoДЯВblbopa,ToIbkoecnДЯcaCTObl KpoccoBepa BblpaHaDpyraH achtpoKa,Kpome [THROUGH].

[PHASE]:

Bb6op Za3b BixoHOrO CnHaHa DnHaMnKa B COOTBeTCTBm C BixoDhBM CnHaJOM DpyrOTo DnHaMnKa.

(GAIN LEFT)/[GAIN RIGHT]/[GAIN]:

PerynpobKa ypOBnB bixoHoro CnHa NbIbpaHHoro DnHaMnKa.

3nemehtbHacTpOkn2-nonochoro KpoccoBepa

SPK SIZE
FRONT SIZE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6" / 5×7" / 6×8" / 6×9" / 7×10"
	TWEETER SML/MID/LRG/NONE (he podknoyucho)
REAR*1	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6" / 5×7" / 6×8" / 6×9" / 7×10" / NONE (he podknoyucho)
SUBWOOFER*2*3	16CM/20CM/25CM/30CM/38CM OVER/NONE (he podknoyucho)
X'OVER
TWEETER FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	GAIN LEFT 0r-08DB no 00DB
	GAIN RIGHT 0r-08DB no 00DB
FRONT HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB/-18DB/-24DB
	GAIN 0r-08DB no 00DB
REAR HPF*1	FRQ 30HZ /40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB/-18DB/-24DB
	GAIN 0r-08DB no 00DB

1 OTo6paKaetcTOnbKO B TOM cnyae,ecnnapaMetr SPK/PRE OUTI NMeET 3HaueHHe [REAR/REAR]
*2 DnKD-X330BT:OTO6paKaAeTc TOnbKO B TOM CNYae,ecnnapaMetp [SPK/PREOUT]meeT3haueHne [REAR/SUB.W]nnr SUB.W/SUB.W.（→16)
3 0To6paKaAeTc TOnbkoB ToM cHyae,ecn npaMeTp SUB.W JmeeT3HaueHne [ON].(→15)

3BYKObIe HACTPOIKU

SPK SIZE
TWEETER	SML/MID/LRG
MID RANGE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6" / 5×7" / 6×8" / 6×9"
WOOFER*	16CM/20CM/25CM/30CM/38CM OVER/ NONE (he noДхлочец)
X'OVER
TWEETER	HPF FRQ 1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL (0°)
	GAIN OT -08DBno 00DB
MID RANGE	HPF FRQ 30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	HPF SLOPE -06DB/-12DB
	LPF FRQ 1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ/THROUGH
	LPF SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL (0°)
	GAIN OT -08DBno 00DB
WOOFER*	LPF FRQ 30HZ /40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB
	PHASE REVERSE(180°)/NORMAL (0°)
	GAIN OT -08DBno 00DB

^*1 Heo6xOIMMO NOKIOUeHne IpoBOa peryaTOPOA OCBueHHOCTn. (26, 27)
*2 HeKToOpBle 6yKBb Hnn CmMBOnbl He 6yDyT OTo6paXaTbCnPaBnBHO (HnH He 6yDyT OTo6paXaTbCn)Ha DnCnnee.

CπPABOчHBIE MATEPuaJIbI

06cnykBaHne

UCTka yctpoiCTBa

B Cnyue 3aqr3HeHn npoTpnepeHNO naneHb cyxO cnnKHOBO Hm MArKO TKaHbIO.

OuHCTka pa3beMa

OTOcEOHNHTI PAENBYYN ANAEYbN AKKyPAHTO IPOPTPte p3bEM BATHOH NAPNOK. CoBIOJDAITe OTOPOXHOCTb, YTO6bI He NOBpEHTaPBzEM.

DOnOHHTeNbHa HOpMaun

Iocetnte cnedyoum Be6-cainhttp://www.jvc.net/cs/car/,y06bI nonyurtb:

-10nCneHmE oBHOeHHB BCTpoEHHO npoPamMHO OecneHn H nocneHN CmKoN DpeKHaembIX
-Пиножжени ду усpoьтв AndroidTVJVC MUSIC PLAY
-ⅡIb6aIpyraIIOcIeHRIHHΦOpMaIur

06une xapaKTepeNtKu

IIOIO6HbIe CBEDEHn H nPmHcAaHn OTHoCtBHeBHO 3yBokBx bHnOB, DcOtuHbX dN BocpOw3BeDEHnA, PnepCTaBHeB b INHTepaKTBHOM pykoBDCTBa H cNeDyUcE M e6-caiThttp://www.jvc.net/cs/car/

Bocnpo3BoDmble faJIbI

BocnpnboDmmby38ykoBoiФaain: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)
BocpoHbOoHmaaHaiNoBa cHcTeMa yCtpoCTb USB:FAT12,FAT16,FAT32
JaXe cIaY aIIOHoaaiBbI cooTBeCTbYOT NepeuINcHHeBIM BIIe CTAnDpTaM, pN HekOtOpBX TmNAX HIN COCTOHNAX HOCHTENE BOCPONB3BeDEHME KOAK3bCRA HEBO3MOKHBM.
AaHbAAc.(m4a)Ha yctpoiCTBE USB,3akDnpoBaHHbIe c nmooubITunes,He Moryr BocpnBodntbHa HaaHOMyCTPOHCTBE.

06 yctpoctrbax USB

JaHHe yCTPOIcTO BOeKET BOCIOIN3BOOHTb faHbMP3/WMA/AAC/WAV/FLAC, coXpaHEHbIe Ha 3aONMHaIOUe MyCTPOICTBE USB 60bnouE MKOCTN.
3anpeaetno noknouatb USB-Hocntenb uee3 USB-KonentpatoP.
PIOKIIIOHHe KAbena,06aA DnHa KOtOpO npeBbIaet 5 M,MOKeT pNBeCTN KHeKOpEeTHOMy BOCnPOK3BeDEHHIO.
370yctpoCTBOHepacno3HaerycTPOCTBAUSBCHOMHHaHbHIMHNpXeHMe,OTMHBMOT5B,H HOMHHaHbHbMTOKOMCBbiue1,5A.

CNPABOCHbIE MATEPNAJIbl

06 iPod/Phone

Made for

• iPod touch (2nd, 3rd, 4th w 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, 7th generation)
  iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
• Постмов КВДЕОФайов В мени "Videos" В рекинmate [HEAD MODE] HeBO3MOKEH.
• Pnpok OTO6paeHHNNEcH B MEHO BbOpa DaHOrO yCTPOKCTBa MOxET OTMnATbCt OT npAka neeH B npomrpbatene iPod/iPhone.
  B3aBcHMOCTMOTBepCnonepaauonHHOn CNTeMbIPod/PhoneHEKOTOpbEpyHKmMoryTpepaotatbHa DAHHOMYCTPOBCTBE.

06 yctpoctrBax Android

JaHnOe yctpoCTBO noDaepeKnaBae rAndroid OS 4.1 H BbIe.
- HeKoTOpBye yCToiEBA Android (c OS 4.1 m BbIe) MOrTy HE NODepkMBAbTB nonHocTbO Android Open Accessory (AOA)2.0.
EcnHytpoBnAndroidoHOBPemHeNOIepKBAeTAnMHaOHe yCtpoCTBa60JIoo EMKoCTN AOA 2.0,DaHHoeYcTPOCTBO BcERdaBOcPON3BDoHTupe3A02BkaCTBe npOpTeTa.

Ofynkmmu Bluetooth

B 3aBcHMoCTn OT Bepcm Bluetooth HeKOTOpbIe yCtpoiCTBa Bluetooth He MOrY T6bTb NpKnOueHb K 3ToMy YCtpoiCTBy.
- YcptpoCTBO MOKET He pa6oTaB cHEKOTOpbIMN yCPTPOCTBaMn Bluetooth.
- Okpykaioaepedaoka3bIaBtBNMAHMe HcOCTOHNcGHnHa.

H3MeHeHne OTo6paKaHaemn HhOpMaunn

KaKJIOe HAKaTHe KHNKnCpeHoayeToO6paKaemyHnHOpMaunHO.
- EcnHnHΦopMaunH He nOcTynHa Hn Hn He 3aHnCana, OTObpaKaetc coo6uHHe "NO TEXT", "NO NAME" mHn Dpyra HnΦopMaun(HanpHmep, Ha3BaHmep paJIMocTaHmH).

0To6paKeHMe HmDnKaTopoB

ABBΓΕχ3ικΚΙΜΗΟΝΡ

CTYΦXUCHbbl3IOE

C. y = 12x ①

YCTPAHEHNE IPOBJEM

(C) PocadoOnhbl Koppyc

(D)KIOUДЯДEMOHTaKa

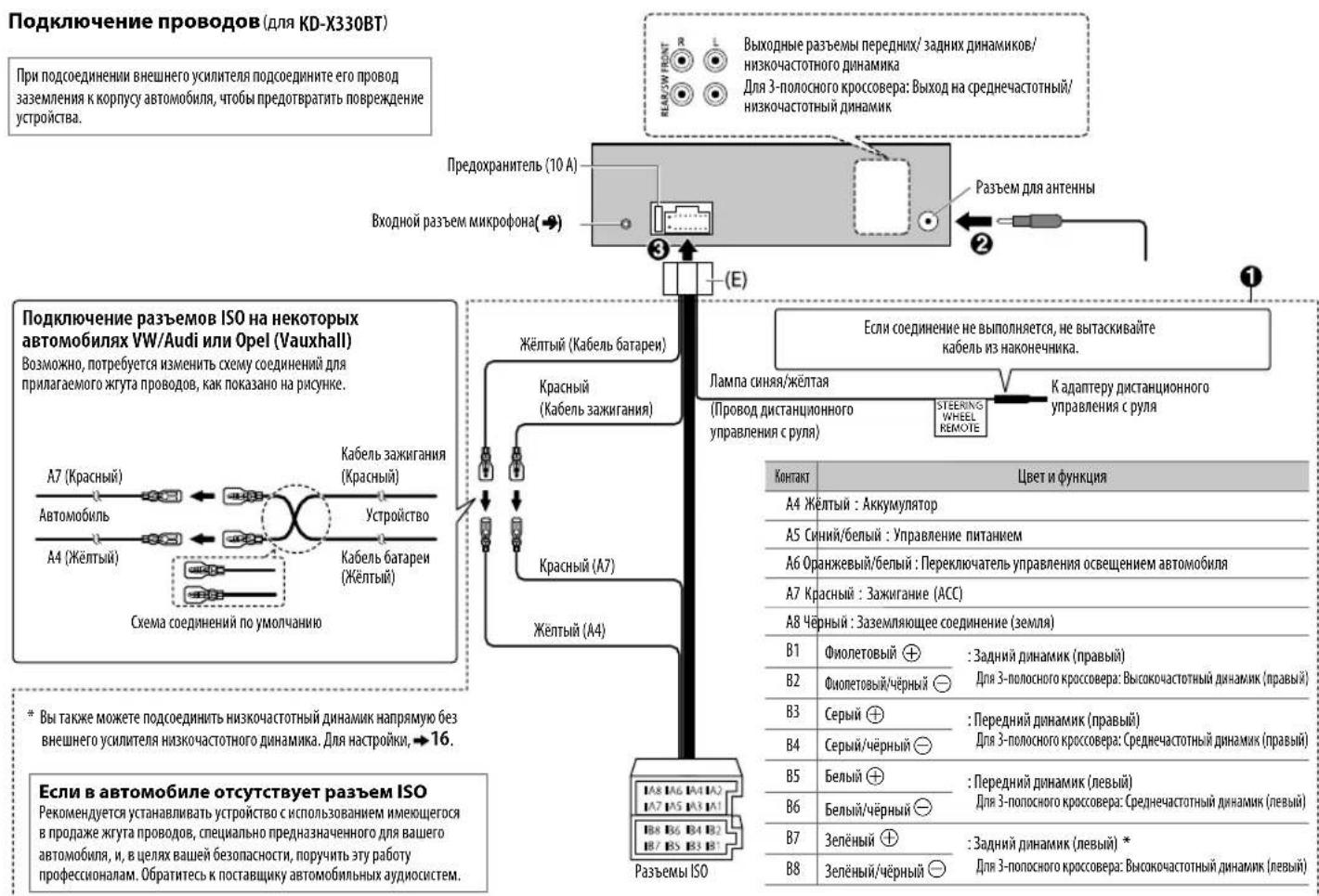

(E) Kpy np0Bdo8 (DnRA KD-X330BT)

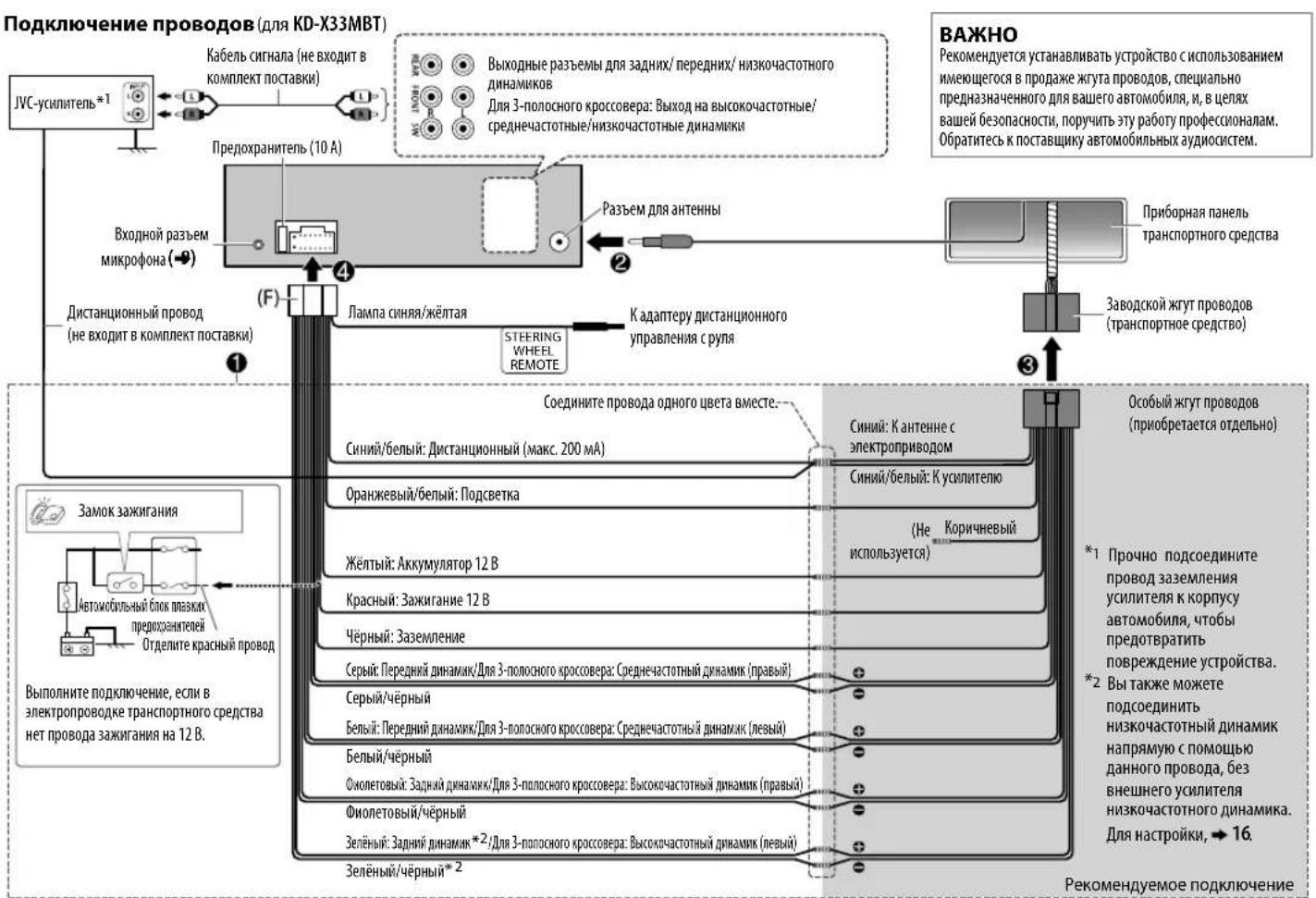

(F) Kryr npoobod (dno KD-X33MBT)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
  Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
