USER MANUAL SJF78PS SHARP

PRIROČNIK Z NAVODILI ZA DELOVANJE . . . 131

ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ . . . . . . . . . . . . 139 РЪКОВОДСТВО ЗА РАБОТА . . . . . . . . . . . . . 147 Plasmacluster is a trademark of SHARP Corporation. SJ-F72PC SJ-F73PE SJ-F74PS SJ-F77PC SJ-F78PE SJ-F79PS A808_表1-5版.fm Page 1 Wednesday, August 10, 2011 4:06 PM2 (A711)3‑10ENG1.fmPage2Saturday,March25,20065:39PM3 POLSKI MAGYAR ROMÂNÃ ČESKY SLOVENSKY LIETUVIŲ KALBA LATVIAN EESTI KEEL SLOVENSKO ENGLISH INTRODUCTION Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.All persons using the cabinet must be thoroughly familiar with its operation and safety features. Keep this operation manual with the refrigerator if you move or if the cabinet changes owners so that whoever uses it can read about the various features and safety rules. Important:

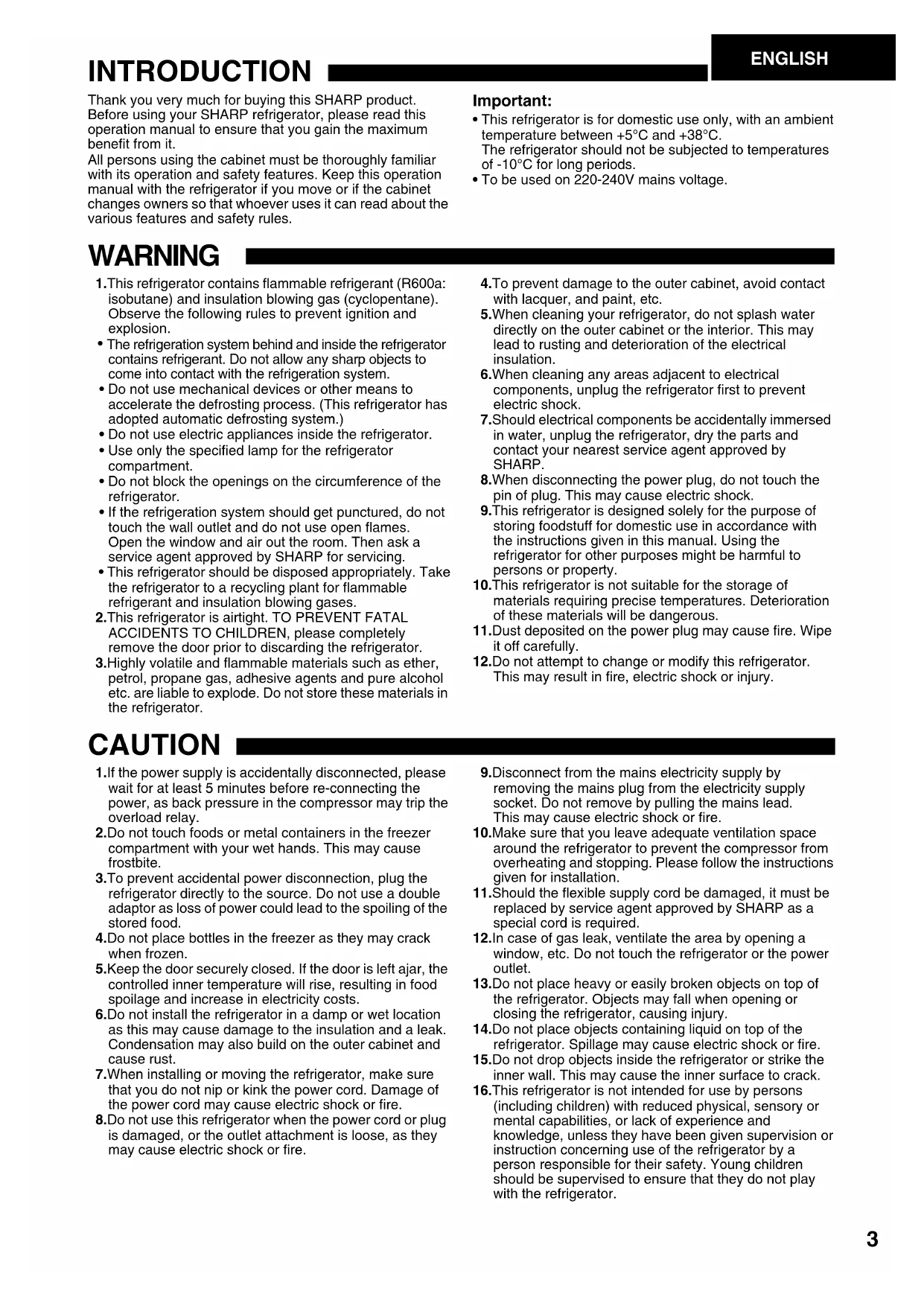

• This refrigerator is for domestic use only, with an ambient temperature between +5°C and +38°C. The refrigerator should not be subjected to temperatures of -10°C for long periods.• To be used on 220-240V mains voltage. WARNING 1.This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion. • The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system. • Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.) • Do not use electric appliances inside the refrigerator. • Use only the specified lamp for the refrigerator compartment. • Do not block the openings on the circumference of the refrigerator. • If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing. • This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases. 2.This refrigerator is airtight. TO PREVENT FATAL ACCIDENTS TO CHILDREN, please completely remove the door prior to discarding the refrigerator. 3.Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator. 4.To prevent damage to the outer cabinet, avoid contact with lacquer, and paint, etc. 5.When cleaning your refrigerator, do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation. 6.When cleaning any areas adjacent to electrical components, unplug the refrigerator first to prevent electric shock. 7.Should electrical components be accidentally immersed in water, unplug the refrigerator, dry the parts and contact your nearest service agent approved by SHARP. 8.When disconnecting the power plug, do not touch the pin of plug. This may cause electric shock. 9.This refrigerator is designed solely for the purpose of storing foodstuff for domestic use in accordance with the instructions given in this manual. Using the refrigerator for other purposes might be harmful to persons or property.10.This refrigerator is not suitable for the storage of materials requiring precise temperatures. Deterioration of these materials will be dangerous.11.Dust deposited on the power plug may cause fire. Wipe it off carefully.12.Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury. CAUTION 1.If the power supply is accidentally disconnected, please wait for at least 5 minutes before re-connecting the power, as back pressure in the compressor may trip the overload relay. 2.Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite. 3.To prevent accidental power disconnection, plug the refrigerator directly to the source. Do not use a double adaptor as loss of power could lead to the spoiling of the stored food. 4.Do not place bottles in the freezer as they may crack when frozen. 5.Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise, resulting in food spoilage and increase in electricity costs. 6.Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust. 7.When installing or moving the refrigerator, make sure that you do not nip or kink the power cord. Damage of the power cord may cause electric shock or fire. 8.Do not use this refrigerator when the power cord or plug is damaged, or the outlet attachment is loose, as they may cause electric shock or fire. 9.Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.10.Make sure that you leave adequate ventilation space around the refrigerator to prevent the compressor from overheating and stopping. Please follow the instructions given for installation.11.Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.12.In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.13.Do not place heavy or easily broken objects on top of the refrigerator. Objects may fall when opening or closing the refrigerator, causing injury.14.Do not place objects containing liquid on top of the refrigerator. Spillage may cause electric shock or fire.15.Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.16.This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator. (A808-3 校 )_03-10_ENG.fm Page 3 Monday, June 16, 2008 1:35 PM4 INSTALLATION

1. This refrigerator is free standing type. Please keep

adequate ventilation space around the refrigerator.

• The figure shows minimum space necessary to maintain the cooling capability.
• It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.

2. Using the two front Adjustable feet, ensure that the

refrigerator is positioned firmly and level on the floor.

3. When right and left doors are not properly aligned, adjust

using the adjustable feet.

4. Remove the 4 screws of the cabinet lower part, and then set

the foot cover (supplied inside the refrigerator compartment) with removed 4 screws. NOTE:

• Position your refrigerator so that the plug is accessible.

• Keep your refrigerator out of direct sunlight.

• Do not place next to heat generating appliance.

• Do not place directly on the ground. Provide suitable stand.
• To insert the power plug when the door is opened, door alarm sounds but it is not abnormal. This sound stops when closing the door. When transporting

• Using the casters, it is possible to move back and forth.

• Carry the refrigerator by holding the handles located on the rear and bottom. Before using your refrigerator Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly.6cmor moreor more6cmor more6cmor more9cmAdjustable foot Lower the right side. Lower the left side. (Until the adjustable foot on the other side is slightly off-ground.)When the left door is raised. When the right door is raised.Screw(4 screws)Foot coverScrewCasters Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.*) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste.There is a separate collection system for these products. (A808)3‑10ENG.fmPage4Wednesday,May16,20072:42PM5 POLSKI

MAGYARROMÂNÃČESKYSLOVENSKY

4. Bottle pocket (left)

5. Vegetable crisper

The cover of the Vegetable crisper opens as the case is pulled.

The bottom of the tray contains refrigerant material used in ice packs to speed up the ice making process. The tray can also be used to freeze small food items such as meat and fruits by removing the ice making partition.

7. Freezer case (small)

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

14. Utility pocket cover

20. Bottle pocket (right)

To store large-size bottles, move the partition all the way back.

• Do not over fill the tray; otherwise the ice cubes will be joined together when frozen.• When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice cube box.

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

SJ-F77PC, SJ-F78PE, SJ-F79PS

SJ-F72PCSJ-F73PESJ-F74PS

PartitionLeverIce cube box (A808)3‑10ENG.fmPage5Tuesday,May1,20074:43PM6 CONTROL PANEL THERMOMETER This refrigerator is provided with a THERMOMETER in the refrigerator compartment to allow you to control the average temperature in the coldest zone. COLDEST ZONE The symbol indicates the coldest zone in the refrigerator compartment. The coldest zone goes from the Shelf at the bottom of the refrigerator compartment to the symbol. (The door pocket positioned at the same height isn’t the coldest zone.) CHECKING THE TEMPERATURE IN THE COLDEST ZONE You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control as indicated in the chapter “Controlling Temperature”. To maintain a correct temperature inside the appliance, check that the thermometer is always BLUE. If the thermometer turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the thermometer again. NOTE:

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. When fresh food has been introduced or the door has been left open for some time, it is normal for the thermometer to turn WHITE.

CHOOSE EXPRESS ICE LCD display button button Finalizes the setting. CHOOSE button Press to select the Feature mark. NOTE:

• When no operation is made for 30 seconds, the display will automatically return to the initial content.The backlight will become dark when there is no operation for 3 minutes.The backlight will turn off when there is no operation for 6 minutes.
• Do not hit or apply sharp object on to the LCD panel. Refrigerator temperature setting Freezer temperature setting Each feature mark Use to turn the select. (Feature ON/OFF, or timer setting, or temperature setting)

• Marks of features in operation are displayed.

• Features that start automatically when inserting the power plug.
• When the refrigerator stops with power failure and the like, display at the time of re-power distribution shows similarly as before having a power failure. However, when it has a power failure during operation of Express Ice Making, Express Freezing, and Timer, operation is stopped at the time of re-power distribution. EXPRESS ICE button (*) Press to start Express Ice Making. Refrigerator temp. control Freezer temp. control Door alarm Child lock Vacation mode (*) Plasmacluster Express Ice Making (*) Express Freezing (*) Timer

: Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PSThermometerSymbol BLUE WHITECorrect settingTemperature too high, adjust the refrigerator temp. controlCOLDEST ZONE DEFROSTING

Defrosting is fully automatic due to a unique energy saving system. Whereby the defrost cycle start time is proportional to the running time of your refrigerator compressor, i. e., the less time the refrigerator compressor operates (during the winter season or you're away on holidays), the longer the time between each defrost cycle.

• The defrost water collects in the evaporating pan, where it is evaporated by the heat of the compressor, etc. The evaporating pan does not require cleaning or maintenance. DEODORIZING UNIT A built-in unit which requires no manual operation because it automatically starts operating when the refrigerator is powered on. (A711)3‑10ENGｂ.fmPage6Tuesday,May9,200611:04AM7 POLSKI

MAGYARROMÂNÃČESKYSLOVENSKY

LIETUVIŲ KALBA LATVIANEESTI KEELSLOVENSKO OPERATION (USING THE CONTROL PANEL) Controlling Temperature The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows. Express Ice Making ( Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS ) Ice cubes can be made quicker than normal.• This feature cannot be used simultaneously with Express Freezing. Press the "EXPRESS ICE" button. When the ice is completed, remove the ice. To cancel operation Press the "EXPRESS ICE" button again. NOTE:

Express Ice Making ends automatically in about 1 hour regardless of ice condition. (The mark disappears.)• Express Ice Making may require more than 1 hour in the case operation overlaps with defrostingas operation is started after defrosting is completed.• Avoid opening the door as much as possible during operation of this feature. How to use the Quick ice maker (Only for SJ-F74PS, SJ-F79PS )• Cool the Quick ice maker beforehand in the freezer (for at least 1 day).• When the ice cubes are made, remove the partition from the tray, after that twist the both ends of the partition and drop the ice.• Standard time until the ice is completed : approx.20 minutes

• When using the water stored in the refrigerator compartment, at a room temperature of 30°C and with the refrigerator set to 3°C and the freezer to -18°C. • Ice making time may become longer than above description depending upon room temperature and water temperature and the opening and closing frequency of the door etc. • Ice making cannot be completed in approx. 20 minutes if pouring the water exceeding the water level line. Also it becomes difficult to remove the ice. Refrigerator compartment Press the "CHOOSE" button and select the "Refrigerator temp." mark. Press the / button and set the temperature. [ : increase, : decrease ] Press the " " button. Adjustable between 0°C and 6°C in steps of 0.5°C. NOTE:
• If the refrigerator is operated for a long time with Refrigerator Temp. Control set at 0°C, foods stored in the refrigerator compartment may also freeze. • Low ambient temperature may cause placed foods to freeze even if Refrigerator Temp. Control is set to 6°C.When the refrigerator provides excessive cooling.For normal operation.For keeping foods fresher tasting. When the refrigerator does not provide sufficient cooling. Freezer compartment Press the "CHOOSE" button and select the "Freezer temp." mark. Press the / button and set the temperature. [ : increase, : decrease ] Press the " " button. Adjustable between -13°C and -21°C in steps of 0.5°C.For normal freezing.When frozen food or ice cream is not stored.For making ice rapidly or fast freezing.The mark appears and operation starts.PartitionWater level (A711)3‑10ENGｂ.fmPage7Tuesday,May9,20062:45PM8 Plasmacluster The Plasmacluster automatically starts operating when the refrigerator is powered on. To cancel operation Press the "CHOOSE" button and select the "Plasmacluster" mark . Press the / button and select "OFF". Press the " " button. To start operation Select "ON" in step . Notes about Plasmacluster operation The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the freezer and refrigerator compartments. These ion clusters inactivate airborne mold fungus.

• There may be a slight odors in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator. mold fungus Timer Up to 99 minutes 30 seconds can be set in interval of 30 seconds. Press the "CHOOSE" button and select the "Timer" mark. Previous set time is displayed. Press the / button and set the time. [ : increase, : decrease ] Push the button continuously, the setting can be configured quickly. Press the " " button. Timer starts. The remaining time is displayed. When the set time is reached,the end tone will sound. (About 30 sec.) To stop the end tone, press " ". To cancel the timer Press "CHOOSE" to select the "Timer" mark. Press the " " button. NOTE: During Timer operating it is not possible for the second time to set Timer. Express Freezing ( Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS ) High-quality frozen foods can be made using this feature and is convenient for home-freezing.

• This feature cannot be used simultaneously with Express Ice Making. Press the "CHOOSE" button and select the "Express freezing" mark. Press the / button and select "ON". Press the " " button. Express Freezing ends automatically in about 2 hours. (The mark disappears.) To cancel operation Select "OFF" in step . NOTE:

• Large foods cannot be frozen in a single operation.

• Express Freezing may require more than 2 hours in the case operation overlaps with defrosting as operation is started after defrosting is completed.

• Avoid opening the door as much as possible during operation of this feature. (A711)3‑10ENGｂ.fmPage8Tuesday,May9,20062:45PM9 POLSKI MAGYAR ROMÂNÃ ČESKY SLOVENSKY LIETUVIŲ KALBA LATVIAN EESTI KEEL SLOVENSKO Door Alarm When the refrigerator or freezer door is left open, the door alarm will sound.

• The door alarm will sound 1 minute after opening the door and again after 1 minute (once in each case).

• If the door is left open for approx. 3 minutes, the alarm will sound continuously. To cancel operation Press the "CHOOSE" button and select the "Door alarm" mark.

ress the / button and select "OFF". Press the " " button. To start operation Select "ON" in step . Child Lock Key operations of the control panel can be disabled. Use this feature to prevent children or someone from tampering with the panel. Press the "CHOOSE" button and select the "Child lock" mark.

ress the / button and select "ON". Press the " " button. To cancel operation Press the "CHOOSE" button continuously 2 seconds or more. Select "OFF" with the / button and press the " " button. Vacation Mode ( Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS ) Use this feature when going on a trip or leaving the house for a long time. Press the "CHOOSE" button and select the "Vacation mode" mark.

ress the / button and select "ON". Press the " " button. To cancel operation Select "OFF" in step . NOTE: Food storage period in the refrigerator compartment becomes approx.1/2 - 1/3 of normal operation, because the temperature of the refrigerator compartment inside becomes 10°C. Please utilize only when there is no perishable food. The temperature inside the refrigerator compartment will be adjusted to 10°C. This temperature cannot be modified. (A711)3‑10ENGｂ.fmPage9Tuesday,May9,20062:45PM10 STORING FOOD Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage. Fruit / Vegetables To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the Vegetable crisper or the Fruit case. Those fruits and vegetables with thick skins e.g. oranges do not require wrapping. Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.

• Eggs should be stored in the Egg holder. Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.

• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.

• Ensure all cooked food is wrapped securely or placed in an airtight container. NOTE:

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.

• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.

• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.

• Do not place food directly in front of cold air outlet. This may lead to the food freezing.

• Quality of foods should be fresh.

• Freeze small quantities of food at a time to freeze them quickly.

• Food should be properly stored or covered and the air should be removed to seal tightly.

• Evenly place the food in the freezer.

• Label bags or containers to keep an inventory of freezing food.

1. Remove the shelves and pockets from the cabinet and

door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.

2. Clean the inside with a cloth soaked in warm soapy

dishwashing water. Then, use cold water to wipe off soapy water.

3. Wipe the exterior with a soft cloth each time it is soiled.

4. Clean the Magnetic door seal with a toothbrush and warm

soapy dishwashing water.

5. Wipe the control panel with the dry cloth.

• Do not use polishing powder, benzine, hot water etc.

• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

• Wipe any food oils adhered to plastic components as they can cause cracking of the plastic surface.

• The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying.

• When dropped the juice and the like near the control panel, wipe off directly. It becomes cause of failure of the control panel. When the compartment light is blown Contact the SHARP Service Center to request a replacement compartment bulb. The compartment bulb is not to be removed other than by qualified service personnel. Switching off your refrigerator If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open. WHAT TO DO BEFORE YOU CALL FOR SERVICE Before you call for service, check the following points. IT IS NORMAL for the refrigerator to produce the following sounds.

Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.

• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.

• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).

• Cracking or crunching sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.

• Squeaking sound --- Sound produced by expansion and contraction of internal parts. IT IS NORMAL that the outside of a cabinet may be hot when touched. The hot pipe is in the cabinet in order to prevent dew generation.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP. Some household cleaning chemicals may affect the inside surfaces and plastic shelves resulting in splitting or cracks occurring. When cleaning all plastic parts inside this refrigerator, only use diluted dishwashing liquid (soapy water). Make sure that all plastic parts are thoroughly rinsed with water after cleaning. The alkaline detergent affects on the aluminum section of the door handle, becomes cause of tarnish.

6. Express ice making
