USER MANUAL BO05037E BOMPANI

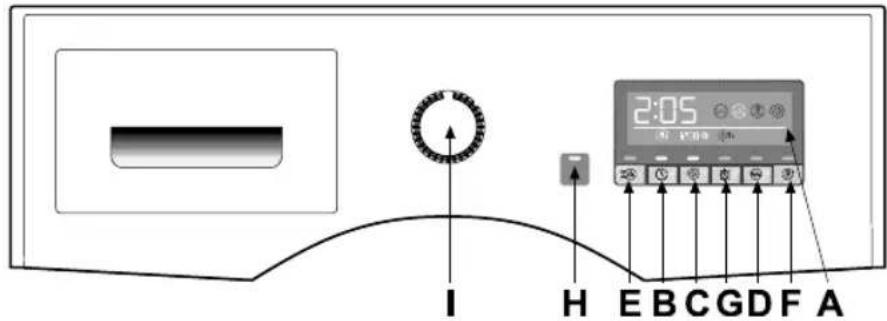

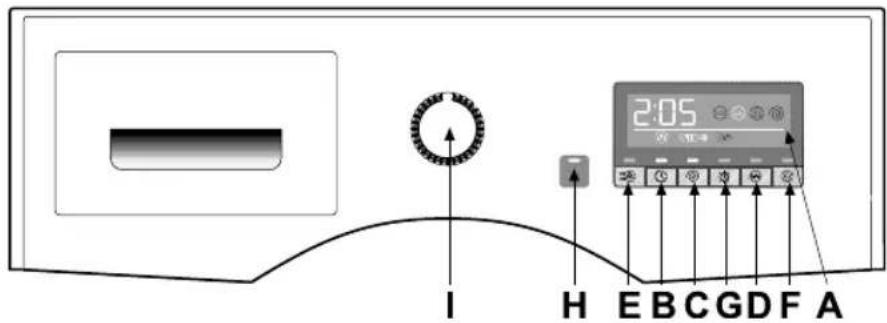

A LCD Display
B Delay/lock control button
C Spin button
D Prewash/disinfection button

E Turbo/lock control button
F Rinse button
G Dry button
H Start/pause button
I Program setting knob

WASH IN THE CORRECT WAY

Before attempting to operate the washing machine, ensure that the installation has been performed correctly, as described in the instruction booklet.

Daily use

1. Before putting clothes in the washing machine, empty the pockets of any hard or sharp object (nails, screws, coins, pins and stones) that may damage the machine and garments.
2. To improve washing performance, introduce laundry into the washing machine without compressing it or overloading the machine. A whole load of highly absorbent fabrics, such as bathrobes and towels, can unbalance the machine during the spin cycle. The automatic load balancing system arranges laundry in the most even manner possible, and sets the optimum spin speed to minimise any vibrations.
3. Close the door making sure that garments are not caught between the seal and the door.
4. Put the correct amount of detergent in the drawer 2. Insert the bulkhead supplied if you are using liquid detergent. If you want to enable the prewash option, add the detergent in the drawer 1. Use the drawer marked with the special symbol for the softener. After adding the detergent, gently close the drawer.
5. Select the wash program most suitable to the type of fabrics by using knob I following the instructions in the programs table. The LCD display will show the duration of the selected program with a full load. The remaining time may vary during the course of the wash cycle according to the load. The word End will appear on the display at the end of the cycle.
6. Pressing the C button, a different spin speed to that provided by the selected program can be set. The B button allows you to delay the start of the wash cycle up to a maximum of 19 hours. Both values are shown on the LCD Display.
7. Buttons D, E, F and G allow the selection of supplementary functions. The options selected are shown on the LCD display. The duration of the wash cycle varies depending on the options enabled.
8. Press the start button H to start the wash cycle. On the display, the duration of the cycle with full load will be displayed. The easy logic system will update the remaining time during the cycle based on the actual load inserted.
9. The end of the wash cycle is indicated on the display with the words End Turn the knob I to the OFF position and open the door to take out all the laundry.
10. The program can be cancelled at any time by turning knob I to the OFF position.

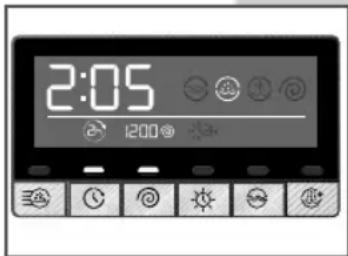

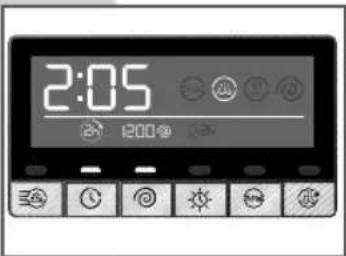

LCD DISPLAY: The large LCD display ensures quick and intuitive use of the washing machine. The display shows the wash options enabled, any delayed start, spin speed selected and the time remaining until the end of the cycle. The word End means that the door has been released.

After a few seconds, from the end of the wash cycle, the display switches off with the word End. To reactivate the display, press any button on the display.

Prewash

Wash

Rinse

Spin

DELAYED START: This feature allows you to delay the start of the wash cycle up to a maximum of 19 hours. Press the B button repeatedly until the display shows the desired start delay. The icon : flashes on the display until the start of the wash cycle.

When the function is activated, the display will turn off the backlight after a few seconds to save energy. To reactivate, press any button on the display.

RINSE: Press the F button to activate the extra rinse function. This option is recommended if your skin is particularly sensitive to enzymes in detergents.

PREWASH: To perform a prewash, press the D button and put the detergent in the drawer 1. The washing machine performs a prewash cycle at 40^ , max. Prewash is recommended for garments soiled with dust, dirt and sand or with particularly stubborn stains. See the program table for further information.

TURBO: Press the E turbo button to reduce the wash time. The operating parameters are automatically adjusted to ensure washing effectiveness and to allow time to be saved. See the program table for further information.

ADJUSTABLE SPIN Pressing the C button, the spin speed can be adjusted depending on the wash program selected and the type of fabric. The LCD display will show the speed selected. The "00" value will exclude the spin cycle at the end of the cycle.

N.B.: The maximum spin speed varies depending on the model. The speed matched to each program is the one recommended.

Unbalanced load control during spin cycle:

This washing machine is equipped with a special electronic control system for proper load balancing. Prior to every spin, the system makes sure that the cloths are spread as evenly as possible in the drum. In the case of uneven laundry distribution, for safety reasons, the final spin speed will be reduced and in cases of high load imbalance, will not be performed.

DRYING: Drying activate the option, the display will show the symbol indicating the level of drying and duration (h:min). In the case in which has been selected at the beginning of the drying cycle the washing program, this will start automatically and the total time on the display means of washing + drying. Until we will begin the process of drying, you can change the time by touching the button on the display, putting the machine to pause (see Start/Pause). With this option enabled no you can exclude the spin cycle and put in the basket dispenser detergents, during drying, can melt and damage linen and washing machine.

To achieve the best drying performance of clothes washed, the maximum load of washing declared (see program table), you should run this cycle in two phases with a maximum load does not exceed the value stated on the rating plate.

START/PAUSE: When programs and wash options are being selected, the start LED remains off. To confirm your selection and start the wash cycle, press the H button. The LED turns on. During the wash program in progress, the cycle can be stopped by pressing the START/PAUSE button for a couple of seconds.

At this point, the wash program stops and you can make changes to the wash options (enabled depending on which stage of the wash cycle you are in). If the water temperature is below 50^ , the door can be opened (about 2 minutes after enabling

the pause function) to load/empty any laundry.

To re-enable the wash phase press the START/PAUSE button again.

N.B. if, during a pause, no operation is carried out, the wash phase will restart automatically after 5 minutes.

CONTROL LOCK (child safety lock): to activate the control panel lock, simultaneously press the B-E (lock symbol) buttons; three horizontal lines will appear on the display.

If, during the wash cycle or at the end of the cycle, you wish to reactivate the controls, press buttons B-E simultaneously, until the three horizontal lines disappear.

DISINFECTING THE DRUM : Frequent washes at low temperatures may encourage the formation of mildew and unpleasant odours inside the washing machine. The DRUM DISINFECTION function thoroughly cleans the machine with a special cycle at 90^ .

DRUM DISINFECTION automatically recommends, through the blinking of the abbreviation [d] the display, that you start the cleaning program after a certain number of washes, if high temperature cycles have not been selected during the period.

Remove all laundry from the drum, put the knob I on the DRUM DISINFECTION program and press the start H button to start the cycle.

The DRUM DISINFECTION program can be performed at any time or when conditions require it. Empty the washing machine drum and close the door.

Put the knob I on the DRUM DISINFECTION program, keep the button pressed until the abbreviation appears on the display. Press H to start the DRUM DISINFECTION cycle.

EASY LOGIC: The EASY LOGIC automatically adjusts washing time, water and energy consumption based on the actual amount of laundry loaded in the machine.

The 1/2 load function is unnecessary as the EASY LOGIC system automatically sets the wash parameters.

Programs Symbols	Temperature (°)	Type of laundry	Maximum spin speed (rev/min)	Maximum load depending on the model and the program selected (kg)		Options
				10.00.0
COTTON	90°C Max	White linens and heavily soiled cotton, including organic stains.
	60°C Max	This cycle of washing, centrifuge and drying cycle corresponds to the standard of reference in accordance with the standard EN50229.
	40°C Max	The program ensures the best cleaning efficiency only 40°C with the maximum saving of electricity.
WOOL	40°C 800	The wool program is ideal for washing delicate items with labels stating "machine washable". It ensures colour care and that garments stay in good shape.
SILK	30°C 500	F2:0ilk2:0cose and lingerie items.
JEANS	40°C 800	The special jeans program gently washes at 40°C, taking care of the denim fibres and it is suitably preventing colours from running. Faded denim garments will always come out looking like new.
SYNTETICS	60°C 800	S4:5et4:0brics with delicate colours.
SHIRTS	40°C 500	The program reduces ironing time. The temperature, water level, intensity of washing and spin speed are adjusted electronically to prevent creases and making ironing easier.
DARK	40°C Max	Designed for black and dark coloured cottons, mixed cottons and polyester garments. Special program that stops colours from fading. You should use a special liquid detergent for dark coloured garments.
ANTIBACTERIAL	40°C Max	The antibacterial program ensures that any germs or bacteria in the laundry are efficiently xenoed. 900 program ensures maximum hygiene for white, coloured and synthetic fibre fabrics.
MIXED	20°C 800	The special program allows you to wash d4:5e4:0brics together (cotton, synthetics, mixed) with a perfect result.

(*) Actual water temperature may differ from that indicated in the program.

Programs Symbols	Temperature (°)	Type of laundry	Maximum spin speed (rev/min)	Maximum load depending on the model and the program selected (kg)		Options
				10.09.0
SPORT	40°C 800	The sportswear program is designed for sports and casual wear. The 40°C wash cycle helps retain the shape of the fabric and the elasticity of modern synthetic fibres.				#
DELICATE	40°C 500	Synthetic, polyester or other artificial fibre bed spreads, sleeping bags, bath mats, etc.
COLOURED	30°C Max	The colour program allows you to wash different coloured garments together; you can safely wash light and dark coloured laundry without any risk colours running.				#
HAND WASH	20°C 500	Delicate garments require special care and are usually hand washed. The specific hand wash option ensures garments are washed gently.
SPIN	- Max 10.0	The spin speed is adjustable to suit every type of fabric.				#
RINSES	- Max 10.0	The rinse program is useful for re-rinsing washed laundry or for refreshing items that have been stored for a long time.				#
QUICK	35°C 800	Quick wash cycle is suitable for refreshing, in just 20 minutes, lightly soiled laundry. Quick to save you precious time, performing a wash cycle at 35°C.				#
DRYNG	--	The Dry program allows you to dry those clothes already washed that only require drying; also useful to remove moisture from clothing that has to be stored for a long time. If the laundry is a lot wet, to save time and energy, do a spin cycle before drying.		6.0 4.0	5.0 4.0	#

(*) Actual water temperature may differ from that indicated in the program.

TECHNICAL SPECIFICATIONS

MODEL →		BO05030/E - BO05033/E - BO05037/E - BO05039/E
Dimensions	Width (cm)	59.5
	Height (cm)	85.0
	Depth (cm)	60.0
Maximum spin speed (revs/min)		1400
Maximum load wash (kg)		10.0
Maximum load dry (kg)		6.0 / 4.0
Recommended Times Dry (min.)		250' / 170'
Water pressure		0.05 MPa - 1 MPa
Electrical connection		See plate affixed with characteristics
