USER MANUAL EDWA5021 Edy

• Removal of transportation screws
• Adjustment of feet
• Electrical connection
• Water supply connection

SECTION 3:TECHNICAL SPECIFICATIONS

SECTION 4:CONTROL PANEL

• Start/Pause button
• Function indicator lights
• Function buttons
• Spin speed selector
• Program knob

SECTION 5:WASHING YOUR LAUNDRY

• Before washing
• Running the machine

SECTION 6: MAINTENANCE AND CLEANING

• Water inlet filters
- Pump filter
• Detergent drawer
- Siphon plug
• The cabinet
• The drum
- Remove of your machine from lime

SECTION 1: BEFORE USING

SAFETY WARNINGS

• Do not use a multiple socket or extension cord.
• Do not insert a plug with damaged or broken cord into the socket.
• If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard.
• Never remove the plug from the socket by pulling from the cord section. Remove the plug by holding.
  • Do not plug the power supply with wet hands.
• Never touch the machine with wet hands or feet.
• Never open the detergent drawer while the device is running.
• Never force to open the door of the machine while the machine is running.
• Since the machine can reach high temperatures while running, do not touch the drain hose and water during draining.
• In case of any failure, first unplug the device and close the water tap. Do not attempt to repair. Please apply to the nearest authorized service station.
• Do not forget that the packing material of your machine may be hazardous for children.
  • Do not let your children play with the washing machine.
• Keep your pet away from your machine.
• Your machine should only be used by adults within the information written in this manual.
• Your machine is designed for use in house environment. Warranty

- If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour.

- As a result of the quality control procedures, a certain amount of water may remain in your machine. This is not harmful for your machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing machine.

REMOVAL OF TRANSPORTATION SCREWS

• Transportation screws, which are located at the back side of the machine, must be removed before running the machine.
• Loosen the screws by rotating counterclockwise by a suitable wrench. (DIAGRAM-1)
• Remove the screws by pulling them.(DIAGRAM-2)
• To the holes where the transport screws have been removed, insert the plastic transport screw taps found in the accessories bag. (DIAGRAM-3)
• The transportation screws, that have been removed from the machine should be kept in hand for any other transportation necessities.

DIAGRAM-2

• You can adjust the balance of your machine from its feet.
• First, loosen the plastic adjustment nut.
- Adjust by rotating the feet upwards or downwards.
- After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards.
- Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

ELECTRICAL CONNECTION

• Your washing machine works with 220-240V and 50Hz.

• A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the electricity line attached to this should also be 10 ampere. If you have no such sockets and fuses in your house, let it be made by a qualified electrician.
  • Our company will not be responsible for any damages that may occur as a result of usage without grounding.

• Water pressure of 0.1-1 MPa from your tap will enable your machine to work more efficiently.(0.1 MPa pressure means water flow of more than 8 liters in 1 minute from a fully opened tap)

• After connections are completed, check for the non-leakage of the connection joints by turning on your tap completely.
• Be sure that water inlet hoses are not folded, broken or crushed.
• Mount the water inlet hoses to a 3 ^° /4, geared water tap.

Close-up of a kitchen sink with two circular fixtures and a hand holding a tool (no text or symbols visible)

Cold water inlet (White filter valve)

Hot water inlet (Red filter valve)

WATER DRAIN CONNECTION

• Be sure that water inlet hoses are not folded, twisted, crushed or elongated by stretching.
  • Water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.
• The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand.
• Never attempt to extend the water drain hose by adding extra parts.

SECTION 3: TECHNICAL SPECIFICATIONS

	642/842/1042/1242/1442	647/847/1047/1247/1447
Maximum dry laundry capacity (kg) 5 6
Recommended loading (kg) 4,5 5,5
Height (cm) 85 85
Width (cm) 59,6 59,6
Depth (cm) 51 54
Maximum spin cycle ( rpm )	600/800/1000/1200/1400	600/800/1000/1200/1400

(*) Maximum spin cycles depend on the model you've chosen

SECTION 4:CONTROL PANEL A3( 4 buttons, spin speed selector )

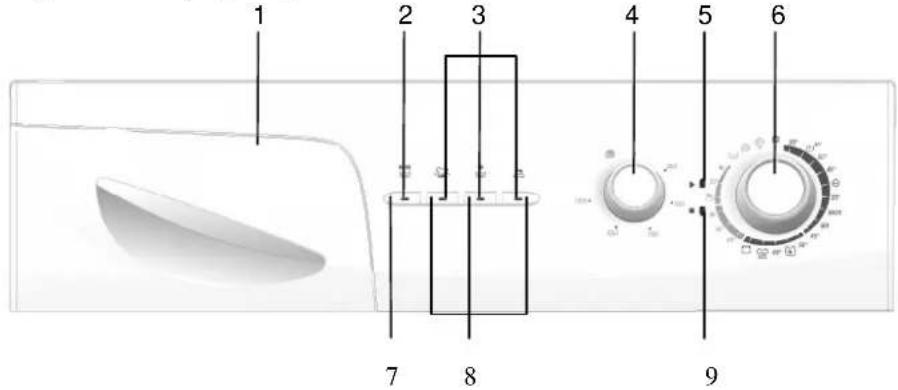

1 2 3 4 5 6 7 8 9

1-Detergent drawer 6-Program knob
2-Start/pause light 7-Start/pause button
3-Function indicator lights 8-Function buttons
4-Spin speed selector 9-Program end light
5-Program ready light

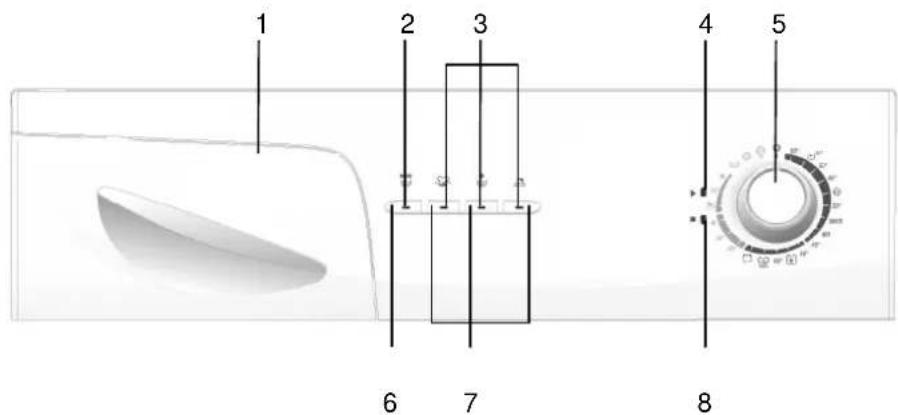

A2(4 buttons)

1 2 3 4 5 6 7 8

1-Detergent drawer 5-Program knob
2-Start/pause light 6-Start/pause button
3-Function indicator lights 7-Function buttons
4-Program ready light 8-Program end light

Our product has electronic card and soft-touch buttons. To activate the functions touch the buttons slightly.

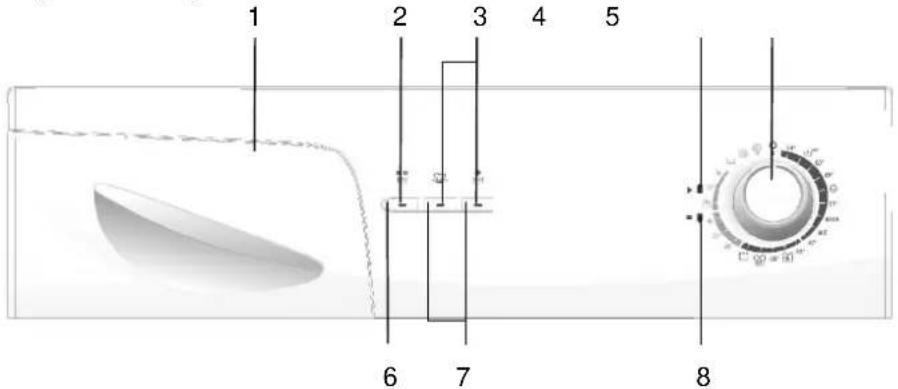

A1(3 buttons)

1 2 3 4 5 6 7 8

1-Detergent drawer 5-Program knob
2-Start/pause light 6-Start/pause button
3-Function indicator lights 7-Function buttons
4-Program ready light 8-Program end light

Our product has electronic card and soft-touch buttons. To activate the functions touch the buttons slightly.

START/PAUSE BUTTON

Used to start a selected program or pause during running.

WARNING!

It is required for the program knob to be brought to O(off) position before selecting the program or changing a continuing program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed, the corresponding light turns on. The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed.

The function indicator lights are also used in failure detection system mentioned in section 9.

FUNCTION BUTTONS

Rinse hold

This function is recommended to be used when the clothes cannot be taken immediately after the end of the program. This will prevent occurrence of wrinkles. When this button is pressed, the last rinsing water is not drained. For the program to continue from the same point, repress the same button.

If you do not want your sensitive clothes to be spinned or you want them to be spinned sensitively, turn the program knob to O (off) position. Bring the program knob on one of the draining or spinning programs you desire and press the start/pause button. If the program you have selected is a drain program, your machine will draining the water inside. If you have selected a spinning program, your machine will perform a spinning operation and then end the program.

Extra rinse

You can have one more rinsing done in addition to the rinses which your machine has made in all washing programs by using this function.

No spin

This program is recommended to be used for your sensitive clothes on which no spinning should be done. By pressing this function button, you can cancel the spinning process which is included in the program.

Soak

Using this function will ensure better cleaning by leaving your clothes in water with detergent for a certain period of time before your machine takes in the initial water and starts washing. This function is recommended to be used for very dirty clothes.

Easy ironing

By using this function, you can ensure your clothes to come out less wrinkled after the washing.

Plus water

By using this function, you can enable your machine to take in some more water than the amount in the normal washing operation. This will decrease the friction that occurs between your clothes. This function is recommended to be used for your sensitive clothes or for the ones you desire to be rinsed really well.

Spin speed reduce

By using this function, you can reduce your spinning cycle speed from 1200 cycles to 800 cycles, from 1000 cycles to 600 cycles, or from 800 cycles to 500 cycles depending on the model you've chosen.

WARNING!

Functions vary depending on the model you have chosen. If you forgot to use additional function and your machine starts to wash push the additional function button if the indicator light is on. Additional function will be activated. If the indicator light is not on, additional function will not be activated.

SPIN SPEED SELECTOR (Valid for A3 models)

By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes. The speed adjustment interval is between O (No spin) and the maximum spinning speed of your machine.

NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode.

Circular mechanical component with a spiral head and mounting holes, no text or symbols visible

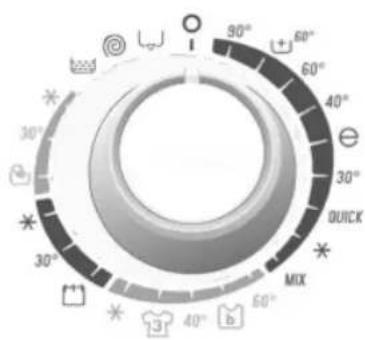

PROGRAM KNOB

With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to O(off) position, while your machine is running, your program will remain incomplete.

SECTION 5: WASHING YOUR LAUNDRY

• Plug the machine.

- Open the tap water.

First wash cycle

There may be water left inside your machine after factory tests and trials. It is recommended that the first wash cycle should be made without any laundry so that carry out this water; pour half a measuring cup of normal all-purpose detergent into compartment 2 and select cotton program at 90°C.

• Pull the textiles like trousers, knitted fabric, t-shirt and sweat shirt inside out.
• Wash your small clothes like socks and handkerchiefs in a washing bag.

Wash up tol 90 °C Wash up to 60 °C Wash up to 30 °C Not washable in

Placement of the clothes into the machine

• Open the door of your machine.
• Fill your clothes in your machine in a well-spread manner.
- Place each cloth separately.
- When you shut the door of your machine, be careful that no cloth is jammed between the cover and the gasket.
- Shut the door of your machine tightly otherwise your machine will not start the washing process.

Filling detergent in the machine

The quantity of the detergent that you will fill in your machine depends on the following criteria:

• Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer.
• For your excessively dirty clothes, select a program with pre-washing, fill ¼ portion of the detergent you will put in compartment 1 in the detergent drawer and the remaining portion in compartment 2.
• In your machine, use the detergents developed especially for automatic washing machines. The quantities that will be used for your clothes are written on the packing of the detergents.
  • As the hardness of your water increases, the amount of the

- You can use fluid detergents in all programs without pre-washing. For this, mount the fluid detergent level plate in the second compartment of the detergent drawer and arrange the amount of fluid detergent according to the levels on this plate.

RUNNING THE MACHINE

Program selection and features

Select the program and additional functions appropriate for your clothes from Table-1.

Start/Pause

By pressing this button, you can start the program you have selected or pause a running program.

Starting the program

• Adjust the program knob to a program you desire.
  • The program ready light will be on.
  • If you want, you can select one or more additional functions.
  • Run the program which you have selected by pressing the

Start/Pause button.

Changing the program

If you have selected a program and you do not want if to continue:

• Press the start/pause button.
• Bring the program knob to O(off) status.
• Adjust the program knob to the program you desire.(You can select the program that you desire from Table-1).
  • The program ready light will be on.
• By pressing the start/pause button, run the program which you have selected.

Cancellation of the Program

If you desire to end a running program early:

• Press the start/pause button.
  • Turn the program knob to O(off) status.

• The door will be unlocked in approximately two minutes after the program ends. You can open the door by pulling the handle of the door towards yourself and take out your clothes.
  • After you unload your clothes leave the door open to dry the interior of your machine.
  • Unplug your machine.

• Close the water tap.

WARNING!

If the power is off end on again after a while on any stage of the washing program, your machine will continue the program from the point where it was interrupted. This is not harmful for your machine.

Child lock

Child lock is used in order to protect the washing cycle from the effects of unwanted button activations during the cycle. Child lock is activated by pressing the first and third button on the control panel at the same for more than 3 sec. When child lock is activated, LEDs on the function buttons blink to indicate that child lock is active. In order to deactive child lock, the same buttons (1st and 3rd) should be pressed again for more than 3 seconds. Deactivation of child lock is shown by blinking of LED on Start/Pause button.

WARNING!

Your machine will inactivate the spin speed selector (valid for A3 models) and function buttons when the child lock is activated.

SECTION 6: MAINTENANCE AND CLEANING

PROGRAM	DETERGENT COMPART.	MAX DRY LOAD CAPACITY (kg)			TYPE OF LAUNDRY	EXPLANATIONS
		642/ 642/ 1042/ 1243/ 1842	647/ 647/ 1047/ 1047 1847
1-COTTON 90'	2	5	6	Dirty, leaf, cotton and linen tedle
2-COTTON 90' (PBWASH)	1+2	5	6	Very dirty, cotton, coloured and linen teable
"13-COTTON 90'	2	5	6	Dirty, cotton, coloured and linen teable
4-COTTON 40'	2	5	6	Slightly dirty, paint to get but, cotton, coloured and linen teable
5-ECO WASH	2	5	6	Dirty, cotton, coloured and linen teable	Underwear, sheet, table cloth 5 shot, coat, towel
6-COTTON 30'	2	5	6	Slightly dirty, cotton, coloured and linen teable
7-QUICK WASH	2	2,5	3	Slightly dirty, cotton, coloured and linen teable
8-COTTON COLD	2	5	6	Slightly dirty cotton, coloured and linen teable. Washed without healing the leg worker
9-MX WASH	2	5	6	Dirty or very dirty, steam, cotton, coloured and linen tedle
10-SYNTHETIC 60'	2	3	3	Dirty, synthetic or synthetic mature teable	Nylon seeds, blouse
11-BAIY WASH	2	3	3	Baby laundry	All baby laundry
12-SYNTHETIC 40'	2	3	3	Slightly dirty, synthetic or synthetic mixture teable	Nylon seeds, blouse
PROGRAM	DETERGENT COMPART.	MAX DRY LOAD CAPACITY (kg)		TYPE OF LAUNDRY	EXPLANATIONS
		642/642/1042/1043/1042	647/647/1047/1247/1487
13 SPORT CLOTHES	2	3	3	Spont/lothes	All spare clothes and jeans
14 SYNTHETIC COLD	2	3	3	Slightly dirty, synthetic or synthetic mixture sensitive laundry when asked without heating their wash water.	Nylon silicone, blouse
15-CURTAIN WASH	1-2	2	2	Tute and curtain as sensitive laundry.	Tute, curtain, drawer, drain
16 DELICATE 30'	2	2	2	Slightly dirty, cotton, coloured, synthetic or synthetic mixture sensitive laundry	She mottle, air, blouse, polyester, polkensil mixture table
17 DELICATE COLD	2	2	2	Very slightly dirty, cold water within to wash cotton, coloured, synthetic or synthetic mixture sensitive laundry
18 HAND WASH	2	2	2	Slightly dirty, wash in hand cotton, coloured, synthetic or synthetic mixture laundry	Handwash to all laundry
19 WOOL 30'	2	2	2	Only, hand and machines to wash well laundry
20 WOOL COLD	2	2	2	Very slightly dirty, cold water, hand and machines to wash well laundry	All work laundry
21 RINING	When you need an additional drawing to be done to your clothes after the washing process, you can use this program for all ranks of clothes.
22 SPINNING	Where you need an additional spinning to be done to your clothes after the washing process, you can use this program for all ranks of clothes.
23 ORANING	The program is used to share the dry water inside for the washing process of your machines if you want the water inside your machine to be desired before the program ends, you can use this program.

TABLE-1

[1] You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the software, comply with the warning of the softener producer. Fill your softener in to (software) compartment of the detergent drawer.

** Energy label data based on programme tested in accordance with EN60456.

• Remove the water inlet hose.
• Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush.
• Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal.
• After you clean the filters, you can fit them the same way as you have removed.

Close-up of a hand cleaning a bathroom sink with a tool near the sink (no text or symbols visible)

Line drawing of a hand holding a small mechanical component (no text or symbols)

PUMP FILTER

The pump filter system elongates the life of your pump, which is used to drain the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter in every 2-3 months is recommended. To clean your pump filter:

• Open the kickplate's cover, by pulling the handle.
• Before opening the filter cover, place a cup in front of the filter cover to prevent flow of the remaining water in the machine.
• Loosen the filter cover by rotating it counter clockwise and drain the water.

WARNING!

Danger of being scalded!

Since the water inside the pump maybe hot, wait for it to cool.

1-A

2-A

3-A

4-A

DETERGENT DRAWER

Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergent drawer:

• Pull the detergent drawer to the end.(DIAGRAM-1)
- Lift the front of the drawer, continue to pull until the drawer is pull out.(DIAGRAM-2)
- Wash will an old toothbrush and excessive amount of water.
• Take off the leftover detergent avoid to drop into your machine.
- After drying the detergentdrawer put into the housing in the same manner you pull out.

SIPHON PLUG

Pull out the detergent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly.

THE CABINET

Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet. After rinsing with clean water, wipe it with a soft and dry cloth.

WARNING!

If the machine is installed in a location where the ambient temperature can fall below 0 °C, do the following when it will not be in use:

• Plug in the machine.
- Close the water tap and pull out the water inlet hose or hoses from the tap.
- Place the ends of the water drain and water inlet hoses in a cup on the ground.
- Adjust the program knob to "Draining" program.
• The program ready light will be on.
• Run the program by pressing the start/pause button.
- Unplug your machine when the program is over (program end light is on).

When you complete these proces, the remaining water inside the machine will be drained and thus formation of ice in the machine will be prevented. When you operate your machine again, be sure that the ambient temperature is above 0 °C.

THE DRUM

Do not leave metal parts like needles, staples or coins inside your machine. These pieces cause formation of rust stains in the drum. To eliminate these

SECTION 7: PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar.

Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 degrees) mixed in 2 units of water and then washed with lukewarm water.

Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can endure on it. If the type of your cloth is suitable, wash it with lye.

Chocolate and cocoa: By leaving your clothes in cold water and rubbing with soap or detergent, wash it in the highest temperature that the type of your cloth can endure. If there is still a stain of oil left, wipe with oxygenated water (in proportion of 3%).

Tomato paste: After scraping the dried pieces without ruining the cloth, leave in cold water for about 30 minutes and wash by rubbing with detergent.

Meat broth-egg: Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye.

Grease and oil stains: First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water.

Mustard: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit alcohol, 2 units water should be used)

Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water) for 30 minutes.

Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not disappeared, apply lye on the fabric of your clothes in proper proportion.(Do not use lye on coloured clothes.)

Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%).

Ink: Hold the stained area under cold water and wait until the inky water completely runs off. Then rub with water diluted with lemon juice and detergent, wash after waiting for 5 minutes.

Fruit: Stretch the stained area of your clothes on the top of a container and pour cold water on it. Do not pour hot water on the stain. Wipe with cold water and apply glycerine. Wait for 1-2 hours and rinse after wiping with a few drops of white vinegar.

Grass stain: Rub the stained part with detergent. If the type of fabric is suitable for use of lye, wash it with lye. Rub your woolen clothes with alcohol.(For coloured ones, a mixture of 1 unit pure alcohol and 2 units of water).

Oil Paint: The stain should be eliminated before it dries by applying thinner on it. Then it should be rubbed with detergent and washed.

Burnt stain: If your cloth is suitable for use of lye, you can add lye into your washing water. For woolen fabric, a cloth damped in oxygenated water should be covered on the stain and it should be ironed with a dry cloth on it. It should be washed after rinsing well.

SECTION 8: AVOIDING MINOR FAULTS

All repairing which must be done on the machine should be done by authorized service. When a repairing is required for your machine or you are unable to eliminate the failure with the help of the information given below:

FAILURE PROBALE CAUSE		METHODS OF ELIMINATION
Your machine does not operate.	It is unplugged.	Insert the plug into the socket.
	Your fuse is defected.	Change your fuse.
	The electric power is off.	Check the electric power.
	Start/pause button has not been pressed.	Press the start/pause button.
	The program knob is in O(off) status.	Bring the program knob on the desired status.
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine does not receive water.	Water tap is closed. Open water tap.
	The water inlet hose may be bent.	Check the water inlet hose.
	The water inlet hose is obstructed.	Clean the filters of water inlet hose. (*)
	The valve inlet filter is obstructed.	Clean the valve inlet filters. (*)
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine is not draining water.	The drain hose is obstructed or bent.	Check the drain hose.
	The pump filter is obstructed.	Clean the pump filter. (*)
	The clothes are not placed inside the machine in a well-balanced manner.	Spread the clothes inside the machine in an orderly and well-balanced manner.
Your machine is vibrating.	The feet of your machine are not adjusted.	Adjust the feet. (**)
	Transportation screws are not removed.	Remove transportation screws. (**)

(*)See the section concerning the maintenance and cleaning of your machine.
(**)See the section concerning installations your machine.

FAILURE PROBALE CAUSE		METHODS OF ELIMINATION
Your machine is vibrating.	There is a small amount of clothes in the device.	It does not prevent operation of the machine.
	Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner.	Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well-balanced manner.
	Your machine touches a ripid object.	Prevent your machine's leaning on a tough place .
Excessive foam in the detergent drawer.	Too much detergent has been used.	Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process.
	Wrong detergent has been used.	Use only the detergents produced for full automatic machines.
The washing result is bad.	Your laundry too dirty for the program you have selected.	Select a suitable program. (see Table-1)
	The amount of detergent used is not sufficient.	Use more detergent according to the detergent.
The washing result is not good.	Clothes exceeding the maximum capacity has been filled in your machine.	Put the clothes in your machine in a manner not to exceed its maximum capacity.
	Your water may be hard.	Use the amount of detergent according to the declaration of the detergent producer.
	Distribution of the clothes in your machine is not well-balanced.	Spread the clothes inside the machine in an orderly and well-balanced manner .
The water is drained from the machine as soon as it is filled.	The end of the water drain hose is in a position too low according to the machine.	Place the water drain hose in an appropriate height.(**)
No water is seen in the drum during washing.	No failure. The water is at the lower part of the drum.	-
There are residues of detergent on the clothes.	The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains.	By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush.
There are gray stains on the clothes.	These stains may be caused by oil,cream or ointment .	In the next washing operation, use the maximum detergent amount declared by the detergent producer.

(**) See the section concerning installations your machine.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
The spinning process is not done or starts with delay.	No failure. The unbalanced load control may works in that way.	The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spinning process will be realized.In the next washing process,place your clothes into the machine in a well-balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes.

(*) See the section regarding the maintenance and cleaning of your machine.

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 01	The start/pause light blinks.	The door is not shut properly.	Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately.
Err 02	The program ready light blinks.	The water level in your machine is below heater. The pressure of your water supply may be low or locking.	Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service.
Err 03	The start/pause light and program ready light blinks .	The pump has failed or the pump filter is obstructed.	Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*)

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 05	The start/pause light and program end light blink.	The heater of your machine or the heat sensor has failed.	Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service.
Err 06	The program ready light and program end light blink.	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 07	The program start/pause light, ready light and program end light stays on permanently.	Configuration error.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 08	The start/pause light,program ready light and program end light blink.	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 09	The program ready light and program end light stays on permanently.	The network voltage is too high or too low.	If the network voltage is lower than 150V or higher than 260V, your machine will automatically stop. When the network voltage is recovered, your machine will continue its operation.

SECTION 10: INTERNATIONAL WASHING SIGNS

Washing temperature.	Do not wash (hand wash)	Lukewarm iron.	Medium hot iron.

Hot iron. Do not iron.		Do not tumble dry.	Hang to dry.

Drip dry. Dry flat. Do not bleach. Handy to bleach.

All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.Garments bearing these symbols should not be washed in your machine unless the label says otherwise.

SOMMAIRE

SECTION 1 : AVANT UTILISATION

Diagram showing a hand holding a tool near a circular object, with no visible text or symbols.

Fig.6

Fig. 7

RACCORDEMENT DU TUYAU DE VIDANGE

Circular mechanical knob or dial with a spiral indicator (no text or symbols)

Fig.9

MANETTE SELECTEUR DE PROGRAMME

Diagram showing a car interior with a circular component and a hand holding a tool near the door (no text or symbols)

Fig. 10

Line drawing of a hand holding a small mechanical component (no text or symbols)

Fig.11

FILTRE DE POMPE DE VIDANGE

Close-up of a kitchen sink with a hand holding a tool near the mouth (no visible text or symbols)

Figuur 6
Figuur 7

AANSLUITEN AFVOERSLANG

Simple circular object with a spiral symbol on top-left corner, no text or labels present.

PROGRAMMASELECTIEKNOP

Close-up of a hand cleaning a kitchen sink with a tool near the door (no text or symbols visible)

Figuur 10

Illustration of a hand holding a small mechanical component, no text or symbols present

Figuur 11

FILTER AFVOERPOMP
