Product Type	Washing Machine
Brand	Edy
Model	edwa 5011
Capacity	7 kg
Spin Speed	1200 rpm
Energy Class	A+
Dimensions (HxWxD)	850 x 600 x 600 mm
Weight	65 kg
Power Consumption	2200 W
Water Consumption per Cycle	50 L
Programs	Cotton, Synthetic, Delicate, Quick, Wool, Rinse & Spin
Noise Level (Wash/Spin)	75 dB / 80 dB
Safety Features	Child Lock, Overflow Protection, Unbalanced Load Detection
Maintenance	Clean filter monthly, drum cleaning cycle recommended
Spare Parts Availability	Parts available through authorized service centers

Frequently Asked Questions - edwa 5011 Edy

How do I install the washing machine?

Ensure the machine is on a level surface. Connect the water inlet hose to a cold water tap and the drain hose to a standpipe or sink. Plug into a grounded outlet. Remove transport bolts before first use.

What should I do if the machine doesn't start?

Check that the power cord is plugged in, the door is fully closed, and the water supply is turned on. Also ensure the child lock is not activated.

How often should I clean the lint filter?

Clean the lint filter after every wash to maintain drainage efficiency. Refer to the manual for its location and cleaning instructions.

What does the error code E01 mean?

Error code E01 typically indicates a water drainage problem. Check the drain hose for kinks or blockages and clean the filter.

Can I wash delicate fabrics like silk?

Yes, use the Delicate or Wool program with cold water and a mild detergent. Place small items in a laundry bag.

How do I prevent mold buildup?

Leave the door and detergent drawer open after each wash to allow drying. Run a drum cleaning cycle monthly using a washing machine cleaner.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. Adjust it manually for delicate items to avoid damage.

Why is the machine vibrating excessively?

Ensure the transport bolts are removed. Also check the load is balanced and the feet are level. Reduce spin speed if needed.

How do I activate the child lock?

Press and hold the Child Lock button (usually identified by a padlock icon) for 3 seconds until the indicator lights up. To deactivate, repeat.

Where can I find spare parts?

Spare parts are available through authorized Edy service centers. Provide your model number edwa 5011 when ordering.

USER MANUAL edwa 5011 Edy

WASHING MACHINE USER MANUAL

Abstract curved arrow and circular symbol on a plain background (no text or symbols)

Close-up of a mechanical component with a circular end and an arrow indicating direction (no visible text or symbols)

Figuur 2

Simple diagram showing a circle with a minus sign and an arrow pointing to it (no text or symbols)

Figuur 3
Figuur 1

Close-up of a mechanical component with a metallic arrow indicating rotation (no text or symbols visible)

Figuur 4

Mechanical assembly diagram showing a cylindrical component inserted into a housing, with no visible text or symbols.

Figuur 5

Close-up of a mechanical component with a circular hole and a small inset view (no text or symbols visible)

Illustration of a hand holding a tool with three floating objects above, set against a tiled wall (no text or symbols)

Figuur 7
Figuur 6

AANSLUITEN AFVOERSLANG

Illustration of a washing machine with a side sink and two washers (no text or symbols)

Figuur 8

HOOFDSTUK 3 : TECHNISCHE SPECIFICATIES

Diagram showing a car interior with circular components and a magnified view of the roof (no text or symbols)

Figuur 10

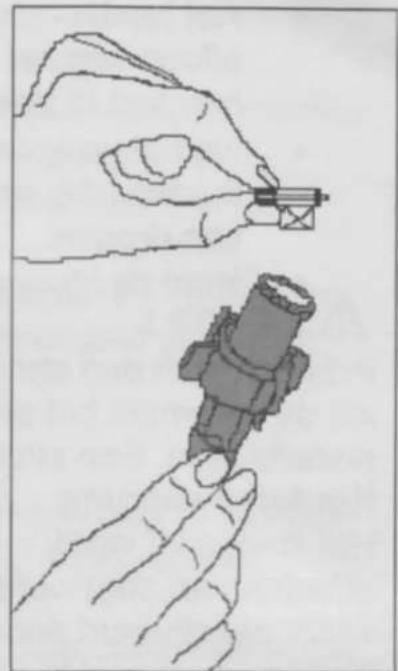

Illustration of a hand holding a small mechanical component, no text or symbols present

Figuur 11

FILTER AFVOERPOMP

Simple line drawing of a basketball court with no text or symbols

A 4-A

WASMIDDELBAKJE

Simple line drawing of a hand reaching toward a window with a handle (no text or symbols)

Figuur 14

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Figuur 15

SIFON WASVERZACHTER
