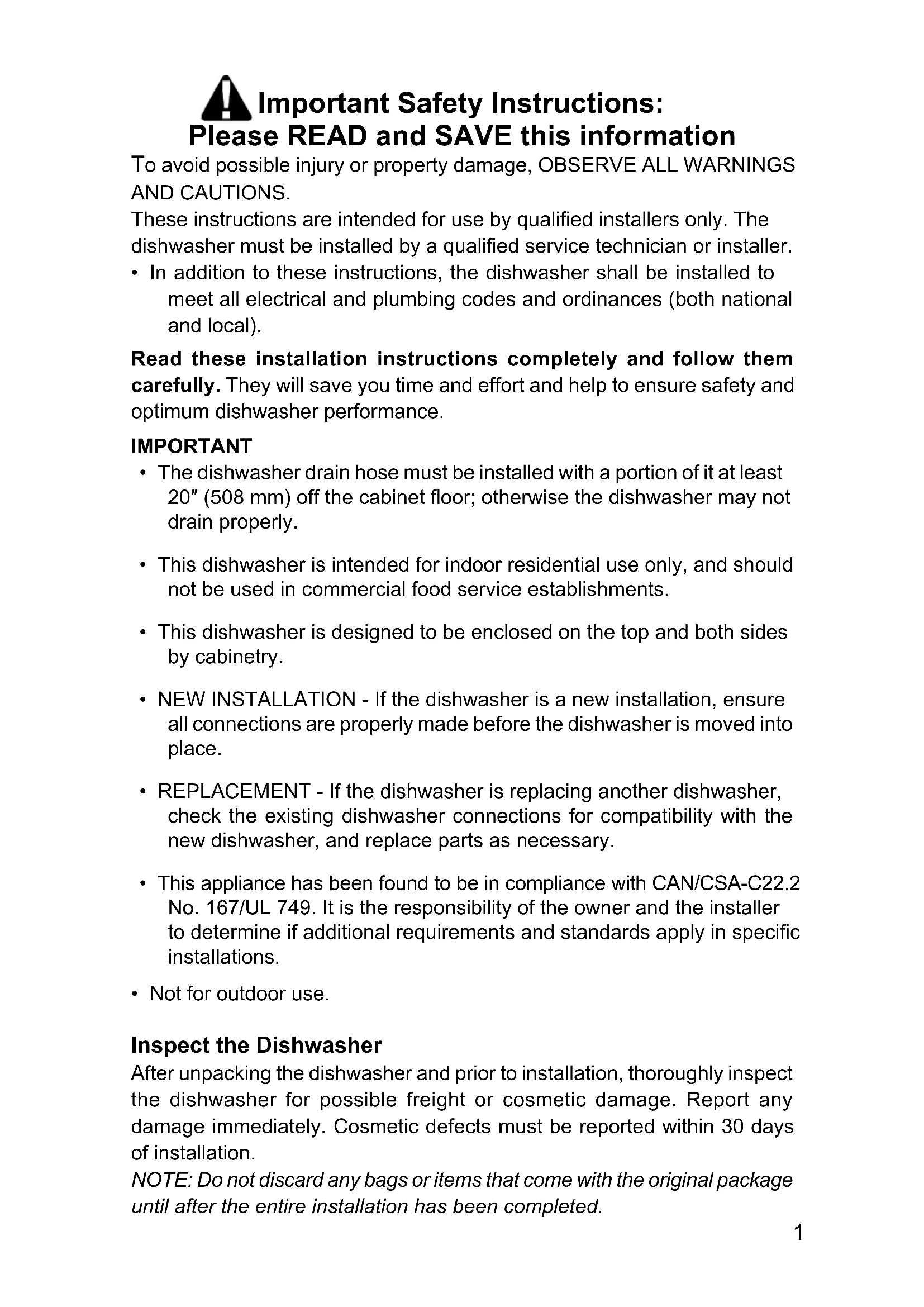

Installation Instructions Notice d’installation Instrucciones de instalación 9000 965 903 Rev D (9412)To avoid possible injury or property damage, OBSERVE ALL WARNINGS AND CAUTIONS. These instructions are intended for use by qualied installers only. The dishwasher must be installed by a qualied service technician or installer.

• In addition to these instructions, the dishwasher shall be installed to meet all electrical and plumbing codes and ordinances (both national and local). Read these installation instructions completely and follow them carefully. They will save you time and effort and help to ensure safety and optimum dishwasher performance. IMPORTANT

• The dishwasher drain hose must be installed with a portion of it at least 20″ (508 mm) off the cabinet oor; otherwise the dishwasher may not drain properly.

• This dishwasher is intended for indoor residential use only, and should not be used in commercial food service establishments.

• This dishwasher is designed to be enclosed on the top and both sides by cabinetry.

• NEW INSTALLATION - If the dishwasher is a new installation, ensure all connections are properly made before the dishwasher is moved into place.

• REPLACEMENT - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.

• This appliance has been found to be in compliance with CAN/CSA-C22.2 No. 167/UL 749. It is the responsibility of the owner and the installer to determine if additional requirements and standards apply in specic installations.

• Not for outdoor use. Inspect the Dishwasher After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately. Cosmetic defects must be reported within 30 days of installation. NOTE: Do not discard any bags or items that come with the original package until after the entire installation has been completed.

Important Safety Instructions: Please READ and SAVE this information2 Avoiding General Hazards Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can cause the dishwasher to tip over and result in serious injury. Before installing the supplied counter top mounting brackets, decide which method will be used to secure the dishwasher into its opening. Once these mounting brackets are installed on the dishwasher, removing them is dif- cult and will damage the mounting brackets and the dishwasher. In some conditions, hydrogen gas can form in a hot water system that has not been used for weeks. Hydrogen gas is explosive. Before lling a dishwasher from a system that has been off for weeks, run the water from a nearby faucet in a well ventilated area until there is no sound or evidence of gas. Removing any cover or pulling the dishwasher from the cabinet can expose hot water connections, electrical power and sharp edges or points. Handle with care. Avoiding Electrical Shock/Fire Hazards Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualied electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized. Make sure electrical work is properly installed. There should be no loose electrical connections. Ensure all electrical connections are properly made. The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amps. Electrical supply conductors shall be a minimum #14 AWG copper only wire rated at 75°C (167°F) or higher. WARNINGThis appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. Do not use extension cords. Avoiding Plumbing/Scalding Hazards Do not perform any work on a charged hot water line. Serious injury could result. Only qualied plumber should perform plumbing work. Do not attempt any work on the dishwasher hot water supply plumbing until you are certain the hot water supply is shut off. Properly tighten all water connections. Not doing so could result in a leak. Temperatures required for soldering and sweating will damage the dish- washer’s base and water inlet valve. If plumbing lines are to be soldered or sweated, keep the heat source at least 6″ (152.4 mm) away from the dishwasher. Check local plumbing codes for approved plumbing procedures and ac- cessories. All plumbing should be done in accordance with national and local codes. If using copper tubing or other material not depicted in this manual for water supply, defer to a licensed plumber for proper installation. 3Electrical Supply Cable - Minimum #14 AWG, 2 conductor, 1 ground, insulated copper conductors rated 75°C or higher Only needed if house electrical line is not adequate. Hot Water Supply Line - Minimum

/8″ O.D. copper tubing or metal braided dishwasher supply line Only needed if house water supply line is not sufcient. Shut-off valve and ttings appropriate for hot water supply line (copper tubing/compression tting, or braided hose) UL listed conduit connector or strain relief is required if you attach the eld wiring directly to the terminal block Tools and Materials Needed Adjustable Wrench

Hole Saw Phillips Screwdriver 4Materials supplied (all models) Screw Clamp (for drain hose) Junction Box Edge Protector Mounting Brackets Mounting Bracket Screws Ø 4x13 mm Adhesive Backed Cord Clip

5Materials supplied (model dependent) Slotted Toe Panel (model dependent) Installation Guide for Fully Integrated Door Panel (model dependent) Slotted Toe Panel Screws Ø 4x16 mm (model dependent) Non-Slotted Toe Panel (model dependent) Non-Slotted Toe Panel Screws (model dependent) - Black or silver depending on toe panel color Toe Panel Mounting Brackets (model dependent and only used with non-slotted toe panel shown above)

6Non-Slotted Toe Panel (model dependent) Enclosure Requirements Avoid Scalding or Electrical Shock Hazard! Make sure the water supply and electrical supply are shut off before installation or service. Avoid Electrical Shock/Fire Hazard! Do not allow the electrical and supply lines to touch. WARNING Note: This dishwasher is designed to be enclosed on the top, back and both sides by standard residential kitchen cabinetry. Select a location as close to the sink as possible for easy access to water supply and drain lines. For proper dishwasher operation and appearance, ensure that the enclosure is square and has the dimensions shown. If the dishwasher is to be installed in a corner, ensure that there is adequate clearance to open the door as shown. min 34" (864 mm) min 24" (610 mm)

7After locating the proper place for your dishwasher, create required openings in your cabinets in order to allow for water, drain and electrical lines on the appropriate side. The holes should be cut within the 4x2.5” area shown.

If the opening is made through wood, sand it smooth. If the opening is made through metal, use the provided edge protector (B) or other approved method to protect wiring from damage.

BTwist the end of the water supply line to detach from the dishwasher base as shown. Pull the drain hose out of the packaging base as shown. Set toe panel aside for later use.

2Remove the hose hanger clip and hanger label at the back of the dish- washer as shown above. REMOVE

Electrical Preparation WARNING Avoid Electrical Shock Hazard Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualied electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized. To avoid possible injury or property damage, care should be exer- cised when the dishwasher is installed or removed to reduce the likelihood of damage to the power cord. Avoid Fire Hazard Make sure electrical work is properly installed. Only qualied electricians should perform electrical work. Make sure there are no loose electrical connections. Make sure all electrical connections are properly made. Electrical Supply The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical sup- ply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amps. Elec- trical supply conductors shall be a minimum #14 AWG copper wire rated at 75°C (167°F) or higher.Note: Installations employing a ReceptacleThe accessory cord kit (Model # SMZPC002UC) designed for connection to a receptacle is not provided, but can be ordered through Customer Service by calling 1-800-944-2904. Make sure the household receptacle meets the electrical supply requirements as well as national and local codes. If you choose to permanently connect to hardwiring, follow the next steps.Turn off any electricity to installation area. Remove screws and cover from junction box (A) and set aside for later use .Remove outer casing and insulation of the hardwiring/power cord as shown.

Attach strain relief (not provided) to opposite side of junction box. Insert the bare copper or green wire (ground) from the eld supply wiring into the ground connection “ ” of the terminal block and securely tighten the terminal block screw as shown. Insert the white (neutral) wire to the “N” connection of the terminal block and securely tighten the terminal block screw. Insert the black (hot) wire to the “L” connection of the terminal block and securely tighten the terminal block screw. Tighten strain relief. Check electrical connections to ensure they are secure and then reattach junction box cover. Note: The arrow (shown in the gure above) should align with the power cord. strain relief (not provided)

view with cover installedarrowPlace adhesive backed cord clip (provided in the installation kit) 5" (127 mm) from leg adjuster as shown in the gure above and route power cord through the clip. Note: The length of cord measured from the plastic back strap to the receptacle should be ≤ 47.25" (1,200 mm). Route supply cord through strap and plug the end of the supply cord into the back of the dishwasher as shown until it clicks. Note: Ensure plug is fully seated. Mount the dishwasher electrical supply junction box (A) and dedicated receptacle in an accessible cabinet adjacent to the dishwasher (do not mount the junction box or receptacle behind the dishwasher). Note: Screws are not provided for mounting electrical supply junction box. CLICK Adhesive backed cord clip Leg Adjuster Strap

lternate cable routing

Route supply cord through opening into dishwasher cabinet.14 Installation of Mounting Brackets NOTICE Before installing the supplied counter top mounting brackets, decide which method of securing the dishwasher into its enclosure will be used. Once the mounting brackets are installed on the dishwasher, removing them is difcult and will damage the mounting brackets and the dishwasher. If you have a Fully Integrated Panel, do not attach mounting brackets until after attaching the panel to the door. If insulation is covering the area in 12a, fold it back. Orient the mounting brackets (D) as shown. Please note the position- ing of the bracket in illustration 12b. Using pliers, bend down as shown in 12c such that the bracket will not slip out of slot in frame. Do not attach to cabinet yet. Top Mount is used for counter tops made of wood or other materials that can be easily drilled. If you have solid surface, marble, granite, or other very hard countertops, skip to step 13 now.

WARNING Avoid Tip Over Hazard Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can result in serious injury.

Grasp mounting bracket (D) with pliers at perforation and bend until rounded end breaks free. Discard end.

Side Mount is used for counter tops made of marble, granite, or other very hard materials that cannot be easily drilled.

Slip bracket ange through side slots in frame as shown. Using pliers, bend ange such that the bracket will not slip out of slot. Do not attach to cabinet yet.16 If your sink is to the right side of where you are installing the dishwasher, you will need to reposition the hoses behind the dishwasher before installing. To do so, unhook the strap that the hoses are running through on the back of the dishwasher base and position them per your requirements. If your sink is to the left side, leave the hoses as they came and skip to step 16. Positioning the Dishwasher 14Reposition the hoses such that they run through the strap on the other side. Be sure to snap the strap back in place to secure the hoses as shown.

To avoid scratching the oor, use oor protection and caution when sliding the dishwasher into the cabinet. Use hands on both sides of dishwasher to push evenly. Pull water inlet and drain hoses through the hole in cabinet as shown.

Push the unit 2/3 of the way into the opening and stop.

Reach into adjacent cabinet and pull hoses and excess power cord completely out so they do not get kinked. Push the unit in until ush with cabinet door. 18Adjust the legs as shown to raise the unit so it is ush with the counter. Use a level to check that your dishwasher is level. Level side to side by turning feet clockwise to raise or counter-clockwise to lower front of the unit as shown.Level front to back by turning center screw clockwise to raise or counter-clockwise to lower the back.

Center the dishwasher in the opening before securing it to your cabinet or counter top as shown.

Drive the mounting screws (E) through the holes in the mounting brackets as shown for Top (21) or Side Mount (22). Securing the Dishwasher

E21 WARNING NOTICE Avoid Scald Hazard Do not perform any work on a charged hot water line. Serious injury could result. Only qualied plumbers should perform plumbing work. Do not attempt any work on the dishwasher hot water supply plumb- ing until you are certain the hot water supply is shut off. Temperatures required for soldering and sweating will damage the dishwasher. If plumbing lines are to be soldered or sweated, keep the heat source at least 6 inches (152.4 mm) away from the dishwasher. Hot Water Supply The hot water heater should be set to deliver approximately 120° F (49° C) water to the dishwasher. Water that is too hot can cause some detergents to lose effectiveness. Lower water temperatures will increase run times. The hot water supply pressure must be between 15 - 145 psi (1 - 10 bar). IMPORTANT NOTES:

• If using a solder joint instead of a compression tting, be sure to make all solder connections before connecting the water supply line to the dishwasher.

• Make sure there are no sharp bends or kinks in the water line that might restrict water ow.

• Always use the appropriate seal when making plumbing connections.

• Before connecting the water supply line to the dishwasher, ush the incoming water line for approximately 5 minutes to clear any foreign material.

• Turn on the water supply and check for leaks after connections are made. Water Inlet Connections22 Drain Connections Connect the dishwasher water supply line to the water shut off valve. You will need to use an approved dishwasher water supply line with the correct ttings for this connection. Always use the appropriate seal when making plumbing connections. After all connections are made, turn on the hot water and check for leaks. IMPORTANT NOTES about your drain connection:

• If local ordinance requires an air gap, install it according to the manu- facturer’s instructions.

• If the dishwasher drain hose is to be connected to a disposer dishwasher drain connection, remove the plug from the disposer’s dishwasher drain connection.

• The dishwasher drain hose must have one place along its length that is securely attached 20″ (508 mm) above the cabinet oor.

• The drain hose length can be extended if necessary. The maximum length of the drain hose, including the hose leading to the air gap, is 150″ (3800 mm).

The dishwasher drain hose must be installed with a portion of it at least 20” (508 mm) off the cabinet oor; otherwise the dishwasher may not drain properly.

The dishwasher drain hose may be connected to the drain plumbing using an air gap in one of two ways: - Connect to the under sink dishwasher drain connection (24a). - Connect to a disposer dishwasher drain connection (24b). NOTE: Place hose clamp around end of drain hose BEFORE connecting to the plumbing. The dishwasher drain hose may be connected to the drain plumbing using a high loop in one of two ways: - Connect to the under sink dishwasher drain connection (24c). - Connect to a disposer dishwasher drain connection (24d).

Use the clamp provided (C) to attach the drain hose to the house plumbing as shown.

Attaching the Toe Panel If your dishwasher came with a slotted toe panel (G), follow these instructions; otherwise skip to 27 now. Note: If using the slotted toe panel shown in 26 above, then metal mounting brackets shown in 27 are not required. Position the slotted toe panel (G) on the dishwasher. Allow it to rest on the oor. Attach using screws (H) as shown. Use only the supplied screws to avoid damaging the dishwasher. The toe panel should be ush with the oor. Your installation is complete!

H25 If your dishwasher came with a non-slotted toe panel (I) and toe panel brackets (K), follow these instructions: Plug metal brackets (K) into openings on both sides of the base as shown. Use screw (J) to mount metal brackets to the base as shown. Tuck the pre-attached rubber apron behind the ngers on the metal brackets as shown.

K26 Slide metal toe panel into position ensuring the bottom of the toe panel is ush with the oor. Use screw (J) to mount the toe panel through the hole it matches up with on the metal brackets (K) as shown. Note: The toe panel height can be adjusted by screwing into a different hole in the bracket. Check for correct t of apron by opening the door. Ensure the apron does not bind up and can freely move up and down behind the toe panel. Your installation is complete!

J27 Your dishwasher requires no special care other than that described in the Care and Maintenance section of the Use and Care Manual. If you are having a problem with your dishwasher, before calling for service please refer to the Self Help section in the Use and Care Manual. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty. If you are having a problem with your dishwasher and are not pleased with the service you have received, please take the following steps (in the order listed below) until the problem is corrected to your satisfaction:

1. Contact your installer or the Authorized Service Contractor in your

2. Write us at the address below:

BSH Home Appliances Corporation 1901 Main Street Irvine, CA 92614

3. Call us at the Customer Service phone number before calling retailer

for technical problems : 1-800-944-2904 Please be sure to include (if you are writing), or have available (if you are calling), the following information:

• Date of original purchase (mm/dd/yyyy)

• Date the problem originated (mm/dd/yyyy)

• Explanation of the problem
