USER MANUAL SHEM78W55N BOSCH

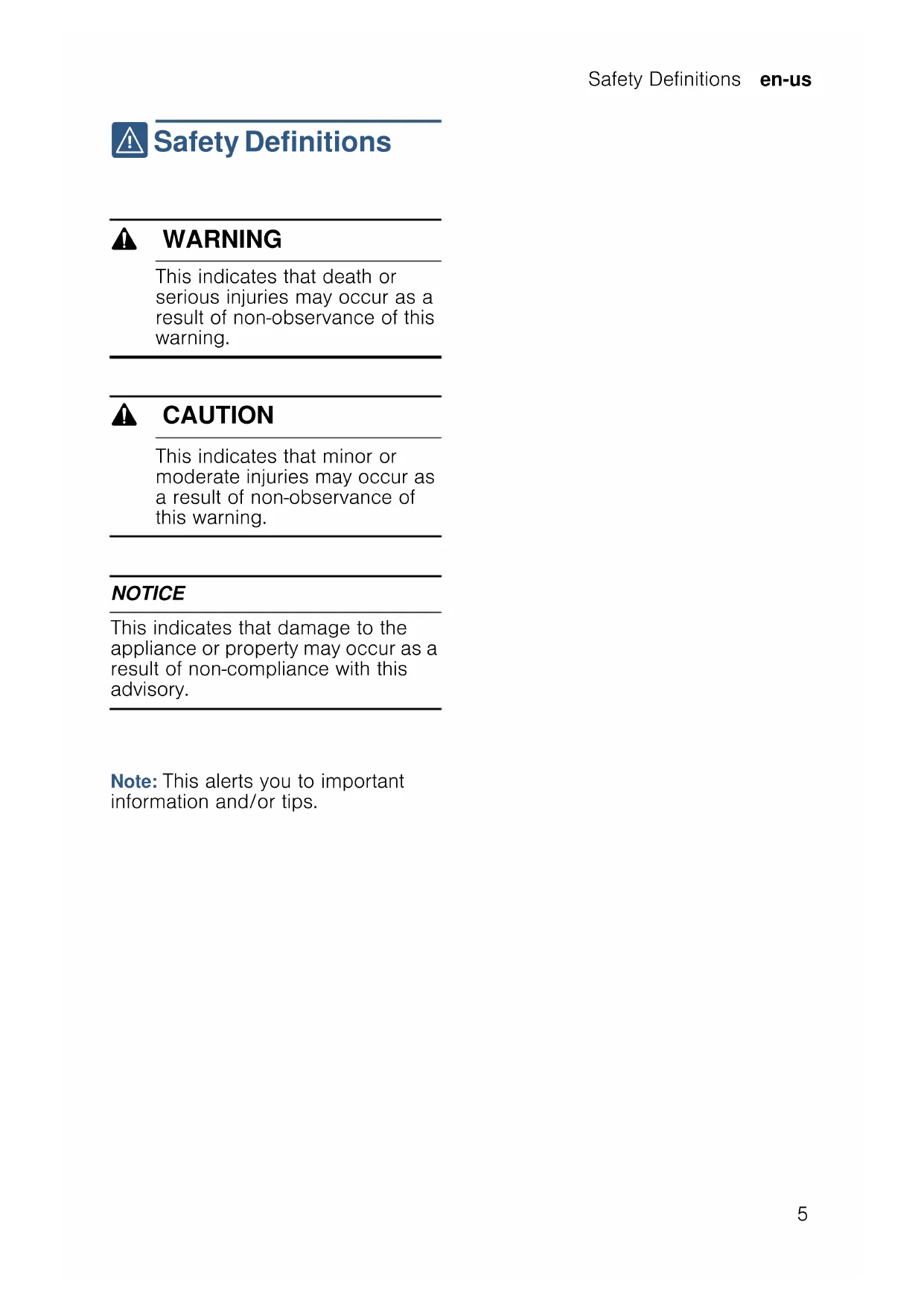

( Safety Definitions Safety Definitions 9 WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. 9 CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips.9

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

( IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONSREAD AND SAVE THESE INSTRUCTIONS This dishwasher is provided with Installation Instructions and this Use and Care Manual. Read and understand all instructions before using the dishwasher. This dishwasher is intended for use up to a maximum altitude of 13,000 ft (4,000 meters) above sea level. To reduce the risk of fire, electrical shock, or serious injury, observe the following: Risk of fire, electrical shock, or serious injury 9 WARNING RISK OF INJURY OR DEATH! Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained in the following pages. 9 WARNING RISK OF INJURY! Severe injury and/or product damage could result from the use of unauthorized service technicians or non-original replacement parts. All repairs must be performed by an authorized service technician using only original equipment factory replacement parts. 9 WARNING

RISK OF ELECTRICAL SHOCK

OR FIRE! Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded. Do not use the dishwasher covered in this manual unless you are certain the electrical supply has been correctly installed and the dishwasher has been properly grounded. 9 WARNING HEALTH HAZARD! Never use harsh chemicals to clean your dishwasher. Some chloride-containing products can damage your dishwasher and may present health hazards!9

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS This appliance must be grounded to a metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements. 9 WARNING RISK OF ELECTRIC SHOCK! This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor. Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician if you are in doubt whether the appliance is properly grounded. Safe Operation Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware rated as dishwasher safe. Use only detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children. 9 CAUTION When loading items to be washed: ■ Locate sharp items so they are not likely to damage the door seal. ■ Load knives and other sharp utensils with their HANDLES UP to reduce the risk of cut-type injuries. ■ Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations. ■ Do not operate your dishwasher unless all enclosure panels are in place. ■ Do not tamper with or override controls and interlocks. Do not abuse, sit or stand on the door or dish racks of the dishwasher. 9 WARNING RISK OF INJURY! To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided. NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.9

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Child Safety To reduce risk of injury, do not allow children to play in or on the dishwasher. When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the children are instructed in safe practices by qualified persons. Proper Care and Maintenance 9 WARNING RISK OF EXPLOSION! Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time. Remove the dishwasher door to the washing compartment when removing an old dishwasher for service or discarding. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher. To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing temperatures. Freezing temperatures can damage the water fill valve and potentially other components of your dishwasher. NOTICE It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or contact your installer for more information. 9 WARNING

PROPOSITION 65 WARNINGS! This product contains one or more chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.Causes of Damage en-us

ƒ Causes of Damage Causes of Damage NOTICES ■ Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for the possible damages or consequences. ■ Bleach-based wipes can cause stainless-steel doors and tubs to rust. ■ Using harsh chemicals (e.g. bleach), abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels can damage your dishwasher’s exterior door panel, fascia panel and buttons. ■ To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware.en-us Getting Started

• Getting Started Getting Started Appliance overview The dotted lines show optional features which may or may not be included with your dishwasher. 5HVHWVHF $ZDMFT0O0GG 4UBSU3FTFUTFD0QUJPOT&KLOG/RFN

The numbers stated below refer to the overview images on the previous page of this manual. Operating panel Dishwasher interior components

• optional feature which may or may not be included with your dishwasher. Display indicators

Menu overview The dishwasher has been preset with certain settings for your convenience. You can change these factory settings. Use the function keys #, + and 3 to change the settings.

Cycle time remaining Clean Lights up when dishes are clean Sanitize Lights up when sanitation requirements are met Add Rinse Aid Lights up when rinse aid is low Setting Factory setting Description § Rinse aid §:‹‹ - §:‹‡ §:‹† Amount of rinse aid affects drying. When using Multitabs, select setting 0. š Intensive drying š:‹‹ - š:‹‚ š:‹‹ / Off Improved drying for glasses and plasticware. › Cycle completion signal ›:‹‹ - ›:‹„ ›:‹ƒ Signal sounds when wash cycle is complete. ˜ Auto power off ˜:‹‹ - ˜:‹ƒ ˜:‹‚ Dishwasher switches off automatically after wash cycle is complete.en-us Rinse Aid

, Rinse Aid Rinse Aid To achieve proper drying, always use a liquid rinse aid, even if your detergent contains a rinse aid or drying additive. Note: The dishwasher indicates low rinse aid by turning on the Rinse Aid indicator on the display 8. If this indicator lights up, you need to refill the rinse aid dispenser 9* by following the directions below. Adding rinse aid NOTICE To avoid oversudsing or clogging, do not overfill the rinse aid dispenser 9*. Wipe up any spills with a damp cloth.

Open the rinse aid dispenser 9* by pressing on the latch of the lid and pull it open.

Add liquid rinse aid to the dispenser 9* until it is full. Do not overfill.

Close the lid. Lid must be fully closed until it clicks in order to seal.

Wipe up any excess rinse aid that may have puddled when the dispenser reservoir is full. The indicator light will go out a few moments after the dishwasher door is shut. NOTICE Do not fill the rinse aid dispenser 9* with detergent. Doing so will damage the dishwasher. Setting the amount of rinse aid used The amount of rinse aid dispensed can be set from §:‹‹ to §:‹‡. The factory setting is §:‹†. You should only change the setting if streaks remain on the dishes (lower the amount), or if dishes are not getting dry enough (increase the amount).

Setting Amount §:‹‹ dispenser is OFF §:‹‚ lowest setting §:‹ƒ low setting PD[Loading the Dishwasher en-us

Press the On/Off button (.

Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.

Press the function key 3 to select the desired setting.

Press the Start button P to save the setting. Turning off rinse aid indicator Proceed as described in the section “Setting the amount of rinse aid used” and set value to §:‹‹. The rinse aid indicator is now turned off. NOTICE Using no rinse aid or setting the dispenser to §:‹‹ may result in longer cycle times consuming more energy and water. The higher temperatures and longer cycle times can damage fine china or glassware. - Loading the Dishwasher Loading the Dishwasher Dishware material Note: Before using your dishwasher for the first time, check the information in this section. Some items are not dishwasher-safe and should be hand washed; others require special loading. §:‹„ medium setting §:‹… medium/high setting §:‹† high setting §:‹‡ highest setting Setting Amount Recommended Aluminum Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed with a soap-filled steel wool pad. China, Crystal, Stoneware Some hand-painted utensils may discolor, fade or spot. Hand wash these utensils. Position fragile glassware so that it will not topple over or come in contact with other utensils during the wash cycle. Glass Milk glass may discolor or become yellow. Non-stick Coatings Apply a light coating of vegetable oil to non-stick surfaces after drying. Plastics Make sure the plasticware is dishwasher-safe. Stainless Steel, Sterling Silver and Silver Plates Load these so they do not come in contact with other metals, stainless steel dishwasher tub walls or the inner door.en-us Loading the Dishwasher

Loading the racks For best dishwashing results, observe the following when loading the dishwasher: ■ Do not pre-wash items with loosely attached food soil. ■ Remove all food particles, bones, toothpicks and excessive grease. ■ Pre-treat items having burned-on, baked-on or starchy soils. ■ Load dishes in the dishwasher racks so the insides of bowls, pots and pans are facing the spray arms. ■ Avoid nesting and contact points between dishes. ■ Separate items of dissimilar metals. Use care to not block movement of the spray arms. ■ Only wash household dishware and kitchenware rated as dishwasher-safe. Refer to the Dishware Materials section for more information about dishware suitability. NOTICE To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware. Loading the upper rack Ensure items do not protrude through the bottom of the racks and block the spray arms. Note: When pushing the upper rack 12 into the dishwasher, push it until it stops against the back of the tub so the upper rack spray arm 1: connects to the water supply at the back of the tub. Do not push racks in using the door. Loading the lower rack Place large items in the lower rack 9". Load pots, pans and bowls upside down. Do not block the vent hole 1J with tall baking sheets. Load these items on the right side of the dishwasher. Not Recommended Acrylic Crazing or small cracks throughout the acrylic, may occur. Adhesive- Joined Pieces Adhesives that join materials such as plastic, wood, bone, steel, copper, tin, etc. may loosen. Bone-Handled Utensils Handles may separate. Iron Iron will rust. Hand wash and dry immediately. Non-Dishware Items Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware. Pewter, Brass, Bronze These items will tarnish. Hand wash and dry immediately. Tin Tin will stain. Hand wash and dry immediately. Wood Wooden bowls, wooden utensils and utensils with wooden handles can crack, warp and lose their finish.Loading the Dishwasher en-us

Recommended loading pattern For daily, regular or typical use 12 place setting Lower rack 9" Upper rack 12 Note: Folding the cup shelves down will allow the cups to sit at an increased angle and reduce water pooling on cup bottoms. Third rack 1* Additional loading pattern 10 place setting Lower rack 9" Upper rack 12 Note: Folding the cup shelves down will allow the cups to sit at an increased angle and reduce water pooling on cup bottoms.en-us Loading the Dishwasher

Third rack 1* Loading the silverware basket Place knives and sharp utensils with their handles up and forks and spoons with their handles down. If large or oddly-shaped items are loaded in the silverware basket, be sure they do not nest together. 9 WARNING RISK OF INJURY! The sharp points and edges of knives and other sharp utensils can cause serious injury. Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils. The Double Flex silverware basket This basket splits along its length, resulting in two halves that may be placed in a variety of positions in the lower rack 9", greatly increasing the lower rack’s loading versatility. The basket snaps together either side by side or back to back. To split the Double Flex silverware basket: Grasp the basket and slide the two halves in opposite directions and then pull the two halves apart. Side by side Back to back To assemble the Double Flex silverware basket: Hold the two halves side by side or back to back, so that the tab on one basket can slip into the notch on the other basket. Push the two halves in opposite directions until they click.

Note: The silverware basket lid may also be folded downward in order to leave the basket open. This dishwasher is equipped with a silverware drawer that should accommodate most silverware loading needs. However, if you are washing while the silverware drawer has been removed, or with excess silverware, a silverware basket is also included. When loading the silverware basket you should avoid excessive contact points and nesting of similar items (allowing two spons to rest inside one another). A good way to avoid excessive contact points is to load the silverware basket with the lids closed, inserting each piece of silverware into one of the individual slots as shown. Unloading the dishwasher When unloading the dishwasher, to prevent water from dripping onto dry dishes, unload the lower rack 9" first. Next, unload the silverware basket 1j followed by the upper rack 12, and then the third rack (if equipped). Note: Dishes are more likely to chip when unloading before cooling. Adjusting the height of the rack If required, the height of the upper rack 12 can be adjusted to create more space for taller utensils either in the upper or lower rack. With silverware basket Upper rack Lower rack Setting 1 max. ø

(29 cm) 11 in (28 cm) With third rack Upper rack Lower rack Setting 1 max. ø 7 in (18 cm) 13.4 in (34 cm) Setting 2 max. ø 8 in (20.5 cm) 12 in (30.5 cm) Setting 3 max. ø 9 in (23 cm) 11 in (28 cm)en-us Loading the Dishwasher

Arrange large plates up to a diameter of 13.4 in (34 cm) in the lower basket 9" as illustrated. RackMatic

The height of the upper rack 12 can be adjusted in 3 steps to create more space.

Pull the upper rack out of the dishwasher until it stops.

To lower the rack, push the RackMatic® lever inward.

To raise the rack, hold the basket on the sides of the upper rack and lift it up. Note: Check spray arm for clearance after adjustment. Rack accessories Flip tines The upper and lower rack are fitted with flip tines that can be folded down depending on what you may need to load in the rack. Lower rack flip tines: To fold down, pull flip tine gently forward and release it from the notch. Push the flip tine downward. To fold up, push flip tines into an upright position until the holder engages in the notch. Upper rack flip tines: To fold down, push flip tines downward with gentle pressure. To fold up, push flip tines into an upright position until the holder engages in the notch.

Third rack The third rack 1* horizontally positions knives, spatulas and other oversized tools for improved cleaning and easier loading and unloading. Arrange cutlery in third rack as illustrated. You can fold down the side shelves to provide more room for taller items of silverware. The front rows of prongs can be folded down to provide room for wider handles. Cup shelves The cup shelves and the space underneath them can be used for small cups or for larger serving utensils.

Removing/Installing third rack Removing third rack 1*

Pull out third rack all the way (1).

Lift upper rollers over the stopper hooks of both rails (2).

Pull third rack out forward and upward so the the holding hooks and the lower rollers of the rack slide over the stopper hooks of both rails (3). Installing third rack 1*

Pull out third rack rails all the way (1).

Insert third rack at an angle. Make sure that the stopper hooks of both rails slide in between the holding hooks and the lower rollers of the third rack (2).

Slide third rack in and lift the upper rollers over the front stopper hooks of both rails (3).

Push in third rack (4).

Removing/Installing upper rack with Rackmatic

Removing upper rack 12

Lift front rollers over the stopper hook of the rail (2).

Pull out upper rack forwards and upwards so that the upper and lower rollers of the rack slide over the stopper hooks of both rails (3). Installing upper rack 12

Insert upper rack at an angle. Make sure that the stopper hooks of both rails slide in between the upper and lower rollers on the rear side of the rack (2).

Slide upper rack in and lift the upper rollers over the front stopper hooks of both rails (3).

. Detergent Detergent Use only detergent specifically designed for dishwashers. For best results, use fresh powdered dishwashing detergent or detergent tabs. NOTICE To avoid dishwasher damage: ■ Do not use hand dishwashing products in your dishwasher. ■ Do not use too much detergent if your water is soft. Using too much detergent with soft water may cause etching in glassware and fine china. This dishwasher uses less water than most, therefore, less detergent is required. With soft water, 1 tablespoon (15 ml) of detergent will clean most loads. The detergent dispenser cup has lines that measure detergent to 1 tablespoon (15 ml) and 1.75 tablespoons (25 ml). 3 tablespoons (45 ml) of detergent will completely fill the detergent dispenser. Note: If you do not know the hardness of your water supply, use 15 ml of detergent. Increase the amount if necessary to the least amount required to get your kitchenware clean. Use the measuring lines in the detergent dispenser cup as a guide to measure the amount of detergent recommended in the following table. Wash Cycle Hard Water/ Heavy Soil Medium Water/ Medium Soil Soft Water/ Little Soil Heavy 3 tbsp (45 ml) 3 tbsp (45 ml)

If the detergent dispenser 92 is still closed, actuate the locking bar 9: to open it. Note: Make sure the detergent dispenser is dry and clear of detergent residue.

Pour detergent into the dry detergent dispenser 92 only. Add detergent. Do not overfill the detergent dispenser. When using detergent tabs, lay them such that they do not come in contact with the cover, insert a detergent tab flat, not on its side. Note: Do not place detergent tabs or utensils in the detergent tab tray 1B. Place tabs or other detergent forms directly in the detergent dispenser 92. Dosage: see manufacturer’s instructions on the packaging.

Close the lid by placing the finger on the lid as shown. Slide the lid closed and press down firmly until it clicks. The detergent dispenser will open automatically at the ideal time for the set cycle. The powder or liquid detergent is distributed in the appliance and is dissolved, detergent tabs will fall into the detergent tab tray 1B where it dissolves during the cycle. Tip: If the dishware is only lightly soiled, slightly less than the indicated amount of detergent is usually adequate. WEVSPO WEVSPO PD[ WEVSPO &/,&.en-us Dishwasher Cycles

/ Dishwasher Cycles Dishwasher Cycles Note: The Energy Guide label was based on the Normal soil sensing cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser 9*. A single dose of detergent was inserted into the detergent dispenser 92, with no detergent being used in the prewash. The unit was not subjected to truncated testing per the definitions in the test procedure. We recommend that dish loads such as the one in the energy certification test have the rack position set in the highest position. Wash cycle Recommended use Possible wash cycle option Heavy Best for cleaning items with baked-on food or grease. These dishes would normally require soaking or hand scouring. all Auto Smartest cycle, with most flexible soil sensing, which is ideal for mixed dishware and food soils. all Eco Best for delicate dishes and glasses, theEco cycle lowers temperature and cyclelength to decrease energy usage. Delay Half Load Extra Dry

Normal (see note at bottom of table) Recommended for daily, regular or typical use to completely wash a full load of normally soiled dishes. all Note: In order to obtain optimal performance with minimum energy consumption, it is recommended to disable all available options and settings, except Auto Power Off - set to ˜:‹‚~ "Auto power off" on page 29 Speed60

Cleans freshly soiled dishes with easy to remove soils. This cycle reduces cycle time while still including drying. Delay Extra Dry

Rinse Use this cycle if you need to pre-rinse dishes to avoid odors. Place unrinsed dishes inside the dishwasher and select the Rinse cycle. Uses less water than hand rinsing and very low energy. DelayDishwasher Cycle Options en-us

0 Dishwasher Cycle Options Dishwasher Cycle Options Delay Allows you to delay the start time of your dishwasher up to 24 hours. Half Load Can reduce water consumption when washing small, lightly soiled loads that fill approximately half of the dishwasher’s capacity. Delicate This option’s reduced time and temperature are best for lightly soiled items with easy to remove food soils. The option also reduces the likelihood of cloudy glasses. Rinse aid is recommended for the high gloss drying function (even when using combination detergents). Sanitize Increases the temperatures and retains them for an extra long time to obtain a defined disinfecting performance. Continuous use of this function increases the hygiene status. This additional option is ideal for cleaning items such as chopping boards and baby bottles. Using the Sanitize option may also improve drying. The cycle time and energy usage may be increased. Extra Dry Used in combination with a wash cycle (except Rinse), the Extra Dry option raises the temperature and extends the drying time to further enhance drying results and provide a brilliant shine. The energy usage may be increased.en-us Dishwasher Cycle Options

Wash Cycle Information To save energy, this dishwasher has EcoSense where the sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the amount of food soil and the incoming water temperature. The “Smart Control” makes decisions that can cause the cycle time and water usage to adjust intermittently. Wash cycle times are based on 120°F (49° C) water supply. If your household water supply is different than 120°F (49° C), your dishwasher’s cycle times may be impacted. Heavy Auto Eco Normal Speed60

Note: Only sanitizing cycles have been designed to meet the requirements of

Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal

and sanitization efficacy. There is no intention, either directly or indirectly, to imply that all cycles have passed sanitization performance tests. Sanitize Cycle time min. 130-150 125-150 N/A 135-155 N/A N/A Water usage gal/L 4.9-6.4/ 18.6-24.2 3.4-6.4/ 12.9-24.1 N/A 2.3-5.5/ 8.8-21.0 N/A N/A Rinse temp. °F/°C 162/

1 Operating the Dishwasher Operating the Dishwasher 9 WARNING RISK OF INJURY! To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided. Protection against unintentional operation Your dishwasher is equipped with a function that helps to prevent unintentional operation (e.g. by children). After setting the dishwasher, the dishwasher door has to be closed within 4 seconds, otherwise the operation will be paused. There will be a signal on the control panel advising you to press the Start button again and close the door. This function will be activated when: ■ pressing Start to begin a wash cycle ■ setting Delay time and pressing Start ■ opening the door while Delay time is active ■ opening the door during a wash cycle. Note: This function cannot be deactivated. Operating the touch buttons Buttons are sensitive and should be touched gently. Avoid any grease or food particles resting on the buttons as they could activate the dishwasher. Wiping and cleaning can also activate the dishwasher. For best results, use bare, clean hands when touching the buttons. To clean the touch buttons wipe them with a dry or slightly damp cloth. AquaSensor AquaSensor The AquaSensor is an optical measuring device which measures the cleanliness of the rinse water. The AquaSensor is used according to the wash cycle. If the AquaSensor is active, “clean” rinse water can be transferred to the next rinse and water consumption can be reduced by 0.8–1-5 gal (3–6 liters). If the rinse water is not yet clear, the water is drained and is replaced with fresh water. In the automatic wash cycles the temperature and running time can also be adjusted to the degree of soiling. Switching the appliance on

Turn the water supply on fully.

Press the On/Off button (. The AUTO wash cycle has been preset as a default whenever the appliance starts. This wash cycle remains selected if no other wash cycle button 0 is pressed. Select any desired option.

Press Start button P. Wash cycle sequence starts. Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Close the appliance door and press the Start button P again.Operating the Dishwasher en-us

Time display When a wash cycle is selected the remaining wash cycle time is shown on the display 8. The wash cycle time is determined during the wash cycle by the water temperature, the amount of dishes, as well as the degree of soiling and may vary (depending on the selected wash cycle). Delay start You can delay the start of the cycle in one hour increments up to 24 hours. To set Delay start:

Press On/Off button (. Select a cycle.

Press Delay button @ until the displayed time corresponds with your requirements.

Press Delay button @ until œ:‹‹ is indicated on the digital display 8.

Press Start button P to save setting. Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Close the appliance door and press the Start button P again. Wash cycle end The wash cycle has ended when the display 8 reads ‹:‹‹. If the signal tone has been set, the wash cylce end is also indicated by a buzzer. To change the signal volume:

Press the On/Off button (.

Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.

Press the function key 3. Each time the button is pressed the set value increases by one level; when it reaches the value ›:‹„, the display jumps back to ›:‹‹ (off).

Press the Start button P to save the setting. Auto power off This setting determines the length of time the control panel stays illuminated after the cycle is complete. To save energy the recommended setting is ˜:‹‚. This setting can be adjusted from ˜:‹‹ to ˜:‹ƒ. œ:‹‚ 1 hour delay œ:ƒ… 24 hours delay ›:‹‹ Off ›:‹‚ low ›:‹ƒ medium ›:‹„ loud ˜:‹‹ dishwasher does not turn off automatically ˜:‹‚ dishwasher turns off automatically after 1 minute ˜:‹ƒ dishwasher turns off automatically after 120 minutes (2 hours)en-us Operating the Dishwasher

To change the setting:

Press the On/Off button (.

Release both buttons.

Press the function key 3 until the display corresponds with your requirements.

Press the Start button P. Switching off the appliance Short time after the end of the wash cycle:

Press On/Off button (.

Turn off water supply.

Remove the utensils when they have cooled down. 9 WARNING RISK OF INJURY! To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided. Interrupting the wash cycle 9 CAUTION Expansion (overpressure) may cause the appliance door to open and/or water to escape! If the door was opened on an appliance which has a hot water connection or is heated, always leave the door ajar for several minutes and then close.

Press On/Off button (. The LED’s go out. The wash cycle is saved.

To continue the wash cycle, close the door and press On/Off button ( again. Note: Your dishwasher is protected against unintentional operation. If the appliance door remains open for more than 4 seconds after pressing the Start button, the operation will be paused. Close the appliance door and press the Start button P again. Terminating the wash cycle (Reset) Terminating the wash cycle

Press and hold Start button P for approximately 3 seconds until the display reads ‹:‹‚.

Wait about 1 minute while the dishwasher drains.

Press On/Off button (. You may now power the dishwasher back on and begin a new cycle if desired. Changing the wash cycle When the Start button ( has been pressed, the wash cycle cannot be changed. The only way a wash cycle can be changed is by terminating the wash cycle (Reset).Operating the Dishwasher en-us

Child Lock (panel lock) The child lock will lock the panel while the dishwasher is in operation to prevent that a wash cycle is interrupted unintenionally (e.g. by children). To set the panel lock:

Start the desired wash cycle.

Hold down the button that says ‘Child Lock’ underneath it for approximately 3 seconds until the display reads ’–. The panel lock is active. ’– will be indicated now if any button is pressed and the program will not be reset. To deactivate the panel lock hold down the button that says ‘Child Lock’ underneath it for approximately 3 seconds until the display no longer reads ’–. The panel lock is deactivated automatically when the wash cycle is completed. In case of a power outage the panel lock will remain active. The panel lock has to be activated with each new wash cycle. Intensive drying The final rinse uses a higher temperature which improves the drying result. The cycle time and energy usage may be increased. (Caution if utensils are delicate!) This feature has two settings:

Press the On/Off button (.

Release both buttons.

Press Start button P to save setting. š:‹‹ Off š:‹‚ Onen-us Care and Maintenance

2 Care and Maintenance Care and Maintenance A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents future problems. Overall condition of the dishwasher NOTICE ■ Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any resulting damage. ■ Regularly wipe the front of the appliance with a damp cloth - water and a small amount of liquid soap is adequate. Do not use sponges as they could scratch the surfaces. ■ Do not use bleach-based wipes as they could damage the surface or printing. ■ Stainless steel appliances: To prevent corrosion, do not use sponges or chlorine based cleaners. Use a stainless steel polish to seal and protect the surface. Do not use chlorine based cleaners or wipes. ■ Clean the outer edges of the inside door panel regularly to remove debris that may collect from normal loading. If spots begin to appear on the stainless steel, make sure the rinse agent is full and functioning properly. ■ Clean the door seal regularly with a damp cloth to remove food particles that may collect from normal loading and cause odor. A soiled door seal may not seal properly. 9 WARNING Use caution when removing parts for cleaning as some debris may be sharp. Filters The Bosch

filter system 1b is designed to prevent the need to pre-rinse normally attached food soils from your dishes. Simply scrape leftover food soils off of dishware before loading. This process will conserve time, water and the energy require to heat your household water supply. Your dishwasher filter system is designed to filter 100% of the water entering the spray arms to provide a continuous supply of clean water to remove food soils from your dishware. Filter components The filter system 1b consists of three parts. A Large Object Trap Prevents objects that should not be placed in your dishwasher from damaging the dishwasher pump system or clogging your household drain.

&Care and Maintenance en-us

Cleaning intervals The filter system 1b is designed to minimize maintenance while providing premium cleaning performance and minimum energy consumption. Depending on use habits and water hardness, the filter system will require some maintenance to sustain premium cleaning performance. Your filter system may need to be cleaned when: ■ You notice food soils remaining on the filter system or objects trapped in the Large Object Trap. ■ A drop in cleaning performance or a gritty film forms on the dishware. When washing normally attached food soils that have been scraped before loading, in a household that runs the dishwasher every other day, your filter should be cleaned: Note: Clean the filter after washing loads with large amounts of food soils or loads with a heavy starch content, like potatoes and pasta, to maintain optimal performance. To check or clean the filter system:

Unscrew the Large Object Trap as illustrated and remove the entire filter system.

Remove any residue and clean filters by rinsing under running water. Note: do not use abrasive brushes or steel wool, etc., as they may damage the filter.

Reinstall the filter system in reverse sequence and lock into place by screwing the Large Object Trap until the marking arrows align. B Flat Fine Filter Prevents food particles from entering the wash chamber and directs particles toward the micro filter. C Micro Filter Directs the smallest of particles to the household plumbing drain. Cleaning interval Use this setting, 3-6 times a year if you rinse before loading 4-12 times a year if you only scrape before loading 12 times a year if you have hard water

en-us Care and Maintenance

Spray arms Check spray arms 1:, 1R for grease and limescale deposits. If you find such deposits: ■ Fill detergent dispenser 92 with detergent and start the appliance without utensils in the cycle with the highest rinsing temperature. ~ "Wash Cycle Information" on page 26 ■ Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers. ■ Unscrew the upper spray arm 1: and pull off the lower spray 1R arm as shown. Inspect for deposits. Drain pump Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case: ■ Disconnect the appliance from the power supply. ■ Remove the filters. ~ "Filters" on page 32 ■ Scoop out standing water - use a sponge if necessary. ■ Using a spoon, pry off the pump cover until it clicks, then grip the cover and pull upward until it resists and then pull forward. ■ Check inner compartment and remove any foreign objects. 9 WARNING Use caution when removing parts for cleaning as some debris may be sharp. ■ Place cover in the original position, press down and engage. ■ Reinstall filters. Note: The drain pump will not work properly if the drain pump cover is not snapped in completely until it clicks.

Preparing your unit for vacation NOTICE Before leaving for vacation during warmer weather, besides turning off the main valve, also turn off water supply at the nearest point to the dishwasher. Do not leave soiled dishware in unit and leave door slightly open. During colder weather, please follow the instructions for winterizing your unit below. Winterizing your unit NOTICE If your dishwasher will be unused for a period of time in a location that experiences freezing temperatures (holiday home or through a vacation period), have your dishwasher winterized by a professional service.en-us Troubleshooting

3 Troubleshooting Troubleshooting Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you with a dishwasher problem without involving a repair professional. Problem Cause Action Dishwasher does not start Door may not be properly latched. Shut the door completely until you hear a click. Dishwasher may not be turned on. Press the main power switch ( to turn dishwasher on. Dishwasher not reset or previous cycle not completed. Reset the dishwasher. Delay start engaged. Reset Delay start. Interruption of electrical power supply to dishwasher or blown fuse. Check circuit breaker. The door may have been closed without first selecting a cycle. Select a cycle and close the door. Water supply may not be turned on. Check and turn on water supply. Cycle does not resume after door is opened and closed during cycle. Door is opened longer than 4 seconds after a cycle has started. Press Start button again to resume cycle. Display does not illuminate A fuse may have been blown or circuit breaker tripped. Check the fuse or circuit breaker box and replace the fuse or reset the breaker if necessary. Door not closed or latched. Note: For models with controls on top of the door, the display only illuminates when the door is opened and controls are visible. Ensure door is properly latched and completely closed.Troubleshooting en-us

Dishwasher seems to run a long time Incoming water is not warm enough. Before starting a cycle, run hot water faucet at the sink closest to the dishwasher. Cycle time can vary due to soil and water conditions. Sensors in the dishwasher automatically increase the cycle time to ensure a good wash when heavy soil is detected. Rinse aid dispenser 9* is empty, or rinse aid setting has been set to “0”. Add rinse aid, or change rinse aid setting. Dishwasher connected to cold water supply. Note: Check the typical wash cycle length. ~ "Wash Cycle Information" on page 26 Verify dishwasher is connected to hot water supply plumbing. Dishes are not getting clean enough Spray arm movement obstructed. Ensure that spray arm movement is not blocked by hand rotating spray arms 1:, 1R before starting cycle. Spray arm nozzles clogged. Remove spray arms 1:, 1R and clean them. ~ "Spray arms" on page 34 Improper use of detergents. Increase or decrease detergent depending on the water hardness. Filters 1b could be clogged. Clean the filters 1b. ~ "Filter components" on page 32 Dishes are nested or loaded too closely together. Rearrange load such that water spray can reach all items in the dishwasher. ~ "Loading the Dishwasher" on page 13 Selected wash cycle is not suitable for food soil conditions. Refer to Wash Cycle Information. ~ "Wash Cycle Information" on page 26 Streaks on glassware or residue on the dishes Incorrect rinse aid setting. Depending on the hardness of water, adjust the rinse agent dispenser 9*. ~ "Rinse Aid" on page 12 Dishes are not getting dry enough Note: Plastic or Teflon do not typically dry as well as other items due to their inherent properties. Rinse aid dispenser 9* is empty or incorrect rinse aid amount is set. Add rinse aid or adjust setting - the use of rinse agent improves drying, use the Auto cycle, use the Sanitize option. Improper loading of dishes. Rearrange load to ensure items are not nesting. ~ "Loading the Dishwasher" on page 13 Note: Select models offer an extra heating option to improve drying performance.en-us Troubleshooting

Odor Note: Water testing is done in the factory. Occasionally water may still appear in dishwasher at purchase which may create an odor. Food debris is present at the bottom of the dishwasher. Remove the filters and clean them. ~ "Care and Maintenance" on page 32 Food particles are present near the door seal. ~ "Care and Maintenance" on page 32 Residual water is present at the bottom of the dishwasher. Ensure the dishwasher has completely drained from the last cycle. Drain hose is obstructed. Remove any obstructions from the drain hose by calling qualified personnel. Note: If odor still persists, run the Normal/ Regular cycle until it flushes and interrupt the cycle and place an 8 oz. cup of distilled white vinegar solution on the upper rack and then finish the cycle. Dishwasher not filling with water or “Check water supply” display lights up Restriction in the water supply system. Ensure that the water supply valve (typically located under kitchen sink) is open and check that the water supply line has no kinks or clogs. Previous wash cycle was not completed. ~ "Operating the Dishwasher" on page 28 Delay start is active. Cancel the delay start or wait until delay start time completes. Household water supply turned off. Turn on water supply. Fascia panel discolored or marked Abrasive cleaner used. Use mild detergents with soft damp cloth. Noise during wash cycle Dishes may not be arranged properly. Water circulation sound is normal, but if you suspect items are banging into each other or into the spray arms, check optimal arrangement of dishes. ~ "Loading the Dishwasher" on page 13 Water leaks Suds. Using wrong type of detergent or overfilling the rinse aid dispenser results in suds and leaks - use only dishwasher detergents. If suds still persist, add one tablespoon of vegetable oil at the bottom of the dishwasher and run the desired cycle. Door seal could be pulled away from track. Ensure the door seal is in the track. Condensation vent is blocked. Ensure that condensation vent is not blocked. Improper installation. Have proper installation verified by qualified personnel (water supply, drain system, leveling, plumbing).Troubleshooting en-us

Tub stains Stains on the dishwasher interior are due to water hardness. Concentrated lemon juice can reduce the build-up of hard water stains. Run Normal/Regular cycle until it flushes and interrupt the cycle and then place an 8 oz. cup of the concentrated lemon solution on the upper rack and finish the cycle. This can be done periodically to avoid build-up. Silverware in contact with tub. Ensure that silverware does not make contact with the tub while running a cycle. Detergent dispenser cover will not shut Improper operation of detergent cover. For instructions on opening and closing the dispenser ~ "Detergent" on page 22 Previous cycle was not finished or interrupted. ~ "Operating the Dishwasher" on page 28 Unable to select desired cycle Previous cycle not finished. ~ "Operating the Dishwasher" on page 28 Touch sensitive keys not activating easily or activating without being touched Water or other liquid on the surface. Wiping the fascia with a wet cloth may cause unwanted activation. wipe the fascia with a soft, dry cloth when possible. If you must use a damp cloth to clean, dry immediately. Never pour water on the controls. Touch keys not being activated properly. Press the center of the touch key with the flat area of your fingertip. A beep will sound to indicate that the selection has been made. Touching the keys lightly should work. Note: There is a built-in delay to prevent someone from launching several actions at once by accidentally wiping their hand (or a cleaning cloth) across the control panel.en-us Customer Service

4 Customer Service Customer Service Your Bosch® dishwasher requires no special care other than that described in the Care and Maintenance section of this manual. If you are having a problem with your dishwasher, before calling for service please refer to the Troubleshooting Guide section of the manual. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty. If you are having a problem with your Bosch® dishwasher and are not pleased with the service you have received, please take the following steps until the problem is corrected to your satisfaction:

Contact Customer Service from our web site: www.bosch-home.com/us or www.bosch-home.ca

Contact your installer or the Bosch Authorized Service Contractor in your area.

Write us: BSH Home Appliances Corporation 1901 Main Street Irvine, CA 92614 Please be sure to include your model information as well as an explanation of the problem and the date it started. You will find the model and serial number information on the label located on the edge of the dishwasher door. Please make a copy of your invoice and keep it with this manual. The customer may be required to show proof of purchase to validate warranty coverage.Statement of Limited Product Warranty en-us
