USER MANUAL Fresh Joy Cafe BEEM

Coffee Machine with Grinding

Subject to printing error.

Details of this instruction manual 3

Copyright 39

Warnings 40

Intended use 41

Disclaimer 41

Safety 4

Fundamental safety precautions 42

Danger from electric current 43

Danger of burns 43

Initial use 4

Safety instructions 4 4

Unpacking 44

Delivery contents and transport inspection 4 4

Disposing of the packaging 45

Requirements for the place of use 45

Electrical connection 46

Overview/Delivery contents 47

Control panel 48

Before using for the first time 49

Operation 5

Safety instructions 50

Switching on the display lighting 50

Setting the time 51

Removing the grinder 52

Removing the permanent filter 52

Placing the permanent filter 53

Placing the grinder 53

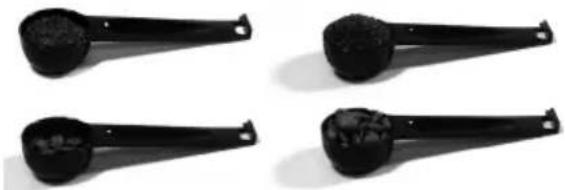

Filling coffee 54

Filling with water 54

Instructions for brewing coffee 5

Requirements for aromatic coffee 55

EN

Table of Contents

Preparation 5

Brewing coffee with coffee beans 56

Brewing coffee with coffee powder 57

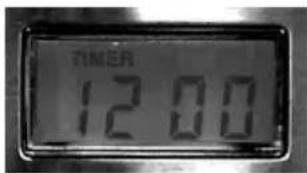

Preparing coffee with preset timer 58

After brewing 6

Emptying / cleaning the grinder 60

Cleaning and maintenance. 6

Safety instructions 61

Cleaning 61

6.2

Troubleshooting 6

Safety instructions 63

Faults - causes and remedies 63

Information on storage/disposal 6

Storage 65

Disposal 65

Annex 6

Technical data 65

Spare parts and other accessories 66

Certifications 66

Guarantee, service and repairs. 67

EC Declaration of Conformity 69

Index 7

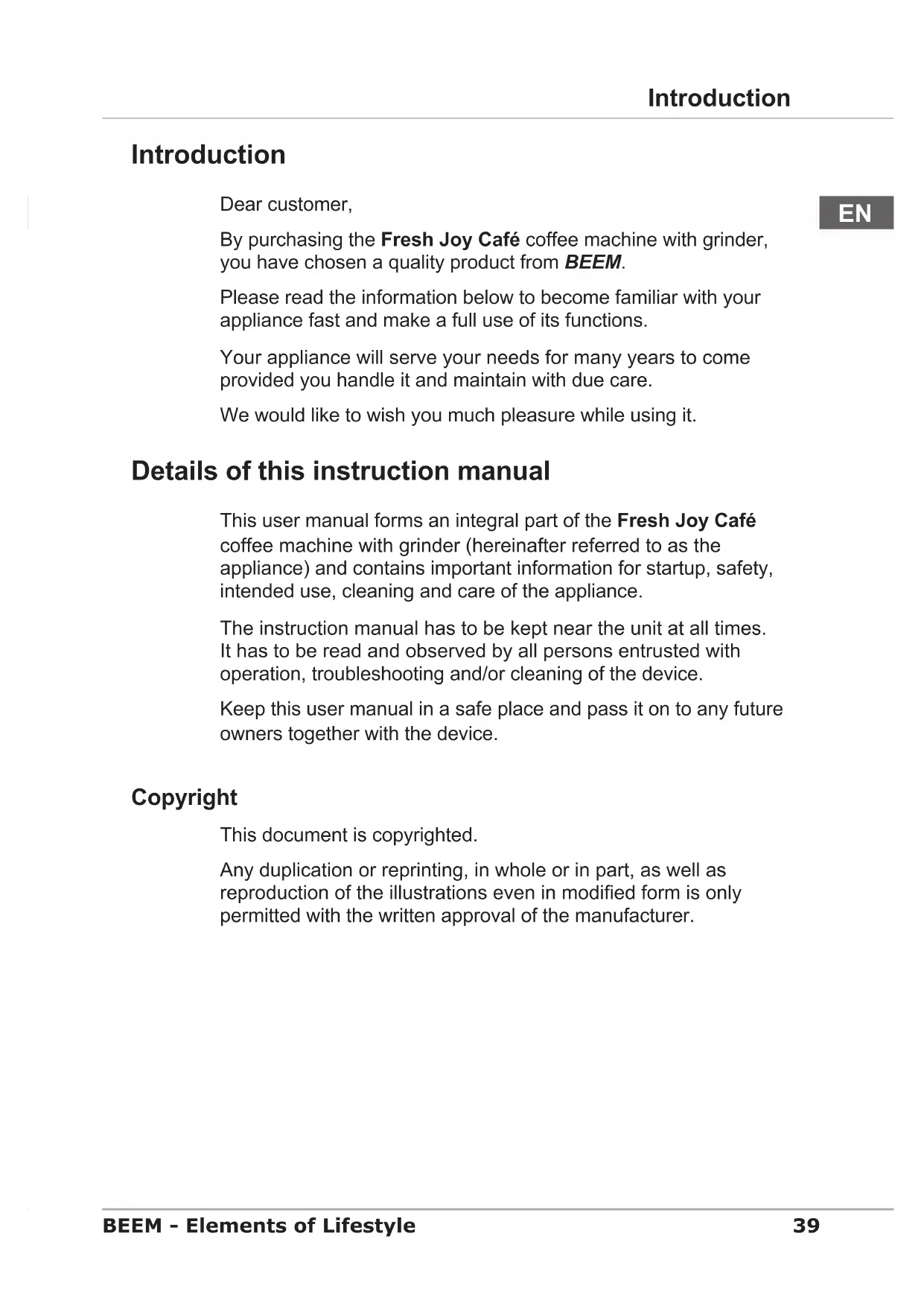

Introduction

Dear customer,

By purchasing the Fresh Joy Café coffee machine with grinder, you have chosen a quality product from BEEM.

Please read the information below to become familiar with your appliance fast and make a full use of its functions.

Your appliance will serve your needs for many years to come provided you handle it and maintain with due care.

We would like to wish you much pleasure while using it.

Details of this instruction manual

This user manual forms an integral part of the Fresh Joy Café coffee machine with grinder (hereinafter referred to as the appliance) and contains important information for startup, safety, intended use, cleaning and care of the appliance.

The instruction manual has to be kept near the unit at all times. It has to be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the device.

Keep this user manual in a safe place and pass it on to any future owners together with the device.

Copyright

This document is copyrighted.

Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

Warnings

The following warnings are used in this user manual:

EN

DANGER

A warning of this category draws attention to an impending dangerous situation.

If the dangerous situation is not avoided, it may lead to serious injury or even death.

Follow the instructions in this warning to avoid the danger of serious injury or even death.

WARNING

A warning statement for this safety risk class indicates a potentially dangerous condition.

If the dangerous condition is not prevented, it will cause injury.

Follow the instructions in this warning to avoid injury to persons.

CAUTION

A warning statement for this safety risk class indicates a damage risk.

If the dangerous condition is not prevented, it will cause damage to objects.

Follow the instructions in the warning message in order to prevent such damage.

NOTE

A note contains additional tips to facilitate the use of the appliance.

Intended use

This appliance is intended mainly for non-commercial use in closed rooms for brewing coffee using coffee powder or coffee beans.

Any other use other than previously stated is considered as improper use.

WARNING

Danger from use for other than the intended purpose!

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the machine only for its intended purpose.

Observe the procedures described in this instruction manual.

No claims of any kind will be accepted for damage resulting from use of the machine for other than its intended purpose.

The risk has to be borne solely by the machine operator.

If used commercially, please observe the conditions of the modified warranty period.

Disclaimer

All technical information, data and instructions on installation, operation and maintenance of the device contained in this user manual represent the latest status at the time of printing.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.

EN

This appliance complies with the prescribed safety regulations. Improper use can however, result in personal injury and/or damage to the device.

For safe use of the appliance, observe the following fundamental safety precautions and the precautions described separately in the individual sections.

Fundamental safety precautions

Check up the appliance for visible outside damage. Do not use a damaged device.

Children have to be supervised to ensure that they do not play with the appliance.

Do not leave the device unattended during operation.

Always pull the mains lead out of the plug socket at the plug, not at the mains lead.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Repairs to the device have to be carried out by an authorised specialist or by the works customer service only; this particularly applies for replacing a damaged connecting cable. Unqualified repairs result in considerable danger for the user. In addition, the warranty will be void.

Repairs to the device during the warranty period may only be carried out by service centres authorised by the manufacturer as the warranty will otherwise be voided in the event of damage or subsequent damage.

• Faulty parts have to be replaced with original spare parts only. Only such parts can ensure that safety requirements will be honoured.

Never operate the appliance without water, otherwise the appliance will be damaged.

• Apart from water, do not fill any other liquids or food in the water tank of the appliance.

Do not pour any water into the water tank of the appliance as long as it is still hot. Brimming over can cause scalding.

• Do not put the coffee pot onto a gas flame or an electroplate.

Do not put the coffee pot into a microwave oven.

Danger from electric current

DANGER

Electric shock hazard!

Contact with live leads or components poses a risk of serious injury or even death!

Observe the following safety precautions to avoid any electric shock hazard:

Do not use the appliance if the mains lead or plug is damaged.

On no account should the housing of the unit be opened.

Electric shock hazard if live connections are touched and/or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Danger of burns

WARNING

Hot steam may escape during operation.

Observe the following safety precautions to avoid burning yourself.

Keep your body away from escaping steam.

Do not open the filter compartment during operation.

Before any cleaning, make sure to cool down the appliance.

EN

Initial use

Safety instructions

WARNING

Persons may be injured or material damage may be caused during commissioning of the appliance!

Observe the following safety precautions to avoid any danger: Packaging never has to be used to play with. There is a risk of asphyxiation.

Observe the information on the demands on the installation location and on the electrical connection of the appliance to avoid personal injury and material damage.

Unpacking

Remove the device, all accessory parts and the user manual from the box.

Before using for the first time, remove all packaging materials and the protective film from the device and accessories.

NOTE

Do not remove the rating plate or any warning signs on the appliance.

Delivery contents and transport inspection

As standard, the appliance is supplied with the components and accessories described in the appliance overview.

NOTE

Check if delivered complete and with no visible defects.

Report an incomplete or damaged delivery to your supplier/ retailer immediately.

Disposing of the packaging

The packaging protects the appliance from transport damage. The packaging material was chosen in consideration of the aspects of environmental friendliness and disposal technology involved, and thus is recyclable.

Recycling the packaging material for further use saves raw materials and reduces waste. When no longer required, dispose of the packaging materials in accordance with the local regulations in force.

NOTE

If possible, keep the original packaging during the warranty period in order to be able to pack the appliance properly in the event of a warranty claim. Transport damage will invalidate the warranty.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location has to satisfy the following requirements:

Place the appliance on a dry, flat, waterproof and heat-resistant surface.

The surface finishes on furniture may contain constituents that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.

Do not place the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.

• Select a location that does not allow children to reach the hot surfaces of the device.

The appliance is not intended for installation in cupboards.

The plug socket used has to be easily accessible in order to be able to disconnect the appliance from the electric circuit quickly in the event of an emergency.

EN

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions have to be observed for the electrical connection:

Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data have to correspond in order to avoid damage to the appliance. If in doubt, ask your electrical device retailer.

The mains socket has to be protected by at least a 10 A circuit breaker.

If the appliance is to be connected to the power supply via an extension lead, the cable cross-section has to be at least 1.5mm^2

Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.

The mains cable must not be pulled tightly, bent or come into contact with the hot appliance or hot surfaces.

Place the cable in such a way as to avoid danger from tripping.

The electrical safety of the device is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a plug socket without PE conductor is forbidden. If in doubt, have the house installation checked by a qualified electrician.

The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

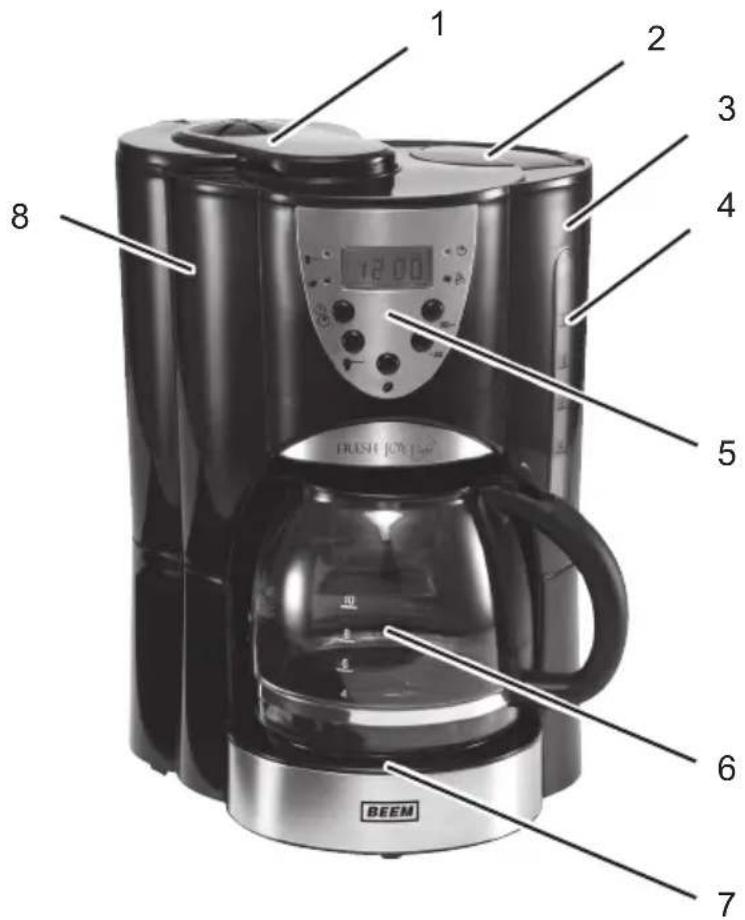

Overview / Delivery contents

1 Filter compartment lid
2 Water tank lid
3 Water tank
4 Level indicator
5 Control panel with control elements
6 Coffee pot with lid

7 Hot plate
8 Filter compartment

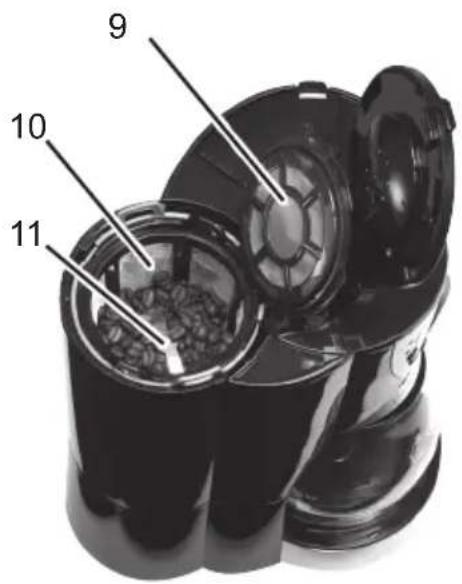

9 Filter lid
10 Permanent filter
11Grinder
12 Operating instructions (without illustration)

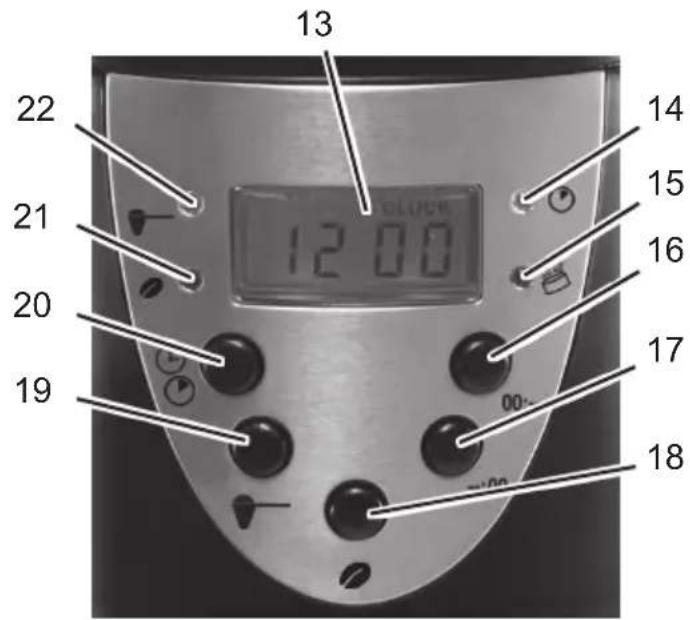

Control panel

EN

13 Display
14 Yellow indicator lamp (timer is switched on)
15 Red indicator lamp (descaling required)
16 Button 00 setting the hour display)
17 Button - (sitting the minute display)

18 Button ±b rewing coffee with coffee beans)
19 Button (brewing coffee with coffee powder)
20 Button setting the clock and the timer)
21 Blue indicator lamp brewing coffee with coffee beans)
22 Green indicator lamp (brewing coffee with coffee powder)

Before using for the first time

NOTE

Activate the display lighting by pressing any key.

Wipe the appliance and the accessories with a slightly damp cloth.

Clean the coffee pot (6) with warm water and washing-up liquid.

Fill the water tank (3) with fresh water up to mark 10 as described in the section Filling with water.

Rinse the permanent filter (10) and the grinder (11) with clear water.

Fill the appliance with coffee powder or coffee beans as described in the section Filling with coffee.

Place the coffee pot (6) with lid on the hot plate (7).

Press the button (19) (for coffee powder) or the button (18) (for coffee beans) in order to start the brewing process or the grinding and brewing process.

Wait until the all the water has run through and the indicator lamp 22) or (21 has gone off.

Empty the coffee pot (6) and pour the coffee away.

Clean the coffee pot (6) with warm water and washing-up liquid.

Clean the grinder and the permanent filter as described in the section Cleaning and maintenance.

NOTE

During the initial period of use, odour may be produced by the materials used in the appliance. The odour will diminish after a short period of time.

EN

This section contains important information on the operation of the device.

Safety instructions

WARNING

Danger of burns! Hot steam may escape during operation.

Observe the following safety precautions to avoid burning yourself.

Keep your body away from escaping steam.

Do not open the lid of filter compartment during operation.

CAUTION

Possible damage to the appliance!

Observe the following instructions to avoid damage:

Only fill the water tank with water and never with coffee

beans or coffee power.

Switching on the display lighting

The blue display lighting goes out 15 seconds after the last keypress except when the appliance is in operation, e.g. coffee is being brewed or kept warm.

Press any key to switch on the display lighting.

NOTE

If you press the button (19) or the button (18), the unit starts the brewing and/or grinding process.

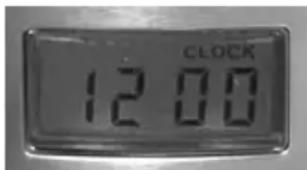

Setting the time

Insert the plug into the mains socket. The time 12:00 starts flashing on the display.

Press the button (20) once. The time is displayed above Clock.

Set the hours by pressing the 00:-- button (16).
Set the minutes by pressing the -:00 button (17). For fast forward hold the button 006 or (17) pressed. The clock display disappears automatically a few seconds after the last button has been pressed and the time is set.

NOTE

The time can be set only, if Clock is displayed.

The time will be stored until either a new time is entered or the plug is removed from the socket for more than a minute.

Removing the grinder

EN

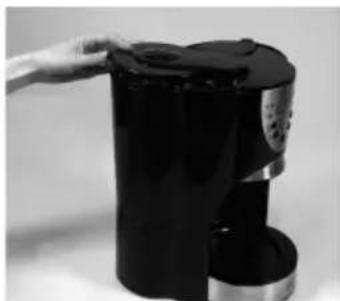

Press the release to open the lid (1) of the filter compartment. Error message E1 is displayed and two short signal sounds are released three times.

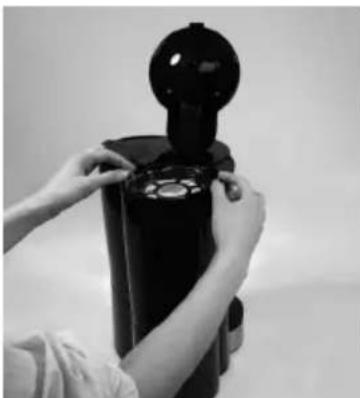

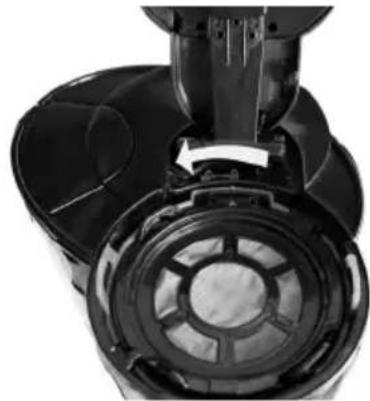

Press the grinder (11) down and turn anti-clockwise at the same time until the marking points to the unbolted lock.

Remove the grinder (11) from the filter compartment (8).

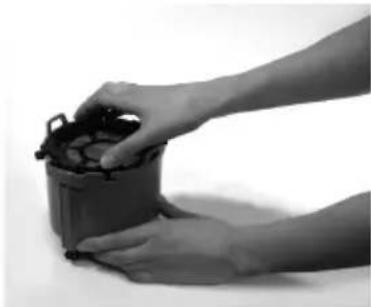

Removing the permanent filter

Remove the grinder from the unit as described in the section Removing the grinder.

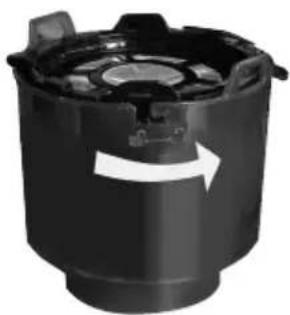

Turn the permanent filter (10) clockwise out of the locking system. Please observe the marking on the outside of the grinder (11).

Remove the permanent filter (10) from the grinding unit (11).

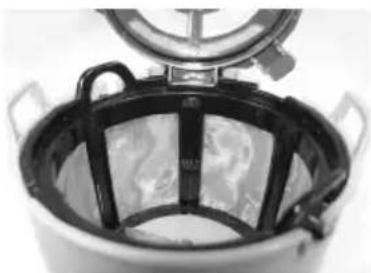

Placing the permanent filter

Place the permanent filter (10) in the grinder (11).

Please observe the marking on the outside of the grinder.

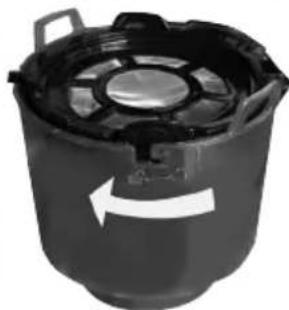

Turn the permanent filter counter- clockwise until locked.

Placing the grinder

Place the grinder (11) in the filter compartment (8). Please observe the marking when opening the filter compartment: The marking points to unlatched lock.

Press the grinder down slightly and turn clockwise at the same time until locking into place. The marking now points to the bolted lock.

Close the lid (1) of the filter compartment.

NOTE

Ensure a correct sit of the permanent filter and of the grinder. If the permanent filter and/or grinder are placed in the wrong way and if the lid of the filter compartment is closed in this position, the ground coffee may block the water flow. The filter compartment may overflow.

E1 starts flashing the display, if the filter compartment has not been closed properly, and E2 starts flashing when the permanent filter has not been fitted correctly. The unit can be operated only with a correctly fitted permanent filter and when the lid of the filter compartment has been closed.

EN

Filling coffee

Remove the grinder from the unit as described in the section Removing the grinder.

Open the filter lid (9).

Fill the requested quantity of coffee beans and/or coffee powder.

Recommendation: 4 to 6 g of coffee beans or coffee powder per cup.

NOTE

Please observe the marks in the permanent filter for the maximum fill of coffee. It is used as a reference point.

Close the filter lid (9).

Place the grinder in the unit as described in the section Placing the grinder.

Filling with water

Open the lid (2) of the water tank.

Only fill the amount of water required for the desired number of cups.

NOTE

Do not overfill the water tank! It has been fitted with an overflow which drains the water to the outside in case of overfill.

Close the lid (2) of the water tank.

Instructions for brewing coffee

Requirements for aromatic coffee

In order to prepare aromatic coffee, please observe the following instructions:

If possible, use freshly ground coffee powder for the optimum flavour.

Experiment with the amount of coffee beans and/or coffee powder until you find the flavour you prefer.

• Fill the water tank with the amount fresh water required for the desired number of cups.

Empty and clean the grinder as well as the permanent filter after every use.

Clean and descale the unit in regular intervals, at the latest when the red indicator lamp 15) is lit. A dirty and/or scaled appliance impairs the aroma.

Although the hot plate on which the coffee pot stands can keep the coffee hot for about two hours, we recommend that you pour brewed coffee into a thermos jug and switch off the appliance.

Preparation

EN

NOTE

When the appliance is in operation, the coffee pot (6) has to be under the filter compartment (8). The coffee pot pushes the drip protector up and the coffee can flow from the filter into the coffee pot.

The drip protector prevents water running out of the filter when the coffee pot (6) is removed from the appliance. During the brewing process however, the coffee pot (6) should not be removed from the appliance for more than 30 seconds, otherwise the filter will fill up and the coffee will flow over.

Brewing coffee with coffee beans

NOTE

• Whilst brewing coffee using coffee beans, the button (19) is blocked.

Fill the water tank with water as described in the section Filling with water.

Fill the appliance with coffee as described in the section Filling with coffee beans.

Press the button (18) to start the grinding and brewing process. The blue indicator lamp 1) is lit during the entire grinding and brewing process.

After completing the brewing process, the coffee is kept warm on the hot plate for about two hours. Afterwards the unit is switched off automatically.

Stopping the brewing process

Press the button (18) to break off the grinding and brewing process. Press this button again to switch the unit off; the blue indicator lamp 21) goes off.

Brewing coffee with coffee powder

NOTE

• Whilst brewing coffee using coffee powder, the button (18) is blocked.

Fill the water tank with water as described in the section

Filling with water.

Fill the appliance with coffee powder as described in the

section Filling with coffee.

Press the button (19) to start the grinding and brewing process. The green indicator lamp (22) is lit during the entire grinding and brewing process.

After completing the brewing process, the coffee is kept warm on the hot plate for about two hours. Afterwards the unit is switched off automatically.

Stopping the brewing process

Press the button (19) to break off the grinding and brewing process. Press this button again to switch the unit off; the green indicator lamp (22) goes off.

Preparing coffee with preset timer

EN

NOTE

To brew coffee using the timer, the time has to be set as described in the section Setting the time.

Activate the display lighting by pressing any key. The lighting goes off 15 seconds after the last button was pressed.

Programming the preset time

Press the button (20) twice. The time is displayed above the Timer.

Use the 00:-- button (16) and --:00 (17) to set the requested starting time.

For fast forward, keep the 00 button (16) or the button (17) pressed.

The clock display disappears automatically a few seconds after the last button has been pressed and the start time for brewing coffee has been set.

For brewing coffee with coffee powder:

Fill the water tank with water as described in the section Filling with water.

Fill the appliance with coffee powder as described in the section Filling with coffee.

Press the button (19) twice to activate the timer. The yellow indicator lamp (14) is lit and the green indicator lamp (22) is flashing.

NOTE

• When the button (19) is pressed once only, the timer is not activated and the appliance starts the brewing process immediately.

When the preset time has been reached, the unit switches off automatically and starts the brewing process. The yellow indicator lamp (14) goes off and the green indicator lamp (21) is lit continuously.

For brewing coffee with coffee beans:

Fill the water tank with water as described in the section Filling with water.

Fill the appliance with coffee powder as described in the section Filling with coffee.

Press the button (18) twice to activate the timer. The yellow indicator lamp 14) is lit and the blue indicator lamp 21) is flashing.

NOTE

• When the button (18) is pressed once only, the timer is not activated and the appliance starts the grinding process immediately.

When the preset time has been reached, the unit switches off automatically and starts the grinding process followed by the brewing process. The yellow indicator lamp 14) goes off and the blue indicator lamp 21) is lit continuously.

Stopping the preset timer

In order to stop the timer, press one of the following buttons:

-Button (18)

The yellow indicator lamp 4) goes off and the appliance starts brewing the coffee with coffee beans.

Button (19)

The yellow indicator lamp 4) goes off and the appliance starts brewing the coffee with coffee powder.

After brewing

After brewing

Carry out the following operations after each use of the appliance in order to retain proper function of the appliance and prevent mould from forming:

WARNING

Danger of burns!

Observe the following safety precautions to avoid burning yourself.

Always allow the appliance to cool down before cleaning.

Emptying / cleaning the grinder

Remove the grinder from the unit as described in the section Removing the grinder.

Remove the permanent filter from the grinder as described in the section Removing the permanent filter.

Empty and clean the grinder (11) as well as the permanent filter (10).

Place the permanent filter in the grinder as described in the section Placing the permanent filter.

Place the grinder in the unit as described in the section Placing the grinder.

Cleaning and maintenance.

This section contains important information on cleaning and maintenance of the appliance.

EN

Safety instructions

WARNING

Observe the following safety precautions before starting to clean the appliance:

Switch off the appliance and pull the mains plug out of the plug socket before starting cleaning.

Wait until the device has cooled down before you start to clean it.

Never immerse the appliance or the mains plug in water or other liquids.

Cleaning

CAUTION

Possible damage to the surface of the appliance!

Do not use sharp objects or abrasive cleaning agents to clean the surfaces.

Clean the grinder (11), the permanent filter (10) and the coffee pot (6) after every use.

Wipe the housing with a damp cloth. Use a little washing-up liquid to remove any stubborn stains.

EN

Dscaling

In order not to impair the service life of the appliance and the quality of the coffee, the appliance has to be descaled at regular intervals. The descending intervals depend on the water hardness. Recommendation: Descale after about 100 coffee brews. This time is reached when the red indicator lamp (15) is lit. You can descale the unit beforehand as well.

NOTE

The red indicator (15) can be switched off also without.
descaling by pressing two random buttons at the same time.
The eletronic count starts at zero.

Fill the water tank with water to the 10 mark and add citric acid or vinegar essence (approximately 5 % acidic solution).

NOTE

If you use a commercially available descending agent, observe the manufacturer's instructions for use.

Press the button (19) for 2 seconds. The green indicator light (22) lights up and the red indicator light (15) flashes Both indicator lights extinguish after approximately 10 minutes and electronic counting resets to zero. Empty the coffee pot (6).

NOTE

If the appliance is severely scaled, it may be necessary to repeat the descending process.

Allow two tank fills of clear water to run through the appliance for rinsing.
Wash all removable parts with warm water and washing-up liquid before brewing coffee again.

Troubleshooting

Safety instructions

DANGER

Electric shock hazard!

Pull the plug out of the mains socket before starting troubleshooting.

WARNING

Danger caused by incorrect repairs!

Incorrect repairs can pose considerable dangers for the user and serious damage to the appliance.

Repairs to electrical appliances may only be carried out by the works after-sales service or by specialists trained by the manufacturer.

Faults - causes and remedies

Fault Possible cause Remedy
No symbol in the display.	Mains plug not plugged in.	Insert the mains plug.
	No mains power.	Check the fuse / socket.
	Display is defective.	Contact After-sales Service.
The automatic circuit breaker in the fuse box trips.	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	Appliance is defective.	Contact After-sales Service.
Water runs out of the appliance.	Too much water in the water tank.	Do not overfill the water tank!

EN

Fault Possible cause Remedy
The coffee is dispensed into the coffee pot very slowly.	The grinder has not been fitted correctly.	Fit the grinder cor-rectly.
	Appliance is scaled.	Descale the appli-ance.
Filter overflows.	Coffee pot is not below the filter compartment.	Place the coffee pot underneath the filter compartment correctly.
	Permanent filter clogged.	Clean permanent filter.
	Too much coffee has been filled.	Fill in coffee powder and/or coffee beans to max. mark only.
The coffee is too weak.	Too much water in the water tank.	Only fill in the amount of water required for the desired number of cups.
Strong build-up of steam whilst brewing coffee.	Appliance severely scaled.	Descale the appli-ance several times.
The display E1 is flashing.	Filter compartment is not closed.	Close the lid of the filter compartment.
The display E2 is flashing.	The grinder has not been fitted correctly.	Fit the grinder cor-rectly.

NOTE

If you cannot resolve the problem with the steps described above, please contact after-sales service.

Information on storage/disposal

Storage

If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and maintenance. Store the coffee machine and all accessory parts in a dry, clean and frost-free place which is protected against direct sunlight.

EN

Disposal

This product may not be disposed of in the domestic refuse within the European Union.

Dispose of the device in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). For additional queries, please contact the local authority in charge of waste disposal.

Annex

Technical data

Model Coffee machine Fresh Joy Café
Type number W8.001
Operating voltage 230 VAC
Mains frequency 50 Hz
Power consumption 1,000 W
Protection class I
Coffee pot capacity 10 cups/1.25 l
Dimensions	350 x 265 x 230 mm (H x W x D)
Approximate weight 2.7 kg

Spare parts and other accessories

EN

Item* Article No. Designation

6 900 626 006 Glass pot complete

11900626006Grinder without permanent filter

9+10 900 466 031 Permanent filter with lid

• according to the drawing in the description of the device

Certifications

Symbol Meaning
www.tuv.com TÜV G S (see Standard Document 10060000)	The appliance has been tested and certified by German technical inspection association TÜV Rhineland.
CE	The device conforms to the relevant EU Directives (see Declaration of Con-formity).
RoHS	This device conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS).
	This device conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE).

Guarantee, service and repairs

This is a quality product from BEEM and was produced using the latest manufacturing methods.

We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the warranty period.

The warranty period for this product is two years.

For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period is 6 months. This does not infringe the warranty disclaimer.

Warranty disclaimer: The warranty does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.

If we are obliged by law to provide a warranty and will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled – at his/her discretion – to reduce the purchase price or to cancel the contract of purchase. Claims under warranty do not prolong the warranty period. For exchange or return of the device (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the device or the claim for reductions as these have to be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the device.

EN

Should faults nevertheless occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed device to your retailer or to the customer service address shown below. Please state your complete address, type and model number and the serial number of the device. This information can be found on the rating plate of the device. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or an invoice. No services under warranty can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice.

Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained – preferably by e-mail – from the customer service address indicated below.

Repairs not covered by the warranty can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the device or by a service centre, if available.

Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact your dealer or the local distributor first if you live outside of Germany.

For product information, ordering accessories or questions on service handling, please contact your retailer or the stated customer service. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor first.

You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de. Additional product information can also be found here.

EC Declaration of Conformity

Name/address of manufacturer: BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbH Dieselstrasse 19-21 D-61191 Rosbach v.d.H. Germany
We hereby declare that the product
Model: Coffee machine with grinder	Fresh Joy Café
Type: W8.001
conforms to the following relevant regulations: EU Directive 2006/95/EU Electrical devices for use within certain voltage limits, EU Directive 2004/108/EU Electromagnetic Compatibility.
EN55014-1:2006 EN55014-2:1997+A1+A2 EN61000-3-2:2006 EN61000-3-3:2008 EN62233:2008 EN60335-1:2002+A1+A11+A12+A2+A13 EN60335-2-14:2006+A1 EN60335-2-15:2002+A1+A2
EN55014-1:2006 EN55014-2:1997+A1+A2 EN61000-3-2:2006 EN61000-3-3:2008 EN62233:2008 EN60335-1:2002+A1+A11+A2+A2+A13 EN60335-2-14:2006+A1 EN60335-2-15:2002+A1+A2
Rosbach, 22nd June 2011	Bijan Mehshat (Legally binding signature of the issuer)

EN

EN

Index

B

Before using for the first time . . . . . 4 9

Brewing

Timer. 58

with coffee beans 56

with coffee powder 57

Brewing instructions 55

C

Certifications. 66

Cleaning 61

Coffee beans 56

Coffee powder 57

Control panel 48

D

Damaged device. 42

Danger of burns 43

Delivery contents 44, 47

Descending 62

Device elements. 47

Disposal 45,65

E

EC Declaration of Conformity. 69

Electrical connection. 46

G

Guarantee. 67

1

Initial use 44

Installation location. 45

Intended use. 41

L

Liability Disclaimer 41

N

New owner 39

0

Operation 50

Filling coffee 54

Placing thegrinder 53

Placing the permanent filter 53

Removing the grinder 52

Removing the permanent filter . .52

Setting the time 51

Switching on the display lighting 50

P

Packaging. 45

R

Repairs 67

S

Safety 42

Service 67

Spare parts. 66

Storage 65

T

Technical data. 65

Transport inspection 44

Troubleshooting 63

U

Unpacking. 44

W

Warnings. 40

Table des matieres

Avant-propos 7

Chere cliente, cher client,

Customer service points:

Elements of Lifestyle

BEEM GmbH
