USER MANUAL Force 1012 wetdry Eurom
Instruction manual (EN) (page 8)
Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.
To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.
Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.
We wish you a lot of fun with the Force vacuum cleaner!
Eurom
Kokosstraat 20
8281 JC Genemuiden (NL)
info@eurom.nl
www.eurom.nl
This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.
Technical specifications
| Tension | 220-240V / 50Hz |
| Power | 1000 Watt |
| Vacuum | >150 mbar |
| Air flow | 36 l/s |
| Capacity barrel | 12 liter (SS) |
| Cable - length | 5 m |
| Flexible hose - length | 1,6 m, Ø 32 mm |
| Suction tube | 3 x 36 cm, SS |
| Accessories | combi floorbrush |
| combi dust brush/crevice tool | |
| Weight | 4 kg |
| Dimensions | 30 x 30 x 46 cm |
Important safeguards
- Before use, check if the voltage complies with the specifications marked on the voltage label attached at the vacuum cleaner.
- Before use, please check the vacuum cleaner, the power cable and plug for damage. Do not use a damaged machine!
- Do not use extension cords with inadequate current carrying capacity.
- This equipment is strictly intended for normal domestic use.
- Do not use outdoors!
- Keep the machine away from strong sunlight, ovens, stoves and high temperatures. That can distort the plastic.
- Don't use the appliance in flammable ambience, such as nearby combustible gastanks, gastubes or spray cans. Danger of explosion and fire!
-
Do not use vacuum cleaner EUROM Force to pick up:
-
Burning, smoking or hot objects, such as coal and hot ash, glowing cigarettes and match, etc.
to large objects - sharp objects like nails, parts of glass etc.
- volatile liquid, combustible gas, acids, explosive garbage, etc.
- dangerous materials like asbestos etc.
- flammable or combustible liquids such as gasoline. Don't use the cleaner in areas where they may be present.
-
Material which easily attach on the filter as calcareousness powder, gesso and graphite powder. That will block the ventilation and damage the motor.
-
Make sure that never water enters the barrel cap; water in the motor can cause damage or personal injury. For the same reason do not overturn the machine when you draw liquids.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce the airflow.
- Use extra care when cleaning on stairs.
- Do not wrest, tramp or haul the hose. Do not use the hose if it is broken.
- Do not pull or carry the vacuum cleaner by its cord. Never close the door on the cord, or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord and don't walk over it. Keep the cord away from heated surfaces.
- Do not use without filter in place.
- Turn off the equipment before unplugging.
- Always switch off and unplug the vacuum cleaner when you stop the work, leave the room and before emptying the barrel or maintaining/cleaning the equipment.
- Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.
- Do not touch plug and/or cable with wet hands and don't use the vacuumcleaner without wearing shoes.
-
Ensure you turn the unit off at very minimum every 15 minutes (for 1 minute) to let the motor cool down - failure to do so may cause motor failure!
-
Do not use this unit for more than 4 hours (including rest breaks) on any given day.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Use only as described in this manual. Use only manufacturers' recommended attachments.
- Store your cleaner indoors in a cool, dry area.
- If the vacuum cleaner, the power cord or the plug becomes damaged or dysfunctions, do not use the vacuum cleaner anymore, but take it to an authorized service agent to be repaired. Never repair it by yourself, that lets expire the guarantee and the responsibility of supplier.

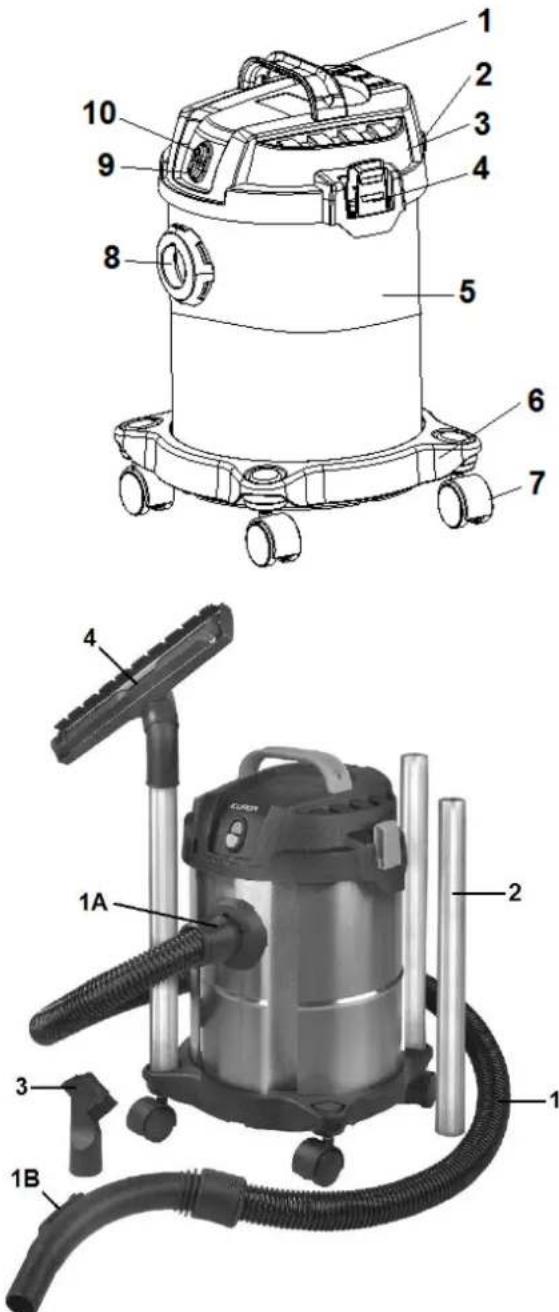

Description
- Handle
- Blowing opening
- Cap (with motor)
- Lock (2x)
- Barrel
- Pedestal
- Castor (4x)
- Connection hose
- On-switch (1)
- Off-switch (O)
Standard accessories
- Hose
1A. Hose connection
1B. Sliding block airflow - Tube (3× 36cm)
- Crevicne nozzle / Dust brush
- Combi floorbrush
The device is fitted with a reusable, textile dust bag. This dust bag has a round opening with a rubber strip. Before you start dry-vacuuming, you must place the bag in the body of the device and slide the opening over the hose inlet until it is sealed. Remove the bag when wet-vacuuming.
Operation

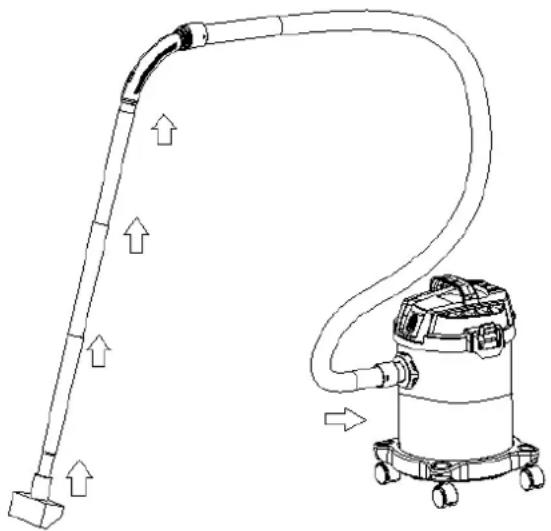

Dry vacuum cleaning
- Check to ensure that the dust bag is installed correctly in the body of the device. Close the body of the device properly with the clamps.
- Insert the hose as far as it will go into the hose connector: you may turn it until the catch falls into the recess. Then turn it a quarter clockwise.
- After this, connect the accessories you wish with a twisting force.
- Insert the plug into the socket.
- Press the ON-switch (I) to turn on (and press later on the off-switch (O) to turn off).
- You can adjust the airflow by pushing the sliding block 1B up and down.
Wet vacuum cleaning
- For the vacuuming of liquid the motor (which is situated in the cap) is provided with a floater that is hanging under the motor, in the barrel. For the vacuuming of liquid the motor is provided with a filter that the floater surrounds and in that way prevents that objects enter the mechanic system. Never vacuum liquid without the filter around the floater!
Be careful!
- Never vacuum dust without the dust bag!
- Never vacuum liquid with the dust bag!
- Never vacuum liquid without the filter around the floater!
Blowing
By connecting the suction hose to the blower opening (instead of the hose connector) you can blow instead of vacuuming. Operation is otherwise the same.
Cleaning up
Switch the device off and remove the plug from the socket. Place the accessories at the appropriate locations on the device, see image.
Overheating safeguard
In case of internal overheating, the overheating safeguard will switch the device off. This may occur if the device cannot give off enough heat or if it cannot draw in enough fresh air. This is generally caused by (partially) covering the device, obstructing the air intake and/or outlet grills or installing the device too close to a wall or something similar. When the device has cooled down sufficiently, it will in principle start again automatically, however if you do not remove the cause of the cut-off then this will probably be repeated. Regular overheating can give rise to irreparable damage.
When the overheating safeguard switches the device off, set the switch to 'off'(0), unplug and allow the device to cool down. Remove and/or amend the cause of overheating and reuse the device as normal. If you cannot find a cause and overheating recurs, stop using the device, and take it in for inspection/repair.
Cleaning and maintenance
Before cleaning or maintenance: always switch off the equipment and unplug it.
Emptying dust bag
Open both the locking blocks (4) en take the up housing from the vacuum cleaner. Remove the dust bag from the body of the device and open by sliding the plastic clamp off. Empty the dust bag, shake it until it is clean and connect once again. Replace in the device correctly. At the end, place back the up housing and close the locking blocks.
Emptying barrel
Open both the locking blocks (4) en take the up housing from the vacuum cleaner. Remove the liquid out of the barrel and clean the barrel if necessary. At the end, place back the up housing and close the locking blocks.
Cleaning the filter
Clean the filter regularly. Open both clips and remove the lid of the vacuum cleaner. Slide the filter off the frame and carefully wash with lukewarm water. Do not use any aggressive or abrasive cleaning agents!
Let the filter dry thoroughly before replacing. Never use the device without a filter!
Maintenance
- Keep the body of the device, the filter and accessories clean by wiping them with a dry or damp cloth. Do not use aggressive cleaning materials!
- Regularly check to ensure no excess air is being sucked in.
- Check the cable and plug regularly for damage. Do not use the device if it has a damaged cable and/or plug but take it to an authorized engineer to be replaced!
-
Regularly check to ensure no objects are stuck in the suction mouth, hose or pipe. Remove them if necessary.
-
Use the device carefully; ensure it does not fall, bump into other objects or become otherwise damaged.
- Store the device in a dry environment.
- Never use the device for too long in one go; give it regular opportunities to cool down. This will extend its life expectancy.
- If the device falters, vibrates, makes peculiar noises or emits a burning smell, stop using it immediately and ask your supplier or service provider to check/repair it.
At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier.
Attachments
The CE declaration can be found at the end of this manual.
Dank
Protection anti-surchauffe
declares the following device in sole responsibility:
Product: vacuum cleaner
Brand name: EUROM
Model: Force 1012 wet/dry
Item number: 161304
Complies with the following harmonization rules:
Low Voltage Directive: LVD 2014/35/EU
Electromagnetic compatibility Directive: EMC 2014/30/EU
Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863
Applied harmonized standards:
EN 60335-2-2:2010+A11:2012+A1:2013
EN 60335-1:2012+AC:14+A11:14+A13:2017+A1:2019+A2:2019+A14:2019
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Genemuiden, 05-05-2021
W.J. Bakker, alg. Dir.
EUROM
Kokosstraat 20
8281 JC Genemuiden
The Netherlands
info@eurom.nl
www.eurom.nl
