USER MANUAL KWK175 Koenic

Exterior view of a modern stainless steel coffee maker with black handle and control panel (no visible text or symbols)

Deutsch	4 - 7
Ελληνικά	8 - 11
English	12 - 15
Español	16 - 19
Français	20 - 23
Magyar	24 - 27
Italiano	28 - 31
Nederlands	32 - 35
Polski	36 - 39
Português	40 - 43
Русский	44 - 47
Svenska	48 - 51
Türkçe	52 - 55
汉语	56 - 59

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a white electrical outlet plug with a black cable, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a black kettle with a red arrow indicating water flow (no text or symbols visible)

Close-up of a kitchen kettle with a red arrow pointing to a black base (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a modern stainless steel coffee kettle with lid and control panel (no text or symbols visible)

Hinweis

Exterior view of a stainless steel coffee kettle with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand washing a water tap with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC coffee maker with a red arrow pointing to the base, no visible text or symbols on the device itself.

Close-up of a mechanical component with a red arrow pointing to a specific area (no text or symbols visible)

Exterior view of a stainless steel coffee kettle with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

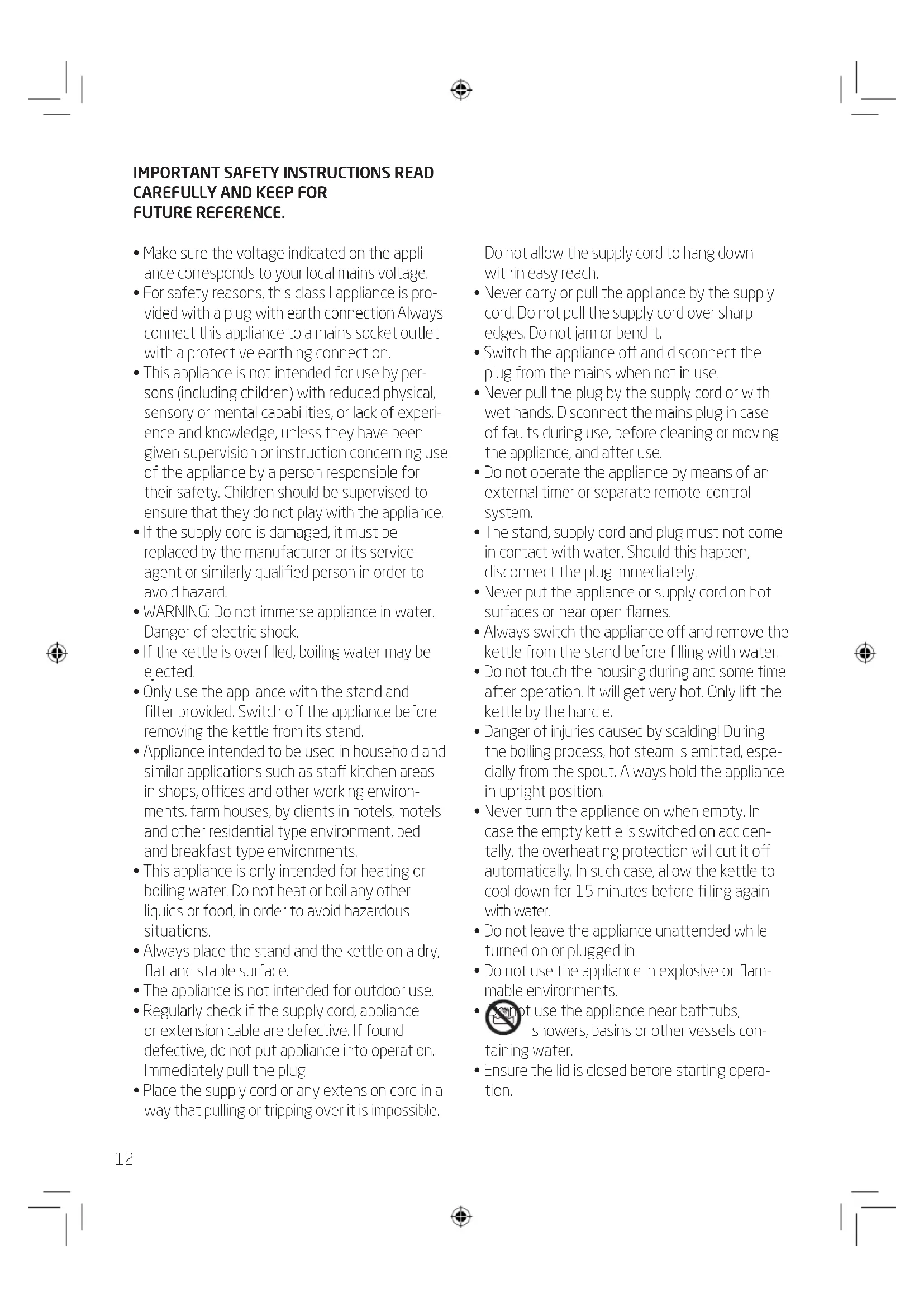

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Make sure the voltage indicated on the appliance corresponds to your local mains voltage.
• For safety reasons, this class I appliance is provided with a plug with earth connection. Always connect this appliance to a mains socket outlet with a protective earthing connection.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
• WARNING: Do not immerse appliance in water. Danger of electric shock.
• If the kettle is overfilled, boiling water may be ejected.
• Only use the appliance with the stand and filter provided. Switch off the appliance before removing the kettle from its stand.
• Appliance intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environment, bed and breakfast type environments.
• This appliance is only intended for heating or boiling water. Do not heat or boil any other liquids or food, in order to avoid hazardous situations.
  • Always place the stand and the kettle on a dry, flat and stable surface.
• The appliance is not intended for outdoor use.
• Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.
• Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible.

Do not allow the supply cord to hang down within easy reach.
- Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.
- Switch the appliance off and disconnect the plug from the mains when not in use.
- Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
- Do not operate the appliance by means of an external timer or separate remote-control system.
- The stand, supply cord and plug must not come in contact with water. Should this happen, disconnect the plug immediately.
- Never put the appliance or supply cord on hot surfaces or near open flames.
• Always switch the appliance off and remove the kettle from the stand before filling with water.
- Do not touch the housing during and some time after operation. It will get very hot. Only lift the kettle by the handle.
- Danger of injuries caused by scalding! During the boiling process, hot steam is emitted, especially from the spout. Always hold the appliance in upright position.
- Never turn the appliance on when empty. In case the empty kettle is switched on accidentally, the overheating protection will cut it off automatically. In such case, allow the kettle to cool down for 15 minutes before filling again with water.
- Do not leave the appliance unattended while turned on or plugged in.
- Do not use the appliance in explosive or flammable environments.
- Don't use the appliance near bathtubs, showers, basins or other vessels containing water.
- Ensure the lid is closed before starting operation.

Intended use

This appliance is only intended for heating or boiling water. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment

(WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Technical Data

Rated voltage: 220-240 V

Rated power input: 1850-2200 W

Rated frequency: 50 Hz

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before first time use

Fill the kettle with water to the MAX level and operate it. Repeat this process 2-3 times. This will remove any residues remaining from the manufacturing process.

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Before use, plug in the kettle.

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

After use unplug the kettle.

Using the kettle

1. Open the lid by pressing the lid button.
2. Fill the kettle with water to the desired level (MIN 0.6 / MAX 1.7 L)
3. Close the lid and place kettle on stand.
4. Use the power switch to switch kettle on.
5. The kettle will switch off automatically, once the water has boiled. Wait 15-20 seconds before operating again.

Close-up of a hand washing a water tap with a red arrow indicating the process (no text or symbols visible)

Fill the kettle with water and close the lid.

MAX 1.7L 1.5L 1.0L

Do not exceed the MAX level.

Cleaning and care

1. Unplug the kettle from the mains supply and allow it to cool down.
2. Empty the kettle, open the lid, lift out the filter and rinse it under warm water.
3. Do not use any abrasive cleaning agents.
4. Refit in reverse order.

Close-up of a kitchen kettle with a red arrow pointing to a small pot on a base (no text or symbols visible)

Place kettle on stand.

6 0 0 1 1

Switch kettle on (1).

Descaling

1. Fill the kettle with water.
2. Add the juice of one lemon.
3. Boil the mixture, reboil it and allow it to stand for 15 minutes. Reboil a third time, then empty and rinse the kettle.

6 0 0 1 1

The kettle switches off automatically.

Close-up of a mechanical component with a red arrow pointing to a specific area (no text or symbols visible)

After cleaning, clip the filter in place.

EN

Image of a stainless steel coffee kettle with labeled parts, showing front and back views with numbered annotations.

Note

• You can stop the boiling process at any time by lifting the power switch.
• When kettle not in use, store excess cord in or around the stand.

3

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

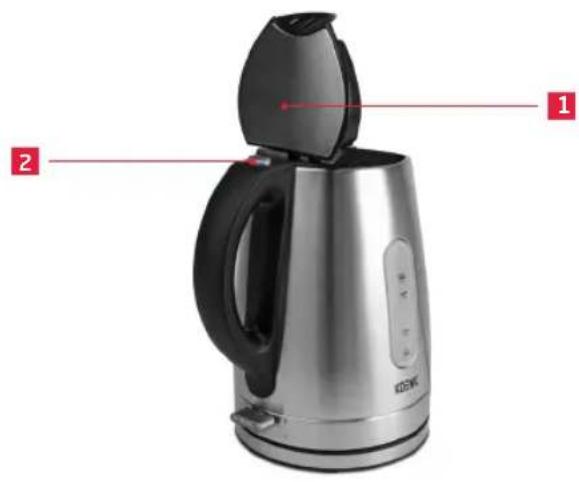

1 Lid
2 Lid button
3 Spout with filter
4 Handle
5 Water level indication
6 Power switch
7 Stand

Caution

- Do not open the lid when steam is emitted from the spout.

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical outlet plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a hand valve inserted into a stainless steel kettle, with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Image of a stainless steel coffee kettle with labeled parts, showing front and back views with red annotations.

Nota

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand pouring liquid into a stainless steel kettle (no text or symbols visible)

Close-up of a kitchen keeler with a red arrow pointing to a base, no visible text or symbols on the device itself.

Close-up of a mechanical component with a red arrow pointing to a central feature (no text or symbols visible)

Image of a stainless steel coffee kettle with labeled parts and numbered annotations

Note

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand valve inserted into a stainless steel kettle, with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical outlet plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a hand valve inserted into a stainless steel kettle, with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a modern stainless steel coffee kettle with lid and control panel (no text or symbols visible)

Avvertenza

Exterior view of a stainless steel coffee kettle with visible control panel and brand logo (KOENIC)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a hand holding a water tap with a red arrow indicating flow direction (no text or symbols visible)

Close-up of a black electrical outlet plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand valve inserted into a stainless steel kettle, with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a stainless steel coffee kettle with visible control panel and brand logo (KOENIC)

4
5
6
7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Antes de utilizar, insi- ra a ficha na tomada.

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand valve inserted into a stainless steel kettle, with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrow indicating the press or adjustment point (no text or symbols visible)

Coloque o fervedor na base.

6 0 0 1 1

Ligue o fervedor (I).

6 0 0 1 1

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a black electrical outlet plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a hand holding a water tap with a red arrow indicating flow direction (no text or symbols visible)

Close-up of a KIDENIC water heater with a red arrow pointing to a small black base (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific feature (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4
5
6
7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand washing a water tap with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrows indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific area (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a hand washing a water tap with a red arrow indicating the process (no text or symbols visible)

Close-up of a KUENIC kettle being placed on a base, with red arrows indicating the press or adjustment point (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a specific area (no text or symbols visible)

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7

Close-up of a white electrical outlet plug with a black cable and red arrow pointing to the socket (no text or symbols visible)

使用之前，插上水壶插头。

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

用完后，拔下水壶插头。

水壶的使用

Close-up of a hand washing a water tap with a red arrow indicating the process (no text or symbols visible)

把水倒进壶内，然后关上盖子。

MAX 1.7L 1.5L 1.0L

水位不能高过MAX线的水平。

清洁与维护

Close-up of a KUENIC kettle being placed on a base, with red arrows indicating the press or adjustment point (no text or symbols visible)

把水壶放在卡座上。

6 0 0 1 1

打开水壶开关（Ⅰ）。

除垢

Close-up of a mechanical component with a red arrow pointing to a specific area (no text or symbols visible)

清洗完以后，把过滤器放回原位。

ZH

Image of a stainless steel coffee kettle with labeled parts and numbered annotations

说明

Exterior view of a stainless steel coffee maker with visible branding and control panel (no text or symbols on the device itself)

4

5

6

7
