Product type	Range hood
Brand	Boretti
Model	Veneto
Minimum installation height	50 cm above cooking surface
Operation	Manual and automatic (heat detector)
Controls	5 touch keys: light, motor, speed (+/-), timer
Lighting	Halogen lamp 20 W max
Grease filter	Metal, dishwasher safe (short cycle, low temperature)
Charcoal filter	Active, non-washable, replacement every 4 months (recirculation version)
Exhaust	To the outside (duct not included) or recirculation via charcoal filter
Motor speeds	Multi-speed with progressive adjustment
Timer	Delayed automatic shut-off (key E)
External cleaning	Damp cloth with mild liquid detergent
Safety	Unplug before maintenance; never flambé under the hood
Power supply	Mains (according to voltage on rating label)
Recommended use	Automatic mode for intensive cooking (2+ burners); manual for normal use

Frequently Asked Questions - Veneto BORETTI

How to install the Boretti Veneto hood?

The hood must be installed at a minimum height of 50 cm above the cooking surface. Please follow the instructions in the manual and respect greater distances if specified by the cooktop manufacturer.

What is the minimum height between the hood and the cooktop?

The minimum height is 50 cm. For optimal exhaust, respect this distance.

How to clean the grease filters?

The metal filters should be cleaned once a month by hand with a non-aggressive detergent or in the dishwasher at low temperature on a short cycle. Dishwasher cleaning may discolor the filter but does not affect performance.

How often should the charcoal filter be replaced?

The active charcoal filter must be replaced every 4 months under normal use. It is neither washable nor recyclable.

How to turn on the hood light?

Press key A (Light ON/OFF) to turn the light on or off.

What to do if the hood does not work?

Check that the hood is plugged in and the circuit breaker has not tripped. If the problem persists, contact customer service.

How to use automatic mode?

Press keys B and D simultaneously. After 30 seconds, the central keys flash: the hood automatically adjusts the speed using the heat detector. To return to manual mode, press C.

How to adjust the motor speed?

Use keys B (decrease) and D (increase). Flashing indicates minimum or maximum speed.

How to replace the hood bulb?

Turn off the hood and let it cool. Unclip the cover, replace the lamp with a halogen 20 W max without touching the glass with bare hands. Reclip the cover.

Can I use the hood without external exhaust?

Yes, in recirculation mode: install the active charcoal filter (not supplied) to recycle air into the kitchen.

USER MANUAL Veneto BORETTI

Exterior view of a modern stainless steel HVAC unit with a vertical chimney and mounting bracket (no visible text or symbols)

VOORWOORD

Prohibition sign showing a trash bin crossed with a diagonal line, indicating no waste or discharge.

Werking

Manuele werking

Row of six gray rectangular icons with various symbols: light bulb, triangle, fan, triangle, and dash-dot circle (no text or labels)

A B C D E

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Fonctionnement

Row of six gray rectangular icons with various symbols: sun, triangle, fan, triangle, and dash-dot (no text or labels)

A B C D E

Symbol of a trash bin crossed with no visible text or labels

Funcionamiento

Row of six gray rectangular icons with various symbols: lightbulb, triangle, fan, triangle, and dash-dot circle (no text or labels)

A B C D E

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

Consult the designs in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 50 cm from the cooking plane. I the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

Use an exhaust pipe with a diameter of at least 125 mm!!

Exhaust pipe

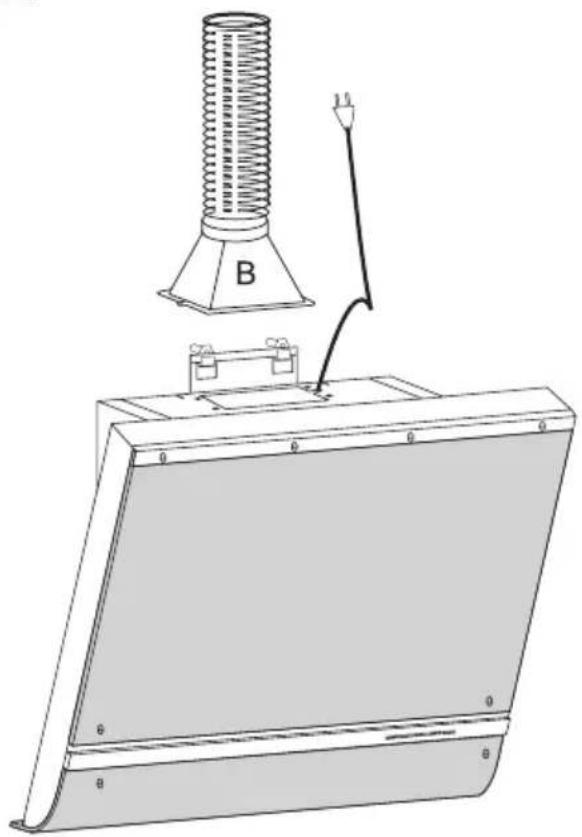

The cooker hood is provided with an upper air exit (B) for discharging fumes externally (exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the circulating version F. The installation of charcoal filters allows the recirculation of fumes and vapours through the upper grid of the chimney.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the machine for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Symbol of a trash bin crossed with no visible text or labels

Operation instructions

Manual mode

The cooker hood is provided with 5 keys.

Row of six gray rectangular icons with various symbols: sun, triangle, fan, triangle, and dash-dot (no text or labels)

A B C D E

A: On / OFF lights
B: Speed reduction key. When the LED flashes the hood is working on the minimum speed.
C: On/ Off key – The hood stars working at the same speed used before switching it off the last time.
D: Speed increase key. When the LED flashes the hood is working at the maximum speed.
E: Timer. Pressing the E key the hood keeps on functioning for some minutes and then stops automatically.

Electronic operating mode

In this operating mode the motor speeds are automatically activated by the means of the heat-sensor located in a sheltered position inside the hood body. This kind of operative mode is suggested only in case of intense use of the cooking hob (two or more burners at a time) otherwise with one burner the manual operative mode is recommended. To start the automatic operating mode push key B and D at the same time. After approx. thirty seconds the three central keys start to flash. The hood starts in the automatic function and the heat

sensor automatically adjusts the motor speed according to the temperature produced by the hob. To return to the manual operative mode push the C key. The correct performance of the heat sensor depends on the distance between the exhausting surface of the hood and the hob: the higher the appliance is located, the more difficult it will be for the heat sensor to detect the temperature.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Extract the lamp cover by levering it off with a small screwdriver or similar tool. Replace the damaged light bulb. Only use halogen bulbs of 20W max, making sure you do not touch them with your hands. Close the lamp cover (it will snap shut).

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.

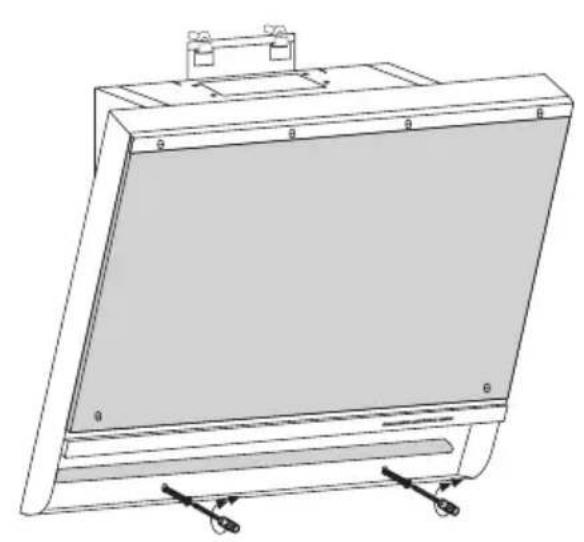

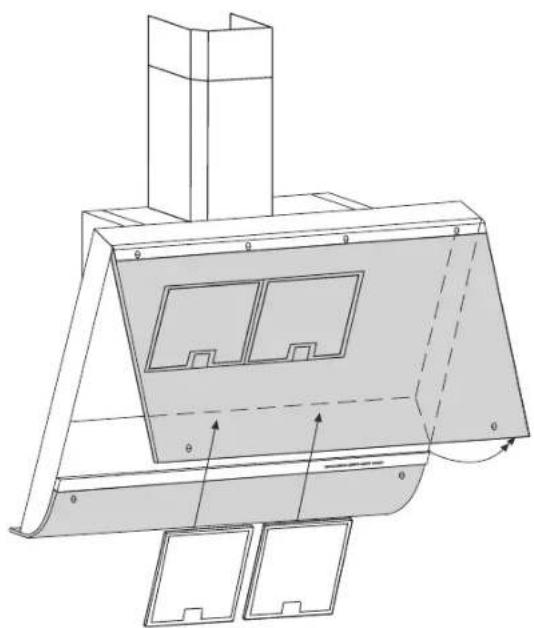

1. 2. 180° 3. - OK! F A 6A 400 155 217.5 530 440 5 Aktivkohlefilter CharcoalFilter Filtreacharbon Koolstofffilter Filtroalcarbon Filtroalcarbone F Clack! Vetfilter Filtroantigrasa Filtroantigrasso Filtreantigraisse Fettfilter Anti-greaseFilter
