M 85 - Coffee grinder Petra Electric - Free user manual and instructions

Product type	Coffee grinder
Brand	Petra Electric
Model	M 85
Maximum capacity	60 g (approx. 10 cups of coffee)
Power supply	Alternating current, voltage according to rating plate (typ. 230 V)
Operation	Press lid button to grind
Stop grinding	Release button to stop
Transparent lid	Allows monitoring of grinding
Material	Plastic
Dimensions (approx.)	10 x 10 x 15 cm
Weight (approx.)	0.5 kg
Use	Household use only
Operating time	Short period; allow breaks between cycles
Cleaning	Damp cloth; do not immerse; removable burrs
Burr maintenance	Turn counterclockwise and pull upwards
Safety	Use only with lid closed; wait for complete stop of burrs before any intervention
Permitted foods	Coffee only
Repairs	Only by an authorized workshop

Frequently Asked Questions - M 85 Petra Electric

What is the maximum capacity of the Petra Electric M 85 coffee grinder?

The maximum capacity is 60 g, which is enough for about 10 cups of coffee.

How to use the Petra Electric M 85 coffee grinder?

Plug in the appliance, fill the container with coffee beans (max 60 g), close the lid and press the button on the lid. Release the button to stop grinding.

Can I grind other foods besides coffee?

No, this appliance is designed only for grinding coffee. Do not use it for other foods.

How to clean the coffee grinder?

Unplug the appliance. Clean the outside with a damp cloth without abrasive products. For the burrs, turn them counterclockwise, pull upwards, then brush off residues. Never immerse the appliance in water.

What to do if the grinder stops working?

Check the plug and cable. If the problem persists, do not attempt to repair yourself. Contact an authorized workshop. Unqualified repairs void the warranty.

Can I use the grinder continuously for large quantities?

No, the appliance is intended for a short period. After a cycle, let it cool down before starting again.

Is it dangerous to open the lid during operation?

Yes, wait for the complete stop of the burrs before opening or removing the lid. Risk of injury.

Where should I dispose of the grinder at the end of its life?

Do not discard it with household waste. Recycle it at a collection point for electrical and electronic appliances or at a recycling center.

Is the power cable replaceable?

No, cable replacement must be done only by an authorized workshop with special tools.

Is this appliance suitable for professional use?

No, the Petra Electric M 85 is designed for household use only.

USER MANUAL M 85 Petra Electric

Black-and-white photo of a modern ceramic coffee maker with coffee beans and a pile of dark granular material nearby (no text or symbols visible on the main subject)

D Bedienungsanleitung
GB Instructions for use
F Mode d'emploi
I Istruzioni per l'uso
E Instrucciones
NL Gebruiksaanwijzing

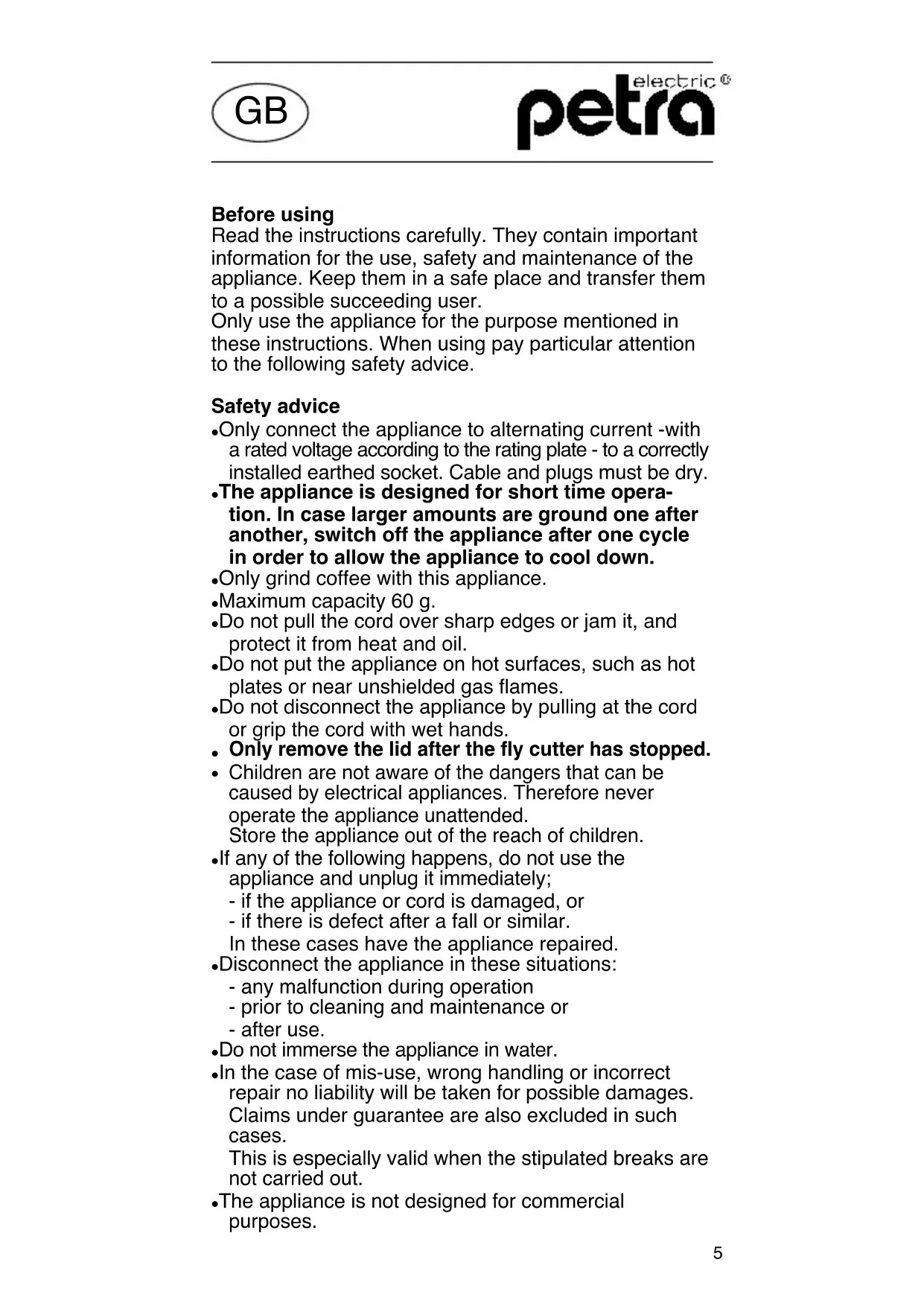

Vor dem Benutzen

Read the instructions carefully. They contain important information for the use, safety and maintenance of the appliance. Keep them in a safe place and transfer them to a possible succeeding user.

Only use the appliance for the purpose mentioned in these instructions. When using pay particular attention to the following safety advice.

Safety advice

- Only connect the appliance to alternating current -with a rated voltage according to the rating plate - to a correctly installed earthed socket. Cable and plugs must be dry.

•The appliance is designed for short time operation. In case larger amounts are ground one after another, switch off the appliance after one cycle in order to allow the appliance to cool down.

•Only grind coffee with this appliance.

•Maximum capacity 60 g.

- Do not pull the cord over sharp edges or jam it, and protect it from heat and oil.

- Do not put the appliance on hot surfaces, such as hot plates or near unshielded gas flames.

- Do not disconnect the appliance by pulling at the cord or grip the cord with wet hands.

- Only remove the lid after the fly cutter has stopped.

- Children are not aware of the dangers that can be caused by electrical appliances. Therefore never operate the appliance unattended.

Store the appliance out of the reach of children.

- If any of the following happens, do not use the appliance and unplug it immediately;

- if the appliance or cord is damaged, or

- if there is defect after a fall or similar.

In these cases have the appliance repaired.

•Disconnect the appliance in these situations:

- any malfunction during operation

- prior to cleaning and maintenance or

- after use.

•Do not immerse the appliance in water.

•In the case of mis-use, wrong handling or incorrect repair no liability will be taken for possible damages.

Claims under guarantee are also excluded in such cases.

This is especially valid when the stipulated breaks are not carried out.

•The appliance is not designed for commercial purposes.

Putting into operation

Prior to first use wipe the inside of the lid and the container with a damp cloth and rub dry afterwards. Connect the appliance to a socket. Then fill the bowl and put on the lid.

The maximum capacity of 60 g is sufficient for about 10 cups of coffee.

maximum level

For security reasons the fly cutter mill can be operated with fixed lid only. For grinding, press down the button on the lid until the desired degree of fineness is obtained.

This can be observed through the transparent cover during operation.

After the fly cutter has stopped the coffee powder can be emptied. Prior to this, disconnect the appliance.

Caution: danger of injury! In any case wait until the fly cutter has stopped operation!

Cleaning and maintenance

After use unplug the appliance. Never immerse the appliance in water, clean the outside with a damp cloth only. Do not use caustic or scouring cleaning agents.

For cleaning, the fly cutter can be detached, by turning it anti-clockwise and removing it by lifting. Remaining powder can be removed by a brush.

Afterwards simply put the fly cutter on the rotation element. The fly cutter is fixed automatically as soon as the motor starts working.

The replacement of a damaged cord and any repairs to the appliance may only be carried out by a specialized service agent, as special tools are required.

Improper repairs can cause considerable danger to the user. Guarantee repairs are only to be made by manufactures.

For UK use only

1. This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a nonrewirable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.

2 The replacement of the plug at the mains lead has to be done according to the following instrucitons:

Important: The wires in this mains lead are coloured in accordance with the following code:

blue: Neutral

brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

- the wire wich is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

- the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect any wire to the terminal which is marked with the letter E or by the earth symbol or coloured green or green and yellow.

1. If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming to BS 1362 and be ASTA approved. If any other type of lug is used, the appliance must be protected by a 5 A fuse either in the plug or adapter or at the distribution bounded. If in doubt - consult a qualified electrician.

2. Never use the plug

The appliance complies with the European directives 73/23/EEC and 89/336/EEC.

At the end of its lifetime this product must not be disposed of through the normal domestic waste, but it should be handed to an assembly point for the recycling of electrical and electronical appliances. You can inquire about details at the local administration.

Subject to technical changes.
