USER MANUAL 2104070 RUSSELL HOBBS

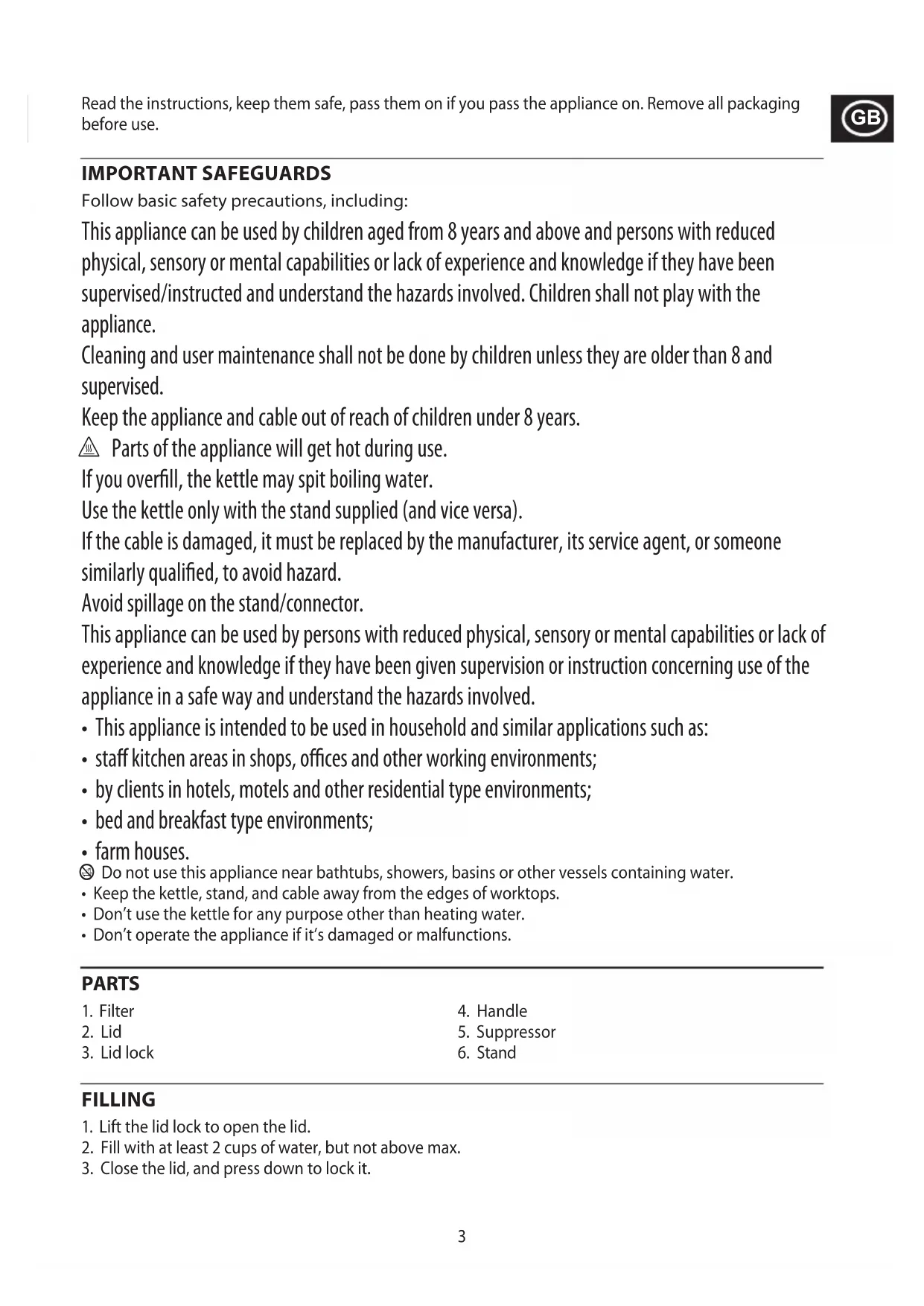

h b3 Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use. IMPORTANT SAFEGUARDS Follow basic safety precautions, including: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years. h Parts of the appliance will get hot during use. If you overfill, the kettle may spit boiling water. Use the kettle only with the stand supplied (and vice versa). If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard. Avoid spillage on the stand/connector. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• farm houses. b Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Keep the kettle, stand, and cable away from the edges of worktops.

• Don’t use the kettle for any purpose other than heating water.

2. Fill with at least 2 cups of water, but not above max.

3. Close the lid, and press down to lock it.

1. Put the stand on a stable, level surface.

2. Plug the stand into the wall socket.

3. Put the kettle on the stand.

4. Press and release the 2 button.

5. The display will show the temperature of the water in the kettle.

6. The 2 button will flash.

2. 100 will flash on the display.

3. Press the 2 button.

4. The 2 button will stop flashing and light up.

5. The display will show the temperature of the water in the kettle.

6. When it reaches the set temperature, the light in the button will go off.

7. To switch off manually, press 2.

HEATING WATER TO A SELECTED TEMPERATURE

The temperatures available are: 100 (boil), 95, 90, 85, 80, 75, 70, 65, and 60 (°C). Use the °F °C button to swap between Fahrenheit and Centigrade on the display.

1. Use the u and d buttons to set the temperature.

2. Press the 2 button.

3. The display will show the temperature of the water in the kettle.

4. When it reaches the set temperature, the light in the button will go out.

5. To switch off manually, press 2.

If you set the wrong temperature, and you want to use the kettle again without pouring, and before it goes to sleep: Press the 2 button twice. TEMPERATURE GUIDE Tea Type Temperature °C Brewing time (min) Black tea 80 – 90 5 – 7 Whole leaf black tea 85 – 90 4 Broken leaf black tea 85 – 90 5 Smoked tea 85 – 90 3 – 4 Flavoured black tea 85 3 – 4 Green tea 60 – 95 2 – 5 Flavoured green tea 60 – 75 3 – 4 Gyokuro (Japanese tea) 50 – 55 1 Sencha (Japanese green tea) 65 – 70 45 seconds to 1 minute Genmaicha (Japanese green tea) 90 – 95 2 – 3 Wu long/oolong/blue/blue-green 80 – 95 about 7 minutes Yellow tea 70 – 75 2 – 4 White tea 70 – 85 7 to 20 minutes Coffee Temperature °C Brewing time (min) Instant coffee 75 - Ground coffee 95 -5 SLEEP MODE

1. The display will show the temperature of the water in the kettle.

2. After 5 minutes of inactivity, the appliance will go to sleep.

3. To wake the appliance, press the 2 button.

GENERAL When you lift the kettle, you may see moisture on the stand. Don’t worry – it’s the steam used to switch off automatically, which then condenses and escapes via vents under the kettle. You may see some discolouration on the floor of the kettle. Again, don’t worry – it’s due to the bonding of the element to the kettle floor.

USING WITH INSUFFICIENT WATER

1. This will shorten the life of the element. A boil-dry cut-out will switch the kettle off.

2. You must then remove the kettle from its stand to reset the cut-out.

1. Unplug the stand, and let the kettle cool before cleaning.

2. Wipe all surfaces with a clean damp cloth.

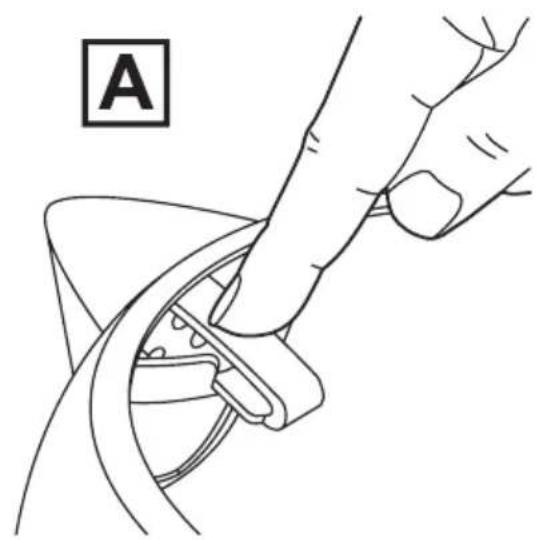

4. Push the hook on top of the filter down, then lift the filter out of the kettle.

5. Rinse the filter under a running tap while brushing with a soft brush.

6. Lower the filter into the kettle, and engage the bottom hook in the bottom of the spout.

7. Press the top of the filter towards the kettle, to lock the hook in place.

Descale regularly, (at least monthly). Descale the appliance at least monthly with a proprietary descaler. Follow the instructions on the package of descaler. Products returned under guarantee with faults due to scale will be subject to a repair charge. RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
