Product type	Fan heater (supplementary heating)
Brand	Solac
Model	TV8420
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W (max)
Power settings	Minimum and maximum (rotary selector)
Thermostat	Temperature regulator with anti-freeze function (maintains at 5°C)
Dimensions (approx.)	25 x 20 x 15 cm
Weight (approx.)	1.5 kg
Main components	Power selector, temperature regulator, operation indicator light, front grille, rear grille, dust filter
Safety	Automatic shut-off in case of overheating (15 minutes cooling then manual restart)
Anti-freeze protection	Yes, automatic maintenance at 5°C
Recommended use	Floor area of at least 4 m², free space of 50 cm around and 120 cm in front
Cleaning	Unplug, let cool, clean exterior with a dry cloth, remove rear grille and filter to dust them (vacuum cleaner)
Seasonal maintenance	Clean before storing in a dry place in its original packaging
Environment	Do not dispose of with household waste, recycle at a waste collection point

Frequently Asked Questions - TV8420 SOLAC

How to turn on the Solac TV8420 fan heater?

Plug in the appliance, then set the power selector (1) to the minimum (I) or maximum (II) position according to your needs. Then turn the temperature regulator (2) to the right to increase heat.

How to set the desired temperature?

To maintain a stable temperature, set the power selector to the desired position and turn the temperature regulator to maximum. When the room is at the desired temperature, slowly turn the regulator to the left until you hear a click: the appliance stops and then restarts to maintain the temperature.

What to do in case of overheating and automatic shut-off?

The appliance is equipped with a safety system that turns it off in case of overheating. Unplug it, let it cool for 15 minutes, check that the grilles are not obstructed by dust, clean if necessary with a vacuum cleaner, then plug it back in. If the problem persists, contact an authorized technical service.

How to use the anti-freeze function?

Set the temperature regulator (2) to the ✉ symbol and the power selector to the minimum position. The appliance will automatically turn on when the ambient temperature drops below 5°C.

Can I use the heater in a bathroom?

No, do not use the appliance near a bathtub, shower, or swimming pool. It must be placed on a stable and horizontal surface, away from water. Do not handle it with wet hands.

How to clean the dust filter?

Unplug the appliance and let it cool. Remove the rear grille (5) and the filter (6). Gently shake the filter or use a vacuum cleaner to remove dust. Put the filter and grille back before using the appliance again.

What is the maximum power of the Solac TV8420?

The fan heater has a maximum power of 2000 W, which corresponds to position II on the power selector.

What safety precautions should I follow?

Never cover the appliance, do not use it near flammable materials, leave a free space of at least 50 cm around and 120 cm in front. Always turn off and unplug the appliance after use. Do not pull on the cord.

Can I use the heater to dry laundry?

No, never use it to dry laundry and avoid furniture within 50 cm of the front of the appliance. This could cause a fire.

How to store the heater after the season?

Clean the appliance with a dry cloth, remove and clean the filter, then store it in a dry place, preferably in its original packaging.

USER MANUAL TV8420 SOLAC

Exterior view of a black SOlac industrial heater with hexagonal mesh grille and 'sOLac' branding (no additional text or symbols visible)

Solac is a registered Trade Mark 04/06

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-28 • ČESKY

29-31 • POLSKA

32-34 • SLOVENSKY

35-38 • MAGYAR

39-41 • българск

42-44 • HRVATSKA

45-47 • ROMANA

1 2 3 4

Technical diagram showing hands operating a device with labeled parts 5 and 6

- ESPAÑOL

ATENCIÓN

- Read these instructions carefully before using your appliance, and keep them for future reference.

- This fan heater is an excellent source of additional heat: It should not be considered as a principal heating system.

- Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home.

- Do not obstruct the air inlets or place any objects on top of the vents or openings of the appliance, since this could cause an electrical shock. Do not insert anything into the grill.

• Always use the fan heater in the upright position and placed on a solid, flat and horizontal surface. Do not place it on excessively soft surfaces such as a bed.

- Leave enough space around the fan heater (at least 50 cm above and to the sides, and 120 cm in front).

- Position the fan heater away from flammable materials (glues, curtains, carpet...).

- Do not place the fan heater directly underneath a power outlet.

- Do not use your fan heater if you see that the power cord is damaged or notice any defect on the appliance. For safety reasons, take it only to an authorised Technical Service Centre.

• Always make sure you turn off the power switch (1) and unplug the appliance from the mains when not in use.

- Do not touch the grill, given that it may be very hot. NEVER COVER the appliance, due to the risk of fire.

- Do not place the cable under carpets or under any other kind of material.

- Do not place the appliance on top of the power cord when the appliance is hot. Do not operate the appliance with the cable wound up.

- Do not handle the appliance with wet hands.

- Do not use the appliance near a bath, shower or swimming pool or any other water container. If the fan heater falls into water, DO NOT try to take it out. Unplug it from the mains.

- Do not use the fan heater to dry clothes, do not leave furniture closer than 50 cm in front of the appliance, and do not use it in rooms with less than 4m ^2 of floor space.

- Keep the appliance out of the reach of children.

IMPORTANT!! When you want to dispose of the appliance, NEVER throw it in the rubbish. Take it to your nearest CLEAN POINT or the waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

SAFETY SYSTEM

- The appliance is equipped with an OVERHEATING DISCONNECTION system. If a problem occurs, this system automatically switches off the appliance. If this happens, proceed as follows:

1) Unplug the appliance from the mains.
2) Allow it to cool for 15 minutes.
3) Ensure that there is no dust or other obstacles that obstruct the air flow.
4) Clean the grills, using a vacuum cleaner if necessary.

If the appliance still fails to work as normal, please contact the Technical Service Centre.

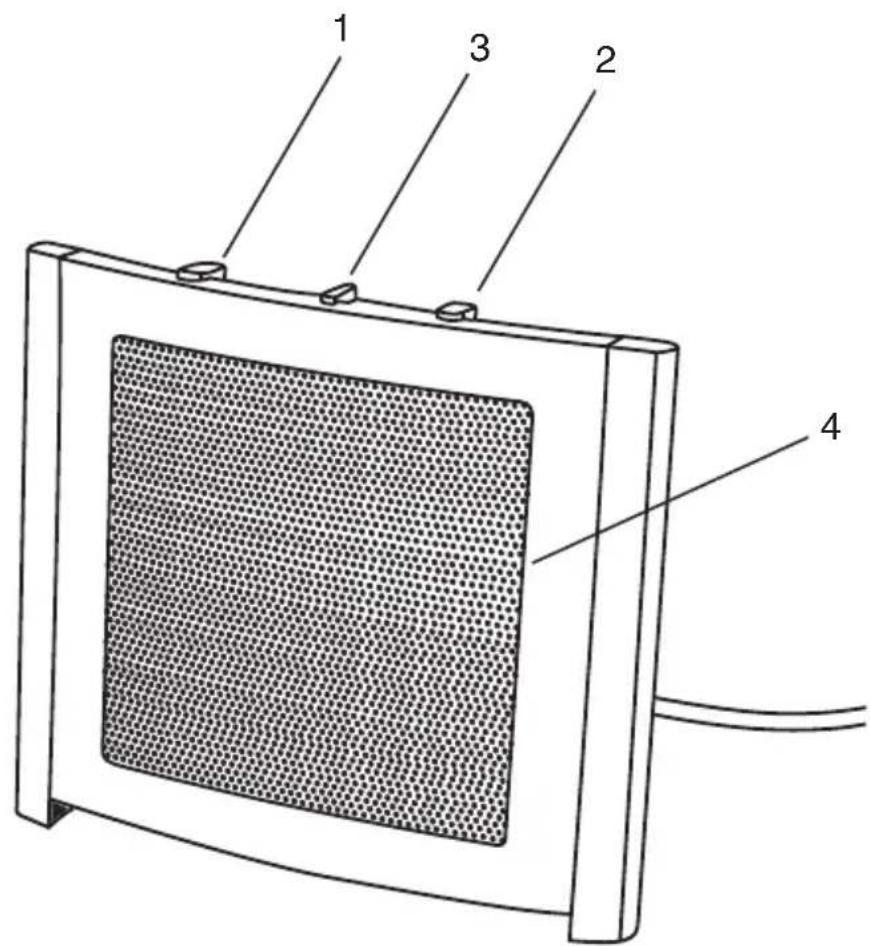

MAIN COMPONENTS

1. Power selector
2. Temperature regulator
3. Operating indicator
4. Front grill
5. Rear grill
6. Dust filter

OPERATION

• Plug your fan heater into the mains.
• Slide the temperature regulator over to the desired power position.
• If you would like to keep the room temperature stable, slide the temperature regulator (2) to maximum.
• Place the power selector control (1) in the desired position:

| Minimum power

|| Maximum power

• When the room has reached the desired temperature, slowly slide the temperature regulator (2) to the left until a soft "click" is heard. The fan heater will switch off. The appliance will switch on and off in order to maintain the right temperature in the room.
• In order to turn off the fan heater, place the power selector (1) in position 0, and unplug the appliance from the mains.
• If you would like to prevent temperatures below 5^ C in the room, select the position using the temperature regulator (2) and the minimum power position on the power selector (1). The fan heater will turn on when the room temperature drops below 5^ C .

CLEANING AND MAINTENANCE

• Before cleaning the appliance, make sure it is switched off and unplugged from the mains.
• Allow it to cool.
• Clean the outside of the appliance using a dry cloth.

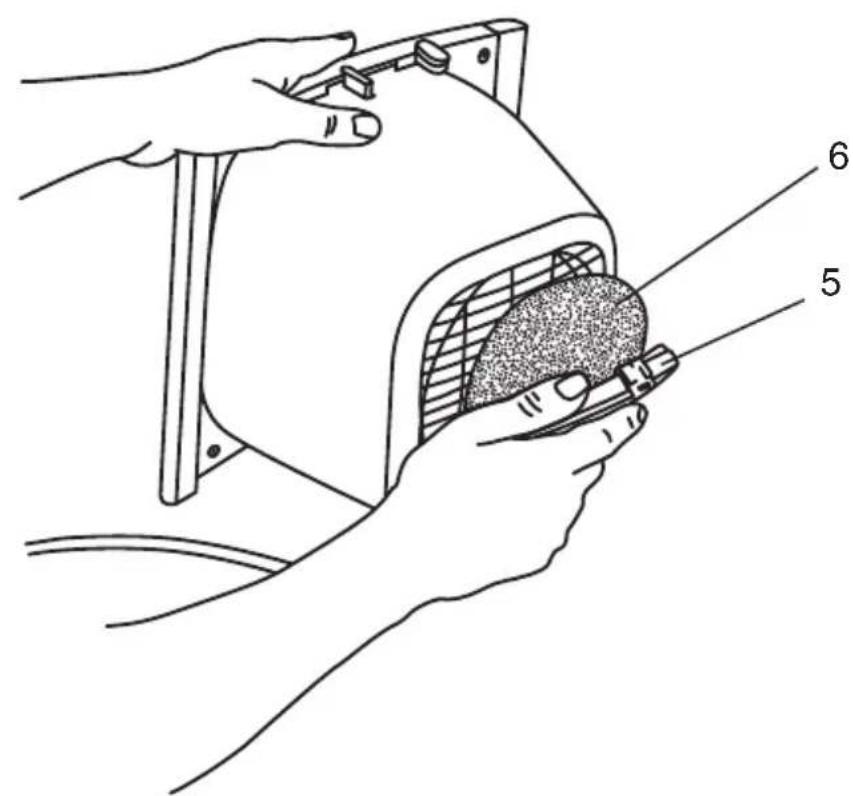

• Remove the rear grill (5) and take off the dust filter (6). Shake out the filter gently or use a vacuum to eliminate the accumulated dust.
  • After each season, we recommend that you clean the appliance with a cloth and store it in its box in a dry place.
• Before each use, be sure that the appliance is in perfect condition.
