Product type	Fan heater (supplementary heating)
Brand	Solac
Model	TV8415
Power supply	220-240 V ~ 50 Hz (check rating plate)
Main functions	Fan heating with adjustable thermostat and two power levels (medium and maximum)
Controls	Power selector (0, *, **) and rotary temperature regulator
Safety	Automatic shut-off in case of overheating
Cleaning	Exterior: dry cloth; interior: vacuum cleaner at low power
Maintenance	Clean before storage; keep in a dry place and in its original packaging
Spare parts and repairability	In case of malfunction, contact an approved technical service
Usage precautions	Do not cover, do not use near water, do not obstruct the grilles, keep a safety distance (50 cm sides, 120 cm front)
Minimum room area	4 m²
Use	Only in vertical position on a flat and horizontal surface
Power-on indication	Indicator light turns on when plugging in
Heating type	Supplementary (not primary)

Frequently Asked Questions - TV8415 SOLAC

How to set the desired temperature?

Turn the temperature regulator (2) to maximum to heat quickly, then slowly reduce until you hear a click when the desired temperature is reached. The device will stop and restart to maintain this temperature.

What to do if the device suddenly stops?

This is likely the overheating safety system. Unplug the device, let it cool for 15 minutes, check that no dust is blocking the grilles, and clean with a vacuum if necessary. If the problem persists, contact an approved technical service.

Can I use this device in a bathroom?

No, it is forbidden to use the device near a bathtub, shower, swimming pool, or any water container. The fan heater must not be exposed to water to avoid any risk of electric shock.

How to clean the device?

Before cleaning, turn off and unplug the device, then let it cool. Clean the exterior with a dry cloth and the interior regularly with a low-power vacuum cleaner.

Is it possible to cover the device for protection?

No, never cover the device during operation, this could cause a fire. Always ensure the ventilation grilles are clear.

Which power level to choose depending on the room?

Use the medium (*) setting for moderate heating or the maximum (**) setting for rapid heating. Ensure the room is at least 4 m².

How to turn off the device completely?

Set the power selector (1) to position 0, then unplug the device from the electrical outlet.

What to do if the power cord is damaged?

Do not use the device if the cord is damaged. Contact an approved technical service to have it replaced, to avoid any danger.

Can I use the device to dry laundry?

No, the fan heater must not be used to dry laundry. Also keep furniture at least 50 cm from the front of the device.

How to store the device after the season?

Clean the device with a dry cloth, then store it in a dry place, preferably in its original packaging box.

USER MANUAL TV8415 SOLAC

solar THERMOTEK

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-28 • ČESKY

29-31 • POLSKA

32-34 • SLOVENSKY

35-38 • MAGYAR

39-41 • българск

42-43 • HRVATSKA

1 2 sOlac 3 THERMOTEK

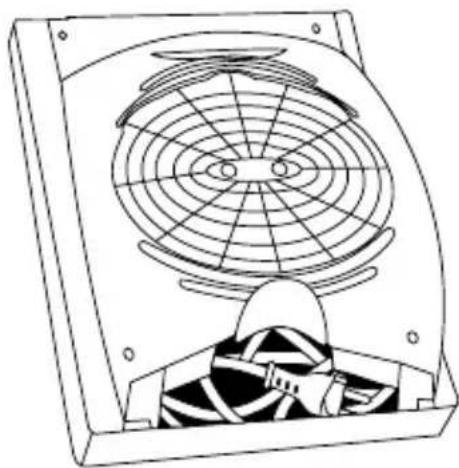

Technical line drawing of a mechanical fan or vent assembly with concentric blades and internal components (no text or symbols)

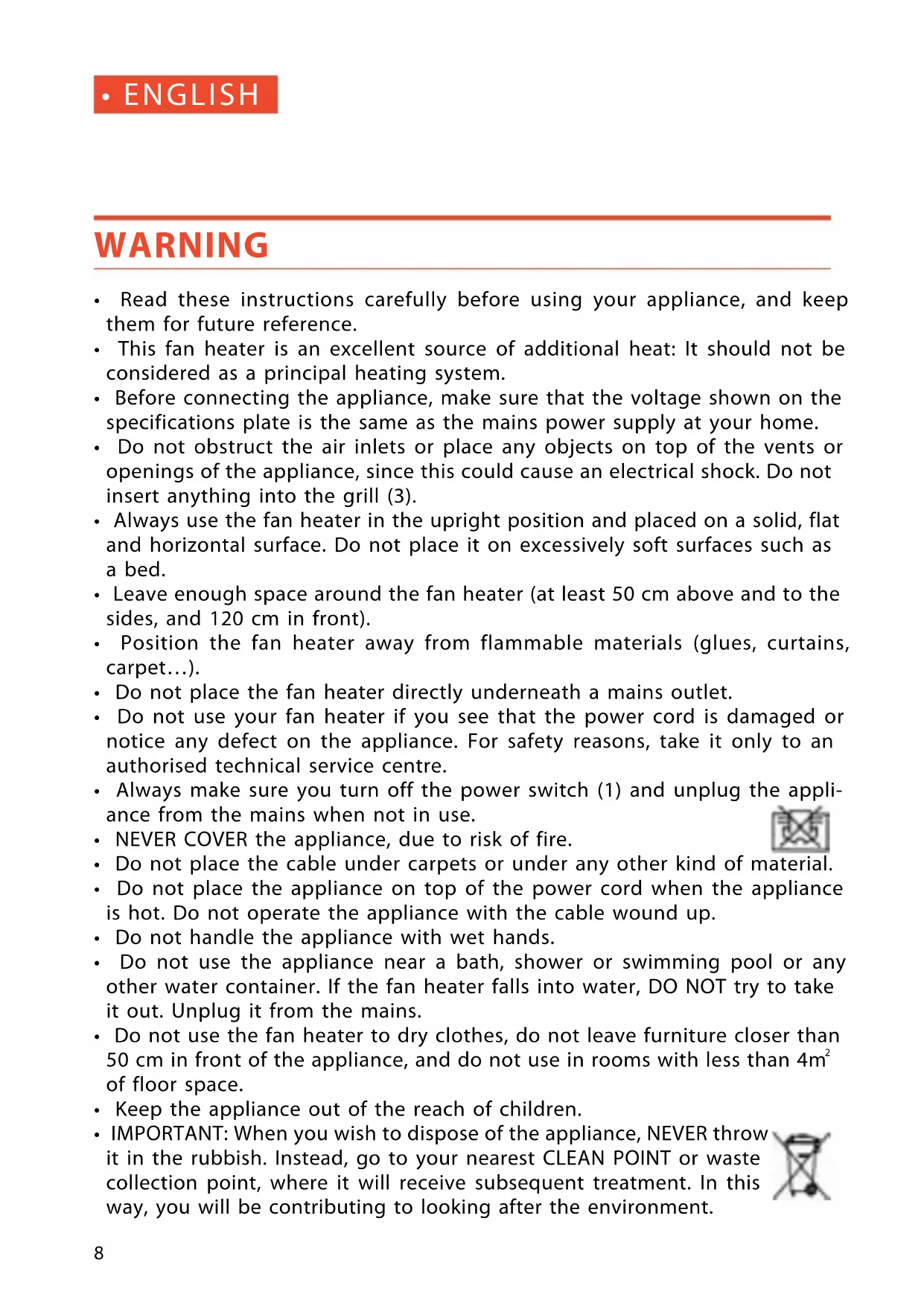

ATENCIÓN

• Read these instructions carefully before using your appliance, and keep them for future reference.
• This fan heater is an excellent source of additional heat: It should not be considered as a principal heating system.
• Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home.
• Do not obstruct the air inlets or place any objects on top of the vents or openings of the appliance, since this could cause an electrical shock. Do not insert anything into the grill (3).
• Always use the fan heater in the upright position and placed on a solid, flat and horizontal surface. Do not place it on excessively soft surfaces such as a bed.
• Leave enough space around the fan heater (at least 50 cm above and to the sides, and 120 cm in front).
• Position the fan heater away from flammable materials (glues, curtains, carpet...).
• Do not place the fan heater directly underneath a mains outlet.
• Do not use your fan heater if you see that the power cord is damaged or notice any defect on the appliance. For safety reasons, take it only to an authorised technical service centre.
• Always make sure you turn off the power switch (1) and unplug the appliance from the mains when not in use.
• NEVER COVER the appliance, due to risk of fire.
• Do not place the cable under carpets or under any other kind of material.
• Do not place the appliance on top of the power cord when the appliance is hot. Do not operate the appliance with the cable wound up.
• Do not handle the appliance with wet hands.
• Do not use the appliance near a bath, shower or swimming pool or any other water container. If the fan heater falls into water, DO NOT try to take it out. Unplug it from the mains.
• Do not use the fan heater to dry clothes, do not leave furniture closer than 50 cm in front of the appliance, and do not use in rooms with less than 4m ^2 of floor space.
• Keep the appliance out of the reach of children.
• IMPORTANT: When you wish to dispose of the appliance, NEVER throw it in the rubbish. Instead, go to your nearest CLEAN POINT or waste collection point, where it will receive subsequent treatment. In this way, you will be contributing to looking after the environment.

SAFETY SYSTEM

- The appliance is equipped with an OVERHEATING DISCONNECTION system. If a problem occurs, this system automatically switches off the appliance. If this happens, proceed as follows:

1) Unplug the appliance from the mains.
2) Allow it to cool for 15 minutes.
3) Ensure that there is no dust or other obstacles that obstruct the air flow.
4) Clean the intake grill (3) with a vacuum cleaner, if necessary.

- If the appliance still fails to work as normal, please contact the technical service centre.

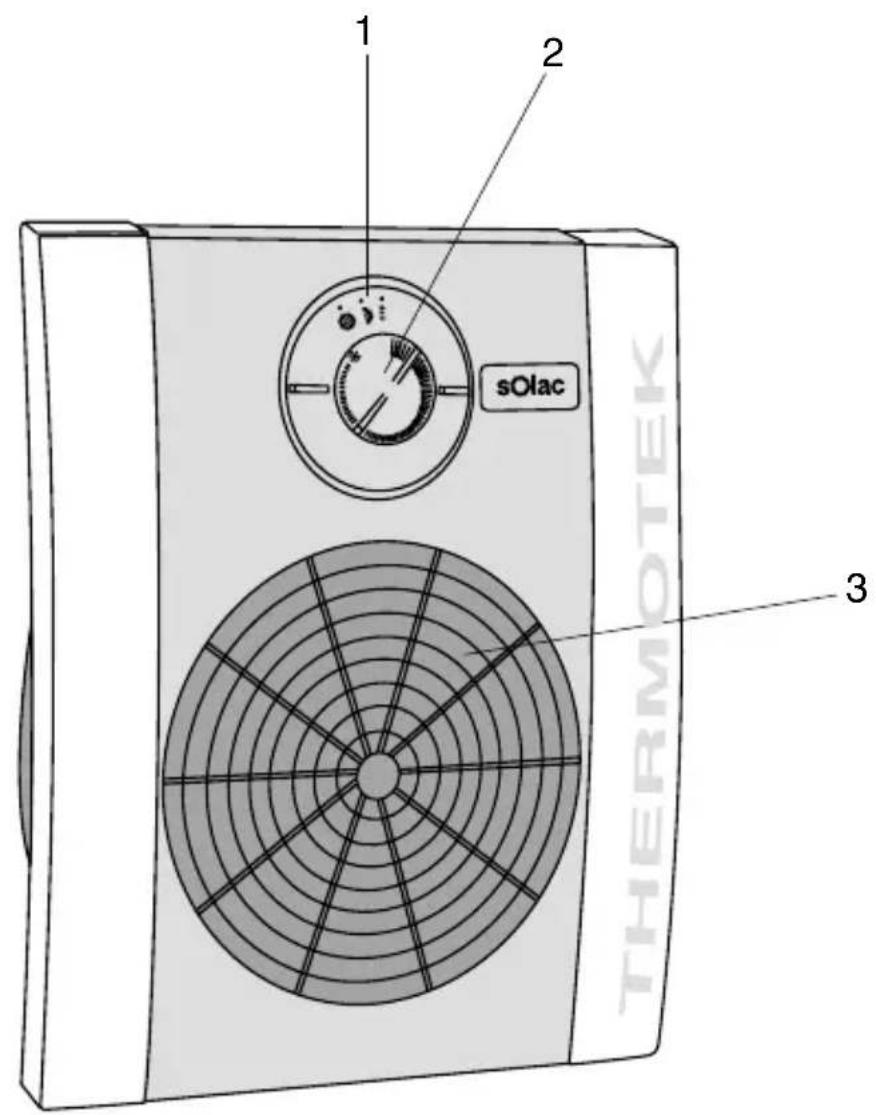

MAIN COMPONENTS

1. Power selector control
2. Temperature regulator
3. Grill

USER INSTRUCTIONS

• Connect your fan heater to the mains, and the indicator light will come on.
• Turn the temperature regulator control (2) to high.
• Place the power selector control (1) in the desired position:

* Medium power
** High power

- When the room has reached the desired temperature, slowly turn the temperature regulator (2) counter-clockwise until a soft "click" is heard. The fan heater will switch off. The appliance will switch on and off in order to maintain the right temperature in the room.

- In order to turn off the fan heater, place the power selector (1) in position 0, and disconnect the appliance from the mains.

- In order to prevent temperatures below 0^ C in the room, select position * on the temperature regulator (2), and place the power selector (1) in the medium power position.

CLEANING AND MAINTENANCE

- Before cleaning the appliance, make sure it is switched off and unplugged from the mains.

• Allow it to cool.
• Clean the outside of the appliance with a dry cloth.
• To clean the interior of the appliance, periodically use a vacuum cleaner on low power.
• After each season, we recommend that you clean the appliance with a cloth and store it in its box in a dry place.
• Before each use, be sure that the appliance is in perfect condition.
