OT 19 - Oven TEAM - Free user manual and instructions

Product type	Tabletop electric oven (mini oven)
Brand	Team
Model	OT 19
Power supply	220-240 V, 50/60 Hz
Rated power	1200 W
Capacity	12 L
Dimensions (W x D x H)	40 x 30 x 25 cm
Net weight	3.5 kg
Cooking functions	Heating by upper, lower or both elements
Timer	Mechanical, up to 15 minutes with bell
Included accessories	Metal grill, crumb tray
Exterior material	Painted steel
Interior material	Stainless steel
Control type	Rotary knobs (function selector and timer)
Heating indicator light	Yes
Safety	Automatic shutdown at end of time, integrated bell
Cleaning	Interior: wipe with cooking oil then mild detergent; exterior: dry soft cloth
Safety distance	At least 10 cm from sides, free space above
Placement surface	Heat-resistant, stable
Power cord	Short (approx. 0.8 m), do not wrap around appliance
Intended use	Household only, cooking of suitable foods

Frequently Asked Questions - OT 19 TEAM

Why is there smoke and a new smell during the first use?

This is normal. Run the appliance empty for a few minutes, with the door open or slightly open, to remove smoke before first use.

How to set the timer for a duration less than 5 minutes?

Turn the timer beyond 5 minutes, then turn back to the desired time (less than 5 minutes).

Can I use aluminum foil in the oven?

No, do not place paper, cardboard or plastic in the oven. Use only the provided accessories (grill, tray).

How to clean burnt food residues inside?

Pour a little cooking oil on the residues, wait 5 to 10 minutes, then wipe with absorbent paper. If necessary, use a damp cloth with mild detergent. Never touch the heating elements.

What to do if the oven does not heat?

Check that the appliance is plugged in and the voltage matches. Make sure the function selector is not set to OFF and the timer is set to a cooking time. The indicator light should come on.

Is it possible to leave the oven unattended?

No, never leave the appliance unattended while operating or powered on, especially when cooking fatty foods.

What is the minimum distance to maintain around the oven?

Ensure at least 10 cm of space between the sides of the oven and any wall or object, and sufficient clearance above for good ventilation.

Can I use an extension cord?

Yes, if necessary, but use an extension cord of at least 16 amps. Avoid it hanging or dragging on the floor to prevent accidents.

How to know when the oven has finished cooking?

The oven automatically stops when the time set on the timer has elapsed. A bell rings to alert you.

Can children use the oven?

No, this appliance is not intended for use by children. Supervise children to prevent them from playing with the appliance. Accessible surfaces (door) become very hot.

USER MANUAL OT 19 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DE

1. Door handle
2. Door
3. Window
   4.Rack
4. Crumb tray
5. Pilot light
6. Function selector
7. Timer

FR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

BENUTZUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

UMWELTSCHUTZ - RICHTLINIE 2002/96/EG

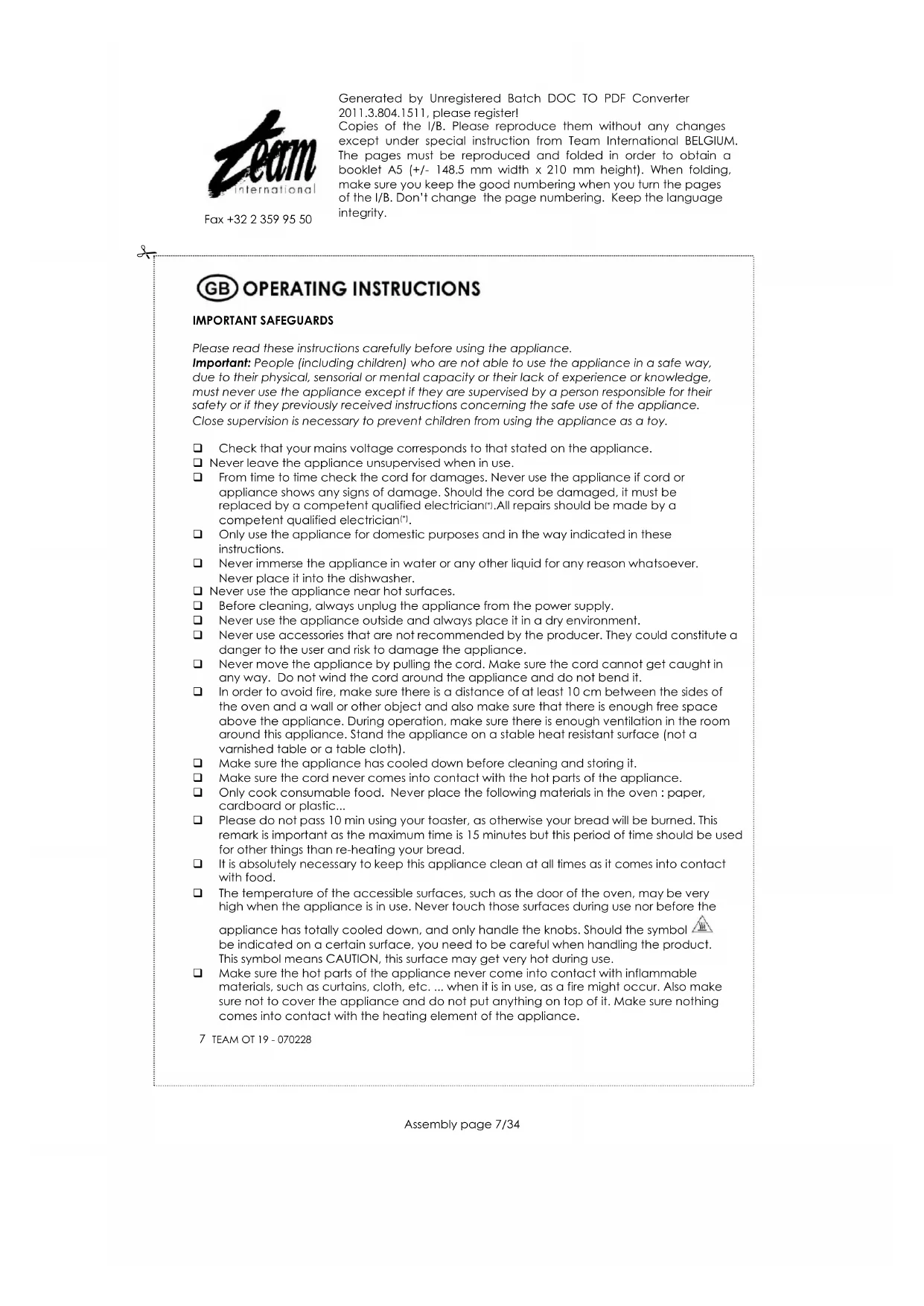

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician. All repairs should be made by a competent qualified electrician.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
In order to avoid fire, make sure there is a distance of at least 10cm between the sides of the oven and a wall or other object and also make sure that there is enough free space above the appliance. During operation, make sure there is enough ventilation in the room around this appliance. Stand the appliance on a stable heat resistant surface (not a varnished table or a table cloth).
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into contact with the hot parts of the appliance.
Only cook consumable food. Never place the following materials in the oven : paper, cardboard or plastic...
Please do not pass 10 min using your toaster, as otherwise your bread will be burned. This remark is important as the maximum time is 15 minutes but this period of time should be used for other things than re-heating your bread.
It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.
The temperature of the accessible surfaces, such as the door of the oven, may be very high when the appliance is in use. Never touch those surfaces during use nor before the appliance has totally cooled down, and only handle the knobs. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means CAUTION, this surface may get very hot during use.
Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. ... when it is in use, as a fire might occur. Also make sure not to cover the appliance and do not put anything on top of it. Make sure nothing comes into contact with the heating element of the appliance.

7 TEAMOT19-070228

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Be extremely cautious as oil and fat preparations might catch fire if overheated.
If you use the appliance under a cooking hob, make sure to respect the minimum distance advised by the manufacturer.
Unplug the appliance immediately if you notice a crack in the oven door and have it repaired by a competent qualified electrician (^*)

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

SHORT CORD INSTRUCTIONS

• A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

The electrical rating of the extension cord should be at least that of the appliance.
The longer cord should be arranged so that it will not drape over the counter top or table, top where it can be pulled on by children or tripped over.

BEFORE USE

• Unpack the appliance and accessories, then wash and wipe these accessories.
  It is normal if some smoke or smell emanates from the appliance when using it for the first time.
  Make sure there is enough ventilation around the oven.

OPERATING INSTRUCTIONS

Settings of the function selector

OFF Both heating elements are switched off

Only the upper heating element is switched on

Only the lower heating element is switched on

Both heating elements are switched on

Use

• When using for the first time, clean the accessories with a damp cloth and wipe dry.
• Plug the unit into the power supply socket.
• To switch on the appliance, choose the desired cooking function and turn the timer knob clockwise. For cooking time inferior to 5 minutes, set the timer up to 6 minutes and turn it back to the requested cooking time.
  The pilot light will come on, indicating that the oven is operating.
  The toaster oven will switch off automatically when the set time has elapsed. When the appliance switches off, a bell sound is audible.

8 TEAMOT19-070228

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

• Whenever you wish to interrupt the operation, you can turn the timer and function selector back to their off position.

Helpful hints:

In general, you should start cooking with the selector in the position.
During cooking you may wish to switch over to position or The choice of the cooking setting depends on the food you want to bake.
For pizza, toast and other flat products we advise you to select position For French loaves, sausage rolls and other high-shaped products we advise you to select position
After having chosen the desired cooking function, set the timer.

CLEANING AND CARE

Before cleaning, unplug the appliance from outlet and allow it to cool down.

Inside cleaning

• Wipe accessories with absorbent paper towelling or a soft cloth. To remove baked on food on the rack or tray, pour a little cooking oil on the food and allow to stand for five to ten minutes.
  This should soften the food and allow it to be removed with absorbent paper towelling or a soft cloth. If the above method fails to remove the food then we suggest wiping the trays with a damp cloth and a little detergent.
• Never touch the heating elements, not even for cleaning!

Outside cleaning

• Wipe clean with a soft dry cloth.
• Do not use steel wool, scouring pads or abrasive cleaners.
  This appliance is for household use only.

Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Utilisation

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PROTECTION DE L'ENVIRONNEMENT - DIRECTIVE 2002/96/CE

Generated by Unregistered Batch DOC TO PDF Conve 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

UTILIZACAO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

30 TEAM OT 19 - 070228

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

31 TEAMOT19-070228

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

32 TEAM OT 19 -070228
