Product type	Oven
Brand	TEAM
Model	OT 16
Power supply	220-240 V ~, 50/60 Hz
Power	Approximately 1200 W
Capacity	Approximately 15 L
Dimensions (W x D x H)	Approximately 40 x 30 x 25 cm
Weight	Approximately 5 kg
Main material	Steel and tempered glass
Heating functions	Upper element (grill), lower element (baking), both combined
Thermostat	Yes, adjustable
Timer	Yes, up to 60 minutes with bell
Indicator light	Yes, indicates heating
Included accessories	Baking tray, grid, removal handle
Interior cleaning	Wipe with absorbent paper or damp cloth, mild detergent possible, no abrasives
Exterior cleaning	Dry soft cloth, no metallic sponge
Child safety	Supervision necessary, hot surfaces
Automatic shutoff	No, mechanical timer
Protection rating	Do not immerse
Reparability	Have it checked by a qualified service

Frequently Asked Questions - OT 16 TEAM

How to clean the interior of the oven?

Wipe the tray with absorbent paper or a soft cloth. For stubborn residue, pour a little cooking oil, wait 5 to 10 minutes, then scrub. If necessary, use a damp cloth with mild detergent. Never use abrasive products or steel wool.

What is the power of this oven?

The power is approximately 1200 W, but it is not specified in the manual. This value is typical for a tabletop oven of this size.

How to set the temperature?

Use the thermostat knob to select the desired temperature. The oven heats until it reaches that temperature, indicated by the indicator light.

Does the timer work without selecting a heating function?

No, cooking only starts when you have selected a cooking time on the timer. The oven then heats and the light comes on.

Can I use an extension cord?

Yes, but make sure the extension cord's amperage is at least 16 amps. A lower-rated extension cord may overheat. Also ensure it does not hang over the edge of a table to prevent accidents.

How to turn off the oven before the programmed time ends?

Set the timer knob to the '0' position. This stops cooking immediately.

Can I bake bread in this oven?

Yes, but baking or reheating bread slices should not exceed 10 minutes to avoid any risk of burning. The timer allows up to 60 minutes for other uses.

What to do in case of a crack on the oven door?

Immediately disconnect the appliance and have it checked by a qualified competent service (manufacturer's after-sales service or an authorized person). Do not use the oven until it is repaired.

What accessories are supplied with the oven?

The oven is supplied with a baking tray, a grid, and a handle to safely remove the tray and grid.

How to clean the exterior of the oven?

Use a dry soft cloth. Do not use metallic sponge or abrasive products, as this would damage the coating. Never immerse the appliance in water.

USER MANUAL OT 16 TEAM

Generated by Unregistered Batch DOC TO PDF Conve 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

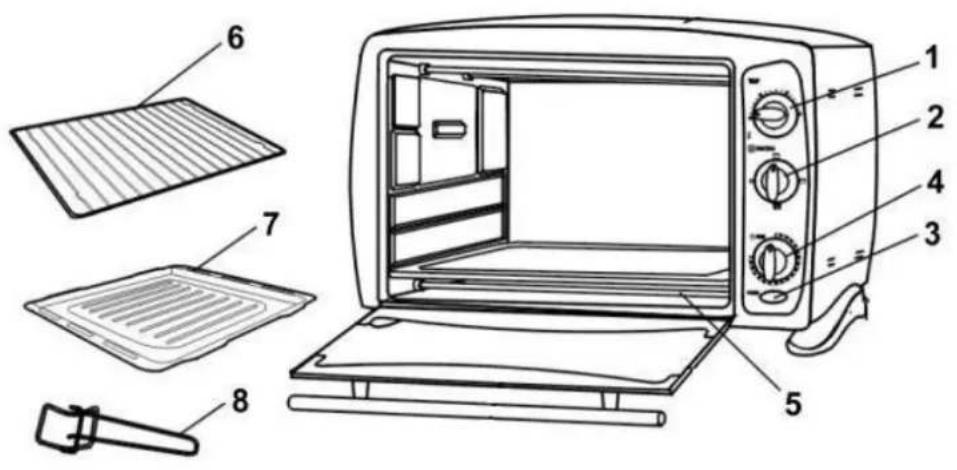

1. Thermostat
2. Function selector
   3.Pilot light
3. Timer
4. Heating element
   6.Rack
5. Baking tray
6. Handle to remove the rack and baking tray

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

SP

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician. All repairs should be made by a competent qualified electrician.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
In order to avoid fire, make sure there is a distance of at least 10cm between the sides of the oven and a wall or other object and also make sure that there is enough free space above the appliance. During operation, make sure there is enough ventilation in the room around this appliance. Stand the appliance on a stable heat resistant surface (not a varnished table or a table cloth).
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into contact with the hot parts of the appliance.
Only cook consumable food. Never place the following materials in the oven : paper, cardboard or plastic...
Please do not pass 10 min using your toaster, as otherwise your bread will be burned. This remark is important as the maximum time is 60 minutes but this period of time should be used for other things than re-heating your bread.
It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.
The temperature of the accessible surfaces, such as the door of the oven, may be very high when the appliance is in use. Never touch those surfaces during use nor before the appliance has totally cooled down, and only handle the knobs. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means CAUTION, this surface may get very hot during use.
Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. ... when it is in use, as a fire might occur. Also make

sure not to cover the appliance and do not put anything on top of it. Make sure nothing comes into contact with the heating element of the appliance.

Be extremely cautious as oil and fat preparations might catch fire if overheated.
If you use the appliance under a cooking hob, make sure to respect the minimum distance advised by the manufacturer.
Unplug the appliance immediately if you notice a crack in the oven door and have it repaired by a competent qualified electrician (^*)

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

The electrical rating of the extension cord should be at least 16 amp. An extension cord of less than 16 amp could overheat and get damaged.
The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

BEFORE USE

• Unpack the appliance and accessories, then wash and wipe these accessories.
  It is normal if some smoke or smell emanates from the appliance when using it for the first time. Therefore we advise you to operate the oven empty and with open door for several minutes before the first use in order to let the smoke escape.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, clean the surface of the tray with a damp cloth and wipe dry. Then grease the tray with butter, margarine or cooking oil.
Put the baking tray or the rack at the desired level inside the oven.

• Put the function selector in OFF position.
• Plug the unit into the power supply socket.

• Turn the function selector to the desired position:

• : only the lower heating element heats up to bake or reheat a preparation without roasting it.

• only the upper heating element heats up in order to roast the preparation.

• both heating elements will heat up to bake and roast the preparation.

• Select the cooking temperature using the thermostat knob.

• Then, turn the timer knob to choose the required time, indicated in minutes on the appliance. The heating elements will only turn on when you have selected the cooking time. The pilot light will come on, indicating that the oven is heating.
• When the timer stops, a time-up chime will sound and the appliance will stop automatically.
  If you want to stop before the selected time is over, turn the timer to "0".

9 TEAMOT16-070123

• As soon as the food is ready, turn the thermostat to the minimum position and the function selector to OFF.
• Carefully open the door, preferably using an oven glove.
  To remove the rack or the baking tray, use the handle supplied. Be very careful when removing these parts as they might be very hot and you might get burned.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance from outlet and allow to cool.

Inside cleaning

• Wipe the tray and the rack with absorbent kitchen paper or a soft cloth. To remove baked on food pour a little cooking oil on the food and allow to stand for five to ten minutes. This should soften the food and allow it to be removed with absorbent paper towelling or a soft cloth.
  If the above method fails to remove the food we suggest wiping the tray and the grid with a damp cloth and a little detergent.
• Never use abrasive products. Never immerse the appliance in water and make sure no water or damp penetrates into the appliance.
  Make sure no water comes on the oven door when the latter is still hot.

Outside cleaning

• Wipe clean with a soft dry cloth or kitchen paper.
• Do not use steel wool, scouring pads or abrasive cleaners as these might damage the housing of the appliance.

Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
