ST 26 BT - Vacuum Cleaner TEAM - Free user manual and instructions

Brand	TEAM
Model	ST 26 BT
Product type	Canister vacuum cleaner
Power supply	Mains, 220-240 V, 50/60 Hz
Rated power	1000 W
Dust bag capacity	3 L
Power cord length	5 m
Weight	5 kg
Noise level	75 dB (A)
Filter type	Washable permanent filter
Compatible bag	Swirl (MELITTA) Y98
Main functions	Automatic cord rewind, bag full indicator, powerful suction
Maintenance and cleaning	Empty or change bag when indicator lights up; clean filter regularly
Safety	Automatic shut-off in case of overheating, overcurrent protection
Spare parts and repairability	Replacement dust bag (ref. Y98); repairs by qualified service
General information	Household use only; do not use outdoors; store in a dry place

Frequently Asked Questions - ST 26 BT TEAM

How to change the dust bag of the TEAM ST 26 BT vacuum cleaner?

Press the button under the handle to open the lid. Remove the full bag and insert a new compatible bag (ref. Swirl Y98). Make sure the bag is correctly installed before closing the lid and using the appliance.

How to use the automatic cord rewind?

To rewind the cord, press the rewind button on the appliance. The cord retracts automatically. Never pull the cord beyond the red mark.

What to do when the bag full indicator lights up?

The bag full indicator signals that the bag is saturated. Replace it with a new one or empty the compartment (depending on model). Not doing so may cause overheating of the appliance.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed for dry use only. Never vacuum liquids, as this could damage the appliance and pose an electrical hazard.

What accessories are included with the TEAM ST 26 BT vacuum cleaner?

The vacuum cleaner is usually supplied with a hose, tube, floor brush, crevice tool, and furniture brush. Check the manual for the exact list of accessories.

How to clean the vacuum cleaner filter?

The permanent filter is washable. Remove it carefully, rinse with clean water, and let it dry completely before putting it back. Never use the vacuum cleaner without the filter.

What is the reference of the compatible bag for this vacuum cleaner?

The compatible bag is the Swirl (MELITTA) model Y98. You can also use generic bags with the same reference.

Why is my vacuum cleaner losing suction power?

First check if the bag is full or if the filter is clogged. Also ensure that the hose and accessories are not blocked. If the problem persists, contact after-sales service.

How to store the vacuum cleaner after use?

Unplug the appliance and wind the cord using the rewind button. Store the vacuum cleaner in a dry place, out of reach of children. Do not store outdoors.

Can the vacuum cleaner be used on delicate surfaces like parquet?

Yes, but use the appropriate brush (floor brush with soft bristles) to avoid scratches. Avoid using the crevice tool on delicate surfaces.

USER MANUAL ST 26 BT TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

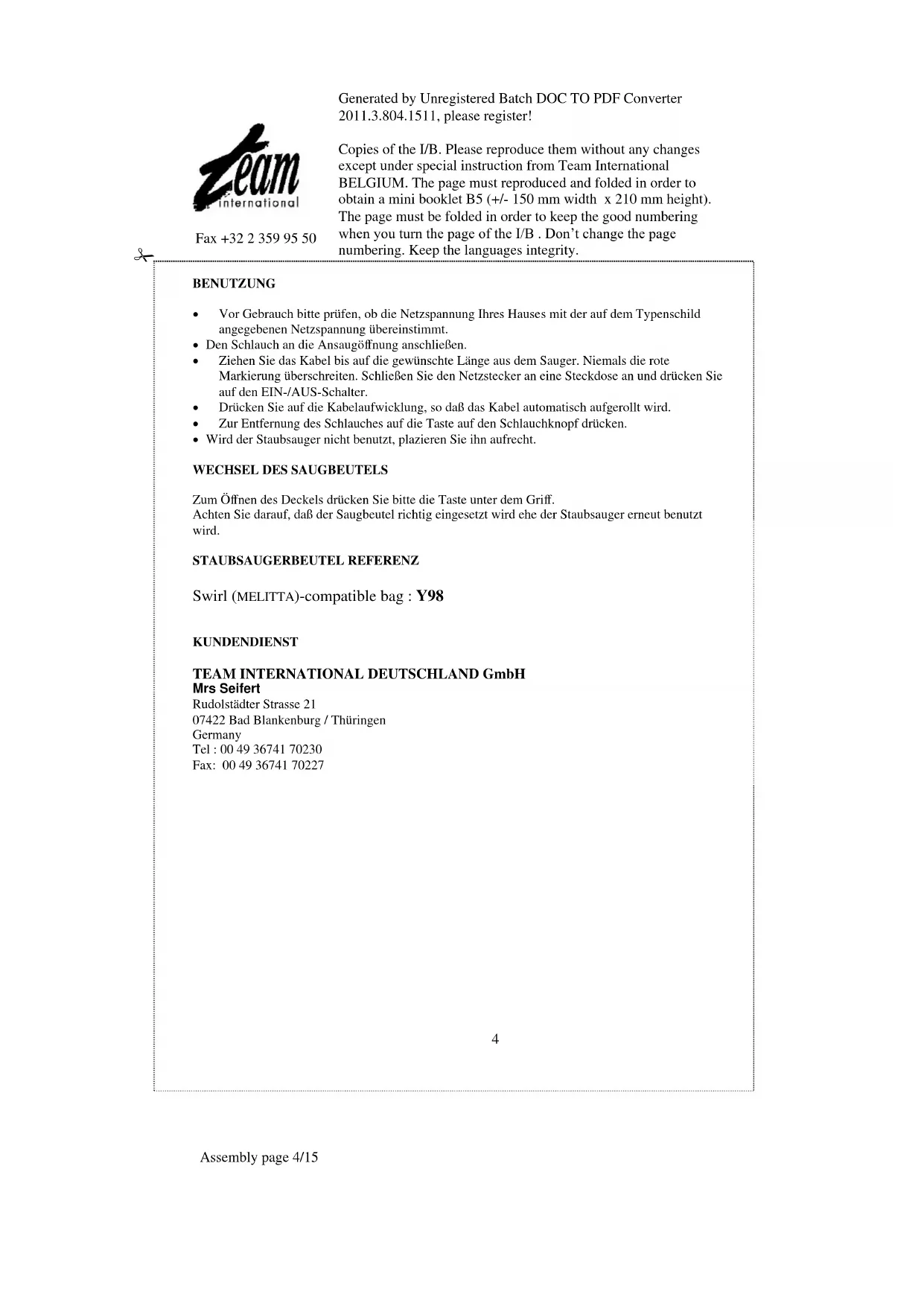

BENUTZUNG

WECHSEL DES SAUGBEUTELS

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (e).
Before cleaning, always unplug the appliance from the power supply.
□ All repairs should be made by a competent qualified electrician (8).
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the minimum position.
Unplug the appliance when not in use or when changing the bag or air filter
This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician*
Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter
If your appliance no longer vacuums correctly or if the led (on certain models) indicates « Full », change the bag or empty the compartment (model with filter) before the appliance becomes overheated.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

OPERATION

• Check before operation if the power supply voltage complies with the voltage rated on the rating plate.
• Insert the head of the hose into the slot of the vacuum cleaner.
• Pull out the power cord as long as you wish but do not pull it out anymore when you see the red mark which indicates the limited length of the wire. Insert the plug into the socket and push the ON/OFF button to start the vacuum cleaner.
• Push the cord rewind panel and the cord will rewind automatically.
• To remove the hose from the unit, just push the lock on the hose.

HOW TO REPLACE THE PAPER DUST BAG

To open the lid, press the lock on the front just under the handle. Make sure the dust bag is positioned correctly before using.

DUST BAG REFERENCE

Swirl (MELITTA)-compatible bag : Y98

AFTER SALES-SERVICE

TEAM INTERNATIONAL DEUTSCHLAND GmbH Mrs Seifert

Rudolstadter Strasse 21
07422 Bad Blankenburg / Thüringen
Germany
Tel: [phone]
Fax: [phone]

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRUIKSAANWIJZING

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]
