Product type	Canister vacuum cleaner
Brand	TEAM
Model	ST 31 E
Power supply	Mains (220-240 V ~ 50 Hz)
Power	Electronic power adjustment
On/off control	ON/OFF pedal
Cable rewinder	Automatic rewinding pedal
Reservoir capacity	Paper dust bag (disposable)
Bag fill indicator	Red indicator
Motor filter	Washable, clean every 3 months
Air filter	Micro filter plus, replace every 3 months
Included accessories	Hose, telescopic tube, 2-position universal brush, small mattress brush
Use	Hard floors (tile, parquet) and carpets
Maintenance	Change the bag when the indicator is red, clean the motor filter, replace the air filter
Safety	Do not vacuum liquids, incandescent objects; unplug before cleaning; do not use unattended
Repairability	Contact qualified service
Storage position	Upright position, tubing storage under the appliance

Frequently Asked Questions - ST 31 E TEAM

How to assemble the vacuum cleaner?

Connect the hose end into the dust container cover opening until it clicks. Assemble the two tube parts, then connect the tube to the hose handle. Mount the chosen brush on the end of the tube.

How to turn on the vacuum cleaner?

Unwind the cord to the yellow mark (do not exceed the red mark), plug in the appliance, then press the on/off pedal with your foot.

How to adjust the suction power?

Use the adjustment knob (power control) to electronically adjust the power. Use low power for curtains and delicate surfaces, and maximum for carpets.

When should you change the dust bag?

Change the bag when the fill indicator turns completely red. Caution: a blockage in the suction can also light the indicator, first check if that is the case.

How to replace the dust bag?

Unplug the appliance, remove the hose end, open the dust container cover, take out the used bag without folding, slide in a new bag by sliding the cardboard onto its support, close the lid and reconnect the hose.

How to maintain the motor filter?

Clean the dust filter approximately every 3 months. Remove it from its housing and rub it. You can wash it with water and detergent, but rinse and let it dry completely before putting it back.

When to replace the air filter?

The micro filter plus should be replaced approximately every 3 months. Open the rear grille by pinching its tab, replace the filter, then close the grille.

What to do if the vacuum cleaner no longer sucks properly?

First check if there is a blockage in the tube or hose. If not, check the dust bag (replace if necessary) and the filters (clean or replace). If the problem persists, take the appliance to an authorized center.

Can you vacuum liquids with this vacuum cleaner?

No, it is strictly forbidden to vacuum liquids. Use the appliance only for dry dust.

How to easily store the vacuum cleaner?

Place the appliance in upright position. Slide the tubing of the universal brush into the storage compartment under the appliance. Thus, the hose, tubes and brush remain attached to the appliance.

USER MANUAL ST 31 E TEAM

team international

Black and white photo of a vacuum cleaner with attached circuit board and accessories (no text or symbols visible)

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Aspirapolvere

CE

I/B Version

010613

TEAM ST 31 E

230V\~1400Wmax

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

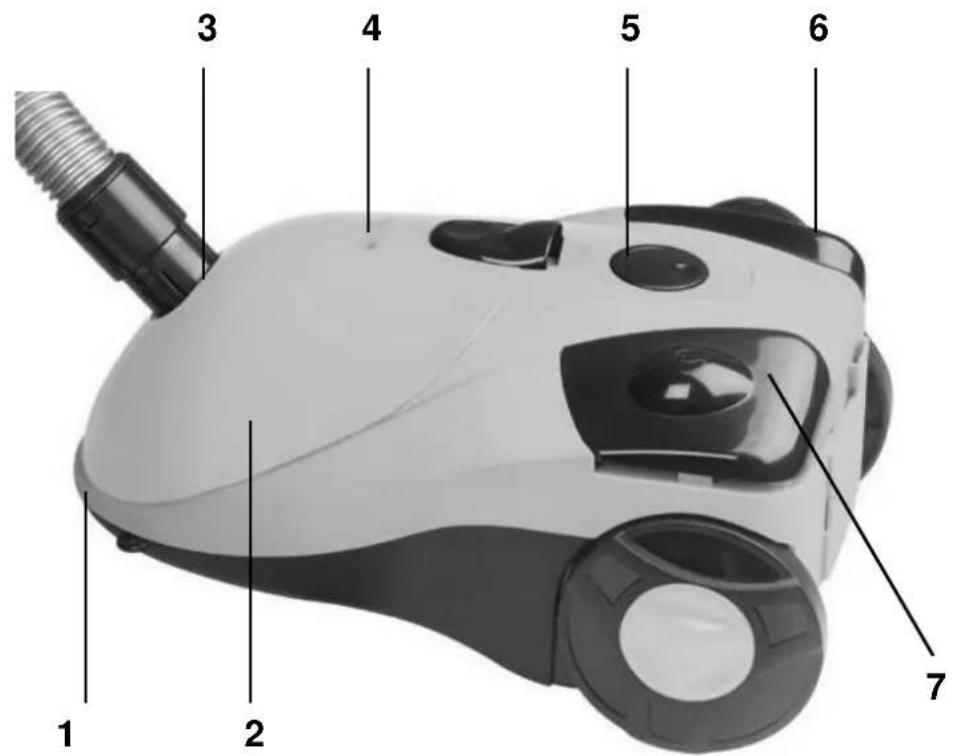

1 2 3 4 5 6 7

2

D

1. Handle
2. Dust cover
3. Hose connection inlet
4. Dust bag indicator
5. Electrical power control switch
6. ON/OFF switch
7. Cable rewind button

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Line drawing of a hand using a tool to press or install a car body (no text or symbols present)

Fig. 1

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Fig. 2

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

Fig. 3

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

Fig. 4

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

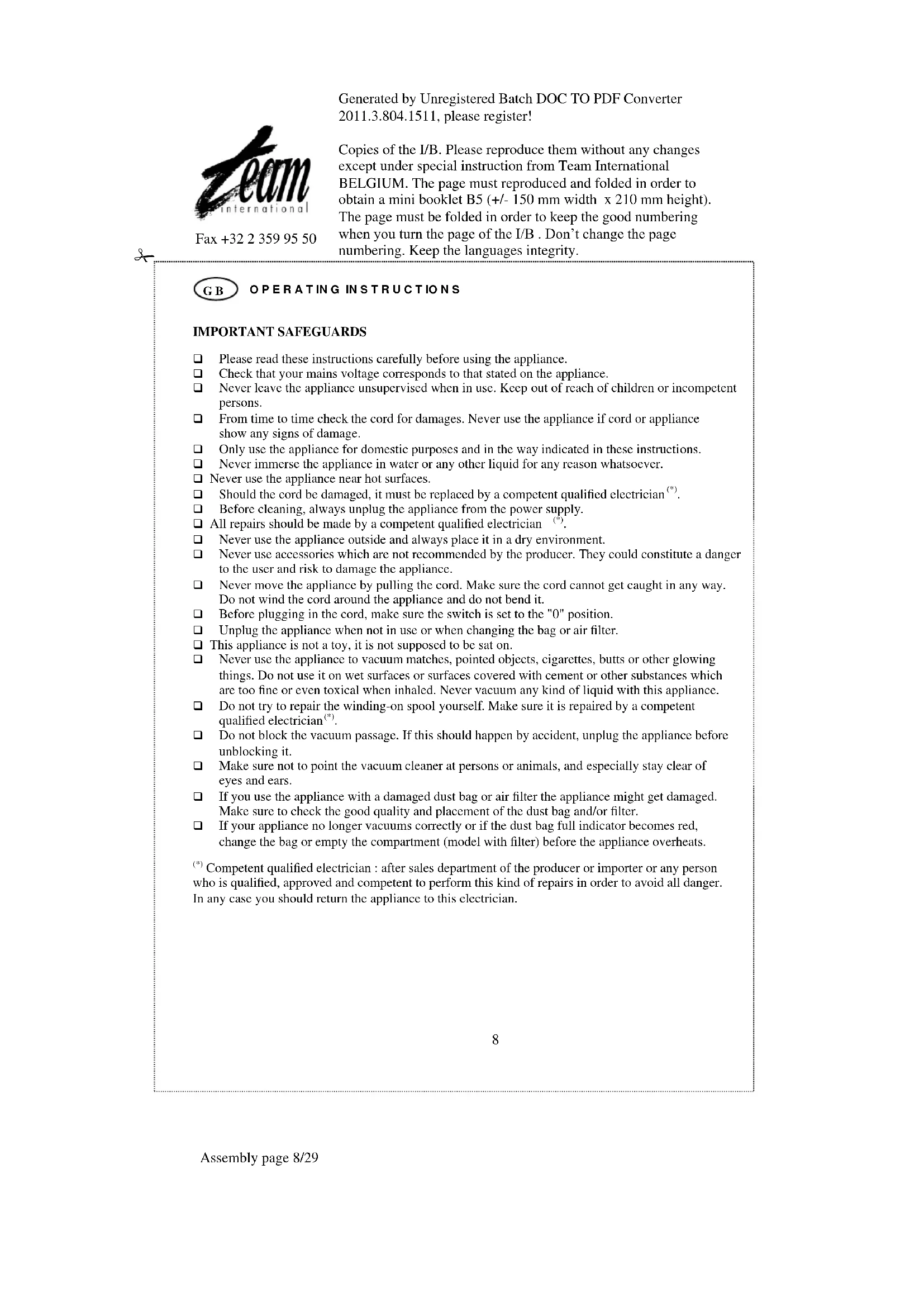

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever.
□ Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician ^() .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician (°).
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the "0" position.
□ Unplug the appliance when not in use or when changing the bag or air filter.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxical when inhaled. Never vacuum any kind of liquid with this appliance.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^() .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
☐ If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories!

- Insert the connection wand into hose connection inlet until it locks (Fig. 1).

- Connect both parts of the tube.

• Fitting the tube to the handle (Fig. 2).

• Fitting the tube to the desired brush (Fig. 3).

• The floor brush is ideal for the daily cleaning of carpets and hard floors.

Press the lever (A) for cleaning hard floors.

Press the lever (B) for cleaning carpets.

- The appliance is delivered with a small brush for furniture, Venetian blinds, books, lamp shades and shelves.

OPERATIONS

- Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.

- It is advisable to set the electronic power regulator to MIN before switching the appliance on. By turning the regulator button, the suction power can be adjusted.

WHEN CLEANING IS FINISHED

- Stop the vacuum cleaner by depressing on the switch button.

- Disconnect plug from electrical outlet.

- Simply press lightly with your foot on cable rewind button on top of cleaner.

Replacing the dust bag

• Always operate the cleaner with dust bag installed.

- Disconnect from electrical outlet before changing dust bag.

- Lift dust cover catch and raise dust cover.

- Remove bag collar from bag holder and pull out dust bag.

- Put in new dust bag and close the dust cover.

Motor Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.
- Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- Disconnect from electrical outlet, before cleaning filter.
- Pull filter supporter, than remove filter.
- Rinse filter in lukewarm water.
- Do not use a washing machine for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it.

TIPS

• When cleaning stairs, we advise you to keep the unit in a vertical orientation.
• The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.
• We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events:

⇒ blocked filter: clean as described elsewhere
⇒ full or punctured bag: replace as described elsewhere
⇒ blockage in tubes: switch OFF before disassembling and removing the blockage

• Always switch OFF before attempting to clean or unblock the unit.

MODE D'EMPLOI

POUR VOTRE SÉCURITÉ

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

MONTAGE DE L'APPAREIL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Filtro protector del motor

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM ST 31 E

Deutsch	5
English	8
Français	11
Nederlands	14
Español	17
Português	20
Italiano	23
