Product type	Canister vacuum cleaner
Brand	TEAM
Model	ST 33 E
Power supply	Mains 230 V ~ 50 Hz
Variable power	Electronic adjustment
Power cord	With automatic cord rewinder (yellow and red markings)
Container capacity	Paper dust bag
Bag fill indicator	Red indicator light
Motor protection filter	Yes, washable
Micro filter plus	Yes, replaceable
Universal brush	2 positions (hard floors/carpets)
Included accessories	Mattress brush, flat crevice tool
Suction tube	2 pieces
Hose	Yes
Usage	Household
Maintenance	Regular replacement of filters and bag
Repairability	Repair by an authorized qualified service

Frequently Asked Questions - ST 33 E TEAM

How to assemble the TEAM ST 33 E vacuum cleaner?

Connect the hose end into the opening of the dust container cover until it clicks. Assemble the two parts of the tube and connect it to the hose handle. Attach the chosen brush to the end of the tube.

How to adjust the suction power?

Use the power adjustment button (5) on the device. Low power is recommended for curtains and delicate surfaces, and maximum power for carpets and hard floors.

When should the dust bag be changed?

Change the bag when the bag fill indicator turns completely red. If suction is blocked by a large object, the indicator may also turn red; first check for blockage before replacing the bag.

What to do if the red light comes on even though the bag is not full?

The indicator may come on if suction is obstructed (e.g., thick carpet, blockage). Lift the brush off the surface; if the indicator stays red, the bag is full. Otherwise, continue vacuuming.

How to clean the motor protection filter?

Remove the filter from its housing and rub it to clean it. You can also wash it with water and detergent, but rinse it and let it dry completely before reinstalling.

Can I vacuum liquids with this vacuum cleaner?

No, never vacuum liquids with this device. It is designed only for dry vacuuming.

How to use the 2-position universal brush?

Extended position (A) for smooth floors like tile or parquet. Retracted position (B) for carpets and rugs. Change the position by sliding the selector on the brush.

Where can I find replacement bags for the ST 33 E?

Contact the store where you purchased the vacuum cleaner or the after-sales service mentioned on your warranty card. Use only bags recommended by the manufacturer.

What to do if the vacuum cleaner suddenly stops?

First check that there is no blockage in the tube or hose. If everything is clear and the device still does not work, take it to an authorized repair center.

How to rewind the power cord?

After use, turn off the device and unplug it. Press the cord rewind pedal (7) to automatically rewind the cord. Do not pull the cord to store it.

USER MANUAL ST 33 E TEAM

team international

Black vacuum cleaner with attached circuit board and accessories (no visible text or symbols)

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Aspirapolvere

CE

I/B Version

020708

TEAM ST 33 E & 34 EC

230V\~1400Wmax

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

1 2 3 4 5 & 6

2

D

1. Handle
2. Hose connection inlet
3. Dust bag indicator
4. Electrical power control switch
5. ON/OFF switch
6. Cable rewind button

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Line drawing of a hand using a tool to press or install a car body (no text or symbols present)

Fig. 1

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Fig. 2

Line drawing of two hands inserting a small object into a device (no text or symbols)

Fig. 3

GEBRAUCHSANLEITUNG

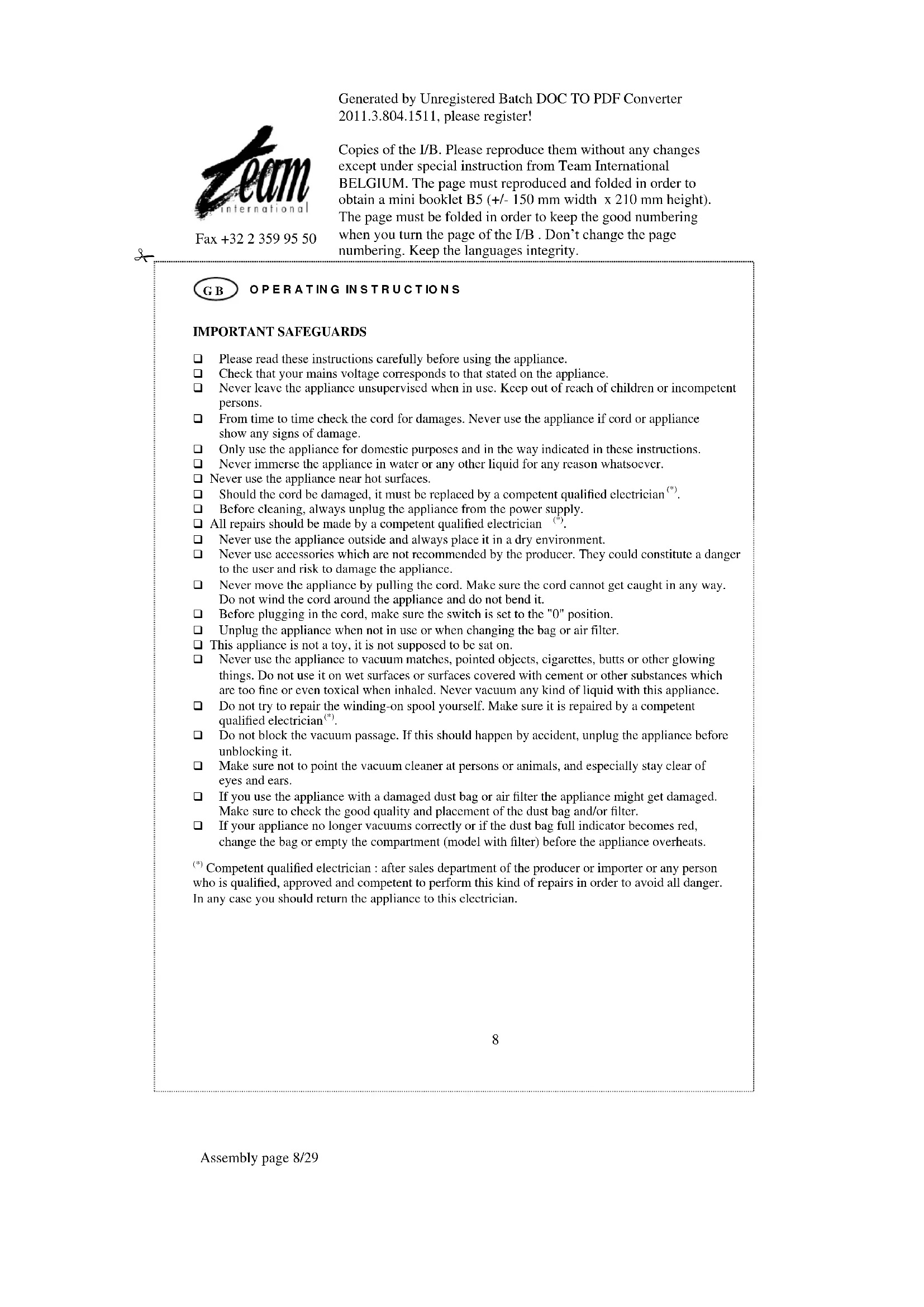

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever.
□ Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician ^() .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician (°).
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the "0" position.
□ Unplug the appliance when not in use or when changing the bag or air filter.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxical when inhaled. Never vacuum any kind of liquid with this appliance.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^() .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
☐ If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live.

The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red.

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories!

- Insert the connection wand into hose connection inlet until it locks (Fig. 1).

- Connect both parts of the tube.

• Fitting the tube to the handle (Fig. 2).

- Fitting the tube to the desired brush (Fig. 3).

- The floor brush is ideal for the daily cleaning of carpets and hard floors. Press the lever (A) for cleaning hard floors. Press the lever (B) for cleaning carpets.

• Dusting brush, Crevice tool and Upholstery brush

Dusting brush: For furniture, venetian blinds, books, lamp shades and shelves
◆ Crevice tool: For radiators, crevices, corners, baseboards and between cushions.
Upholstery brush: For cushions and drapenes.

OPERATIONS

• Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.
• It is advisable to set the electronic power regulator to MIN before switching the appliance on. By turning the regulator button, the suction power can be adjusted.

WHEN CLEANING IS FINISHED

• Stop the vacuum cleaner by depressing on the switch button.
• Disconnect plug from electrical outlet.
• Simply press lightly with your foot on cable rewind button on top of cleaner.

Replacing the dust bag

• Always operate the cleaner with dust bag installed.
- Disconnect from electrical outlet before changing dust bag.
- Lift dust cover catch and raise dust cover.
- Remove bag collar from bag holder and pull out dust bag.
- Put in new dust bag and close the dust cover.

Motor Filter

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.
- Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- Disconnect from electrical outlet, before cleaning filter.
- Pull filter supporter, than remove filter.
- Rinse filter in lukewarm water.
- Do not use a washing machine for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it.

TIPS

• When cleaning stairs, we advise you to keep the unit in a vertical orientation.
• The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.
• We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events:
  ⇒ blocked filter: clean as described elsewhere
  ⇒ full or punctured bag: replace as described elsewhere
  ⇒ blockage in tubes: switch OFF before disassembling and removing the blockage
  • Always switch OFF before attempting to clean or unblock the unit.

Spare dustbags

In order to get new dustbags, please contact first of all the shop where you bought your vacuum cleaner, or, the after sales service the address of which is mentioned on your guarantee card.
