ST 32 EC - Vacuum Cleaner TEAM - Free user manual and instructions

Brand	Team
Model	ST 32 EC
Category	Vacuum cleaner
Vacuum cleaner type	Canister vacuum cleaner with bag
Power supply	220-240 V, 50/60 Hz (check rating plate)
On/off control	ON/OFF pedal
Power adjustment	Electronic by rotary knob (low to maximum power)
Bag full indicator	Red indicator light
Cord rewinder	Pedal for automatic rewinding
Filtration system	Paper bag + washable motor protection filter + replaceable micro air filter
Suction tube	Telescopic, adjustable in length
Main brush	2-position universal brush (smooth floors / carpets and rugs)
Included accessories	Small brush for mattresses, furniture, sofas
Dust container capacity	Approximately 2 L (common estimate)
Container material	Plastic
Color	Not specified
Dimensions (approximate)	Approximately 40 x 30 x 30 cm (estimate)
Weight (approximate)	Approximately 5 kg (estimate)
Cord length	Approximately 5 m (estimate)
Safety	Automatic shut-off in case of overheating? (red indicator)
Maintenance	Regular cleaning of motor filter (every 3 months) and replacement of air filter and bag
Storage	Storage holder for tube and brush under the appliance in vertical position

Frequently Asked Questions - ST 32 EC TEAM

How do I change the dust bag?

Unplug the appliance. Open the dust container lid. Remove the full bag from its holder and discard it without folding. Slide a new bag by sliding the cardboard onto the holder. Close the cover until it clicks. Reconnect the hose.

How do I clean the motor filter?

Unplug the appliance. Open the dust container and remove the motor protection filter. Rub it clean or wash it with water and mild detergent. Rinse and dry completely before reinstalling. It is recommended to clean it every 3 months.

What to do if suction decreases or the red indicator lights up?

First check if a blockage is obstructing the tube, hose, or brush. If the red indicator persists when the brush is not in contact with a thick surface, the bag is likely full. Replace the bag. If the problem persists, check the filters and clean or replace them.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry waste. Never vacuum liquids, as this could damage the appliance and pose an electrical risk.

How do I use the 2-position universal brush?

For smooth floors (tiles, parquet), set the brush to position A. For carpets and rugs, switch it to position B. This adaptation ensures efficient cleaning with minimal effort.

How do I store the vacuum cleaner to save space?

Place the vacuum cleaner in a vertical position. Slide the universal brush tube into the designated compartment under the appliance. The hose, tubes, and brush remain attached to the appliance.

How do I rewind the power cord?

Press the rewinder pedal (7) on the appliance. The cord rewinds automatically. To avoid damaging the cord, do not pull it beyond the red mark.

What does the bag full indicator mean?

The red indicator means the bag is full or the suction is blocked (e.g., if the brush is pressed against a thick carpet). If the indicator remains red after lifting the brush, the bag should be replaced.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a hose, a telescopic tube, a 2-position universal brush, and a small brush for mattresses, sofas, and upholstered furniture.

Where can I find replacement bags?

Contact the store where you purchased the vacuum cleaner or the after-sales service indicated on the warranty card. Use only bags recommended by the manufacturer.

USER MANUAL ST 32 EC TEAM

team international

Exterior view of a vacuum cleaner with attached circuit board (no text or symbols visible)

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Aspirapolvere

CE

I/B Version

020109

TEAM ST 32 EC

230V\~1400Wmax

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

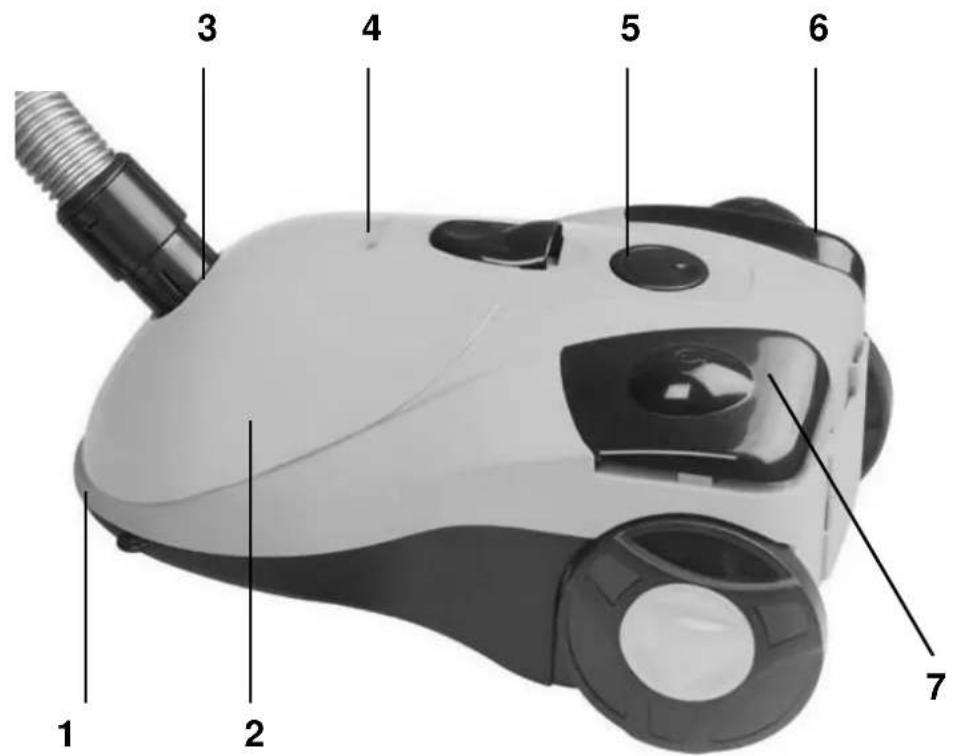

1 2 3 4 5 6 7

2

D

1. Handle
2. Dust cover
3. Hose connection inlet
4. Dust bag indicator
5. Electrical power control switch
6. ON/OFF switch
7. Cable rewind button

F

Technical line drawing of a mechanical assembly with labeled parts A and B (no text or symbols beyond labels)

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Line drawing of a hand using a tool to press down a car (no text or symbols)

Fig. 1

Illustration of a hand holding a wristwatch with an arrow indicating motion (no text or symbols)

Fig. 2

Line drawing of a hand using a tool to interact with a device (no text or symbols present)

Fig. 3

Simple line drawing of a pen-like object with an arrow indicating direction (no text or symbols)

Fig. 4

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

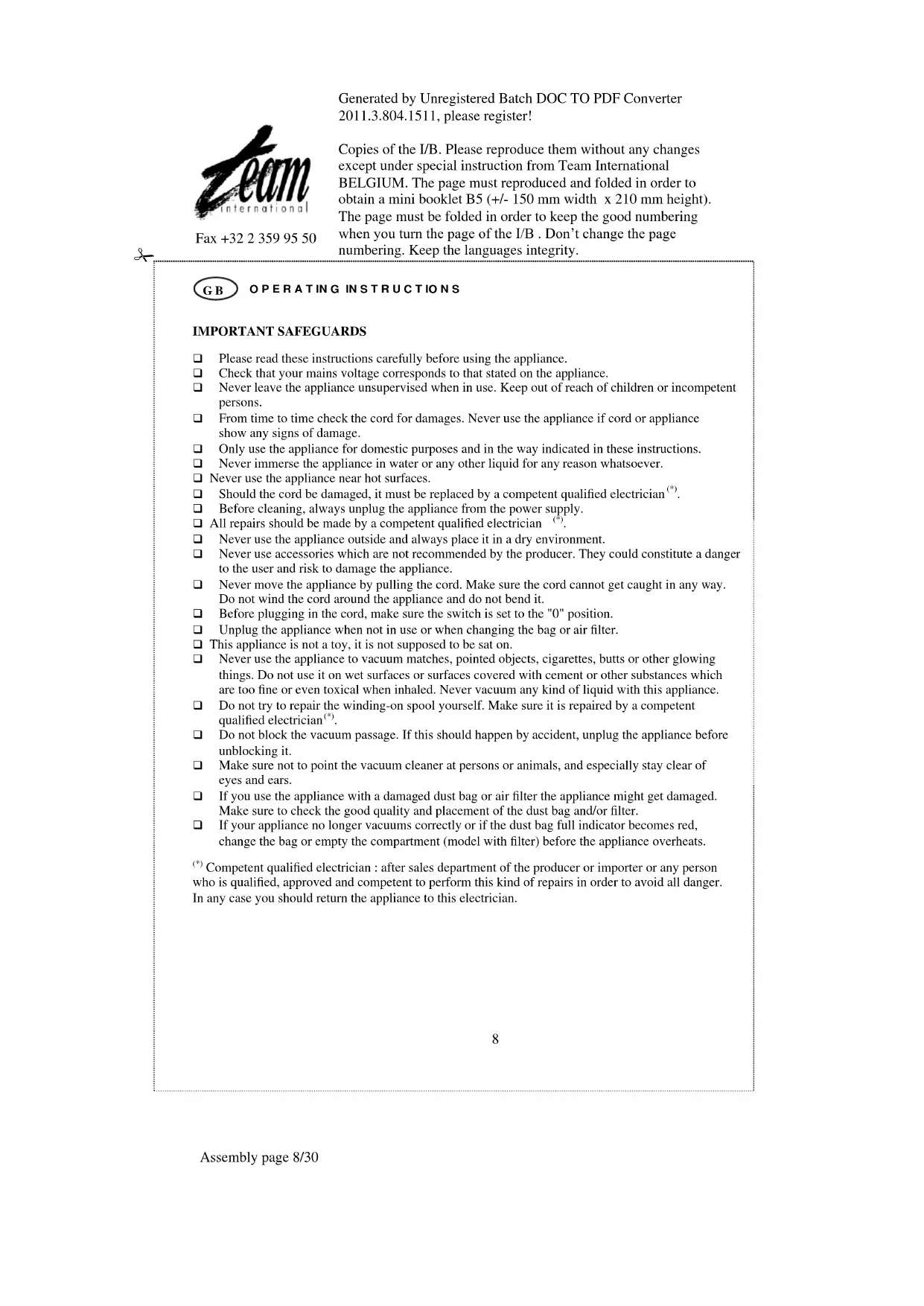

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever.
□ Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician ^() .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician (°).
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the "0" position.
□ Unplug the appliance when not in use or when changing the bag or air filter.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxical when inhaled. Never vacuum any kind of liquid with this appliance.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^() .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
☐ If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live.

The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red.

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories!

- Insert the connection wand into hose connection inlet until it locks (Fig. 1).

• Fitting the tube to the handle (Fig. 2).

- Fitting the tube to the desired brush (Fig. 3).

• You can adjust the length of telescopic tube by pushing the button (Fig. 4).

• The floor brush is ideal for the daily cleaning of carpets and hard floors.

Press the lever (A) for cleaning hard floors. Press the lever (B) for cleaning carpets.

- The appliance is delivered with a small brush for furniture, Venetian blinds, books, lamp shades and shelves.

OPERATIONS

- Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.

- It is advisable to set the electronic power regulator to MIN before switching the appliance on. By turning the regulator button, the suction power can be adjusted.

WHEN CLEANING IS FINISHED

- Stop the vacuum cleaner by depressing on the switch button.

- Disconnect plug from electrical outlet.

- Simply press lightly with your foot on cable rewind button on top of cleaner.

Replacing the dust bag

• Always operate the cleaner with dust bag installed.

- Disconnect from electrical outlet before changing dust bag.

- Lift dust cover catch and raise dust cover.

- Remove bag collar from bag holder and pull out dust bag.

- Put in new dust bag and close the dust cover.

Motor Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.
- Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- Disconnect from electrical outlet, before cleaning filter.
- Pull filter supporter, than remove filter.
- Rinse filter in lukewarm water.
- Do not use a washing machine for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it.

TIPS

• When cleaning stairs, we advise you to keep the unit in a vertical orientation.
• The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.
• We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events:
  ⇒ blocked filter: clean as described elsewhere
  ⇒ full or punctured bag: replace as described elsewhere
  ⇒ blockage in tubes: switch OFF before disassembling and removing the blockage

• Always switch OFF before attempting to clean or unblock the unit.

SPARE DUSTBAGS

In order to get new dustbags, please contact first of all the shop where you bought your vacuum cleaner, or, the after sales service the address of which is mentioned on your guarantee card.

MODE D'EMPLOI

POUR VOTRE SÉCURITÉ

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

MONTAGE DE L'APPAREIL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Filtro protector del motor

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM ST 32 EC

Deutsch	5
English	8
Français	11
Nederlands	14
Español	17
Português	20
Italiano	23
