DAI 22 - Iron TEAM - Free user manual and instructions

Product type	Steam iron
Brand	TEAM
Model	DAI 22
Power supply	Mains 220-240 V
Power	2000 W (estimated)
Water tank capacity	200 ml (estimated)
Soleplate type	Non-stick coating
Functions	Dry ironing, steam, spray, double steam
Temperature setting	Progressive thermostat with fabric indicator
Heating indicator	Indicator light
Spray	Yes
Double steam button	Yes
Spray button	Yes
Dry/steam regulator	Yes
Cord length	2 m (estimated)
Weight	1 kg (estimated)
Care and cleaning	Clean the soleplate after cooling; use demineralized water
Safety	Do not immerse; do not use near heat sources; damaged cord must be replaced by a professional
Filling instructions	Unplug, place vertically, set temperature to MIN, use measuring cup
Storage	Empty the tank, set thermostat to MIN, let cool vertically

Frequently Asked Questions - DAI 22 TEAM

How to fill the water tank of the Team DAI 22 iron?

Unplug the appliance and place it vertically on its heel. Set the temperature adjustment knob to MIN and the dry/steam button to '-'. Slightly tilt the iron and fill the tank through the filling opening using a measuring cup. Only use demineralized water.

How to adjust the temperature for different fabrics?

Turn the temperature knob clockwise until the symbol corresponding to the fabric type (silk, wool, cotton, linen) is positioned in front of the mark. Always check the garment label before ironing.

How to use the steam function?

Fill the tank, plug in the appliance, set the temperature according to the fabric. Set the dry/steam button to '+' for maximum steam or to '-' for minimum. Wait for the indicator light to go off before steam ironing.

How to use the spray of the Team DAI 22 iron?

The spray function moistens stubborn creases. It can be used at any temperature, with or without steam. Make sure the tank contains water.

How to activate the double steam?

The double steam provides extra steam for stubborn creases. Press the dedicated button (double steam button) during ironing.

What to do if water leaks from the soleplate?

This can happen if the temperature is too low. Check that the thermostat is set to a temperature suitable for the fabric. Wait for the indicator light to go off before using steam.

How to clean the iron?

Unplug the appliance and let it cool completely. Never immerse the iron in water. Clean the soleplate with a damp cloth. Use demineralized water to prevent limescale.

How to store the iron after use?

Set the thermostat to MIN, unplug the cord. Empty the tank by holding the iron upside down, away from your face. Place the iron vertically on its heel to let it cool and evacuate moisture, thus preventing mold.

Can the iron be used without steam?

Yes, for dry ironing, turn the dry/steam button to '-'. Select the appropriate temperature, wait for the indicator to go off, and iron normally.

What safety precautions are essential?

Never leave the iron unattended, do not immerse it in water, use it only on a stable surface, check that the cord is not damaged, and unplug it after use. Any repairs must be carried out by a qualified service.

USER MANUAL DAI 22 TEAM

Exterior view of a white industrial machine or fan with visible internal components (no text or symbols)

Steam Iron With Spray

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Front cover page (first page)

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

1. Fill Opening
2. Spray nozzle
3. Variable steam/dry dial
4. Double steamjet button
5. Spray button
6. Temperature indicator
7. Temperature dial
8. Soleplate
9. Watergauge indicator

P

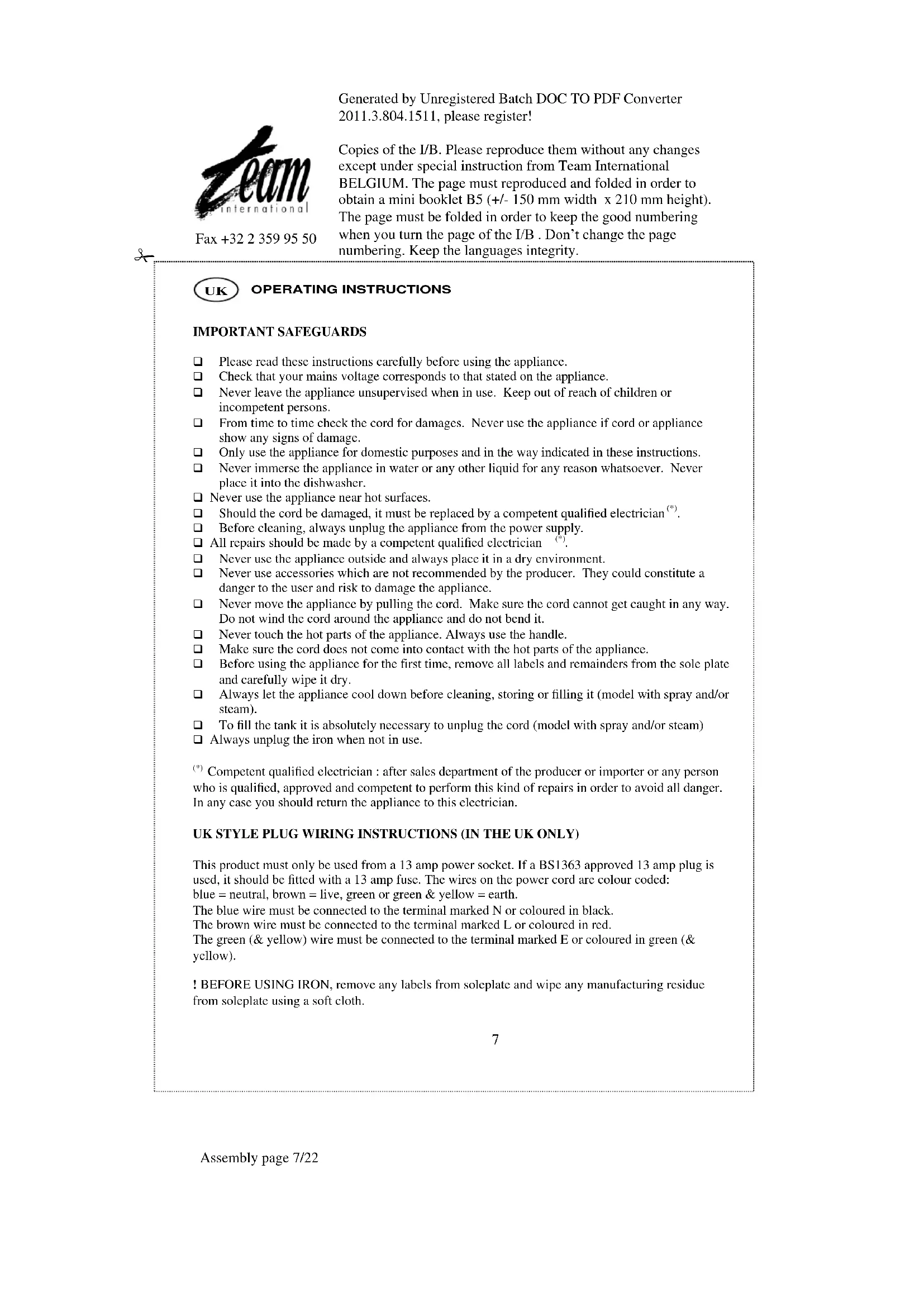

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician ^(3) .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Never touch the hot parts of the appliance. Always use the handle.
☐ Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
□ Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
☐ To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam)
□ Always unplug the iron when not in use.

^* Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING THE WATER TANK

Only use demineralized water. If you want to use the variable steam/dry dial fill the water tank as follows:

1) Unplug the iron from the outlet and set it on its heel on a stable level surface.
2) Turn the temperature dial to "MIN" and variable steam/dry dial to the "-" setting.
3) Using a measuring cup, tip iron slightly and fill tank through the fill opening.
NOTE : never fill with anything but water.

TEMPERATURE SETTINGS

• You can chose the temperature setting in function with the cloth to iron.
• In order to turn the iron on, please turn the temperature knob clockwise into the required position.

DRY PRESSING

• Turn on the iron.
• Set temperature dial for the desired fabric.
  NOTE: be sure to check the garment label for fibre content and set for the fabric requiring the lowest temperature.
• Turn the variable steam/dry dial on position "-"
• Set iron on heel rest and wait until temperature indicator light goes out.

STEAM PRESSING

• Fill the water tank (variable steam/dry dial on position "-").
• Turn on the iron.
• Turn the temperature dial clockwise into the required position.
• Turn variable steam/dry dial on "-" for minimum steam or on the position "+" for a larger amount of steam.
• Set the iron on its heel and wait until the temperature indicator goes out.
  ! Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate.
  ! Check the garment label before ironing because some coths may be damaged when exposed to steam or water.

SPRAY

• Produces a mist for removing stubborn creases.
- Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.
! Be sure to check the garment label for care instructions. Some fabrics may be damaged when exposed to steam or water.

STEAMJET

The steamjet feature provides additional steam for removing stubborn creases.

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "MIN" and unplug iron from electrical outlet.

• With soleplate facing away from you, turn iron upside down to empty water.
• Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

REPASSAGE AVEC VAPEUR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM DAI 22

Deutsch	5
English	7
Français	9
Nederlands	11
Español	13
Português	15
Italiano	17
