USER MANUAL SIS 1 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/40

Dampfbügelstation Steam Ironing Station Centrale Vapeur Stoomgenerator Central de planchado Central vapor Sistema stirante TEAM SIS 1 (S) 220-240V~1750-2080W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

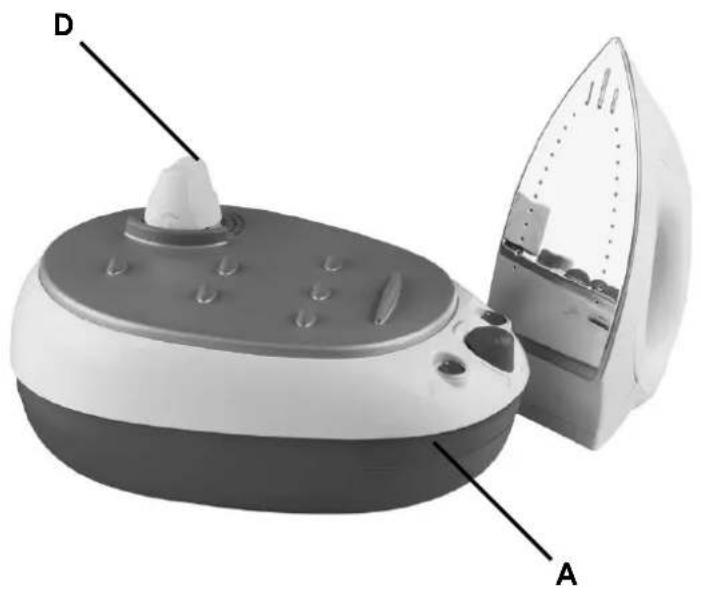

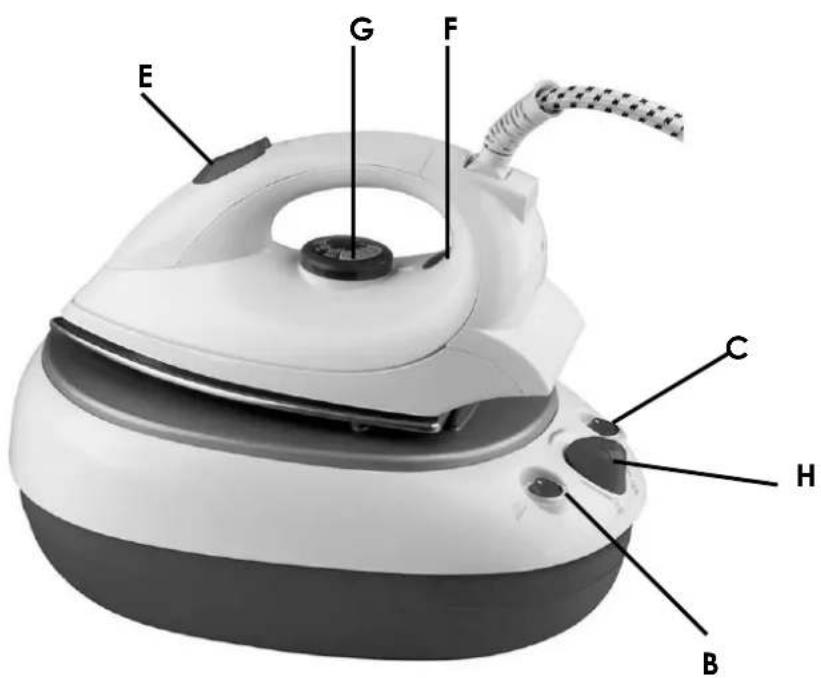

A. Base of the appliance B. ON/OFF switch for the base C. ON/OFF switch for the iron D. Screw cap of the water tank E. Steam button F. Pilot light of the iron G. Temperature dial H. Steam regulator

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

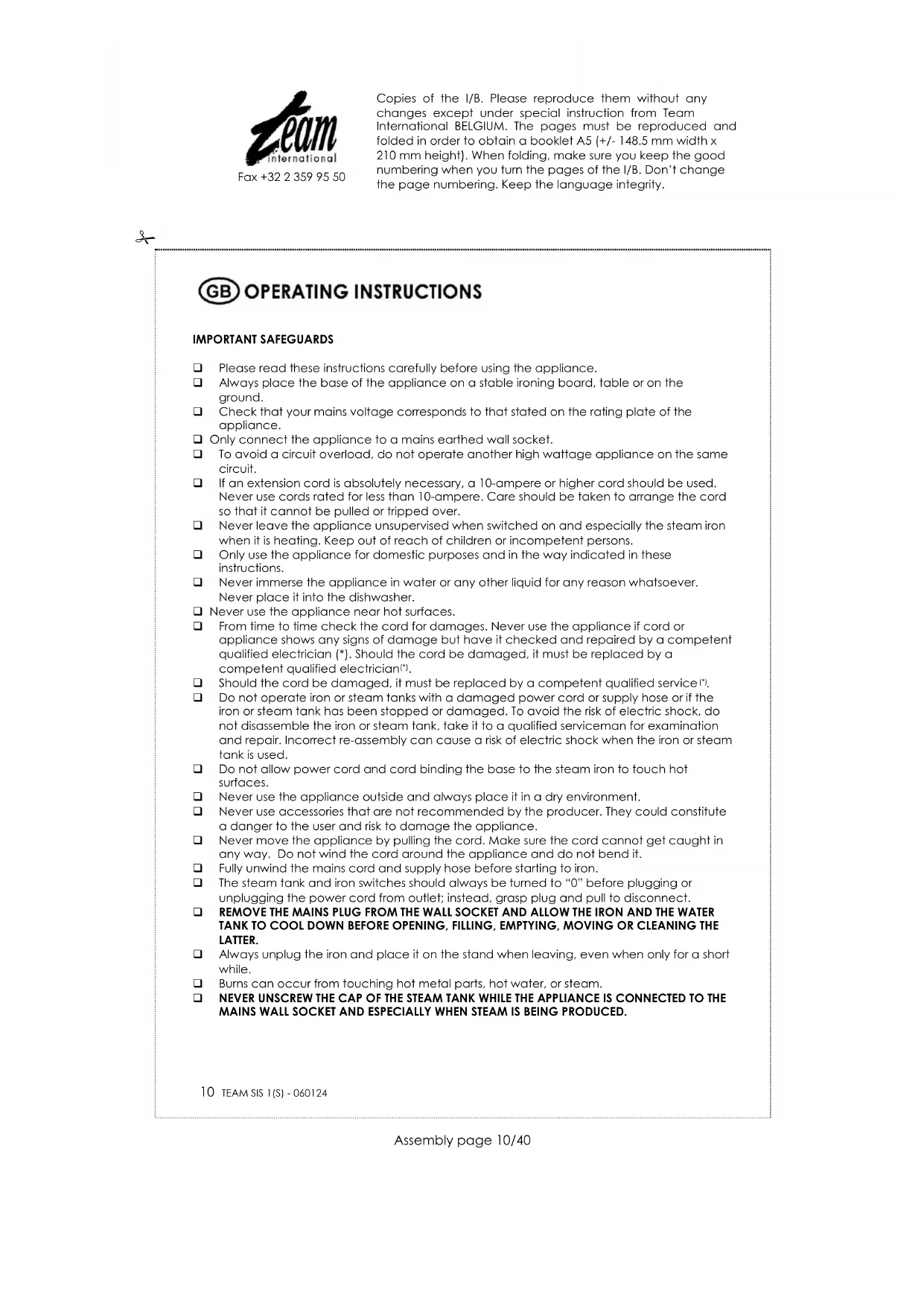

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Always place the base of the appliance on a stable ironing board, table or on the ground. Check that your mains voltage corresponds to that stated on the rating plate of the appliance. Only connect the appliance to a mains earthed wall socket. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 10-ampere or higher cord should be used. Never use cords rated for less than 10-ampere. Care should be taken to arrange the cord so that it cannot be pulled or tripped over. Never leave the appliance unsupervised when switched on and especially the steam iron when it is heating. Keep out of reach of children or incompetent persons. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified electrician (*). Should the cord be damaged, it must be replaced by a competent qualified electrician

Should the cord be damaged, it must be replaced by a competent qualified service

Do not operate iron or steam tanks with a damaged power cord or supply hose or if the iron or steam tank has been stopped or damaged. To avoid the risk of electric shock, do not disassemble the iron or steam tank, take it to a qualified serviceman for examination and repair. Incorrect re-assembly can cause a risk of electric shock when the iron or steam tank is used. Do not allow power cord and cord binding the base to the steam iron to touch hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Fully unwind the mains cord and supply hose before starting to iron. The steam tank and iron switches should always be turned to “0” before plugging or unplugging the power cord from outlet; instead, grasp plug and pull to disconnect. REMOVE THE MAINS PLUG FROM THE WALL SOCKET AND ALLOW THE IRON AND THE WATER TANK TO COOL DOWN BEFORE OPENING, FILLING, EMPTYING, MOVING OR CLEANING THE LATTER. Always unplug the iron and place it on the stand when leaving, even when only for a short while. Burns can occur from touching hot metal parts, hot water, or steam. NEVER UNSCREW THE CAP OF THE STEAM TANK WHILE THE APPLIANCE IS CONNECTED TO THE MAINS WALL SOCKET AND ESPECIALLY WHEN STEAM IS BEING PRODUCED. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Always place the iron on the base of the appliance, on the therefore foreseen place. Do not place iron by its rear cover. Be sure that it doesn‟t come in contact with flammable materials or with the mains cord. Never fill the steam tank with vinegar, descaling agents or other chemicals. Before using for the first time remove any sticker or protective foil from the soleplate. Clean the soleplate with a soft cloth. Some parts of the iron have been slightly greased and as a result the iron might slightly smoke when switched on for the first time. After a short while, however, this will cease.

Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

STEAM IRON: USE PRECAUTION AND TEMPERATURES

Always check first if a label with ironing instructions is attached to the article to be ironed. Follow these ironing instructions in all cases. If ironing instructions are missing but you know the kind of fabric, then see the table for recommended ironing temperatures.

Switch on the iron by putting its on/off switch in ON-position (side with the dot). This switch as well as the pilot light (F) of the iron will come on. As soon as the desired temperature is reached, the pilot light (F) goes out. During ironing this pilot light will come on from time to time. When this happens, the soleplate is being heated-up to the required temperature again. You can continue ironing. The table is valid for the fibre materials only. If some kind of finish has been applied (gloss, wrinkle, relief etc), the textile can best be ironed at a lower temperature. First sort out the fabrics according to ironing temperature: wool with wool, cotton with cotton, etc. The iron heats up quicker than it cools down. Therefore, start ironing the articles requiring the lowest temperature such as those make of synthetic fibres. Then progress to the higher temperatures. If the article is made of a mixture of different fibre, you must always select the lowest ironing temperature of the composition of those fibres. Kind of textile Temperature dial Steam ironing Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ….) Silk MIN

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] (E.g. an article consisting of “60% polyester and 40% cotton” should be ironed at the temperature indicated for polyester and without steam). If you do not know what kind(s) of fabric(s) the article has been made of, find a spot, which will be invisible when wearing or using the article to try out the ironing temperature. (Always start at a low temperature and increase to one, which gives the required results). Pure woollen fabrics (100% wool) may be pressed with the iron set to a steam position. It is recommended to apply shot-of-steam and use a dry pressing cloth. When steam-ironing woollen fabrics, shining of the fabric may occur. This can be prevented by turning the article inside out and ironing the inside or by interposing a light damp cloth. Velvet and other textures that rapidly acquire shiny spots should be ironed in one direction only (with the nap), applying only light pressure. Always keep the iron moving. Iron the reverse side of synthetic materials and silk, it is not advisable to use steam as this may cause stains. FILLING WITH WATER (FOR STEAM-IRONING) Make sure the main plug is unplugged from the wall socket. Switch off the iron by pressing its switch to the OFF-position (side without the dot). Switch off the steam tank by pressing its switch to the OFF-position (side without the dot). Position the base of the appliance on a stable flat surface and unscrew the cap (if you left water in the tank and the cap screwed, a light degazing will happen during the next use. It‟s normal and presents no danger). Fill the steam tank with water (max. 1 litre). You can use tap water, however, if the water is very hard, it is advisable to use distilled water. Never use vinegar, descaling agents or other chemicals. Close the steam tank by turning the screw cap clockwise by hand (see page 4). WHILE IRONING CAUTION : WHEN THE APPLIANCE IS IN OPERATION, THE STEAM TANK WILL BE UNDER PRESSURE WITH HOT STEAM. FIRST OF ALL BE SURE THAT THERE IS NO MORE STEAM IN THE WATER TANK. THE BASE AND THE IRON ARE ALWAYS UNDER PRESSURE, BLEED THE TANK BY PUSHING THE BUTTON (E) UNTIL NO MORE STEAM ESCAPES, THEN SWITCH OFF THE BASE AND THE IRON (SWITCHES AND IN OFF-POSITION). CAREFULLY UNSCREW THE CAP IN ORDER TO CHECK IF THERE IS NO MORE STEAM AND THEN UNSCREW IT COMPLETELY. LET THE TANK A FEW MINUTES COOL DOWN AND THE FILL IT AGAIN. ATTENTION: IF YOU FILL TOO EARLY, STEAM OR HOT WATER WILL ESCAPE FROM THE OPENING. WE ADVISE YOU TO PROCEED SLOWLY WHEN YOU FILL IN EVEN AT THE BEGINNING. FINALLY CLOSE THE WATER TANK WITH THE CAP. YOUR APPLIANCE IS READY TO OPERATE. STEAM-IRONING As indicated on the temperature dial (G) and the table, steam ironing is only possible at higher ironing temperatures, so set the dial to or . Fill the water tank with water and insert the mains plug into a wall socket. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Set switch of the steam tank to the ON-position (side with a dot). When this illuminated switch goes out, it means that the water in the water tank has reached the temperature necessary for steam-ironing. The iron heats up faster than the steam tank. Hence you can switch on the iron a few minutes later than the steam tank. Select the required ironing temperature with the temperature dial (G). Set switch of the iron to the ON-position (side with dot). The pilot light (F) will come on. After a few minutes, pilot light (F) will go out. This indicates that the soleplate has reached the set temperature. Press the steam button (E) to release bursts of steam from the soleplate of the iron. Release the button and the steam will stop. If you want a continuous jet of steam, slide the central part of the steam button backwards till it blocks the steam button. To stop the steam, slide the central part of the steam button forwards. By turning the steam regulator (H), the quantity of steam can be varied according to the type of textile to be ironed (more or less delicate). During steam ironing, the pilot light (F) will come on from time to time. When this happens, the iron is being heated-up to the required temperature. You can continue ironing. When you use a lot of steam in a very short time, the steam debit is lightly reduced until your appliance produces enough steam to reduce the difference. This phenomenon also happens when there isn‟t enough water in the water tank.

STEAMING IN A VERTICAL POSITION

You have to hang the cloth you want to smooth out avoiding the creases and place the iron in a vertical position at a few centimetres from the piece of cloth. Then move the iron by pressing the burst of steam button. DRY IRONING For ironing without steam, do not press-in the steam button (E) You may switch off the steam tank by setting switch to the OFF-position (side without a dot)

WHEN FINISHED IRONING

Switch off the base of the appliance and the iron. Remove the mains plug from the wall socket and let it cool down. It is not necessary to pour the remainder of water out of the steam tank. We recommend placing the iron on its base when you store it. The therefore foreseen place is non-slip and won‟t damage the soleplate of the iron. CLEANING The plastic parts of the appliance can be cleaned with a damp cloth. To clean the soleplate of the iron, you will also find specific products in the shops. Please also read the instructions of use. Never use abrasive products to clean it. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

E feita com a roupa suspensa e o ferro a alguns centímetros da mesma. Com a ajuda do vapor retire as rugas da roupa. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.
