WK 21 - Kettle TEAM - Free user manual and instructions

Product type	Electric kettle
Brand	TEAM
Model	WK 21
Power supply	230 V ~ 50 Hz
Capacity	1.7 L (between Min and Max)
Power	2200 W
Body material	Plastic
Base type	Separate base (or fixed depending on version)
Main functions	Automatic shut-off at boil, overheat protection, operation indicator light
Safety	Do not immerse, do not open while boiling, do not use empty
Care and cleaning	Clean with a soft cloth, descale with a specific product
Filling instructions	Fill between Min and Max marks, always remove from base before filling
Recommended use	Household use only
First use	Rinse and boil 2 to 3 times with clean water
Warranty	Consult authorized after-sales service

Frequently Asked Questions - WK 21 TEAM

How to descale my TEAM WK 21 kettle?

Use a commercial descaling product following the instructions on the packaging. You can also use diluted white vinegar (one part vinegar to two parts water). Boil the solution, let it sit for 15 minutes, then rinse thoroughly.

What to do if the kettle does not heat up?

Check that the kettle is properly placed on its base and that the cord is plugged in. If the light remains off, make sure the switch is in the on position. If the problem persists, contact customer service.

Can I open the lid during boiling?

No, only lift the lid when the kettle has stopped and there is no risk of boiling water splashing. Steam can cause burns.

How to clean the inside of the kettle?

Use a soft brush to remove limescale deposits. Never use abrasive cleaners. You can also boil water with lemon to remove residues.

What is the maximum capacity of the kettle?

The maximum capacity is indicated by the Max mark. Do not exceed this level to avoid boiling water splashes. The typical capacity is about 1.7 liters.

Does the kettle turn off automatically?

Yes, the kettle turns off automatically as soon as the water boils. You can also turn it off manually at any time by setting the switch to the off position.

What to do if the kettle has heated up empty?

Unplug the appliance and set the switch to off. Wait 10 minutes before filling with cold water. This will reset the overheat protection system.

Can I use the kettle with a base of another brand?

No, use only the base supplied with the kettle. Using an unsuitable base can be dangerous and damage the appliance.

How to store the power cord?

Do not wrap it around the kettle. Store it without twisting, preferably loosely coiled. Make sure it is not pinched or damaged.

Where can I find spare parts?

Contact TEAM authorized after-sales service or the retailer. Use only accessories recommended by the manufacturer.

USER MANUAL WK 21 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Wasserkocher

Jug kettle

Bouilloire

Waterkoker

Hervidor

Chaleira

Bollitore

CE

I/B Version

070212

TEAM WK 21

230 V ~ 2000 W

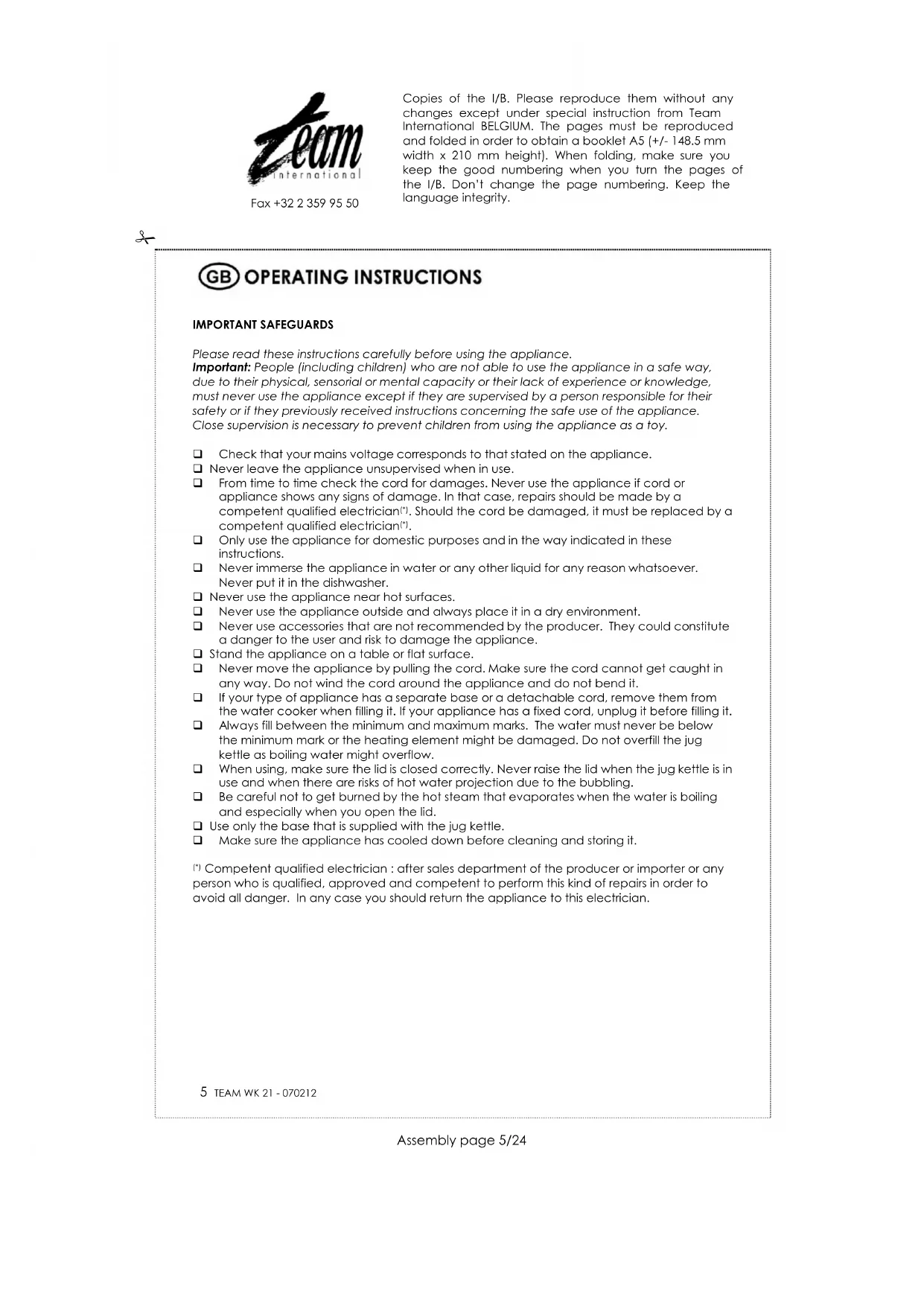

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^() . Should the cord be damaged, it must be replaced by a competent qualified electrician ^() .
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never put it in the dishwasher.
Never use the appliance near hot surfaces.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Stand the appliance on a table or flat surface.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
If your type of appliance has a separate base or a detachable cord, remove them from the water cooker when filling it. If your appliance has a fixed cord, unplug it before filling it.
Always fill between the minimum and maximum marks. The water must never be below the minimum mark or the heating element might be damaged. Do not overfill the jug kettle as boiling water might overflow.
When using, make sure the lid is closed correctly. Never raise the lid when the jug kettle is in use and when there are risks of hot water projection due to the bubbling.
Be careful not to get burned by the hot steam that evaporates when the water is boiling and especially when you open the lid.
Use only the base that is supplied with the jug kettle.
Make sure the appliance has cooled down before cleaning and storing it.

(1) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

BEFORE THE FIRST OPERATION

For the perfect taste, operate the jug kettle with fresh water in order to clean any residue left from the manufacturing process. When the appliance has cooled down, repeat the process 3 times with fresh water, before rinsing.

OPERATION

Always remove the jug from the power base before filling it.
- Raise the lid and fill the tank with fresh water paying attention not to fill under the "MIN" mark and above the "MAX" mark in the kettle. You can see the level thanks to the transparent water level indicator.
- Close the lid by pressing it down until it you hear a click. Make sure it closes correctly.
- Put the jug onto the power base, plug into the wall socket and switch on. The pilot light on the handle will come on. If it does not come on, check if the jug kettle is placed correctly on its base. If the problem persists, contact the nearest customer service.
- The jug kettle will switch off automatically when the water is boiling. However, you can switch it off anytime by pressing the on/off switch.
For instant reboiling, wait until water has cooled down and switch on the appliance again.

SAFETY CUT-OUT

This jug kettle is protected with an automatic safety device if accidentally switched on without water.
- In this case, switch off the appliance and wait about 10 minutes for the element to cool. Then fill the jug kettle with cold water. This will reset the safety device.
The kettle may then be used as normal.
Should the problem persist, please contact the nearest customer service.

CLEANING AND MAINTENANCE

Before attempting any cleaning operation, make sure the appliance is unplugged from the supply socket and fully cooled down.
- To clean the exterior surfaces, simply wipe over with a soft damp cloth and dry thoroughly. To remove scale from the inner walls of the kettle and from the filter you can use a soft brush.
- Never use abrasive products
- On no account must the jug kettle or its power base be immersed in water.

DESCALING

To remove scale from the jug kettle, use products made especially available for this purpose. Make sure to use a type recommended for plastic kettles and follow the product's instruction manual carefully.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
