USER MANUAL GF 421 INVENTUM

Black square air fryer with French fries being filled, no visible text or symbols on the main subject.

GF 421 W/B

GEBRUIKSAANWIJZING - GEBRAUCHSANLEITUNG MODE D'EMPLOI - INSTRUCTION MANUAL

NEDERLANDS

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

DESCRIPTION OF THE APPLIANCE PAGE 13

1. SAFETY INSTRUCTIONS PAGE 13
2. BEFORE FIRST USE PAGE 14
3. FRYING PAGE 14
4. AFTER FRYING PAGE 14
5. TIPS PAGE 15
6. CLEANING & MAINTENANCE PAGE 15

GUARANTEE & AFTER SALES SERVICE

PAGE 18

NEDERLANDS

1. 2. 3. 4. 5. 6. 7. 8.

8. 7.

Close-up of a white electronic device with a black handle and indicator lights (no visible text or symbols)

Close-up of a sewing machine handle and socket (no visible text or symbols)

Close-up of a white electronic device with a black handle and indicator lights (no visible text or symbols)

Close-up of a kitchen appliance with a black handle and lever mechanism (no visible text or symbols)

Close-up of a white electronic device with a black plastic clip and handle (no visible text or symbols)

Close-up of a kitchen tool handle and sink (no visible text or symbols)

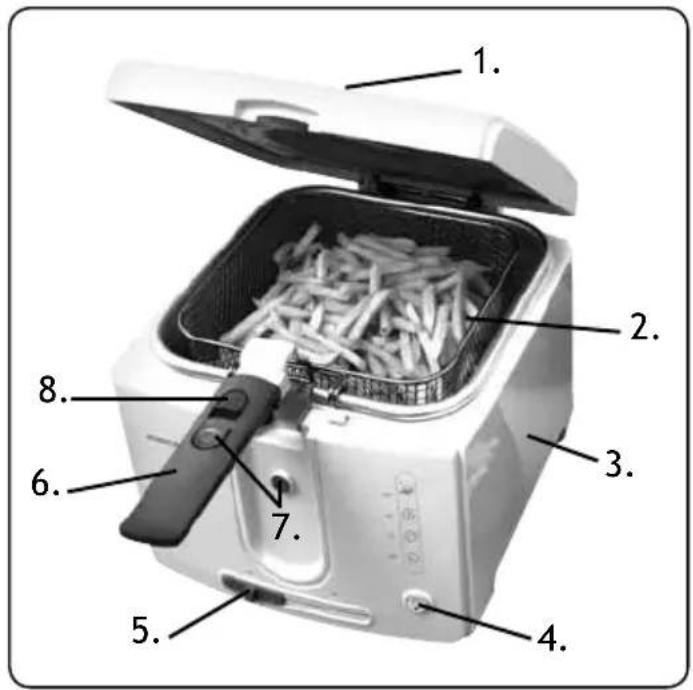

1. Lid with window and permanent filter
2. Basket
3. Housing
4. On/ off switch with thermostatlamp
5. Thermostatbutton
6. Handle
7. Button for opening the lid
8. Unlockbutton for handle

1 | SAFETY INSTRUCTIONS

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching hot surfaces, especially the outside of the appliance when the appliance is in use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.

• Never unplug it from the socket by pulling on the cable.
  • Always ensure that your hands are dry before handling the plug, switch or power cord.

• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Ensure the lid and the reservoir do not contain any water before using the fryer.
• If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

2 | BEFORE FIRST USE

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a stable and heat resistant surface.

Open the lid by pushing the unlock-button on the handle of the basket.

Remove the lid by pulling it straight up from the fryer. Remove the basket.

Wipe the exterior of the fryer and the reservoir only with a damp cloth and dry thoroughly.

Clean the lid and the basket in the dishwasher. Ensure that the parts are dried thoroughly before use.

Place the lid back on the fryer.

Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance and plug in the fryer.

Fill the reservoir with liquid frying fat to a level between the minimum and maximum level, respectively between 1.7 liters and 2.1 liters.

The frying fat can never be under or over the minimum or maximum level. Inside the reservoir you find the two lines indicating the minimum and maximum level.

If you wish to use solid fat, cut the blocks to small pieces. Turn the fryer on with the on/off button, position 1, and set the thermostat to the lowest temperature, 150^ . Wait until the solid fat is melted and check the level. Adjust the thermostat to the desired temperature.

3 | FRYING

Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance and plug in the fryer.

Turn the fryer on with the on/off button, position 1. The red thermostatlamp will light up.

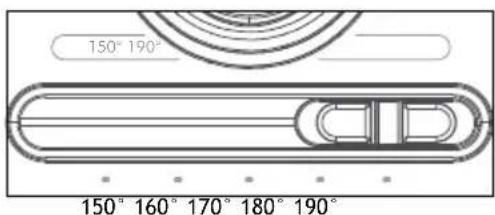

Slide the thermostat button to the right to the desired temperature. On the fryer only 150^ and 190^ are indicated. The markings under the thermostat button correspond each with an increase of 10 degrees. See figure.

150° 190° 150° 160° 170° 180° 190°

As soon as the desired temperature is reached, the controllamp goes out. The thermostat and the thermostatlamp will toggle On and Off as the thermostat in the fryer maintains the correct temperature. The fryer is now ready to use.

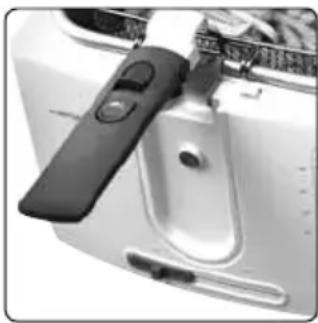

Fold out the handle, make sure it locks and take the basket out of the fryer.

Close-up of a white electronic device with a black handle and control panel (no visible text or symbols)

Close-up of a kitchen grater with a black handle and control panel (no visible text or symbols)

Add the desired quantity of food to the basket. Do not add too much food at one time (never more than 2/3).

Food should be as dry as possible ot reduce the amount of water getting into the oil. Shake the ice off of frozen products above the sink.

Lower the basket slowly into the oil. If you lower too fast, the oil can splash.

Close the lid properly.

Push the button of the lid of the frying basket releasing the lock and push the handle down back in the housing of the fryer.

When the food is cooked, open the lid with the unlock-button. Be careful: the damp is hot.

Fold out the handle, make sure it locks and lift the basket out of the oil. Carefully shake the excess fat of and hang the basket with the holding lugs to the edge of the reservoir to drain away the oil.

Take the basket out of the fryer and serve the food. Place the basket back and close the lid.

4 | AFTER FRYING

When you have finished frying, turn the fryer off with the on/off button and pull the plug from the socket.

Leave the fryer to cool for several hours before moving the fryer. If you want to move the fryer always use both hands.

5 | TIPS

• Note: during and after frying it is possible that drops of condensed water fall into the hot oil. The hard noise you can hear, is the reaction of the water with the oil/fat and is normal. It does not influence the use of the fryer.
• Note: Battered or coated food, like fish, may stick to the basket. To prevent this, lower the basket and than place the food in the fryer.
• Never salt the product before or during cooking. This will contaminate the oil.
• For the best results it is advisable not to fry the maximum quantity (ca. 1300 grams), but half (ca. 600-650 grams). Fry frozen products in even smaller portions, because they contain more water and cause the oil to cool down too much.
• If you make your own fries, thoroughly dry them after washing to make sure there will be no water in the oil. Fry the fresh fries in two times. The first time (pre-cooking) 5 to 10 minutes on 170 degrees. Lift the basket, let the oil drain and the fries to cool down for several minutes. For the second time turn the temperature control (cooking) to 190 degrees and cook the fries in 2 to 4 minutes. Lift the basket after frying and let the oil drain away.

6 | CLEANING & MAINTENANCE

Always unplug the fryer and let it cool down completely. The oil/fat can be used longer, if you filter it regularly. Replace the oil/fat regularly, after 8 to 12 times.

Filter the oil/fat when it is cold. Pour the oil/fat through the spout in a clean bowl. Clean the reservoir with hot water and a mild detergent. Thoroughly dry the reservoir. Pour the oil/fat back in the reservoir through a fine sieve. Check each time if the level of the oil/fat is between the minimum and maximum level.

When replacing the oil/fat, follow the same steps as described before.

Liquid frying fat can be poured back in to the bottles. When using solid fat, turn the fryer on and wait until the fat loosens from the wall. Remember to remove the basket. Now remove the solid block of fat and wrap it in e.g. old newspapers.

Throw away used fat in the original packaging, or when using solid fat, wrapped in newspapers.

Never wash away fat or oil through the sink.

The lid is provided with a permanent metal filter and soaks up the smells, but lets the steam through. Clean the lid regularly to prevent a clogged filter.

Clean the complete lid and the basket in the dishwasher or with hot water and a mild detergent.

Ensure that the parts are dried thoroughly after cleaning.

Clean the exterior of the fryer with a damp cloth and when needed a mild detergent.

Never use any abrasives! Never immerse the heating element, power cord or plug in water or other liquids.

GARANTIE & SERVICE

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.
• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.
  • Guarantee is not valid in case of:

- normal wear;

- damage through misuse use or when the instructions were not followed correctly;

• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance; for assessment by our technical department.

• The guarantee is not valid for:

• normal wear;
• external cables;
• (interchangeable) signal- and controllamps for assessment by our technical department.

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

Inventum Holland BV

new E.T.P. bvba

Generatorstraat 17

Passtraat 121

3903 LH VEENENDAAL

9100 Sint Niklaas

THE NETHERLANDS

BELGIUM

AVC Service GmbH

• Pack it carefully (preferably in the original carton). Ensure unit is clean.
• Enclose your name and address and quote model number on all correspondence.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.
