WS8471 - Weather Station VELLEMAN - Free user manual and instructions

Product type	Weather station with digital thermo-hygrometer
Brand	Velleman
Model	WS8471
Dimensions (display)	117 x 107 x 22 mm
LCD screen size	64 x 77 mm
Weight	135 g
Power supply	1 x 1.5V battery type R03 (LR03C, not included)
Indoor temperature range	0 °C to 50 °C
Outdoor temperature range	-50 °C to 70 °C
Indoor humidity range	20 % to 90 % RH
Humidity resolution	1 % RH
Outdoor sensor cable length	Approximately 1.8 m
Temperature display	Switchable between °C and °F
Min/Max value recording	Indoor/outdoor temperature and humidity
Frost alarm	From -1 °C to +4 °C (outdoor sensor)
Comfort indicators	DRY (<40%), COMFORT (40-70% and 20-25°C), WET (>70%)
Installation	Free-standing or wall mount
Warranty	24 months (see conditions)
Safety instructions	Do not dispose of with household waste, keep out of reach of children
Maintenance	Protect from shocks and dust, clean with a soft dry cloth
General information	Manufacturer: Velleman, distribution in more than 85 countries, compliant with EU standards

Frequently Asked Questions - WS8471 VELLEMAN

How to change the battery of the weather station?

Open the battery compartment located on the back of the device. Insert a new 1.5V type R03 (LR03C) battery, observing the polarity. Close the compartment. The battery is not included.

How to switch the temperature display from °C to °F?

Press the C/F button to toggle between Celsius and Fahrenheit display.

How to display indoor or outdoor temperature?

Use the IN/OUT button to switch between indoor and outdoor sensor temperature display.

How to activate the frost alarm?

Press and hold the FREEZE button for 3 seconds. An alarm will sound when the outdoor temperature is between -1°C and +4°C.

How to clear the recorded minimum and maximum values?

Press the CLEAR button to clear the stored data (min/max temperature and humidity).

What do the DRY, COMFORT and WET icons mean?

The DRY icon displays if humidity is below 40%. COMFORT appears between 40% and 70% humidity with a temperature of 20°C to 25°C. WET displays above 70% humidity.

What is the range of the outdoor sensor?

The wireless range is not specified in the manual, but for a wired station, the cable length is approximately 1.8 meters. Make sure the sensor is placed within cable reach.

What to do if the screen shows nothing?

First check that the battery is correctly inserted and not discharged. If the problem persists, remove the battery, wait a few seconds and reinsert it. Contact customer service if necessary.

Can I mount the weather station on the wall?

Yes, the device can be wall-mounted using the mounting system on the back. Use a suitable screw and ensure the wall can support the device weight (135 g).

How to clean the weather station?

Clean the device with a soft dry cloth. Do not use abrasive products or solvents. Protect the device from dust and shocks.

USER MANUAL WS8471 VELLEMAN

THERMO/HYGROMETER THERMO-/HYGROMETER THERMO-/HYGROMÈTRE TERMÓMETRO/HIGRÓMETRO THERMO/HYGROMETER TERMÓMETRO/HIGRÓMETRO TERMO-/HIGROMETR TERMOMETRO/IGROMETRO

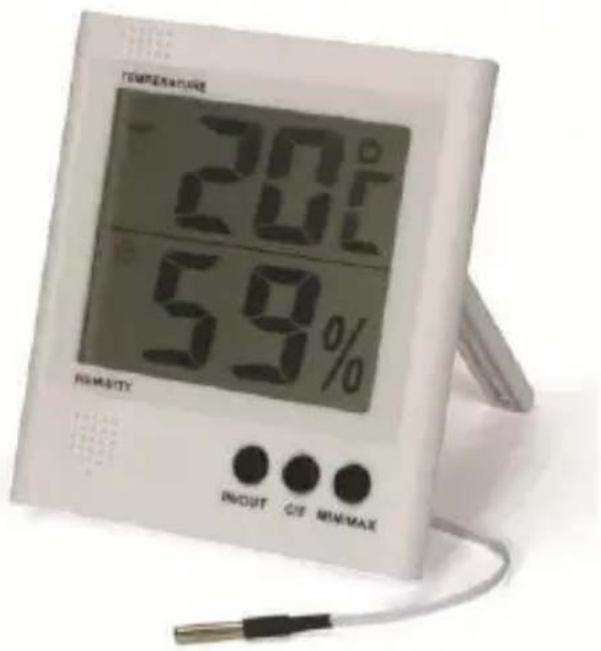

TEMPERATURE 20°C 59% HOMATY INPUT CIE MINIMAX

USER MANUAL 2 GEBRUIKERSHANDLEIDING 5 MODE D'EMPLOI 8 MANUAL DEL USUARIO 11 BEDIENUNGSANLEITUNG 14 MANUAL DO UTILIZADOR 17 INSTRUKCJA OBSŁUGI 20 MANUALE UTENTE 23

CE

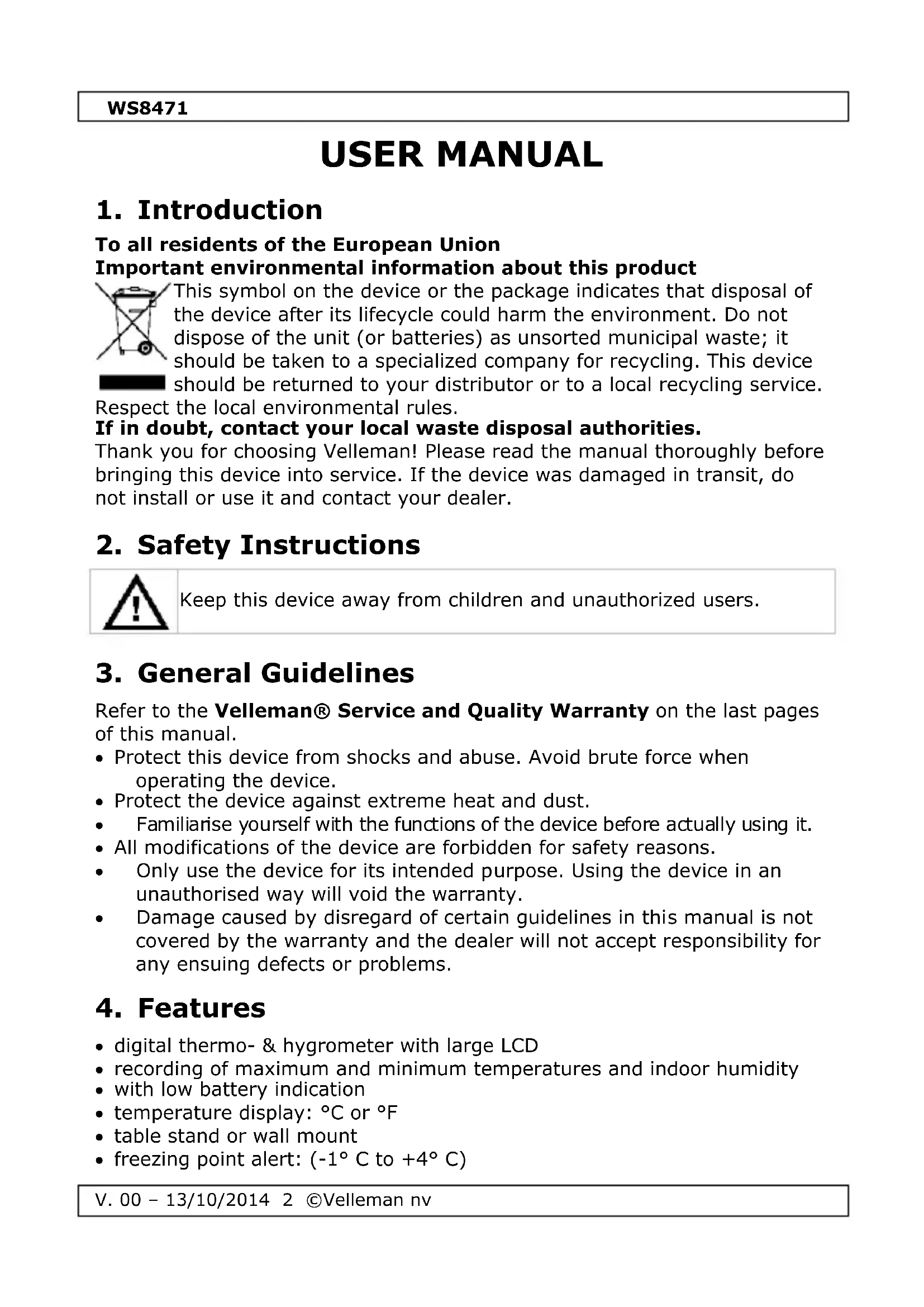

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
  • Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Features

• digital thermo- & hygrometer with large LCD
• recording of maximum and minimum temperatures and indoor humidity
  • with low battery indication
  • temperature display: °C or °F
• table stand or wall mount
• freezing point alert: (-1^ C to +4^ C)

5. Batteries

1. Connect the outdoor sensor first.
2. Open the battery compartment and insert 1 x 1.5 V AAA battery respecting the polarity.
3. Close the battery compartment.

Warning

• Do not puncture or throw batteries in fire as they might explode.
• Keep batteries away from children and pets.
• Dispose of batteries in accordance with local regulations.

6. Operation

• Press C/F to switch between the °C and °F temperature unit.
• Press IN/OUT to switch between indoor and outdoor temperature display.
• Press MIN/MAX to switch between minimum and maximum value (humidity, indoor/outdoor temperature). Press CLEAR to clear the memory.
• Hold FREEZE pressed for 3 seconds to activate the freezing point alert. The meter will sound when the outdoor temperature is between -1°C and +4°C.
  • The meter will display a DRY icon when the humidity is less than 40 %.
• The meter will display a CONFORT icon when the humidity is between 40 % and 70 % with a temperature of +20°C\~+25°C.
• The meter will display a WET icon when the humidity is more than 70 %.

7. Technical Specifications

temperature range	indoor: 0°C ~ 50°C
	outdoor: -50°C ~ 70°C
hygrometer	20 ~ 90 % (indoor humidity only)
humidity resolution	1 % RH
power supply	1 x 1.5 V AAA battery (LR03C, not incl.)
dimensions	meter: 117 x 107 x 22 mm
	LCD: 64 x 77 mm
weight	135 g
cable length	± 1.8 m

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website

WS8471

www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

© INFORMACJA O PRAWACH WŁASNOŚCI

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the

original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
  • Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
