Elektronischer Raumtemperaturregler plus Tagestimer Nein Elektronischer Raumtemperaturregler plus Wochentimer Nein Andere Kontroll-Optionen Raumtemperaturregler mit Anwesenheitserkennung Nein Raumtemperaturregler mit Erkennung offener Fenster Nein mit Option Abstandsüberwachung Nein mit adaptiver Startkontrolle Nein mit Betriebszeitbeschränkung Nein mit Schwarzkugelsensor Nein Kontaktangaben Linea 2000 bvba Dompel 9 - 2200 Herentals - BelgienDO7315M IMPORTANT SAFEGUARDS This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance. Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old. This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar Attention: This appliance cannot be used with an external timer or a separate remote control. 29DO7315M

• Never move the heater while it is operational.

• Always remove the plug from the power supply if the device is not being used.

• Never use the device outdoors, in the bath, shower or other settings where water is present.

• Never place the electrical cable under the carpet and never cover the cable with rugs.

• Ensure that one cannot trip over the wire.

• In order to prevent overheating and re, never place cloths, towels or other fabrics on the heater.

• You must not use the device if the plug or electrical cable is damaged. If the cable is damaged, you must have it replaced by the manufacturer’s after-sales service department.

• If the device must be repaired, this should also be done by the after-sales service department or a qualied individual.

• Ensure that foreign objects cannot enter the device’s ventilation system.

• Only use an earthed power supply.

• Avoid using extension wires; they could result in overheating and re. If it is necessary to use an extension cord, ensure that the internal wiring has a diameter of at least 1mm and is at least 13 Amp.

• The heater has hot components and can also release sparks. Never use the device in close proximity to 30DO7315M fuels, paint or other highly ammable materials.

• Keep ammable materials, like furniture and curtains, at least 1 meter away from the device.

• A distance of 15cm must be respected between the top of the device and objects such as windowsills, ceilings etc.

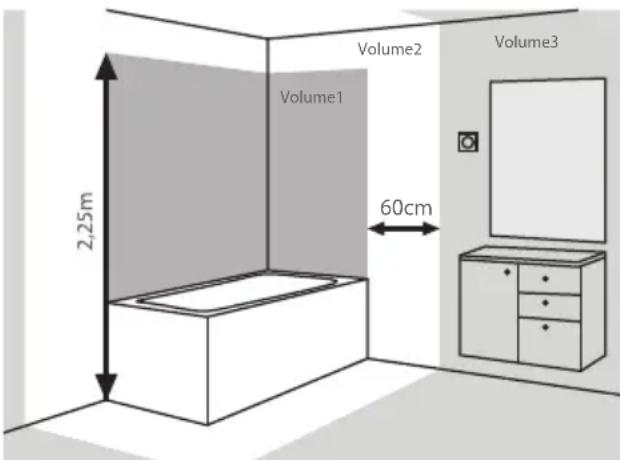

• Keep the appliance at a minimum distance of 0,60 m (volume 3) from bad or shower, as indicated in the drawing. It shouldn’ be possible to touch the appliance, the power cord or control knobs by a person who is in the bad or shower.

• The appliance becomes hot during use. Keep the power cord away from hot part and don’t cover the appliance.

• This product is only suitable for well insulated spaces or occasional use.

ONLY FOR HOUSEHOLD USE

WARNING Please ensure that all persons using the device have rst read the user manual and know how the device works.

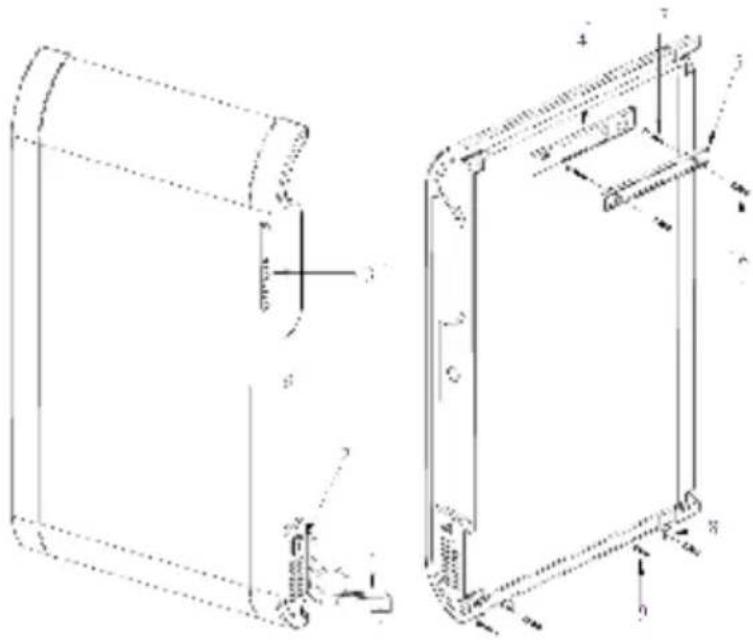

3. Electronic regulator with display

7. Screws for upper wall mount

9. Screws for lower wall mount

REMOVE PACKAGING Remove the heater from the box. Remove the polystyrene and the plastic from the heater. Save the packaging to store the device during the summer or whenever it is not being used. INSTALLATION Remove all components from their packaging and check that they have not been damaged during transport. If components are damaged or missing, contact your supplier immediately. ATTENTION: if you want to x the heater in the bathroom, please make sure to x the heater at least 70cm from bath tub, shower or other water holding objects. Wall mounting: - Mark the position of the wall mounts on the wall. - Drill holes in the wall. - Insert a plug into each hole. - Place the upper wall mount and screw it in place. - Then place the heater against the wall mount. - Mark the position of the lower wall mount on the wall. - Remove the heater from the wall once again. - Drill holes in the wall and insert the plugs. - Replace the heater on the wall. - Screw the lower wall mount in place. Note: The heater must be at least 70cm off the ground. Ensure that there are no other objects within a radius of 1 metre around the device. 32DO7315M USE

1. LCD display with two light intensity settings

5. Heat selection indicator

AUTOMATIC MODE - Ensure that the device is switched off. - Place the plug in the power supply. - Switch on the heater by placing the on/off switch in the “I” position. The switch will light up. - Automatic mode will then start with a standard temperature of 25°C, which you may adjust to your needs. This temperature setting will ash on screen for a few seconds, after which the display will show the room temperature. - If the room temperature is above the set temperature, the device will not switch on. If the room temperature is below the set temperature, the device will automatically select the most appropriate heat setting to heat up the room. - If the difference between the room temperature and the set temperature is less than 1°C, heat selection “I” will be selected. - If the temperature difference is between 2 and 3°C, heat selection “II” will be selected. - If the temperature difference is more than 4°C, heat selection “I” and “II” will be selected. - If heat selection is either “II” or “I” plus “II”, the ventilator will switch on automatically at the same time. If the heater returns to position “I”, the ventilator will continue to operate for 1 minute and will then switch off. - The device will switch off automatically when room temperature reaches the set temperature. The device will switch on again if room temperature drops by 2°C. MANUAL MODE

• If one presses the button featuring the hand symbol, the device will switch from automatic mode to manual mode and the hand symbol will appear on the display. The “auto” symbol will disappear from the display.

• Select the desired heat selection - “I”, “II” or “I” and “II” together. The appropriate light will illuminate.

• Set the desired temperature using the arrow buttons.

• The device will switch off automatically once the desired temperature has been reached.

33DO7315M ANTI-FREEZE SETTING If you set the temperature of your device to 5°C, the device’s anti-freeze setting will be automatically activated. The anti-freeze symbol will then appear on the display. If the temperature drops below 5°C, the device will start to heat up until room temperature exceeds 5°C. The device will then switch off. MAINTENANCE - Before cleaning the device, switch it off, remove the plug from the power supply and allow the device to cool down sufciently. - Do not submerge the device in water or other uids. - Use a vacuum cleaner to remove dust from the device. - Do not use aggressive or abrasive cleaning products when cleaning the device.

SPECIFICATIONS Model identier(s): Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output Pnom 1.5 kW manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative) Pmin 0.6 kW manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output Pmax 1.4 kW electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption --- --- --- fan assisted heat output N/A At nominal heat output elmax N/A kW Type of heat output/room temperature control At minimum heat output elmin N/A kW single stage heat output and no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control Yes electronic room temperature control plus day timer

electronic room temperature control plus week timer NoDO7315M Other control options room temperature control, with presence detection

room temperature control, with open window detection

with distance control option No with adaptive start control No with working time limitation No with black bulb sensor No Contact details Linea 2000 bvba Dompel 9 - 2200 Herentals - BelgiumDO7315M
