If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Exploded view diagram of an electric fan with numbered parts for identification

BEVESTIGING VAN DE VOET EN HET MOTORGEDEELTE

Diagram of a mechanical component with labeled parts, showing internal structure and rotation (no text or symbols)

Diagram of a fan blade assembly with labeled parts, no text or symbols present

Illustration of two mechanical components: a wire coil and a fan blade, with no visible text or symbols.

GEBRUIK

Close-up of a black office fan with mesh grille and stand (no visible text or symbols)

ONDERHOUD

Exploded view diagram of an electric fan with numbered parts for identification

ASSEMBLAGE DU PIED ET DU MOTEUR

Diagram of a mechanical component with labeled parts, showing internal structure and rotation (no text or symbols)

Diagram of a propeller blade assembly with labeled parts (no text or symbols present)

Diagram showing two views of a mechanical component with a hand holding a pin, labeled Fig.3 (no text or symbols on the diagram itself)

UTILISATION

Close-up of a black electric fan with mesh grille and stand (no visible text or symbols)

ENTRETIEN

Exploded view diagram of a fan assembly with numbered parts for identification

Diagram of a propeller with internal mesh structure and labeled parts (no text or symbols)

Diagram of a propeller blade assembly with labeled parts (no text or symbols present)

Illustration of two mechanical components: a wire coil and a fan blade, with no visible text or symbols.

GEBRAUCH

Close-up of a black electric fan with mesh grille and visible blades (no text or symbols)

WARTUNG

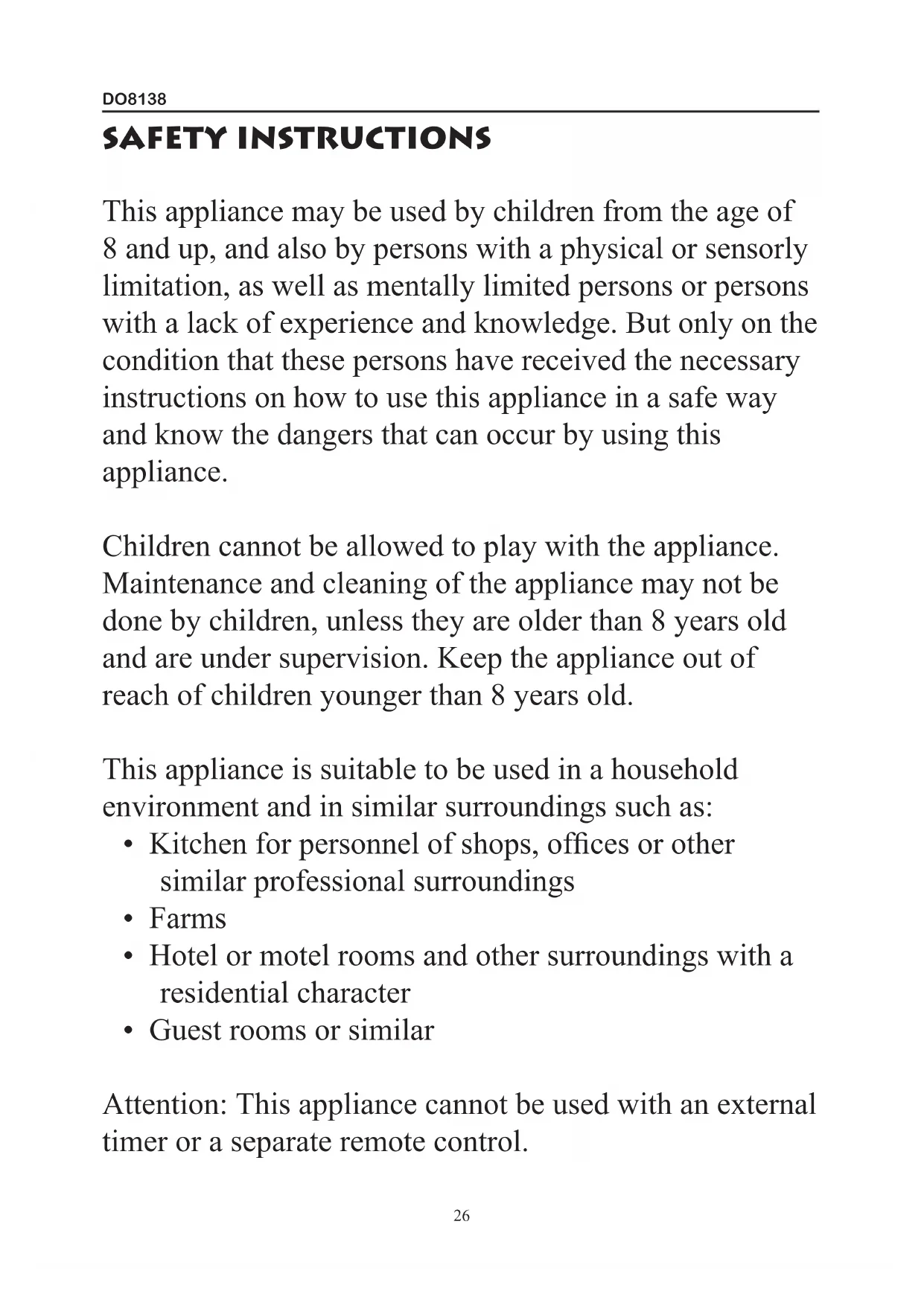

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
  • Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.

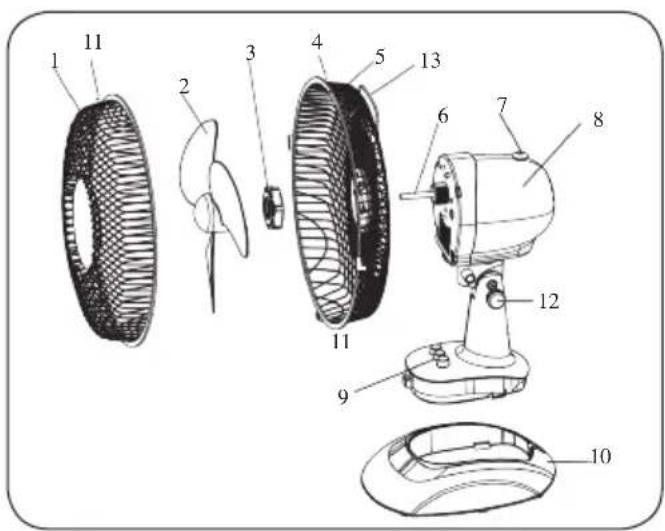

PARTS

1. Front grill
2. Fan blades
3. Plastic screw
4. Rear grill
5. Screw for fastening rear grill
6. Motor drive
7. Oscillation button
8. Motor
9. Control Panel
10. Base
11. Attaching clip
12. Button to change the fan direction
13. Handle

Exploded view diagram of an electric fan with numbered parts for identification

FASTENING THE BASE AND THE MOTOR

Remove the screw from the base of the fan.

Place the motor on the base and push it down until it clicks.

Use the screw to fasten the motor and the base to each other.

FASTENING THE GRILL AND THE FAN BLADES

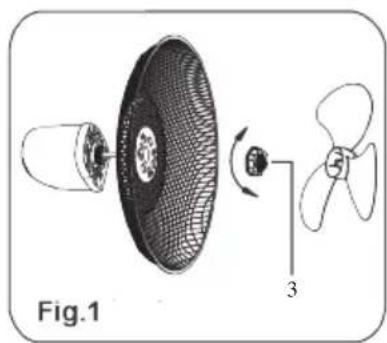

Remove the spinner from the motor drive (or remove it from the packaging). Loosen the plastic screw from the motor drive. Position the grill behind the motor drive and use the plastic screw to fasten the grill. (Fig. 1)

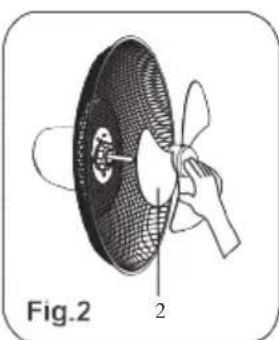

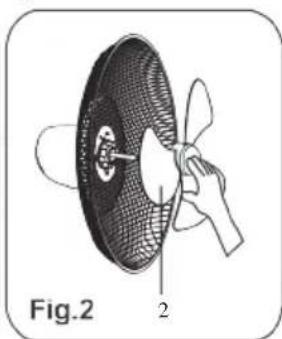

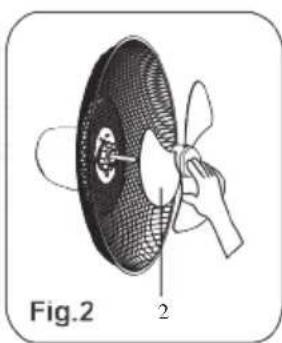

Place the fan blades on the motor drive. Make sure the pin on the motor drive its perfectly behind the fan blades (Fig. 2). Use the spinner to fasten the fan blades on the motor drive.

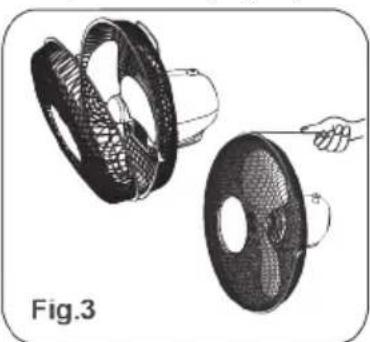

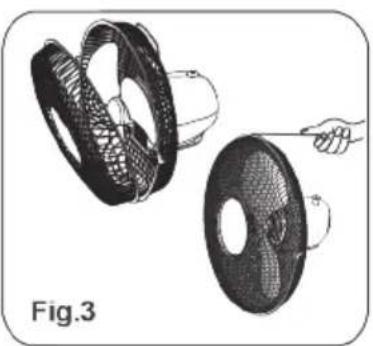

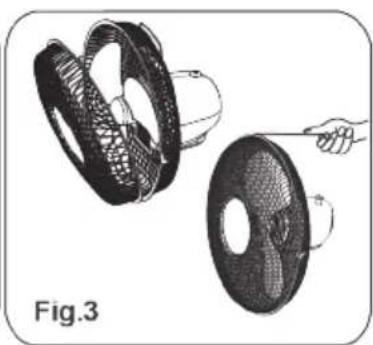

Position the front grill on the rear grill and fasten them together with the help of the attaching clip. Finally, use the screw at the top of the rear grill to fasten both halves of the grill together rmly. (Fig. 3)

Diagram of a mechanical component with labeled parts, showing internal structure and rotation (no text or symbols)

Diagram of a propeller blade with a handle, labeled Fig.2 (no text or symbols on the diagram itself)

Illustration of two mechanical components: a wire coil and a fan blade, with a hand holding the blade (no text or symbols)

INSTRUCTIONS

Speed regulation with the help of the 4 buttons on the control panel.

0: off

1: low speed

2: high speed

To allow the fan to oscillate, push in the oscillation button. To stop oscillating, pull the button up.

To direct the ventilation up or down. Unscrew the button on the side of the motor drive. Push down or pull up gently on the grill to adjust the direction up or down. Fasten the button again.

Close-up of a black electric fan with mesh grille and stand (no visible text or symbols)

MAINTENANCE

This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.

Prior to assembling the fan or cleaning it, remove the plug from the outlet.

Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.

You may clean the exterior of the machine with a soft moist cloth and a mild detergent. Carefully dry the machine afterwards.

Never use corrosive or abrasive products to clean the machine.

Make sure that no water gets into the motor of the machine.
