DO7338H - Heating DOMO - Free user manual and instructions

Product type	Fan heater
Brand	Domo
Model	DO7338H
Color	Black
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W (mode II)
Minimum power	1300 W (mode I)
Operating modes	Fan, low power (1300W), high power (2000W), off
Automatic rotation	Yes, 75° angle, activated by dedicated button
Adjustable thermostat	Yes, via temperature control dial
Safety device	Thermal protection with automatic shutdown in case of overheating
Warranty	2 years, subject to normal use and presentation of receipt
Spare parts and accessories	Available on the Domo webshop (http://webshop.domo-elektro.be) and in store
Cleaning	Damp cloth (not soaked) for the exterior, vacuum the back grille
Intended use	Domestic, indoor, do not use outdoors or near water
Important safety instructions	Do not cover, keep out of reach of children, do not use with an external timer

Frequently Asked Questions - DO7338H DOMO

How to turn on the Domo DO7338H heater?

Plug in the device. Use the mode selection button (silver) to choose between 'I' (1300W) or 'II' (2000W) or 'fan'. The red indicator lights up. To turn off, set the button to '0' and turn the thermostat to minimum.

How to adjust the temperature?

Turn the temperature control dial (orange) counterclockwise to maximum. When the desired temperature is reached, gently turn clockwise until the device stops. The thermostat then maintains the temperature.

How to use automatic rotation?

Press the automatic rotation button located on top of the device to position 'I'. The device oscillates over 75° to better distribute air. To stop, set the button back to position '0'.

What to do if the device does not heat?

Check that the mode selection button is not set to 'fan' or '0'. Make sure the thermostat is not at minimum position. If the device turns off, there may have been overheating: unplug, let it cool down for 10 minutes, then try again.

How to clean the heater?

Unplug the device and wait for it to cool down. Use a damp cloth (not soaked) for the exterior. Vacuum dust on the back grille with a soft brush. Never immerse the device or use abrasive products.

What power modes are available?

The mode selection button offers: fan (without heating), 'I' for low power (1300W), 'II' for high power (2000W) and '0' for off.

Can the heater be used in a bathroom?

No, the device must not be used near a bathtub, shower or swimming pool. It is designed for indoor domestic use in dry rooms.

What to do in case of overheating?

The device is equipped with thermal safety: in case of overheating, it shuts off automatically. Unplug, let it cool down for about 10 minutes, check that nothing obstructs the grilles, then plug back in.

Where to find spare parts?

Spare parts and accessories are available on the Domo webshop (http://webshop.domo-elektro.be) or from the point of sale where the device was purchased.

What is the warranty of the Domo DO7338H?

The warranty is 2 years from the date of purchase for manufacturing defects. It is valid upon presentation of the receipt. Damage due to improper use or unauthorized repairs voids it.

USER MANUAL DO7338H DOMO

Black BOHO portable speaker with visible grille and control panel (no text or symbols on device body)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

Recycling symbol with three arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

* Enkel in België, Nederland, Luxemburg, Frankrijk en Duitsland.
* Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
* Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Warning sign depicting steam rising inside a triangle, indicating heat hazard

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Warning sign depicting steam rising inside a triangle, indicating heat hazard

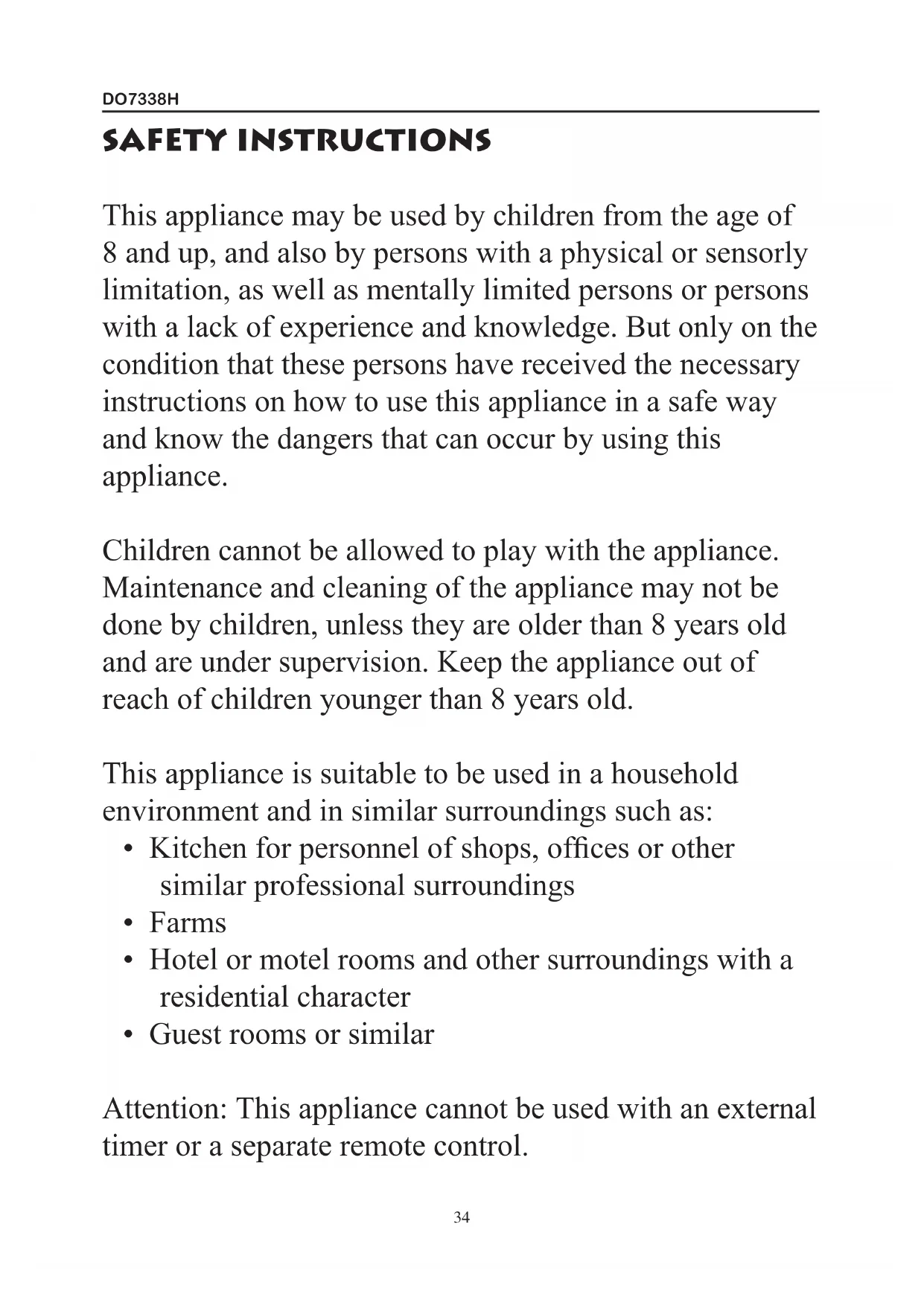

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

Warning sign depicting steam rising inside a triangle, indicating heat hazard

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or

electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Do not touch the device with wet hands and/or wet feet.
• The device heats up during usage. Always use the handle to move the device.
• Do not use the device when barefoot.
• Do not put any fingers or objects in ventilation or exhaust openings. This could cause electrical shocks, fires or damages to the device.

• Never block the air intake or exhaust, to prevent fires.

• Make sure the cord is not covered, do not place any objects on the cord and make sure nobody can trip over the cord.

• Avoid any contact with the heated device and make sure the electrical cord is not too close to the heated device.
• Keep flammable materials such as pillows, clothing, curtains, etc..away from the device.
• Do not use any extension cords in the bathroom or shower rooms, unless with extreme caution.
• Do not expose the device to rain, sunshine, etc...
• Do not use the device in the vicinity of a bath, a shower or a wimming pool.
• Before cleaning the device, you must deactivate the device by pulling the plug from the socket or by putting the heating knob on ‘0’.
• When the device is damaged, turn it off and remove the plug from the socket. Make no attempts to repair the damages yourself, always consult with an electrician or the customer service of the manufacturer. This to ensure proper materials are used.
• When you decide to never use the device again, we advise to cut the electrical cord after you removed the cord from the socket. We also advise to remove all components that might be dangerous to children.
• Installing the device must be done according to the instructions of the manufacturer. Installing the device in the wrong manner, might lead to accidents

with people, animals or damage other devices. The manufacturer cannot be held responsible for any damages if wrongful installment is the cause.

- Do not leave the device turned on and remove the plug when you are not in the vicinity of the device.

- Do not place the device against a power socket.

- 1. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• 2.Children of less than 3 years should be kept away unless continuously supervised.

- 3.Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- 4.CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

power light indicator high power 'II' (2000W) low power 'I' (1300W) off '0' fan thermostat indicator

WORKING INSTRUCTIONS

- Place the device on a level surface.

- Plug in the electrical cord into a power socket.

- The device has two knobs: a function knob (silver) and a thermostat knob (orange).

- Use the function knob to choose a setting between fan, off '0', low wattage 'I' or high 'wattage'. When you turn off the knob, the red power light indicator will turn on.

- The thermostat knob is used to control the temperature. When you turn the device on, you turn the thermostat knob counter clockwise on its highest setting. When the desired room temperature is reached, you turn the thermostat knob clockwise to its lowest setting, so the device stops warming. In this setting, the thermostat is equal to the room temperature. Whenever the room temperature drops, the device will turn on again until the desired room temperature is reached again. This allows you to keep the room temperature a constant.

- To turn the device off, you turn the thermostat knob to its lowest setting and put the function knob in its '0' setting.

- On the top side of the device, there is a button that allows automatic swing. Put this button in the 'I' setting to make the device swing automatically, allowing for the air to spread better. To make the device stop automatically swinging, turn that button in its '0' setting.

NOTE

The device is equipped with a thermic safety. In case the device is overheating, it will switch off automatically. Remove the plug from the socket and let the device cool off for about 10 minutes before using it again.

CLEANING

Make sure the device is in the ‘0’ setting and the plug is pulled from the power socket. Clean the surface of the device by using a moist (but not dropping) cloth. Do not immerse the device in water. Clean the grill on the back of the device with one of the smaller brushes on your vacuumer. Make no attempts to take the device apart. Never remove the grill of the device. Clean the rest of the device with a soft cloth.

ATTENTION: never use detergents, abrasive products, etc...These will damage the device. Do not use alcohol or other solvents.

STORAGE

Store away the device in a dry place.

PRECAUCIONES IMPORTANTES

Warning sign depicting steam rising inside a triangle, indicating caution or hazard level

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Out of dust bags? Need an anti-scale cartridge?

You can now also order our accessories and parts in the

Domo Webshop

Webshop Domo

Domo- Webshop

Domo Webshop

Surf naar:

Rendez-vous sur:

Einfach unter:

Surf to:

webshop.domo-elektro.be

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
