USER MANUAL LBN1110X Leonard

BESCHRIJVING VAN HET PRODUCT

Algemeen overzicht

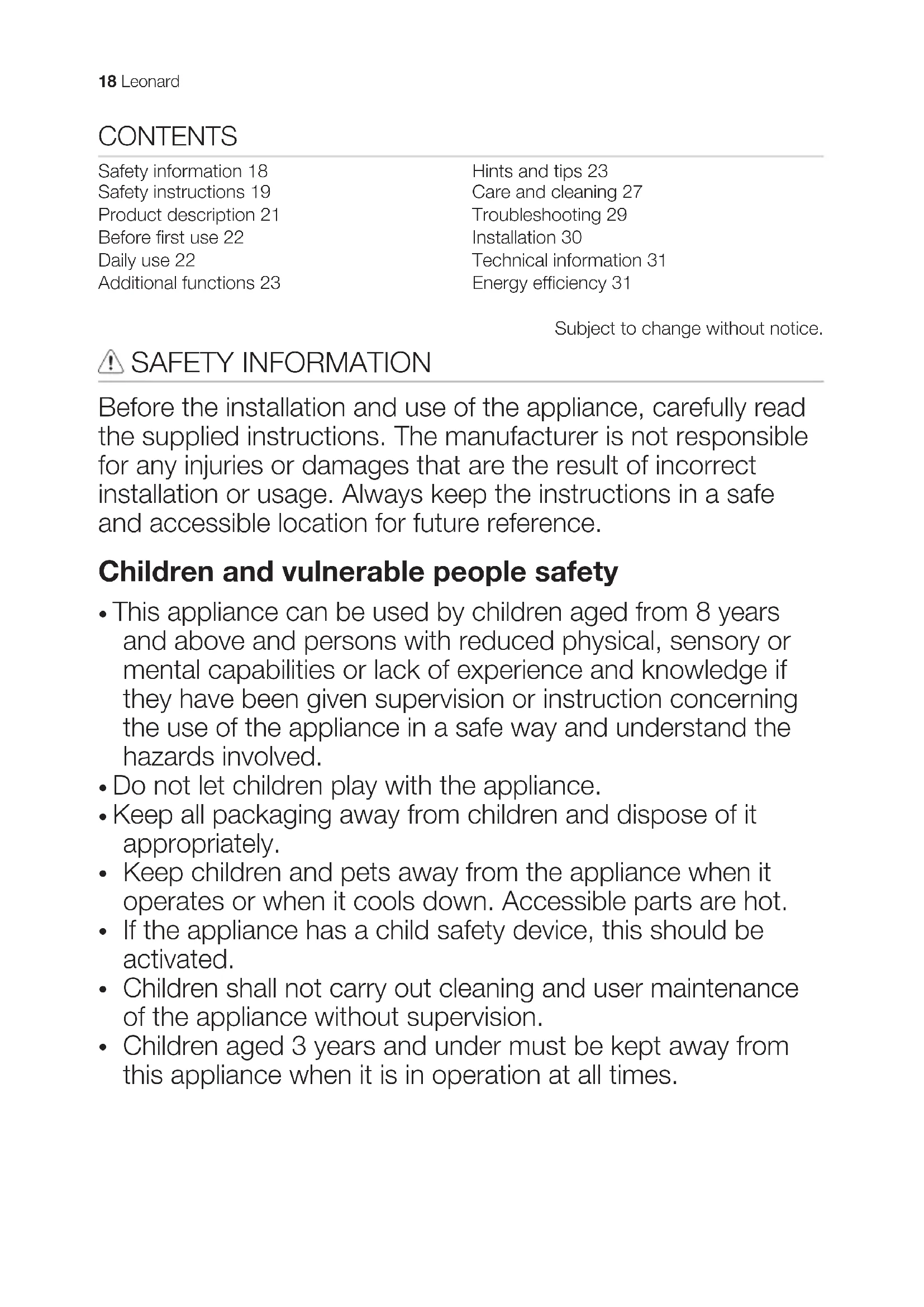

Safety instructions 19

Product description 21

Before first use 22

Daily use 22

Additional functions 23

Hints and tips 23

Care and cleaning 27

Troubleshooting 29

Installation 30

Technical information 31

Energy efficiency 31

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away from this appliance when it is in operation at all times.

General Safety

• Only a qualified person must install this appliance and replace the cable.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
  Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door, especially when the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance complies with the E.E.C. Directives.

Use

WARNING! Risk of injury, burns and electrical shock or explosion.

• This appliance is for household use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use microwave function to preheat the oven.

WARNING! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of the appliance.
• do not put water directly into the hot appliance.
• do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance is in operation. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

Care and cleaning

WARNING! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

Internal light

• The type of light bulb or halogen lamp used for this appliance is only for

PRODUCT DESCRIPTION

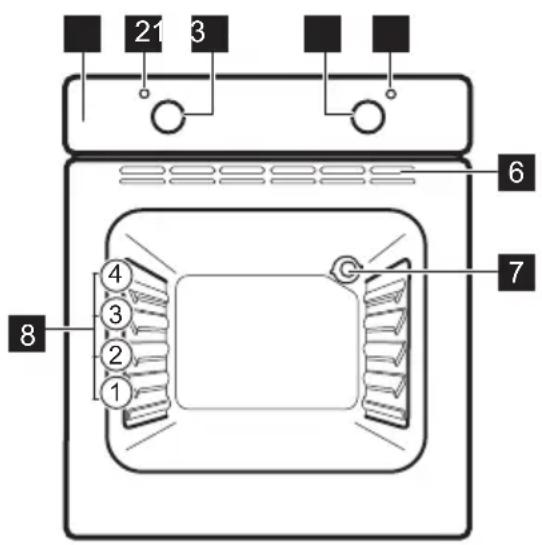

General overview

household appliances. Do not use it for house lighting.

WARNING! Risk of electrical shock.

• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

1 Control panel
2 Temperature lamp / symbol / indicator
3 Knob for the temperature
4 Knob for the oven functions
5 Power lamp / symbol / indicator
6 Air vents for the cooling fan
7 Lamp
8 Shelf positions

Accessories

Wire shelf

For cookware, cake tins, roasts.

BEFORE FIRST USE

- Aluminium baking tray

For cakes and biscuits.

WARNING! Refer to Safety

chapters.

Initial Cleaning

Remove all accessories from the appliance.

Refer to "Care and cleaning" chapter.

Clean the appliance before first use.

Put the accessories back to their initial position.

1. Set the function and the maximum temperature.
2. Let the appliance operate for 1 hour. Accessories can become hotter than usual. The appliance can emit an odour and smoke. This is normal. Make sure that the airflow in the room is sufficient.

Let the oven cool down. dampen a soft cloth with warm water and a little mild washing-up liquid and use this to clean the oven cavity.

Preheating

Preheat the empty appliance to burn off the remaining grease.

DAILY USE

WARNING! Refer to Safety

chapters.

Activating and deactivating the appliance

It depends on the model if your appliance has knob symbols, indicators or lamps:

• The indicator comes on when the oven heats up.

• The lamp comes on when the appliance operates.
  The symbol shows whether the knob controls the oven functions or the temperature.

• Turn the knob for the oven functions to select an oven function.

• Turn the knob for the temperature to select a temperature.
• To deactivate the appliance turn the knobs for the oven functions and temperature to the off position.

Oven functions

Oven function Application

0

Off position The appliance is off.

Oven function Application
	Conventional Cooking	To bake and roast food on 1 shelf position.
	Bottom Heat To bake cakes with crispy bottom and to preserve food.
	Top Heat To brown bread, cakes and pastries. To finish cooked dishes.

ADDITIONAL FUNCTIONS

Cooling fan

When the appliance operates, the cooling fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan stops.

Safety thermostat

Incorrect operation of the appliance or defective components can cause

HINTS AND TIPS

dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven activates again automatically when the temperature drops.

WARNING! Refer to Safety chapters.

The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

General information

• The appliance has four shelf positions. Count the shelf positions from the bottom of the appliance floor.
• Moisture can condense in the appliance or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance door while cooking. To decrease the condensation, operate the appliance for 10 minutes before cooking.

• Clean the moisture after each use of the appliance.

• Do not put the objects directly on the appliance floor and do not put aluminium foil on the components when you cook. This can change the baking results and cause damage to the enamel.

Baking cakes

• Do not open the oven door before 3/4 of the set cooking time is up.
• If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

• Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.
• To prevent too much smoke in the oven during roasting, add some water into the

deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

Baking and roasting table

Cakes

Food Conventional Cooking Time (min) Comments
	Temperature(°C)	Shelf position
Whisked rec-ipes	170 2 45 - 60 In a cake mould
Shortbreaddough	170 2 24 - 34 In a cake mould
Butter-milkcheese cake	170 1 60 - 80 In a 26 cm			cake mould
Apple cake (Ap-ple pie)	170 1 100 - 120 In two 20 cm			cake moulds ona wire shelf
Strudel 175 2 60 - 80 In a baking tray
Jam-tart 170 2 30 - 40 In a 26 cm				cake mould
Fruit cake 170 2 60 - 70 In a 26 cm				cake mould
Sponge cake(Fatless spongecake)	170 2 35 - 45 In a 26 cm			cake mould
Christmascake / Rich fruitcake	170 2 50 - 60 In a 20 cm			cake mould
Plum cake1)	170 2 50 - 60 In a bread tin
Small cakes 170 3 20 - 30 In a baking tray
Biscuits1)	150 3 20 - 30 In a baking tray
Meringues 100 3 90 - 120 In a baking tray
Buns1)	190 3 15 - 20 In a baking tray
	Temperature (℃)	Shelf position
Choux1)	190 3 25 - 35 In a baking tray
Plate tarts 180 3	45 - 70 In a 20 cm			cake mould
Victoria sand-wich	180 1 or 2 40 - 55 Left + right in a			20 cm cake mould

1) Preheat the oven for 10 minutes.

Bread and pizza

Food Conventional Cooking Time (min) Comments
	Temperature (°C)	Shelf position
White bread1)	190 1 60 - 70 1 - 2 pieces,			500 gr one piece
Rye bread 190 1	30 - 45 In a bread tin
Bread rolls1)	190 2 25 - 40 6 - 8 rolls in a			baking tray
Pizza1)	190 1 20 - 30 On a deep pan
Scones1)	200 3 10 - 20 In a baking tray

1) Preheat the oven for 10 minutes.

Flans

Food	Conventional Cooking Time (min)		Comments
	Temperature (°C)	Shelf position
Pasta flan 180 2 40 - 50 In a mould
Vegetable flan 200 2 45 - 60 In a mould
Quiches 190 1 40 - 50 In a mould
Lasagne 200 2 25 - 40 In a mould
Cannelloni 200 2 25 - 40 In a mould

Food Conventi nal Cooking Time (min) Comments
Temperature (℃)	Shelf position
Yorkshire pudding1)	220 2 20 - 30 6 pudding	mould

1) Preheat the oven for 10 minutes.

Meat

Food Conventional Cooking Time (min) Comments
	Temperature(°C)	Shelf position
Beef 200 2 50 - 70 On a wire shelf			and a deep pan
Pork 180 2 90 - 120 On a wire shelf			and a deep pan
Veal 190 2 90 - 120 On a wire shelf			and a deep pan
English roastbeef rare	210 2 44 - 50 On a wire shelf		and a deep pan
English roastbeef medium	210 2 51 - 55 On a wire shelf		and a deep pan
English roastbeef well done	210 2 55 - 60 On a wire shelf		and a deep pan
Shoulder ofpork	180 2 120 - 150 On a deep pan
Shin of pork 180	2 100 - 120 2 pieces on a		deep an
Lamb 190 2 110 - 130 Leg
Chicken 200 2 70 - 85 Whole on a			deep pan
Turkey 180 1 210 - 240 Whole on a			deep pan
Duck 175 2 120 - 150 Whole on a			deep pan
Goose 175 1 150 - 200 Whole on a			deep pan
Rabbit	190 2 60 - 80 Cut in pieces
Hare	190 2 150 - 200 Cut in pieces
Temperature (℃)	Shelf position
Pheasant 190 2 90 - 120 Whole on a			deep pan

Fish

Food Conventional Cooking Time (min) Comments
Temperature (°C)	Shelf position
Trout / Sea bream	190 2 40 - 55 3 - 4 fishes
Tuna fish / Salmon	190 2 35 - 60 4 - 6 fillets

CARE AND CLEANING

WARNING! Refer to Safety chapters.

Notes on cleaning

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.
• Clean the appliance interior after each use. Fat accumulation or other food remains may result in a fire.
• Clean stubborn dirt with a special oven cleaner.
• Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent.
• If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can cause damage to the nonstick coating.

Stainless steel or aluminium appliances

Clean the oven door with a wet sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions.

Cleaning the door gasket

• Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the appliance if the door gasket is damaged. Contact an Authorised Service Centre.
  To clean the door gasket, refer to the general information about cleaning.

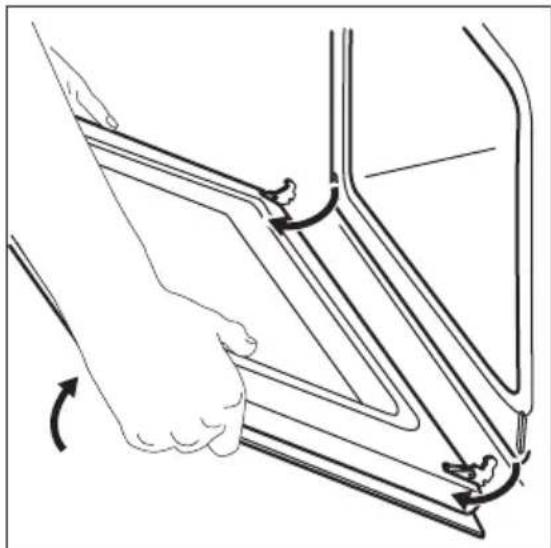

Cleaning the oven door

The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it.

The oven door can close if you try to remove the internal glass panel before you remove the oven door.

CAUTION! Do not use the appliance without the internal glass panel.

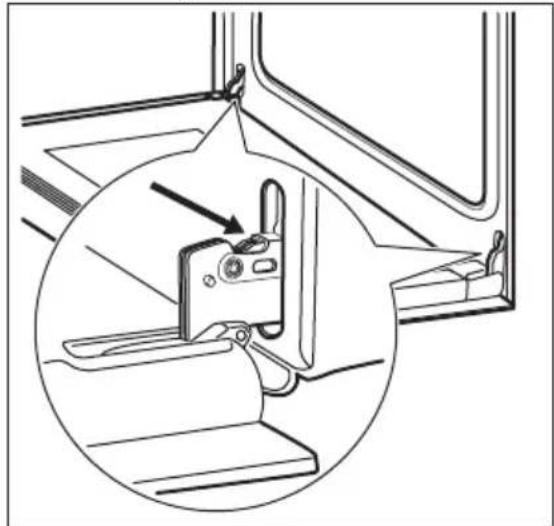

1. Open the door fully and hold the two door hinges.

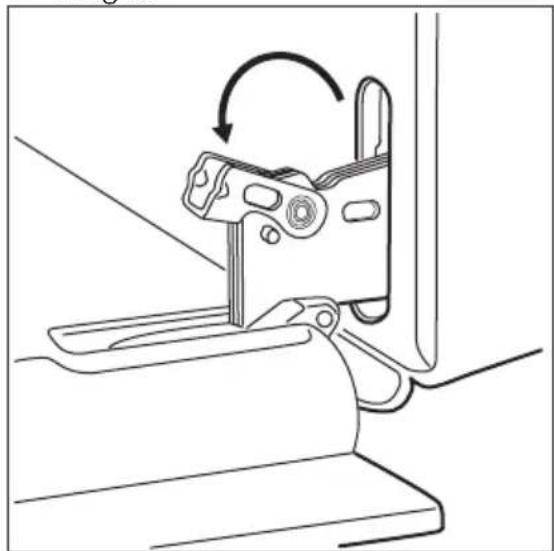

1. Lift and turn the levers on the two hinges.

1. Close the oven door halfway to the first opening position. Then pull forward and remove the door from its seat.

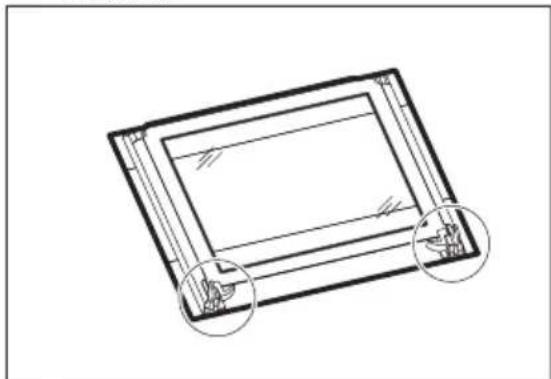

1. Put the door on a soft cloth on a stable surface.

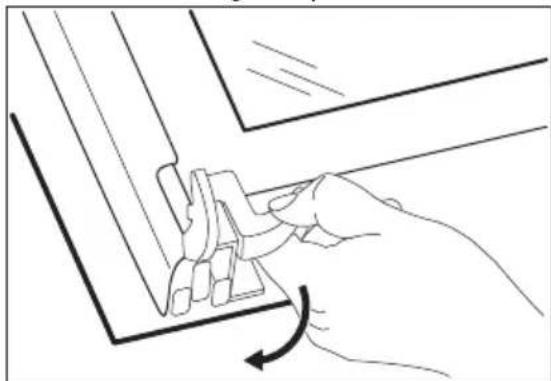

1. Release the locking system to remove the internal glass panel.

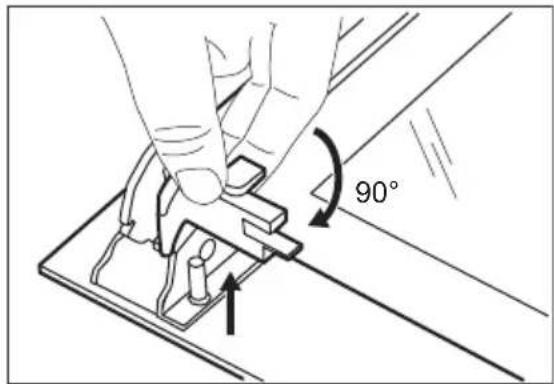

1. Turn the two fasteners by 90^ and remove them from their seats.

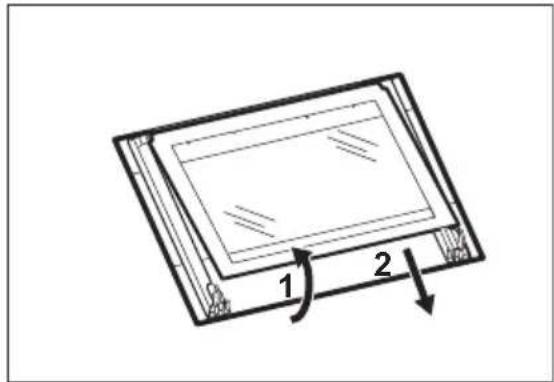

7. First lift carefully and then remove the glass panel.

1. Clean the glass panel with water and soap. Dry the glass panel carefully. When the cleaning is completed, install the glass panel and the oven door. Do the above steps in the opposite sequence.

The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it.

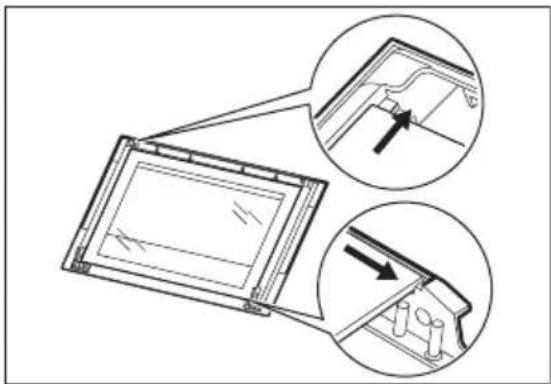

Make sure that you install the internal glass panel in the seats correctly.

Replacing the lamp

Put a cloth on the bottom of the interior of the appliance. It prevents damage to the lamp glass cover and the cavity.

WARNING! Danger of electrocution! Disconnect the fuse before you replace the lamp.

The lamp and the lamp glass cover can be hot.

1. Deactivate the appliance.
2. Remove the fuses from the fuse box or deactivate the circuit breaker.

The back lamp

1. Turn the lamp glass cover counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300^ heat-resistant lamp.
4. Install the glass cover.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy

The oven does not heat up. The oven is deactivated. Activate the oven.

Problem Possible cause Remedy
The oven does not heat up. The fuse is released. Make sure that the fuse is the cause of the malfunction. If the fuse releases again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation set- tle on the food and in the cavity of the oven.	You left the dish in the oven for too long.
	Do not leave the dishes in the oven for longer than 15 - 20 minutes after the cooking process ends.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on

the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

INSTALLATION

WARNING! Refer to Safety chapters.

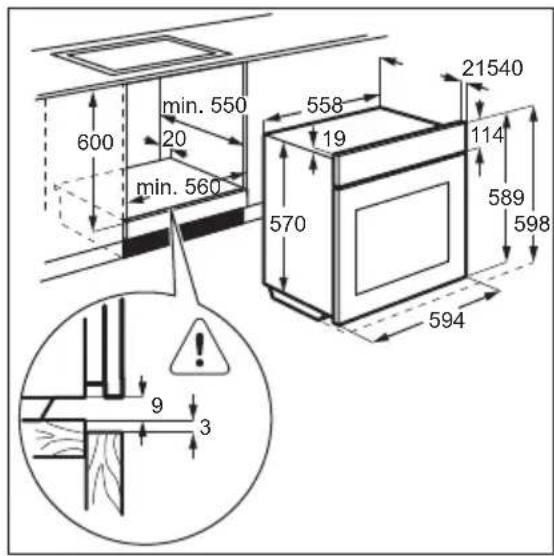

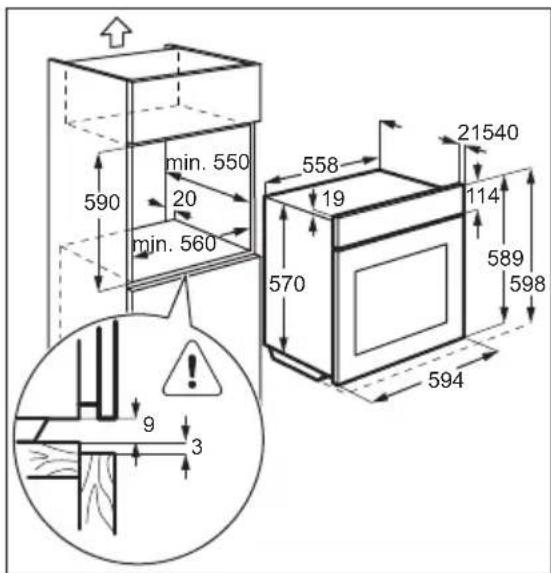

Building In

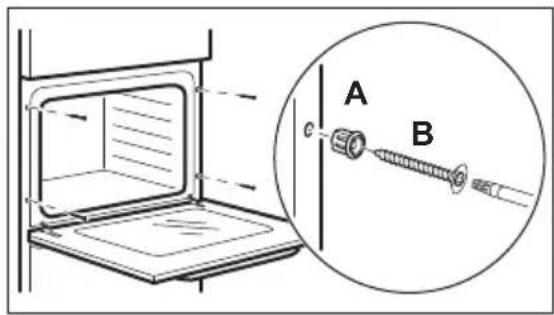

Securing the appliance to the cabinet

Electrical installation

The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters.

TECHNICAL INFORMATION

Technical data

Voltage 230 V

Frequency 50 Hz

ENERGY EFFICIENCY

Product Fiche and information according to EU 65-66/2014

Supplier's name Leonard

This appliance is supplied with a main plug and a main cable.

Cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F.

For the section of the cable refer to the total power on the rating plate and to the table:

Total power (W) Section of the cable (mm^2)

maximum 1380 3 x 0.75

maximum 2300 3 x 1

maximum 3680 3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

Model identification LBN1110X
Energy Efficiency Index 105.1
Energy efficiency class A
Energy consumption with a standard load, conventional mode	0.83 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 56 l
Type of oven Built-In Oven
Mass 25.0 kg

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

Energy saving

The appliance contains features which help you save energy during everyday cooking.

- General hints

• Make sure that the oven door is closed properly when the appliance operates and keep it closed as much as possible during the cooking.

• Use metal dishes to improve the energy saving.

• When possible, put the food inside the oven without heating it up.

• When the cooking duration is longer than 30 minutes, reduce the oven temperature to minimum, 3 - 10 minutes before the end of the cooking time, depending on the duration of the cooking. The residual heat inside the oven will continue to cook.

• Use the residual heat to warm up other foods.

• Keep food warm - if you want to use the residual heat to keep the meal warm, choose the lowest possible temperature setting.

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol

with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES
