USER MANUAL LV1520 Leonard

Koud water of warm water

leonard 23CONTENTS Safety instructions 24 Product description 26 Control panel 26 Programmes 27 Options 27 Before first use 28 Daily use 29 Hints and tips 31 Care and cleaning 31 Troubleshooting 32 Technical information 34 Environment concerns 34 Subject to change without notice. SAFETY INSTRUCTIONS Before the installation and use of the appli- ance, carefully read the supplied instruc- tions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the in- structions with the appliance for future ref- erence. Children and vulnerable people safety Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a per- son who is responsible for their safety.

• Do not let children play with the appli- ance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is open. Installation

• Remove all the packaging.

• Do not install or use a damaged appli- ance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Obey the installation instruction supplied with the appliance.

• Make sure that the appliance is installed below and adjacent to safe structures. Electrical connection Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shock- proof socket.

• Do not use multi-plug adapters and ex- tension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

• This appliance complies with the E.E.C. Directives. Water connection

• Make sure not to cause damage to the water hoses.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

• The water inlet hose has a safety valve and a sheath with an inner mains cable. 24 leonardWarning! Dangerous voltage.

• If the water inlet hose is damaged, imme- diately disconnect the mains plug from the mains socket. Contact the Service to replace the water inlet hose. Use

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other residential type environments – Bed and breakfast type environments. Warning! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

• Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the deter- gent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appli- ance until the programme is completed. There can be detergent on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appliance. Disposal Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil- dren and pets to get closed in the appli- ance. leonard 25PRODUCT DESCRIPTION

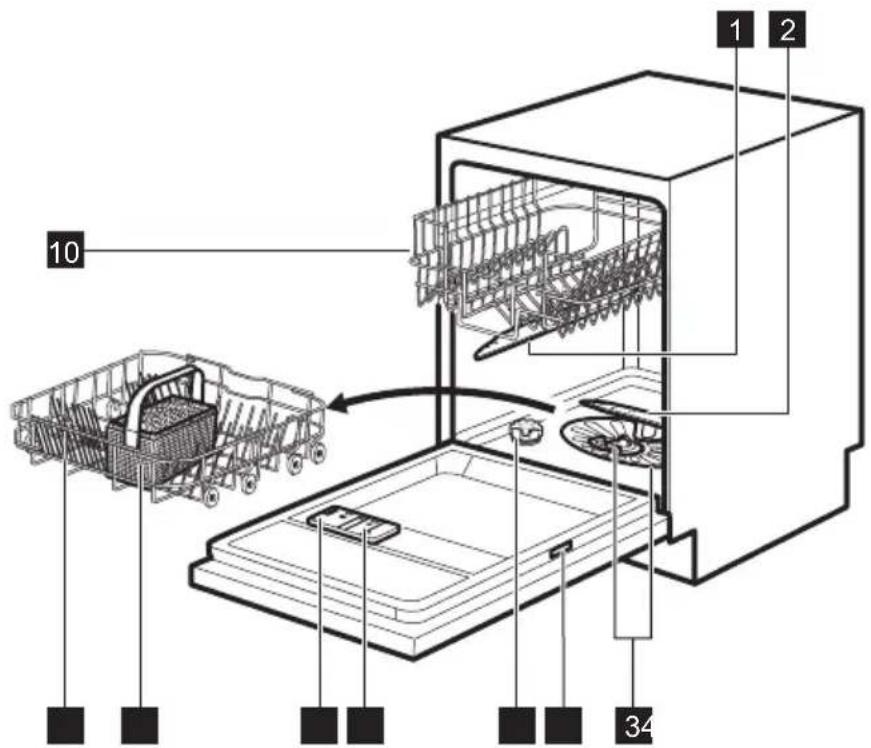

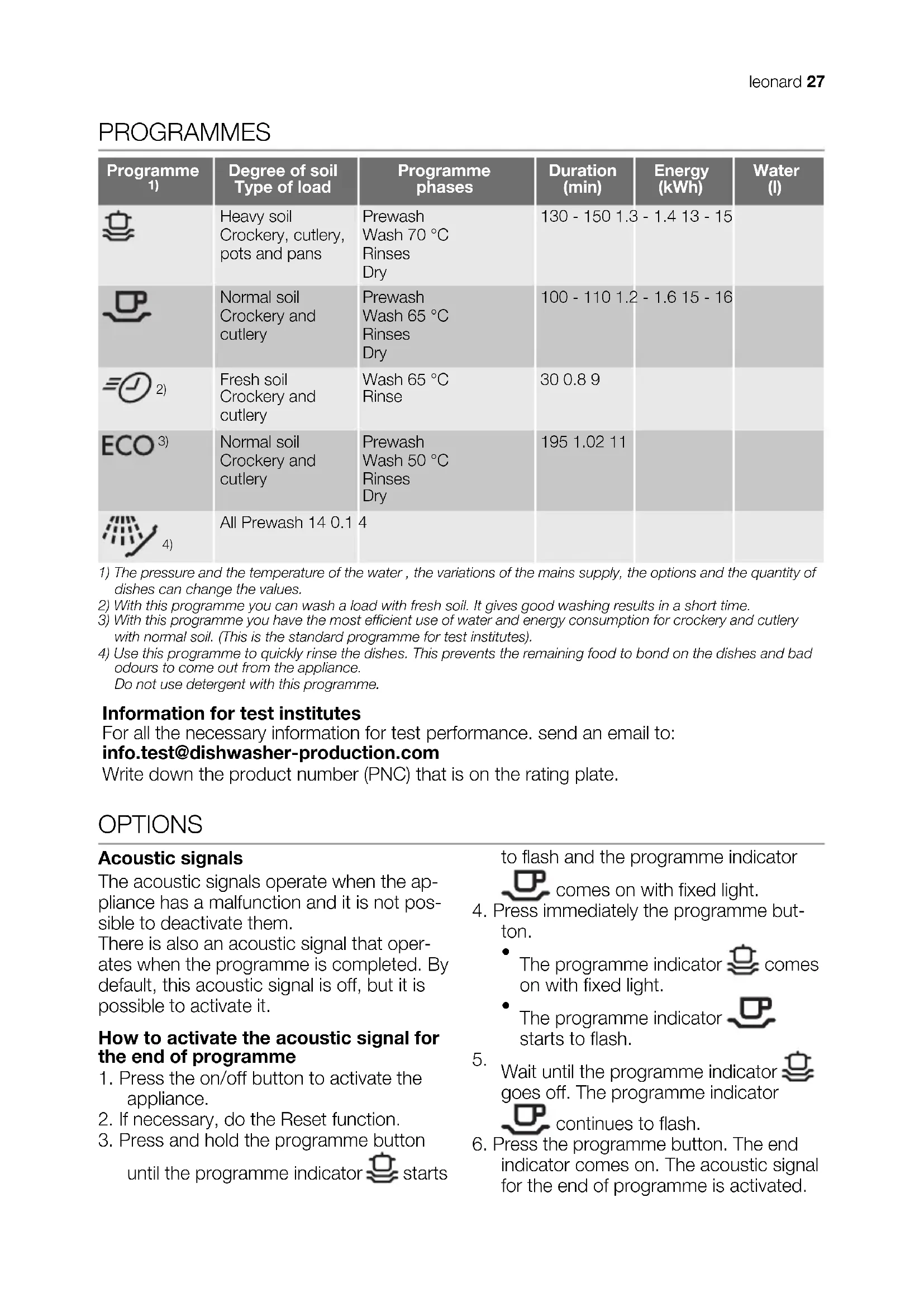

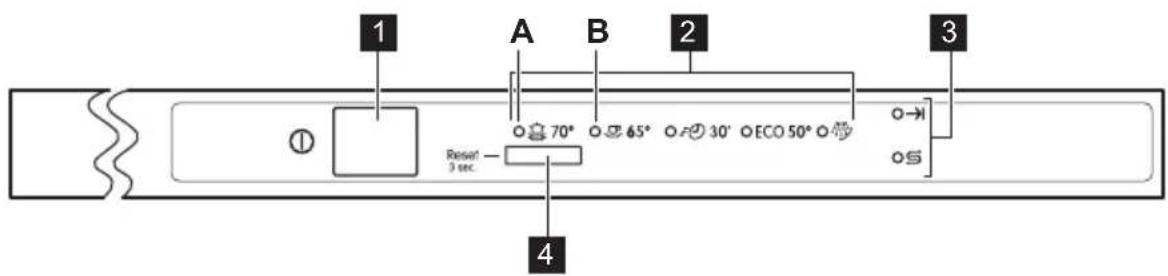

Degree of soil Type of load Programme phases Duration (min) Energy (kWh) Water (l) Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry

130 - 150 1.3 - 1.4 13 - 15

Normal soil Crockery and cutlery Prewash Wash 65 °C Rinses Dry

Fresh soil Crockery and cutlery Wash 65 °C Rinse

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry

1) The pressure and the temperature of the water , the variations of the mains supply, the options and the quantity of

dishes can change the values.

2) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

3) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery

with normal soil. (This is the standard programme for test institutes).

4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad

odours to come out from the appliance. Do not use detergent with this programme. Information for test institutes For all the necessary information for test performance. send an email to: [e-mail] Write down the product number (PNC) that is on the rating plate. OPTIONS Acoustic signals The acoustic signals operate when the ap- pliance has a malfunction and it is not pos- sible to deactivate them. There is also an acoustic signal that oper- ates when the programme is completed. By default, this acoustic signal is off, but it is possible to activate it. How to activate the acoustic signal for the end of programme

1. Press the on/off button to activate the

3. Press and hold the programme button

until the programme indicator starts to flash and the programme indicator comes on with fixed light.

4. Press immediately the programme but-

The programme indicator comes on with fixed light.

The programme indicator starts to flash.

Wait until the programme indicator goes off. The programme indicator continues to flash.

6. Press the programme button. The end

indicator comes on. The acoustic signal for the end of programme is activated. leonard 277. Press the on/off button to deactivate the appliance and to confirm the setting. How to deactivate again the acoustic signal for the end of programme

1. Refer to “How to activate the acoustic

signal for the end of programme” and follow the procedure from step (1) to step (5). The end indicator is on.

2. Press the programme button. The end

indicator goes off. The acoustic signal for the end of programme is deactiva- ted.

3. Press the on/off button to deactivate the

appliance and to confirm the setting.

1. Make sure that the set level of the water

softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water au- thority to know the water hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the ap-

pliance. Start a programme to remove them. Do not use detergent and do not load the baskets. Adjusting the water softener Water hardness Water softener adjustment German degrees (°dH) French degrees (°fH) mmol/l Clarke degrees Level

2) Do not use salt at this level.

Electronic adjustment

1. Press the on/off button to activate the

3. Press and hold the programme button

until the programme indicator starts to flash and the programme indicator comes on with fixed light.

4. Wait until the programme indicator

goes off and the end indicator starts to flash. The programme indicator continues to flash.

5. Press the programme button. The end

indicator starts to flash. The intermittent flashing of the end indicator refers to the current set level.

• E.g. 5 flashes + pause + 5 flashes = level 5.

6. Press the programme button again and

again to change the setting. Each time you press the programme button the level number increases. 28 leonard7. Press the on/off button to deactivate the appliance and to confirm the setting. Filling the salt container

Turn the cap counterclockwise and open the salt container.

2. Put 1 litre of water in the salt container

(only for the first time).

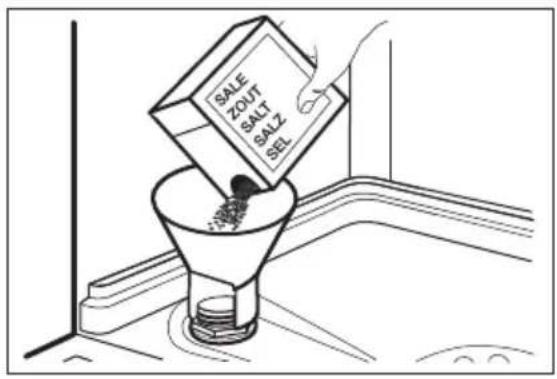

Fill the salt container with dishwasher salt.

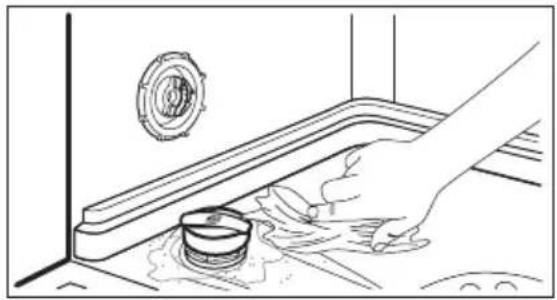

4. Remove the salt around the opening of

Turn the cap clockwise to close the salt container. Caution! Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a pro- gramme. Filling the rinse aid dispenser

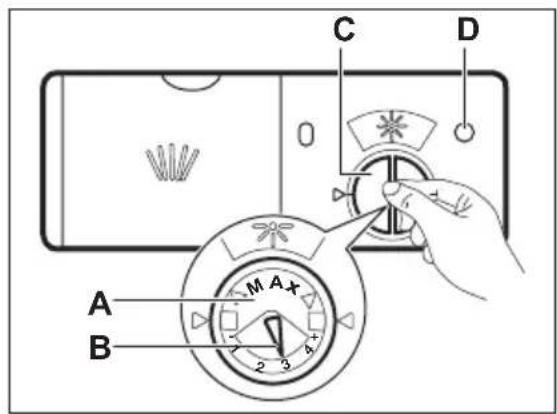

1. Turn the cap (C) counterclockwise to

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much foam.

4. Put the cap in position and turn it

clockwise to close the rinse aid dis- penser. Fill the rinse aid dispenser when the lens (D) is clear. You can turn the selector of the re- leased quantity (B) between position 1 (lowest quantity) and position 4 (high- est quantity). DAILY USE

1. Open the water tap.

2. Press the on/off button to activate the

• If the salt indicator is on, fill the salt container.

3. Load the baskets.

4. Add the detergent.

5. Set and start the correct programme for

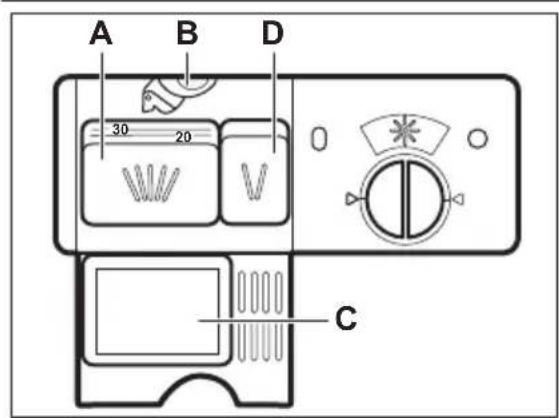

the type of load and the degree of soil. leonard 29Using the detergent

1. Press the release button (B) to open

Put the detergent in the compartment (A) .

If the programme has a prewash phase, put a small quantity of deter- gent in the compartment (D).

If you use detergent tablets, put the tablet in the compartment (A).

Close the lid. Make sure that the re- lease button locks into position. Using the combi detergent tablets When you use tablets, that contain salt and rinse aid, do not fill the salt container and the rinse aid dispenser. The rinse aid indica- tor always comes on if the rinse aid dis- penser is empty.

1. Adjust the water softener to the lowest

2. Set the rinse aid dispenser to the lowest

position. If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Press the on/off button to activate the

2. Set the water softener to the highest

3. Make sure that the salt container and

the rinse aid dispenser are full.

4. Start the shortest programme with a

rinsing phase, without detergent and without dishes.

5. Adjust the water softener to the water

hardness in your area.

6. Adjust the released quantity of rinse aid.

Setting and starting a programme Reset function For some settings it is necessary that the appliance is in user mode. The appliance is in user mode when all the programme indicators are on. To set the appliance in user mode, do the Reset function

1. Press and hold the programme button

until all the programme indicators come on. Starting a programme

1. Open the water tap.

2. Press the on/off button to activate the

3. Press the programme button again and

again until only the indicator of the pro- gramme you want to set is on.

4. Close the appliance door. The pro-

gramme starts. Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption. Cancelling the programme Do the Reset function. Make sure that there is detergent in the detergent dispenser before you start a new programme. At the end of the programme The end indicator comes on.

1. Press the on/off button to deactivate the

2. Close the water tap.

If you do not press the on/off button, after few minutes from the end of the programme all the indicators go off. This helps to decrease the energy con- sumption, 30 leonardImportant

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

• First remove the items from the lower basket, then from the upper basket.

• There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

The water softener Hard water contains a high quantity of min- erals that can cause damage to the appli- ance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water soft- ener clean and in good conditions. It is im- portant to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dish- washer salt and water. Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.

• Combi detergent tablets contain deter- gent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

• Detergent tablets do not fully dissolve with short programmes. To prevent de- tergent residues on the tableware, we recommend that you use the tablets with long programmes. Do not use more than the correct quantity of detergent. Refer to the in- structions on the detergent packaging. Loading the baskets Refer to the supplied leaflet with exam- ples of the load of the baskets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.

• Make sure that glasses do not touch oth- er glasses.

• Put the small items in the cutlery basket.

• Put the light items in the upper basket. Make sure that they do not move.

• Make sure that the spray arms can move freely before you start a programme. Before starting a programme Make sure that:

• The filters are clean and correctly instal- led.

• The spray arms are not clogged.

• The position of the items in the baskets is correct.

• The programme is applicable for the type of load and for the degree of soil.

• The correct quantity of detergent is used.

• There is dishwasher salt and rinse aid (unless you use combi detergent tablets).

• The cap of the salt container is tight.

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Dirty filters and clogged spray arms de- crease the washing results. Make a check regularly and, if neces- sary, clean them. leonard 31Cleaning the filters

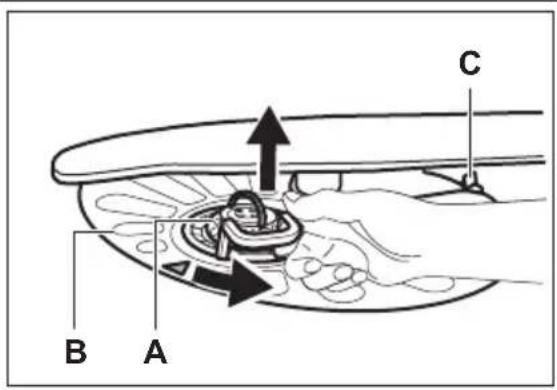

1. Turn the filter (A) counterclockwise and

To disassemble the filter (A), pull apart (A1) and (A2).

Remove the filter (B).

4. Wash the filters with water.

Before you put the filter (B) back, make sure that there are no residues of food or soil in or around the edge of the sump.

6. Make sure that the filter (B) is correctly

positioned under the 2 guides (C).

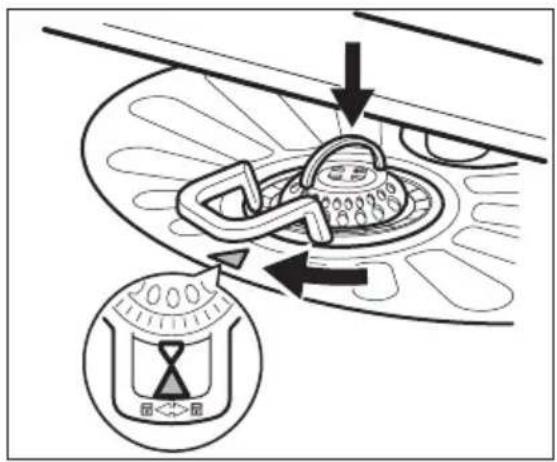

Assemble the filter (A) and put it back in filter (B). Turn it clockwise until it locks. An incorrect position of the filters can cause bad washing results and dam- age to the appliance. Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object. External cleaning Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents. TROUBLESHOOTING The appliance does not start or it stops during operation. Before you contact the Service, refer to the information that follows for a solution to the problem. With some problems, the end indicator flashes intermittently to show an alarm code. 32 leonardAlarm code Problem

• The end indicator flashes 1 time intermittently.

• Acoustic signal sounds 1 time intermittently. The appliance does not fill with water.

• The end indicator flashes 2 times intermittent- ly.

• Acoustic signal sounds 2 times intermittently. The appliance does not drain the water.

• The end indicator flashes 3 times intermittent- ly.

• Acoustic signal sounds 3 times intermittently. The anti-flood device is on. Warning! Deactivate the appliance before you do the checks. Problem Possible solution You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket. Make sure that there is not a damaged fuse in the fuse box. The programme does not start. Make sure that the appliance door is closed. The appliance does not fill with water. Make sure that the water tap is open. Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not clogged. Make sure that the inlet hose has no kinks or bends. The appliance does not drain the water. Make sure that the sink spigot is not clogged. Make sure that the drain hose has no kinks or bends. The anti-flood device is on. Close the water tap and contact the Service. After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service. If other alarm codes appear, contact the Service. If the washing and drying results are not satisfactory Whitish streaks or bluish layers on glasses and dishes

• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.

• The quantity of detergent is too much. Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.

• The quality of the detergent can be the cause. Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.

• The rinse aid dispenser is empty.

Cold water or hot water

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water

supply to decrease energy consumption. ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

• Discard correctly the packaging material. Recycle the materials with the symbol
