USER MANUAL TM6677 Tomado

• Read these instructions carefully and keep them in a safe place.

• Only use the appliance as described in this instruction manual.

• Any damage caused by failure to observe this instruction manual will immediately void the warranty. The manufacturer/importer accepts no liability for damages caused by failure to observe this instruction manual, careless use of the appliance or use that is not in accordance with the instructions set out in this instruction manual.

• Keep the appliance out of the reach of children.

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities (including children), or anyone lacking sufficient knowledge or expertise, unless supervised by or following instruction from someone responsible for their safety.

• Keep the appliance and its cord out of reach of children below the age of 8 years.

• Children must be strictly supervised to prevent them from treating the appliance like a toy.

• Do not allow unsupervised children to clean or maintain this appliance.

• Always remove the plug from the plug socket and allow the appliance to cool down: - before moving the appliance; - before storing the appliance; - before assembling or disassembling parts; - before cleaning the appliance or performing maintenance; - after using the appliance.

• Repairs may only be carried out by a qualified service centre*.

• Qualified service centre: the manufacturer’s or importer’s after-sales service department, which is authorised and competent to perform such repairs so that any danger is avoided. In the event of any problems, please return the appliance to this department. Electricity and heat

• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance. Instruction manual TM-667718

• Do not touch the appliance if it has fallen into water. Remove the plug from its socket, turn off the appliance and do not use it again.

• Do not use the appliance close to sources of heat, such as a stove or oven. Using the appliance

• This appliance is intended for domestic and similar use, such as: - in staff kitchens in shops, offices and other working environments; - on farms; - by hotel or motel guests or guests in other residential settings; - in bed and breakfasts or similar environments.

• The use of accessories not recommended by the manufacturer of the appliance may result in personal injury.

• Only use this appliance indoors, in dry areas away from water.

• Never immerse the appliance or the plug in water or any other liquid. This may result in a fatal electric shock!

• Do not use the appliance outdoors or on wet surfaces, to avoid the risk of electric shock.

• Place the appliance on a stable, level surface from which it cannot fall onto the floor.

• Place the appliance at least 50 cm from a wall or inflammable materials (such as curtains, candles or cloths).

• Always plug the appliance into an earthed plug socket.

• Regularly check the power cord for damage.

• Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service centre.

• Do not use any appliance with a damaged cord or plug or after the appliance has shown signs of defects, has fallen or has been damaged in any way. Return the appliance to the manufacturer or the nearest qualified service centre for inspection, repairs or electrical or mechanical modifications.

• Always remove the plug from the wall socket by pulling on the plug, not the power cord.

• Make sure the power cord does not come into contact with hot surfaces or steam.

• Always remove the plug from the power socket before moving the appliance.

• Do not operate the appliance by means of an external time switch or a separate remote control system.

• If an extension lead is required, use a 10 amp power cord. Power cords with a lower amp rating may burn out. When positioning the power cord, make sure that it cannot be pulled on or tripped over.

• Avoid overloading by not connecting too many appliances to a group.

• Never immerse the appliance, the plug or the housing in water or other liquids, to avoid the risk of electric shock. Instruction manual TM-667719

3. Power cord and plug

• Place the appliance on a stable and flat surface, not too close to hot objects or naked flames (such as stovetops or hotplates).

• Remove the plug from its socket when the appliance is not in use and for cleaning.

• Do not allow the power cord to hang over sharp edges, and keep it away from hot objects and naked flames.

• Never use the appliance if the power cord or plug show any signs of damage, if the appliance has fallen on the ground or in the event of any other form of damage. In such cases, take the appliance to a qualified person for inspection and, if necessary, have it repaired.

• Turn off the appliance and remove the plug from the socket before connecting the motor unit to one of the accessories or before removing the motor unit from one of the accessories.

• Always switch off and unplug the appliance after use, before cleaning, or if it malfunctions during use.

• Never allow unsupervised children to use electrical household appliances. Children are unable to assess the dangers associated with the incorrect use of electrical appliances.

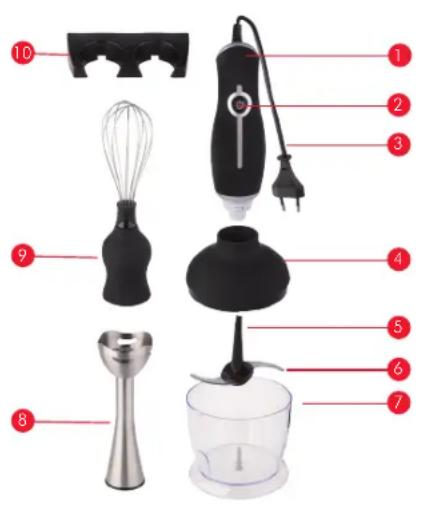

• Children who are close to the appliance or who are using it must always be kept under adult supervision. Warning! Do not touch the stick blender's blades. They are sharp. Instruction manual TM-667720 OPERATION You can use this stick blender set to quickly and easily mix, beat or chop various types of foodstuffs. The motor unit can be connected to a stick blender or a beater for mixing or beating liquids and sauces. The motor unit can also be connected to the chopper for chopping vegetables, fruits, meat or soft nuts. This set is completed by a wall holder for the stick blender and the beater. USING FOR THE FIRST TImE

• Remove all packaging from the appliance.

• Attach the wall holder to the wall (if desired).

• Clean the appliance, see 'Cleaning and Maintenance'.

• Continue with the procedure in ‘Using the appliance’.

• Do not use the appliance continuously for longer than 1 minute. Do not use it continuously for longer than 15 seconds for thick mixtures. Allow the motor to cool down for a couple of minutes.

• Use the appliance in short pulses. This gives a better result and will not damage the motor.

• Use small quantities of food. The appliance has not been designed to be used with large quantities of food.

• Do not use the appliance to mix boiling liquids. If you wish to mix hot liquids, first remove the pan from the heat source and allow the liquid to cool. This prevents burns due to splashing hot liquids.

• If you mix liquids in a large pan, make sure the level of the liquid is never higher than the connections between the stick blender and the motor unit. Using the stick blender or beater

• Attach the stick blender or beater to the motor unit. Slide the stick blender or beater onto the motor unit and rotate the stick blender or beater clockwise until it clicks into place.

• Place the ingredients in a mixing bowl or a pan.

• To prevent splashes, fully immerse the stick blender’s beater or blades in the ingredients.

• Insert the plug into the mains power socket.

• Press the On/Off button to turn on the appliance. Operate the appliance in short on/off pulses to prevent it from overheating.

• Carefully move the appliance up and down and make circular movements to mix the ingredients.

• Release the On/Off button to turn off the appliance.

• After use, remove the plug from the wall socket.

• Remove the stick blender or beater from the motor unit.

• Clean the motor unit and the stick blender or beater (see ‘Cleaning and maintenance’). Instruction manual TM-667721 CLEANING AND mAINTENANCE Warning Before cleaning the appliance, always switch it off and unplug it from the electricity supply. Cleaning

• Do not clean the appliance with an aggressive or abrasive cleaner or with a sharp object, such as a hard brush or a knife.

• Wash the stick blender, the beater and the chopper parts in hot soapy water. All these parts are dishwasher-safe.

• Clean the motor unit with a damp, soft sponge and a little washing-up liquid. The motor unit must not be immersed in water. STORAGE Store the stick blender set in a dry location. You can use the wall holder for storing the stick blender and the beater. TECHNICAL DATA TM-6677 Power: 200-250 W Voltage: 230 V - 50 Hz Chopper bowl capacity 0.75 litres Using the chopper

• Place the cutter on the shaft in the chopper bowl.

• Divide the ingredients into small pieces and remove any hard parts such as pips or bones.

• Place the ingredients in the chopper bowl.

• Place the lid on the chopper bowl and lock the lid by rotating it clockwise until it clicks into place in the bowl.

• Attach the motor unit to the chopper by rotating the motor unit clockwise until it clicks into place.

• Insert the plug into the mains power socket.

• Hold the appliance by the motor unit.

• Press the On/Off button to turn on the appliance. Operate the appliance in short on/off pulses to prevent it from overheating.

• After use, remove the plug from the wall socket.

• Remove the motor unit from the chopper.

• Remove the lid from the chopper.

• Remove the cutter from the chopper bowl.

• Clean the motor unit and the chopper (see ‘Cleaning and maintenance’). NOTE

• The blades of the stick blender and of the cutter are sharp. Instruction manual TM-6677the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.

• Other warranty regulations than the warranty regulations stated above are not applicable. Service For more information you can write to the following address (postage paid): TOMADO Consumentenservice Antwoordnummer 19016 NL - 1000 VC Amsterdam The Netherlands What do you do in case your appliance does not work? When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible. Repairs outside the warranty period You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge. We would like to congratulate you on buying an appliance from the TOMADO product range. Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.

• The warranty runs from the date of purchase; we advise you to carefully save your receipt.

• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.

• The warranty certificate has to be filled in by the sales person at the moment of purchase.

• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.

• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).

• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.

• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).

• TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting Warranty regulations
