| Product type | Active subwoofer |
| Brand | Paradigm |
| Model | MilleniaSub |
| Amplifier | Ultra-Class-D™, 900 watts dynamic peak / 300 watts sustained RMS |
| Bass drivers | Two polymer-reinforced cones 355 mm × 76 mm (14 × 3 in), back-to-back bipolar design, Santoprene® corrugated surround, 25 mm (1 in) voice coil |
| Low-frequency extension | 21 Hz (DIN) |
| Crossover frequency | Variable 35 Hz – 150 Hz, with bypass option |
| Phase control | Variable 0° – 180° |
| Inputs | RCA line level (Sub/LFE) |
| USB port | For connection of optional Perfect Bass Kit (PBK) |
| Dimensions (horizontal, with feet) | 13.75 cm × 46.5 cm × 35.5 cm (5½ in × 18¾ in × 14 in) |
| Dimensions (vertical, with feet) | 38.25 cm × 12.5 cm (foot width 17.9 cm) × 46.5 cm (15 in × 4¼ in (foot width 7 in) × 18¾ in) |
| Dimensions (wall mount, bracket included) | 35.6 cm × 46.5 cm × 15.0 cm (14 in × 18¾ in × 5¼ in) |
| Weight (unpacked, without feet/bracket) | 10.9 kg (24 lb) |
| Weight (unpacked, with feet/bracket) | 11.2 kg (24.5 lb) |
| Finishes | Satin black, satin white |
| Power on | Automatic (signal sensed) / standby |
| Wireless option | Via PT-2 transmitter (sold separately), RF 2.4 GHz, range 15 m, up to 4 subwoofers |
| Optional accessories | MilleniaSub wall-mount bracket, Perfect Bass Kit (PBK), PT-2 wireless transmitter |
| Warranty | 3 years (parts and labor) for the original purchaser |
| Cleaning | Soft damp cloth (not wet); no abrasive products |
| Safety | Do not expose to rain or moisture; ensure adequate ventilation; use only fuse of same specifications |
| Break-in | A few hours of operation before critical listening |
Frequently Asked Questions - MilleniaSub Paradigm
User questions about MilleniaSub Paradigm
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Subwoofer in PDF format for free! Find your manual MilleniaSub - Paradigm and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MilleniaSub by Paradigm.
USER MANUAL MilleniaSub Paradigm
This device contains FCC ID: YZY-HT205 and IC ID: 9261A-HT205. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications of this product, not approved by the manufacturer, may void the user's authority, to operate the equipment.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which, upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Paradigm Electronics Inc. (manufacturers of Paradigm speakers and Anthem electronics) has arranged with our distributors in European Union member nations to collect and recycle this product of no cost to you. To find your local distributor please contact the dealer from whom you purchased this product or go to our website at www.paradigm.com.
Please note that the product only falls under the WEEE directive. When disposing of packaging and other shipping material we encourage you to recycle through the normal channels.
DIRECTIVES SUR LE RECYCLAGE ET LA RÉUTILISATION (Europe)
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE, AND OBJECTS Filled WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE THE FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE. REFER REPLACEMENT TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE VENTILATION TO ALLOW FOR COOLING. DO NOT PLACE NEAR A HEAT SOURCE, OR IN SPACES THAT CAN RESTRICT VENTILATION.
Important safety instructions
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry a cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
-
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination, to avoid injury from tip-over.
-
Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Use the mains plug to disconnect the apparatus from the mains or "TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
- "WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC - SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE"
- "DO NOT EXPOSE THIS EQUIPMENT TO DRIpping OR SPLASHING AND ENSURE THAT NO OBJECTS Filled With LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT."
- "THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE."
Talk About Sub Yoga
Check out this positioning matrix. No Paradigm sub has ever offered so many placement options ...
#
Thanks for choosing a Paradigm sub! And congrats! It's obvious you have great taste since you've chosen the world's #1 Speaker Brand! We're not blowing smoke, we've been voted #1 twenty times* (the only speaker manufacturer in the world that can claim that achievement!).
Your MilleniaSub is part of Paradigm's 'Reference' collection ... cool style and superb quality that includes 'cost no object' technology at below what you'd pay for any other genuine high-end subwoofer with this much cool stuff. For those who salivate over techy details, we've included a Technology Tidbit section and Specs that give you the skinny on why your new sub sounds soooo good!
The difference this sub will make to your music and home theater experience can't be put into words but you'll hear it and you'll feel it. They say Paradigms put you in the moment and keep you there! The amorphous 'they' are right. It's a humbling experience, one that takes you beyond the sub's slim and toned beach bass body to a place where you're absolutely lost in the music or movie you're watching. We guarantee you won't be able to keep the Paradigm difference a secret. In fact, we hope you don't. Spread the word! Talk about it. BRAG about it! Play your sub and let others listen! Our mission is to rid the world of bad sound ... and by 'bad' we mean the kind of subwoofoers the big box stores stock, the ones that pretend to be dangerous and big-bass mean, but in the end couldn't give a fish in a fish bowl a fair shake.
The Paradigm experience is a glorious one and to make sure you get every note, nuance and scrumptious deep bass detail, read this manual and follow all instructions. If you still have questions, contact your dealer or visit the Q&A page on our website at www.paradigm.com.
PLEASE NOTE: Wall-mounting requires the MilleniaSub Wall-Mount Bracket system (sold separately, see dealer)
Audio is all about finding 'the spot' ... the sweet spot* in seating gets a lot of attention but so should finding the right spot for your sub. In a traditional setup, for best sonic integration, locating your sub between your front speakers, beside one of them or close to the back wall will usually provide the best bass performance.

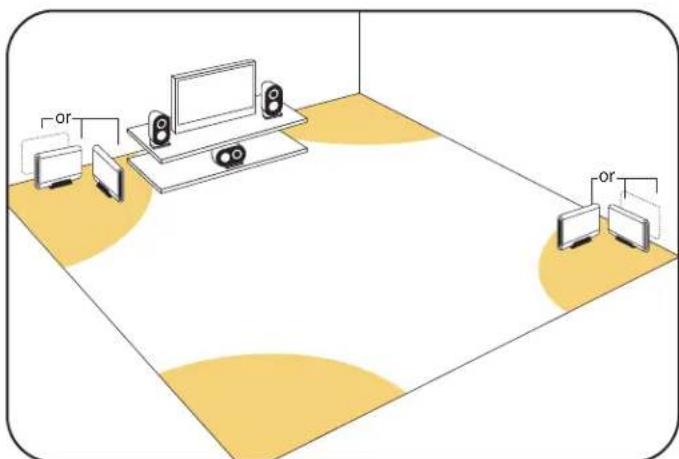

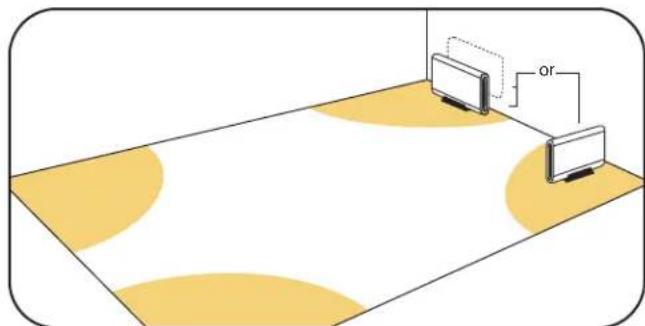

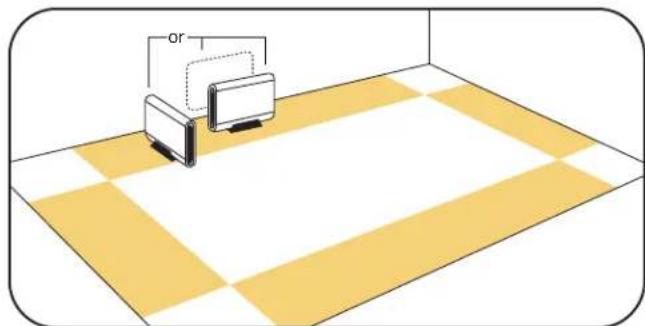

Fig. 1a and Fig. 1b highlight how bass output is generally affected by room placement. When seated in a typical listening area of your room, placing the sub inside the 'shaded' areas will result in bass performance as follows:
Fig. 1a: Corner placement provides the most bass but sometimes at the expense of accuracy.
Fig. 1b: A sub placed near a wall usually provides a good balance of quantity and accuracy.
Not shown: Under the couch! Ideal for those who want the sub heard but not seen! How will the 'under the couch' position affect the sound? That's where the Paradigm engineering magic comes into play ... its dual woofer back-to-back bipolar design is inherently vibration-cancelling for exceptional resonance and distortion reduction no matter where it sits—even hidden away under the couch.
Controls on the side panel will help you align your sub's output to the other speakers in your system.
The sweet spot is the optimal listening position ... the area that puts the listener facing and directly between the left and right front speakers.
Fig. 1a
Fig. 1b
Fig. 1c
Fig. 2

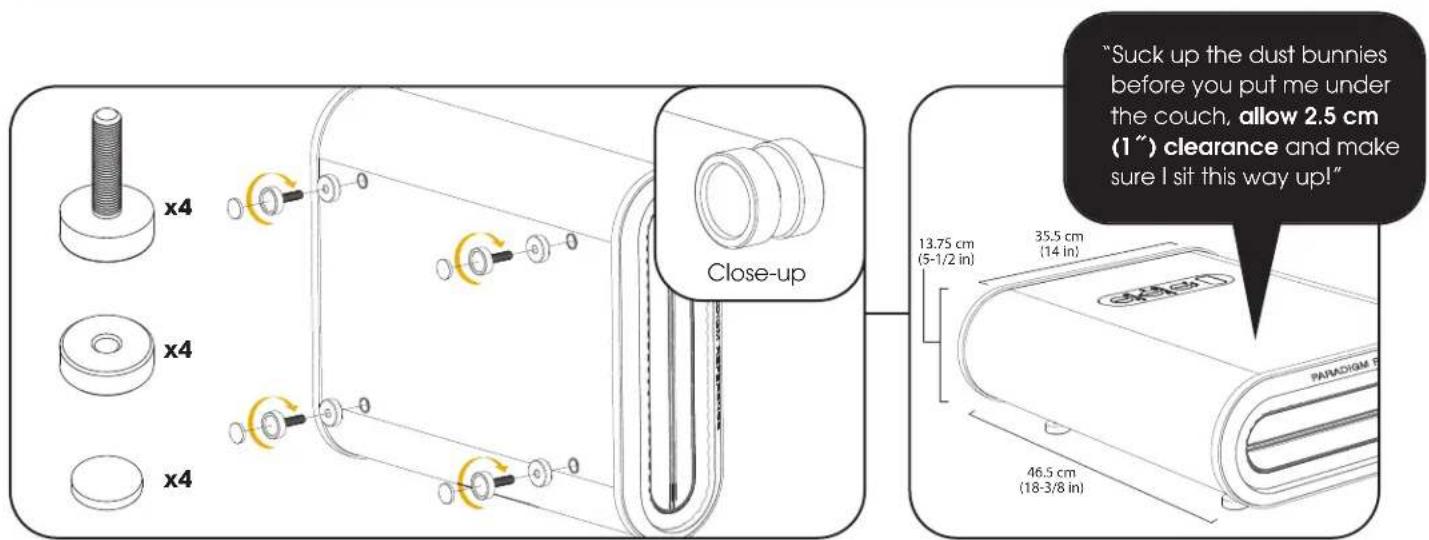

Down under
Fig. 3
While you're sprawled out on the couch listening to music or watching a movie your new sub is hard at work down under—out of sight but top of mind!
Fig. 4
Complete instructions for wall mounting your sub included with the MilleniaSub Wall-Mount Bracket system (sold separately, see dealer)
Watts up?
The Watts (W) rating indicated on the rear panel of your sub is the typical AC power the subwoofer will draw. Keep in mind, the actual wattage draw will vary with the bass content of the program material.
Break-In
Although your new sub will sound great right out of the carton, it will sound even better when broken in. Let it operate for several hours before you listen critically. If it has been transported or stored in the cold, allow it to warm to room temperature before you listen.
Cleaning
Use a damp (not wet!) soft cloth to clean. Never use a strong or abrasive cleaner on your sub.

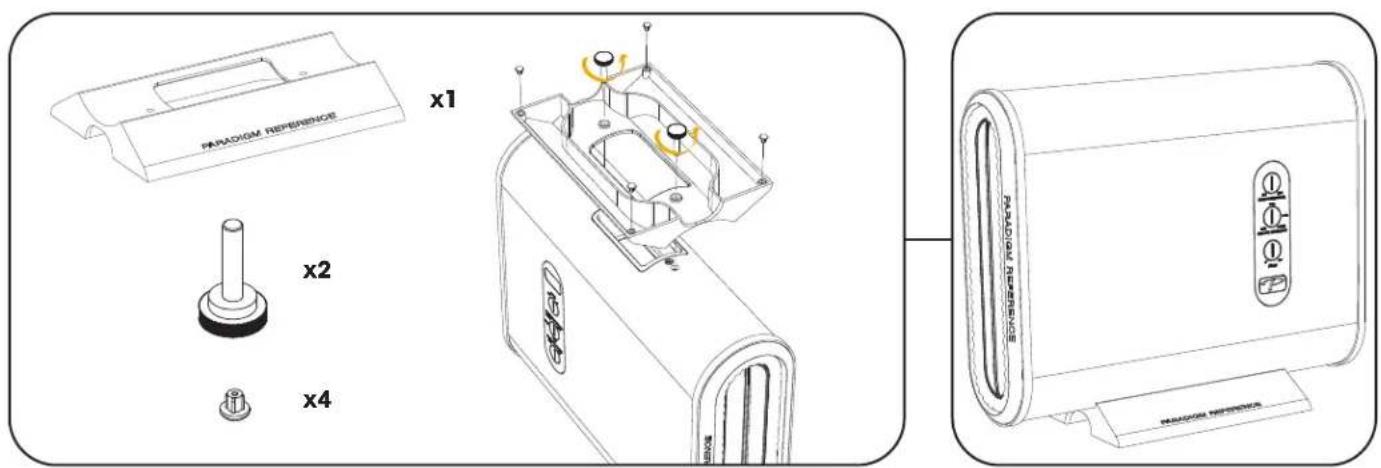

Taking a Stand, Down Under or Wall Mounting
It's up to you ... mount it on a stand out on show, fuck it away under the couch or wall mount your sub. We've included a very cool stand if you want your new bass baby out on show. See Fig. 2 for how to attach it to the stand. For those who want to hide the sub away, like maybe under the couch (Fig. 3), hardware is included. There's also a MilleniaSub Wall-Mount Bracket system available (sold separately, see dealer). For a sneak peek at the sub on a wall see Fig. 4.
The Freaky Effect of the Room
Although your Paradigm sub will deliver truly incredible sound in almost any room, it's important to note that room construction, room dimensions and yes, even furniture can play a part in sound quality. Keep these guidelines in mind:
- Mid and high frequencies are affected by the amount of curtains, carpets, sofas, wall coverings, etc. An excess of the soft stuff can result in a dull sound, but don't start tossing things because typically, the furnishings found in most living rooms provide the right acoustic characteristics to allow the speakers to sound balanced;
Concrete floors and walls aggravate low-frequency standing wave problems; - Rooms where height, width and length are similar should be avoided as they can exhibit significant low-frequency standing wave problems. This may result in reduced bass clarity.
If no other room is possible, experiment with speaker placement to minimize acoustic problems. Try the subwoofer in more than one spot (do this BEFORE you mount it on the wall!)
Sometimes rooms with problems (trust us, just like families nearly every room has problems!) are the only option. Sometimes the sub just looks really really good in a really really bad spot. But don't worry, your sub mates with our optional acoustic superhero, a room correction system that overcomes all acoustic compromises. It's called PBK ...
Paradigm Perfect Bass KitTM (PBK) and the Room Rescue Episode
Our superhero zooms in to the worst room situation: Dead spots, archways and poorly placed furniture are turning the room into an instrument, playing alongside musicians or movie scores with unwanted coloration and resonance. Bass is bloated and boomy with poor definition. Never fear ... PBK is here! In a scientific process that can take as little as five minutes, PBK wipes out problems of the room leaving your new Paradigm sub to do what it does best ... blow you and everyone who hears it away with its fabulous big bass sound. (PBK is sold separately, see dealer.)
Going wireless
TIP! Our PT-2 transmitter will work with up to four MilleniaSubs simultaneously
Placement plays a major role in optimizing bass performance. However, it can impose the inconvenience not to mention the unsightiness of running long lengths of cable through walls, along baseboards and under floors and carpets. Listening rooms can become a rat's nest of wires! When you choose the wireless option, cable clutter becomes a thing of the past and actual system setup time is often drastically reduced.
If you purchased the optional Paradigm PT-2 Transmitter to operate your new sub wirelessly, follow the operating instructions that came with the product.
If you did not purchase the PT-2 but are interested in going 'wireless', see dealer for more information.
Twins are more fun
Although a single MilleniaSub provides exceptional performance and substantial output, the quality and quantity of bass gets even better if you introduce twins—two (or more) subwoofoers in a room. This allows you to randomize the standing waves within your listening room so that bass is distributed in a more uniform manner. Multiple subs also provide even lower distortion, especially at high output levels. (See dealer for connection instructions using more than two subwoofoers.)
Putting the Twins in Their Place
When using two subwoofoers, placing one in the front of the room and the other in the rear of the room (Fig. 1c) usually provides the best bass performance and sonic integration. If those locations are not possible, or if you want to experiment with placement options using two subs, the following procedure will be a helpful guide to achieving better bass performance. Refer to section on 'Hookin' Up', then proceed as follows:
- Temporarily turn all full-range speakers off (either by turning your amplifier off or disconnecting them);
- Connect and place one subwoofer in the central area of your listening room. Follow directions for setup, as outlined in the following section;
- At a moderately loud level, play music or a video soundtrack with extended bass that is repetitive or continuous;
- Walk around your room and note where the bass sounds louder and where it sounds quieter;
- Place the first subwoofer within a louder bass area of your room; then place the second subwoofer within a quieter bass area of your room;
- Connect both subwoofoers and switch all full-range speakers back on; and switch the amplifier on, or reconnect it;
- Follow "Fine Tuning" instructions to optimize your system's overall bass performance.
NOTE: If you are not using the optional Paradigm Perfect Bass Kit (PBK) to find the best spot for your sub, you may want to use a bass test disc and SPL meter to more accurately determine the bass characteristics of your listening room (ask your dealer for the skinny on this). Remember! Room acoustics vary so it will take some experimenting with placement to achieve best performance.
Turn all components OFF before connecting the sub
Input
Line-Level (RCA) Input
Allows connection from the Sub/LFE Output of an A/V receiver, processor or other suitable low-level source.
IMPORTANT: Speakers set to 'Large' with your AV receiver or processor will still be reproducing bass frequencies so be very careful not to overdrive them!
Controls
Auto-On/Standby
Your subwoofer will turn on when it receives an input signal—eliminating the need for a power switch. If no signal is sensed for a period of time, the subwoofer will automatically switch to a low-power standby state.
Subwoofer Level
Balances the subwoofer output level to your speakers.
Subwoofer Cut-Off and Bypass Option
Controls the subwoofer's upper-frequency cut-off. This can be set to match the low-frequency roll-off characteristics of your front speakers. For example, if your front speakers play to approximately 80Hz , you can set the subwoofer cut-off frequency to approximately 80Hz .
Bypass Option allows you to bypass the subwoofer's built-in cut-off control to let your preamplifier/processor's or receiver's internal bass management system provide the crossover function.
Phase Alignment
Depending on where you put the subwoofer there may be bass frequency cancellation. This can occur because your subwoofer and front speakers are out-of-phase—they work against each other through their frequency overlap region. Bass is then reduced and may even sound disjointed. This control accurately synchs your sub and front speakers through the down-low frequencies where they overlap.
USB Port
Allows you to connect our optional acoustic superhero ... Paradigm's Perfect Bass Kit (sold separately, see dealer).
Connection

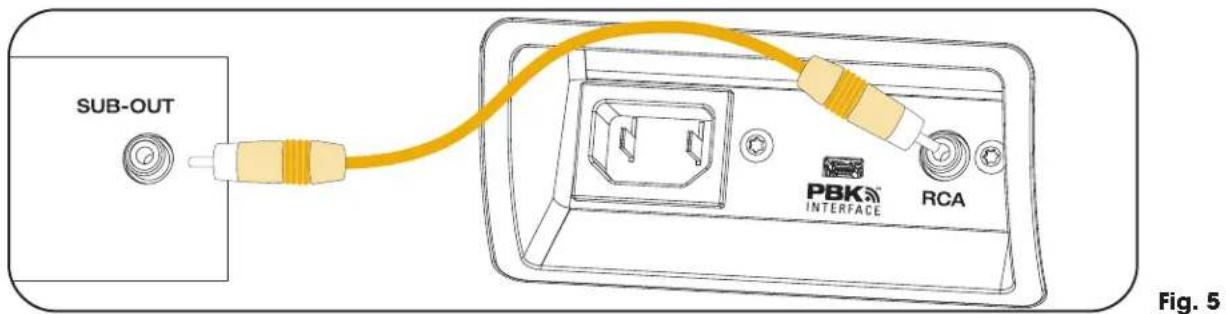

Line-Level Input from Sub/LFE Output (Fig. 5): For use with a receiver, processor or subwoofer control unit that has a Sub-Out/LFE-Out jack.
Using an RCA-to-RCA interconnect cable, connect the subwoofer as shown.
Fig. 5
pg6
Fine tuning
TIP! Use a slot-head screwdriver or even a large coin to adjust the controls on the side panel of your new subwoofer
Once you have the rest of your speakers positioned in the room and have set speaker distances and calibrated speaker levels with your processor or A/V receiver, it's time to fine tune your sub.
Subwoofer Controls
When setting the subwoofer controls use music and video soundtracks that you know well. They should contain selections with extended bass that is continuous and repetitive. When you are adjusting your subwoofer, remember: Bass should not be overbearing—the subwoofer should not draw attention to itself—but sound shouldn't be 'thin' or difficult to hear. Certain subwoofer placement may result in bass frequency cancellations—this occurs when your front speakers and subwoofer are 'out-of-phase,' in other words, they work against each other through the crossover region. This will result in bass being reduced. If bass sounds weak or dislocated adjust the phase according to the instructions that apply to your subwoofer in the setup procedures that follow.
Setting Subwoofer Controls
Set tone or equalizer controls on your receiver or preamplifier to flat (or 0 dB) and switch any loudness controls off.
NOTE: When using receivers with Automatic Level and Crossover setting systems such as Anthem's ARC, refer to your receiver's Owners Manual for correct setup procedure, otherwise follow the instructions below.
- Turn the Subwoofer Level control completely counter-clockwise to its minimum;
- Turn the Subwoofer Cut-Off Frequency control clockwise to 'Bypass';
- Set the Phase Switch to 0^
- While you listen to a selection in your primary listening area, have an assistant turn up the Subwoofer Level control until the subwoofer can be clearly heard;
- Have your assistant try the Phase Control Switch in both positions until you determine which one delivers the most bass. Your subwoofer and front speakers are now in phase. Do not change phase switch again unless you move your subwoofer or front speakers;
- Turn the Subwoofer Level control completely counter-clockwise to its minimum;
- Turn the Subwoofer Cut-Off Frequency control completely counter-clockwise to 35Hz
- Slowly rotate the Subwoofer Level control until you match the subwoofer output level with the level of your front speakers. Bass should be clearly audible, but not intrusive;
- Slowly rotate the Subwoofer Cut-Off Frequency control until you hear the best subwoofer/main speaker blend. If the sound is too 'thin,' you have not set the frequency high enough; if the sound becomes 'boomy' you have set the frequency too high. Adjust until you find the most natural balance.

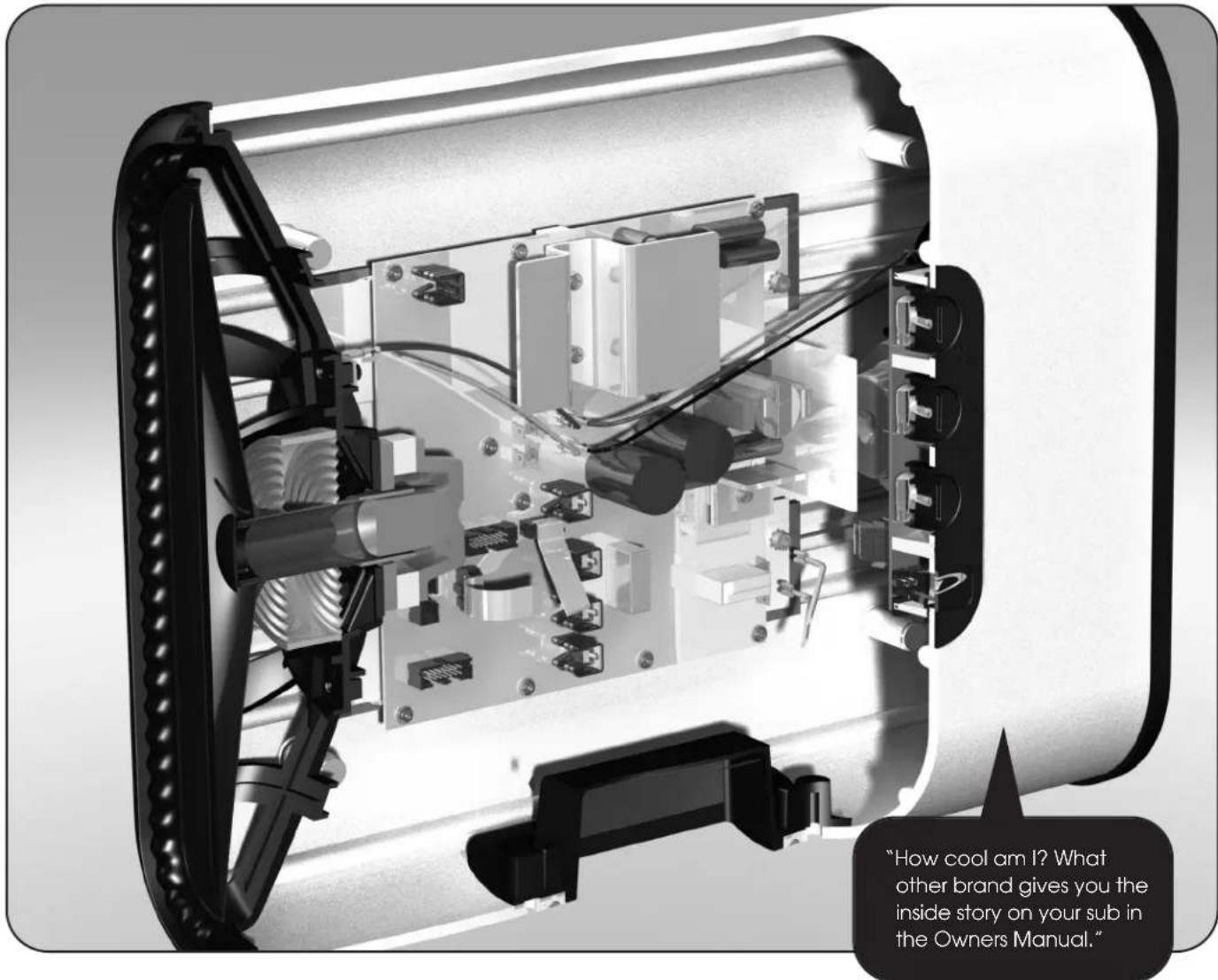

The Inside Story
| DESIGN WHAT'S COOL | |
| THE THINKING BEHIND IT | Maximum versatility ... more positioning options than a swami teaching yoga in an ashram! See our Positioning Matrix in the beginning of this manual! |
| WOOFER | Dual-woofer back-to-back bipolar design—inherently vibration cancelling. Monocoque cone construction—outer skin of the woofer cone carries the brunt of the motion stress. Radical dust cap design-braced through the cone center and over-molded to the cone's edge, moving primary breakup mode beyond the woofer's frequency band = no audible distortion, fabulous frequency response and well, wow ... it also just looks totally cool! High-energy density rare-earth neodymium magnets (swami approved for their radiating energy) = massive sound radiating power! |
| CABINET | 5-mm thick die-cast aluminum cabinet ... ultra-rigid yet thin enough (vs. a wood cabinet with the same exterior dimensions) to allow us to use large, powerful drivers = more power less package! |
Design Dual driver, sealed box, vibration cancelling, built-in
Ultra-Class-D power amplifier, built-in wireless receiver for wireless option, USB port for PBK equalization
Amplifier: High-Current, Discrete Output 900 watts Dynamic Peak / 300 watts RMS Sustained
Amplifier Design Features Auto-on, soft clipping, thermal monitoring
Bass Drivers Two 355-mm x 76-mm (14 in x 3 in) reinforced polymer cones,
corrugated Santoprene surrounds, 25-mm (1 in) voice-coils
Low-Frequency Extension* 21 Hz (DIN)
Subwoofer Cut-Off Frequency Variable 35 Hz - 150 Hz; Bypass option
Sub / Sat Phase Alignment Variable 0^ - 180^
Line-Level Inputs RCA Sub-Out/LFE-Out of receiver/processor
or other line-level source
Height, Width, Depth (horizontal, including feet) 13.75 cm x 46.5 cm x 35.5 cm
(5%) in x 18% in x 14 in
Height, Width, Depth (vertical, including stand)
38.25 cm x 12.5 cm (stand width 17.9 cm) x 46.5 cm
(15 in x 4% in (stand width 7 in) x 18% in)
Height, Width, Depth (on-wall, including hardware)
35.6 cm x 46.5 cm x 15.0 cm
(14 in x 18% in x 5/% in)
Weight (unpacked, not including stand / hardware)
10.9 kg / 24 lb each
Weight (unpacked, including stand / hardware)
11.2 kg / 24.5 lb each
Finishes
Satin Black, Satin White
Accessories (solid separately)
MilleniaSub Wall-Mount Bracket system
Paradigm Perfect Bass Kit room correction system
Paradigm PT-2 Wireless Transmitter (see below)
Wireless Option Only (using Paradigm PT-2 Transmitter)
RF Frequency
2.4 GHz
Latency
Selectable (15 / 20 / 25 ms)
Transmission Range
50ft/15m
Sampling Frequency / # Bits
48 kHz, 16 bits
Connectivity
Up to four subwoofoers per PT-2 transmitter
Paradigm Reference subwooers are warranted to be and remain free of manufacturing and/or material defects for a period of three (3) years from the date of the original retail purchase. Within this specified period, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge.
Thermal or mechanical abuse/misuse is not covered under warranty.
Limitations:
Warranty begins on date of original retail purchase from an Authorized Paradigm * Reference Dealer only. It is not transferable;
- Warranty applies to product in normal home use only. If the product is subjected to any of the conditions outlined in the next section, warranty is void;
- Warranty does not apply if the product is used in professional or commercial applications.
Warranty is Void if:
The product has been abused (intentionally or accidentally);
- The product has been used in conjunction with unsuitable or faulty equipment;
The product has been subjected to damaging signals, derangement in transport, mechanical damage or any abnormal conditions;
The product (including cabinet) has been tampered with or damaged by an unauthorized service facility;
The serial number has been removed or defaced.
What You Are Responsible For:
- Provide normal/reasonable operating care and maintenance;
- Provide or pay for transportation charges for product to service facility;
- Provide proof of purchase (your sales receipt given at time of purchase from your Authorized Paradigm *Dealer).
Should servicing be required, contact your nearest Authorized ParadigmReference Dealer, Paradigm Electronics Inc., or Import Distributor (outside the U.S. and Canada) to arrange, bring in or ship prepaid any defective unit. Visit our website at www.paradigm.com for more information.
Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured.
This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents, or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.
Retain this manual and your sales receipt for proof of warranty term and proof of purchase.
Love Notes
NilleniaSub
AVERTISSEMENT
RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVIR
AVERTISSEMENT:POUR MINIMISER LE RISQUE DE CHOC ELECTRIQUE,NE PAS OTER LE CAPOT (OU LE PANNEAU ARRIERE).IL N'Y A A L'INTERIEUR AUCUN COMPOSANT REPARABLE PAR L'UTILISATEUR. CONFIER TOUTE INTERVENTIONA UN PERSONNEL QUALIFIÉ.
Paradigm, Paradigm Reference, MillenniumSub and all associated proprietary and patented designs and technologies are registered trademarks of Paradigm Electronics Inc. Copyright © Paradigm Electronics Inc. All rights reserved. All other trademarks are the property of their respective owner(s). Paradigm Electronics reserves the right to change specifications and/or features without notice as design improvements are incorporated. Jason Hartog Photography. Printed in Canada. Designed, engineered and manufactured in Toronto, Canada by Paradigm Electronics Inc.
Paradigm Electronics Inc.
In the U.S./Aux E.U.: MPO Box 2410, Niagara Falls, NY 14302
In Canada/International/Au Canada/International:205 Annagem Blvd.,Mississauga,ON L5T 2V1
www.paradigm.com
MAN0043
