USER MANUAL VBold VELODYNE

• USB to micro USB cable

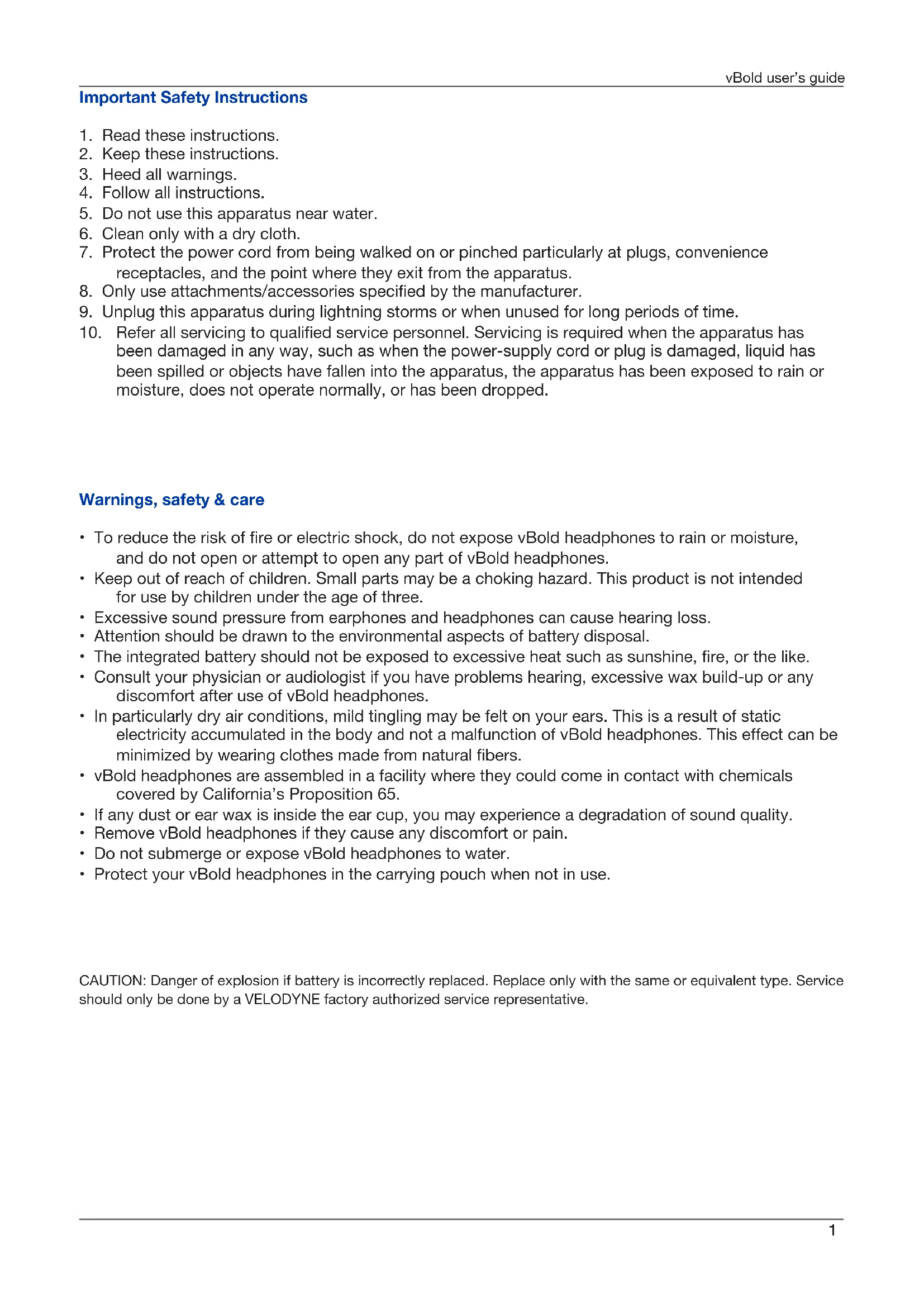

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

8. Only use attachments/accessories specied by the manufacturer.

9. Unplug this apparatus during lightning storms or when unused for long periods of time.

10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warnings, safety & care

• To reduce the risk of re or electric shock, do not expose vBold headphones to rain or moisture, and do not open or attempt to open any part of vBold headphones.

• Keep out of reach of children. Small parts may be a choking hazard. This product is not intended for use by children under the age of three.

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Attention should be drawn to the environmental aspects of battery disposal.

• The integrated battery should not be exposed to excessive heat such as sunshine, re, or the like.

• Consult your physician or audiologist if you have problems hearing, excessive wax build-up or any discomfort after use of vBold headphones.

• In particularly dry air conditions, mild tingling may be felt on your ears. This is a result of static electricity accumulated in the body and not a malfunction of vBold headphones. This effect can be minimized by wearing clothes made from natural bers.

• vBold headphones are assembled in a facility where they could come in contact with chemicals covered by California’s Proposition 65.

• If any dust or ear wax is inside the ear cup, you may experience a degradation of sound quality.

• Remove vBold headphones if they cause any discomfort or pain.

• Do not submerge or expose vBold headphones to water.

• Protect your vBold headphones in the carrying pouch when not in use. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Service should only be done by a VELODYNE factory authorized service representative. vBold user’s guide 1Sound Noise Level (dB) Effect Normal breathing 10 Just audible Whisper 30 Very quiet Normal conversation 50-65 Comfortable hearing levels are under 60 dB Vacuum cleaner, hair dryer 70 Intrusive; interferes with telephone conversation Average city trafc 80 Annoying; interferes with conversation; constant exposure may cause damage Lawnmower, food blender 85-90 85 dB is the level at which hearing damage (8 hrs) begins Garbage truck, cement mixer 100 No more than 15 minutes of unprotected exposure recommended for sounds between 90-100 dB Stereos (over 100 watts), thunderclap (near) 110-125 Regular exposure to sound over 100 dB of more than one minute risks permanent hearing loss Jet engines (near) 140 Threshold of pain begins around 125 dB *Information obtained from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx Please listen safely For trafc safety, do not use vBold headphones while driving or cycling. Do not wear vBold headphones while operating machinery. Adhere to local laws regarding the use of headphones. Listening with vBold headphones at high volumes may affect your hearing, including causing permanent damage. Ringing in your ears or other discomfort can indicate that the volume is too high. Hearing health is critical to enjoyment and the quality of life. Protect your hearing by listening with your vBold headphones in a responsible manner that protects your long term hearing health. Velodyne Acoustics, Inc. is not responsible for hearing loss or damage resulting from the use of this product. Cleaning Ear cups should be cleaned regularly for sanitary reasons and to prolong the life of your ear cups. Wipe using a clean soft cloth or microber towel. Do NOT use alcohol or sanitizer on the matte painted headphones as damage can occur. Do not get the speakers or electronics inside of your headphones wet. Liquids and heavy moisture can cause damage to the electronics inside your headphones. Such accidental damages are not covered under warranty. vBold user’s guide 2At a glance Specications Driver size: 40 mm Frequency response: 20 Hz - 20 kHz Sensitivity: 105 dB/1 kHz/1 mW Impedance: 32 Ω Frequency range: 2.4GHz - 2.4835GHz Transmission range: up to 10 m (33’) Power: lithium-ion polymer battery, 3.7 V / 430 mAh (rechargeable) Operating temperature: 0°C - 40°C Supports Bluetooth v2.1 + EDR, A2DP v1.2, AVRCP v1.0, HSP v1.2, HFP v1.6 Support codecs: SBC, AAC, apt-X *Design and specications are subject to change without notice vBold user’s guide 3Playback, volume, & phone functions Important: Playback, volume, and phone control functionality varies by media device. When using the audio cable, control the playback, volume, & phone functions by using the media device controls. Button Function Power / pair Long press (3 seconds) - power on Long press while off (5 seconds) - pairing Press and hold > 3 seconds - power off Play / pause / answer / end call Short press - play/pause Short press (while calling) - answer/end call Volume up (+) Increase volume (max level indicated by beep sound) Volume down (-) Decrease volume Next Press once to go to next track Press and hold to fast forward Previous Press once to go to previous track Press and hold to rewind Button functions Wired audio input LED battery status Micro USB port Left Play / pause / answer / end call Volume + Volume - Power / pair Previous Next Right NFC vBold user’s guide LED Function indicator 4Audio cable When using the audio cable, the audio signal is applied directly to the headphone speakers and all electronics are bypassed. No function of the headphones will work when using the audio cable other than simply playing the audio signal. Charging headphones Charging the vBold before using for the rst time is recommended in order to maximize battery life. Low battery is indicated by the LED status indicator ashing red approximately every 10 seconds. To begin charging, connect the USB cable (micro USB end) to the port behind the left ear cup. Connect the other end of the USB cable to any charge capable USB port or a USB-style charger. Your vBold headphones will begin charging, as represented by the red LED status indicator. Once charging is complete, the LED status indicator will illuminate green. Charge time About 1.5 hours Talk time Up to 10 hours Music playback time Up to 10 hours Standby time Up to 100 hours Fold your headphones vBold headphones can fold for easier storage. To fold, remove any cables attached to the headphone and push each ear cup inward towards the inside of the band. Pairing headphones

1. Make sure vBold headphones and pairing device are within 1 meter of each other when pairing

3. Press and hold the power button on vBold until the LED ashes blue and red repeatedly

Bluetooth devices on pairing device

5. Select Velodyne vBold from the “Devices Found” list on the pairing device (if you do not see

Velodyne vBold, repeat from step 1)

6. After successful pairing, the LED indicator will ash blue every 5 seconds

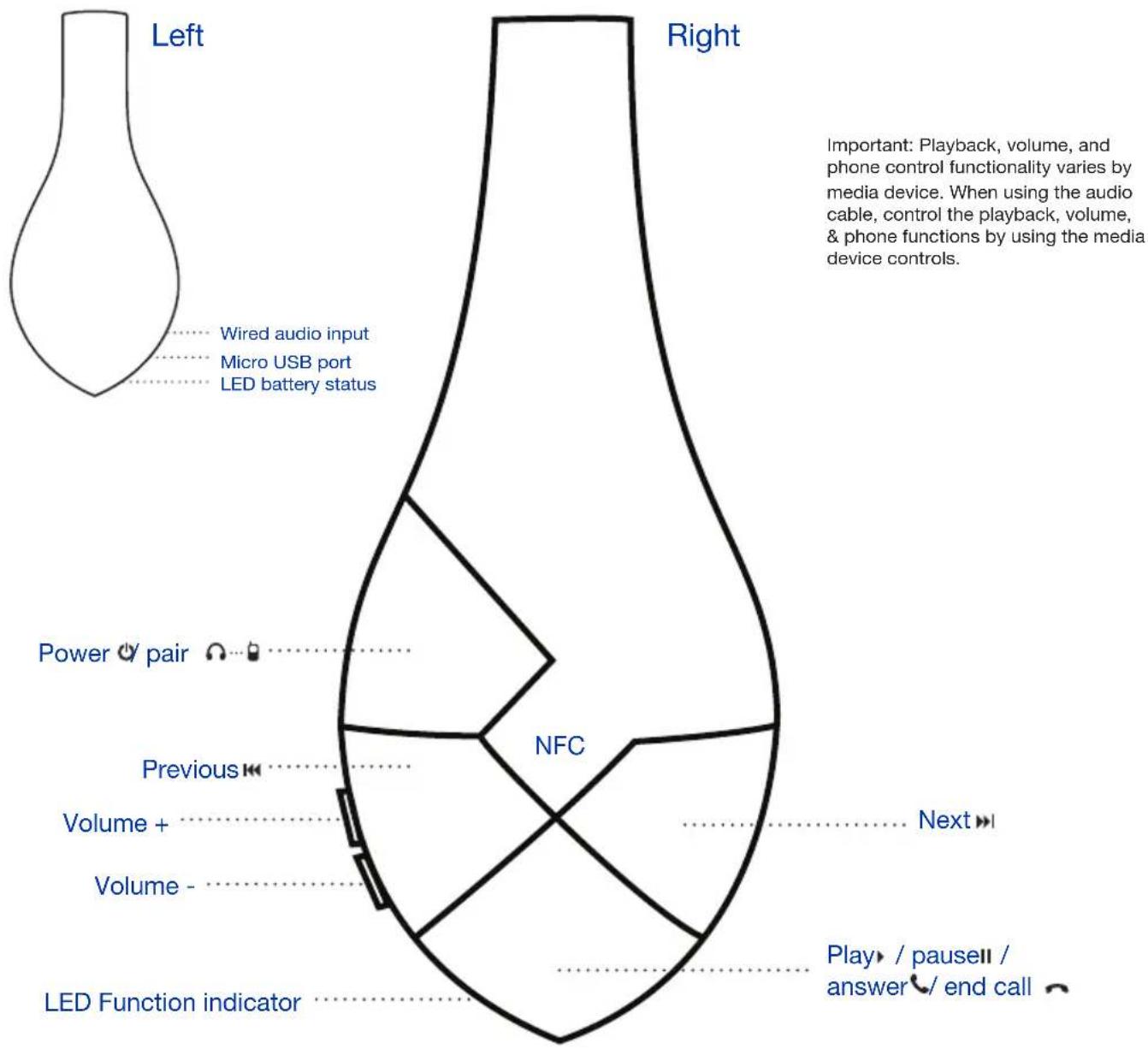

Note: Pairing is also possible by touching the center of the right ear cup with an NFC capable device. vBold user’s guide

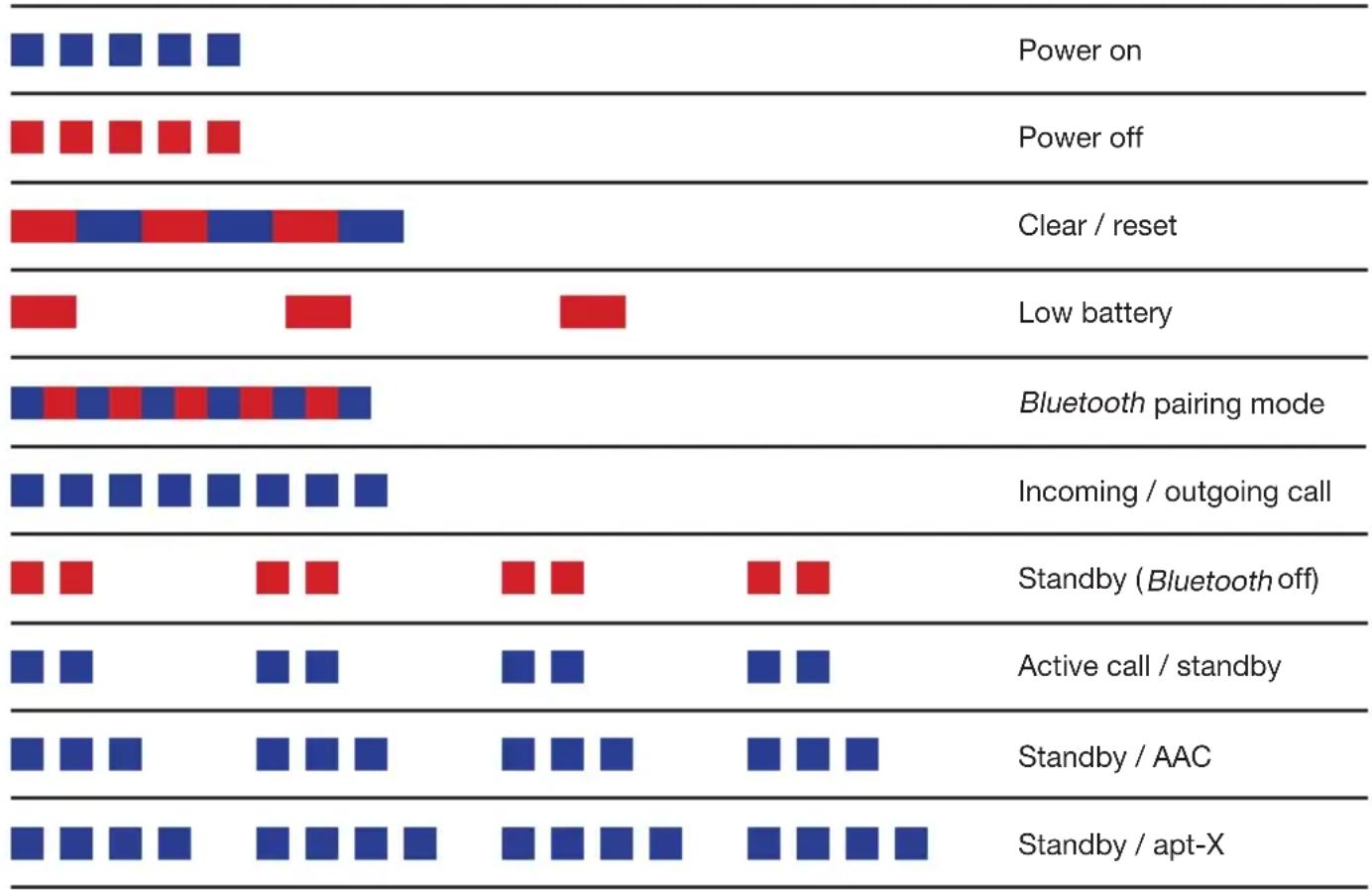

Reset functions Software reset (paired device list reset) In off mode press and hold the power and volume down (-) keys > 8 seconds. The LED indicator will ash quickly alternating red and blue. Hardware reset (use if the headset malfunctions and is unresponsive) While charging the headset press both the power and volume up (+) keys.LED indications Power on Power off Clear / reset Bluetooth pairing mode Incoming / outgoing call Active call / standby Low battery Standby / AAC Standby / apt-X Standby ( Bluetooth off) LED Activity Function Fast ashing (blue) x 5 Power on Fast ashing (red) x 5 Power off Fast ashing (red/blue) Pairing Flashing (red) every 10 seconds Low battery Flashing (blue) x 2 every 5 seconds Paired Flashing (red) x 2 every 5 seconds Standby ( Bluetooth off) Alternating (red/blue) ashing x 3 Clear setting / reset Flashing (blue) x 2 A2DP active with SBC codec Flashing (blue) x 3 A2DP active with AAC codec Flashing (blue) x 4 A2DP active with apt-X codec Fast ashing (blue) Incoming / outgoing call Fast ashing (blue) x 2 Active call When charging (red) Charging When charging (green) Full charge vBold user’s guide 6vBold user’s guide Product recycling Producing vBold headphones required the extraction and use of natural resources, and they may contain hazardous substances. Do not dispose of vBold headphones with your other household waste. Instead, take them to a designated collection point for the recycling of electronic equipment. The separate collection and recycling of your electronic waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For information about where you can drop off your waste equipment for recycling, contact your local city government or your household waste disposal service. 7FCC Regulations This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modication not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Europe - EU Declaration of Conformity The equipment complies according to the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC. This equipment meets the following conformance standards: Safety EN 60065/A 12:2011 Health EN 62479:2010

Guide de l’utilisateur vBoldFCC Regulations This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modication not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Europe - EU Declaration of Conformity The equipment complies according to the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC. This equipment meets the following conformance standards: Safety EN 60065/A 12:2011 Health EN 62479:2010

Guide de l’utilisateur vBold18 Guide de l’utilisateur vBold© 2013 Velodyne Acoustics, Inc. All rights reserved. Velodyne and Velodyne logos are trademarked by Velodyne Acoustics, Inc. vBold is a trademark of Velodyne Acoustics, Inc. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by Velodyne Acoustics, Inc. is under license. 63-VBOLD Rev A JUL13 Register your headphones velodyne.com/warranty-registration ©2013 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill CA 95037 Follow Velodyne Acoustics, Inc. velodyne.com twitter.com/velodyneaudio facebook.com/velodyne thevelodyneblueroom.com
