USER MANUAL Stormy KR CAR Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

#

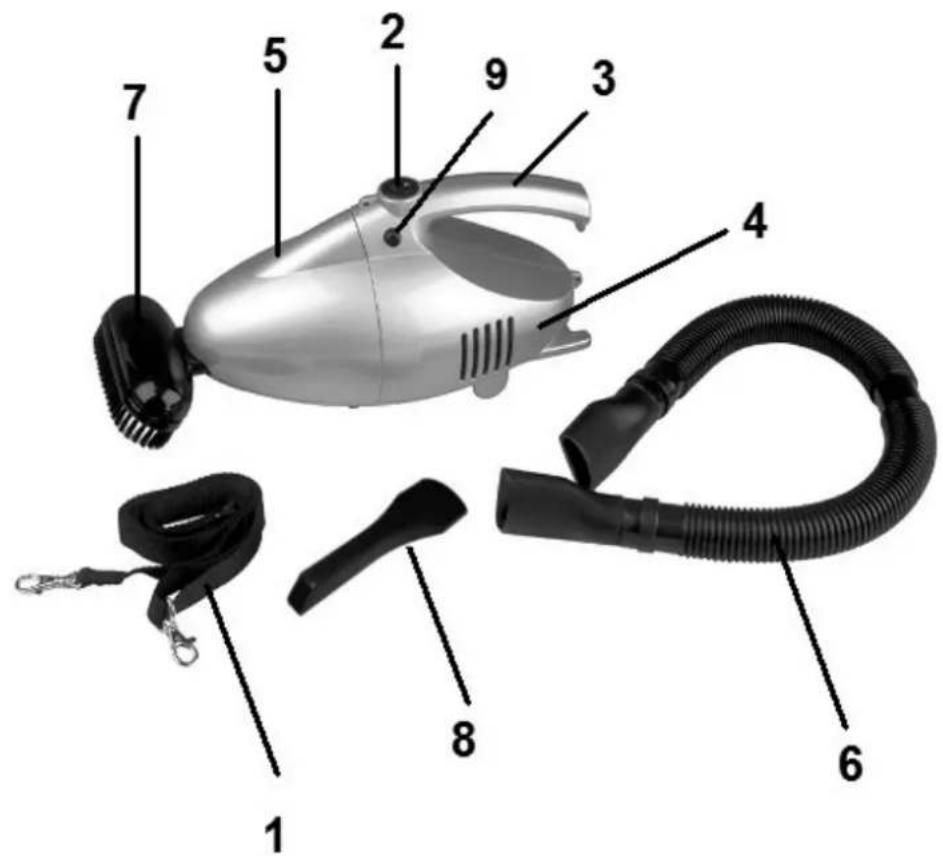

Labeled diagram of a vacuum cleaner with numbered parts for identification

#

D

1. Shoulder strap
2. 0/1 switch
3. Handle
4. Body
5. Dust cover
6. Tube
7. Floor brush
8. Crevice tool
9. Release button of the dust collector

NL

q Please read these instructions carefully before using the appliance.
q Only use the appliance in the way indicated in this instruction manual.
q Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
q Check that your mains voltage corresponds to that stated on the appliance.
q Never leave your appliance unsupervised when in use.
q People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
q Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
q From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
q Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
q Never use the appliance near hot surfaces.
q Should the cord be damaged, it must be replaced by a competent qualified electrician(1).
q Before cleaning, always unplug the appliance from the power supply.
q All repairs should be made by a competent qualified electrician(1).
q Always place the appliance in a dry environment.
q Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
q Before plugging in the cord, make sure the switch is set to the minimum position.
q Unplug the appliance when not in use or when changing the filter.
q This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance.
q Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
q Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
q If your appliance does not vacuum correctly, empty the dust collector.

#

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories.
• To fit the tube, insert it into the air intake duct.
• Then fit the tube to the nozzle or the selected brush.
• To remove tube and accessories, pull firmly apart.

OPERATION

• Insert the plug into the power socket and press the 0/1 switch.
  •The wide brush is ideal for the daily cleaning of carpets and hard floors.
• The small brush is intended to clean curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

AFTER USE

-Stop the vacuum cleaner by pressing the 0/1 switch.
- Disconnect plug from electrical outlet.

MAINTENANCE

Cleaning the dust filter and dust container:

• Detach the dust container from the motor unit by pressing down the release button (above a dust bin).
• Remove the filter and empty the dust container.
  •To clean the filter you can use your ordinary vacuum cleaner or you can shake it or if necessary, wash the filter in lukewarm soapy water. In the last case, rinse it afterwards with clear water and make sure that the filter is completely dry before re-inserting it in position.
• Don't forget to put the filter in position after removing it for cleaning.
• Damaged or very dirty filter should be replaced. Therefore ask the nearest after sale service.

SHOULDER STRAP

You can attach the shoulder strap by attaching the loops in each hole at the extremities of the appliance. This facilitates the use.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

#

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

#
