Product type	Radio alarm clock
Brand	Bigben Interactive
Model	RR30H5
Mains power	230 V ~ 50 Hz
Backup battery	9 V (not supplied)
Backup battery life	Approximately 8 hours
Speaker	8 ohms, 1 W
Output power	2 x 0.5 W
Wave bands	FM : 88 - 108 MHz / AM : 520 - 1620 kHz
Display	24 hours
Alarms	Independent dual alarm (AL1 / AL2)
Snooze function	9-minute snooze
Sleep function	Delayed radio shutdown (max 1 h 59 min)
Wake-up	By radio or buzzer (ring)
Antenna	Telescopic FM
Dimensions	Not specified
Weight	Not specified
Maintenance	Clean with a soft dry cloth
Safety instructions	Do not open, do not expose to water or moisture
Spare parts / Repairability	Contains no user-serviceable parts. Refer to qualified technician.
Recycling	Do not dispose of with household waste. Take to collection point.
Importer	Bigben Interactive France, 396 Rue de la Voyette, CRT2, 59814 Lesquin Cedex

Frequently Asked Questions - RR30H5 BIGBEN INTERACTIVE

How to set the time on the RR30H5 radio alarm clock?

Press and hold the CLOCK SET button, then press HOUR for hour and MINUTE for minutes. The display is in 24-hour format.

How to set an alarm?

Set the AL1/AL2/AL1+2 switch to AL1 or AL2. Set the BUZZER/AUTO/STANDBY/ON switch to BUZZER or AUTO. Press and hold ALARM SET and set the time with HOUR and MINUTE.

How to wake up with the radio?

Set the BUZZER/AUTO/STANDBY/ON switch to AUTO. Set the alarm time and adjust the volume. The radio will turn on at the programmed time.

How to use the Snooze function?

When the alarm sounds, press the ALARM/SLEEP/STANDBY button to snooze for 9 minutes. To cancel, set the alarm to STANDBY.

How to fall asleep with the radio?

Set the switch to BUZZER, STANDBY or AUTO. Press SLEEP, then press and hold SLEEP and set the duration with HOUR and MINUTE (max 1h59).

What to do in case of a power outage?

Insert a 9V battery in the compartment to save settings. The battery life is approximately 8 hours. The alarm only works if the switch is set to BUZZER or AUTO.

How to clean the radio alarm clock?

Use a soft dry cloth. Do not use abrasive or liquid products. Unplug the device before cleaning.

Why does the alarm not sound?

Check that the BUZZER/AUTO/STANDBY/ON switch is set to BUZZER or AUTO. Make sure the power cord is plugged in and the alarm time is set. The volume must be sufficient.

How to disable the alarm for the next day?

Set the BUZZER/AUTO/STANDBY/ON switch to STANDBY. This disables the alarms for the following day.

What safety precautions should be observed?

Never open the device. Do not expose to water or moisture. Do not obstruct ventilation. Unplug during storms or prolonged absence.

USER MANUAL RR30H5 BIGBEN INTERACTIVE

CLOCK/SET ALARM/SET 11:30 10:55 PM 101.8 MWC MIN HOUR

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

BELGIQUE/NEDERLAND, [e-mail] [e-mail]

ESPAÑA, [e-mail] ITALIA, [e-mail]

www.bigben.eu

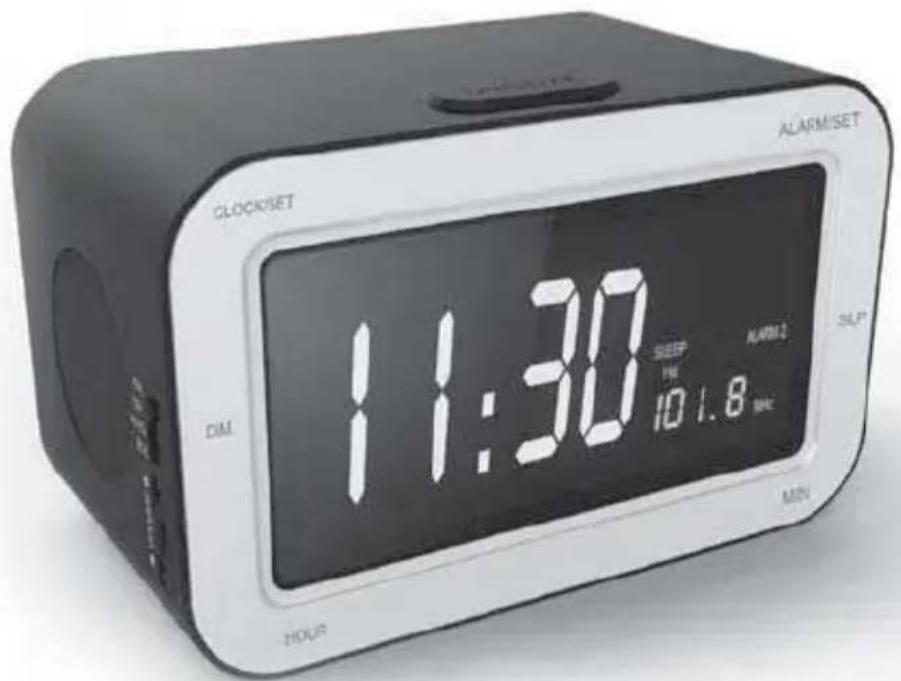

RR30

CLOCKSET ALARMISSET DIM 11:30 SEEP PM NORM2 10 1.8 MPC MIN HOUR

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

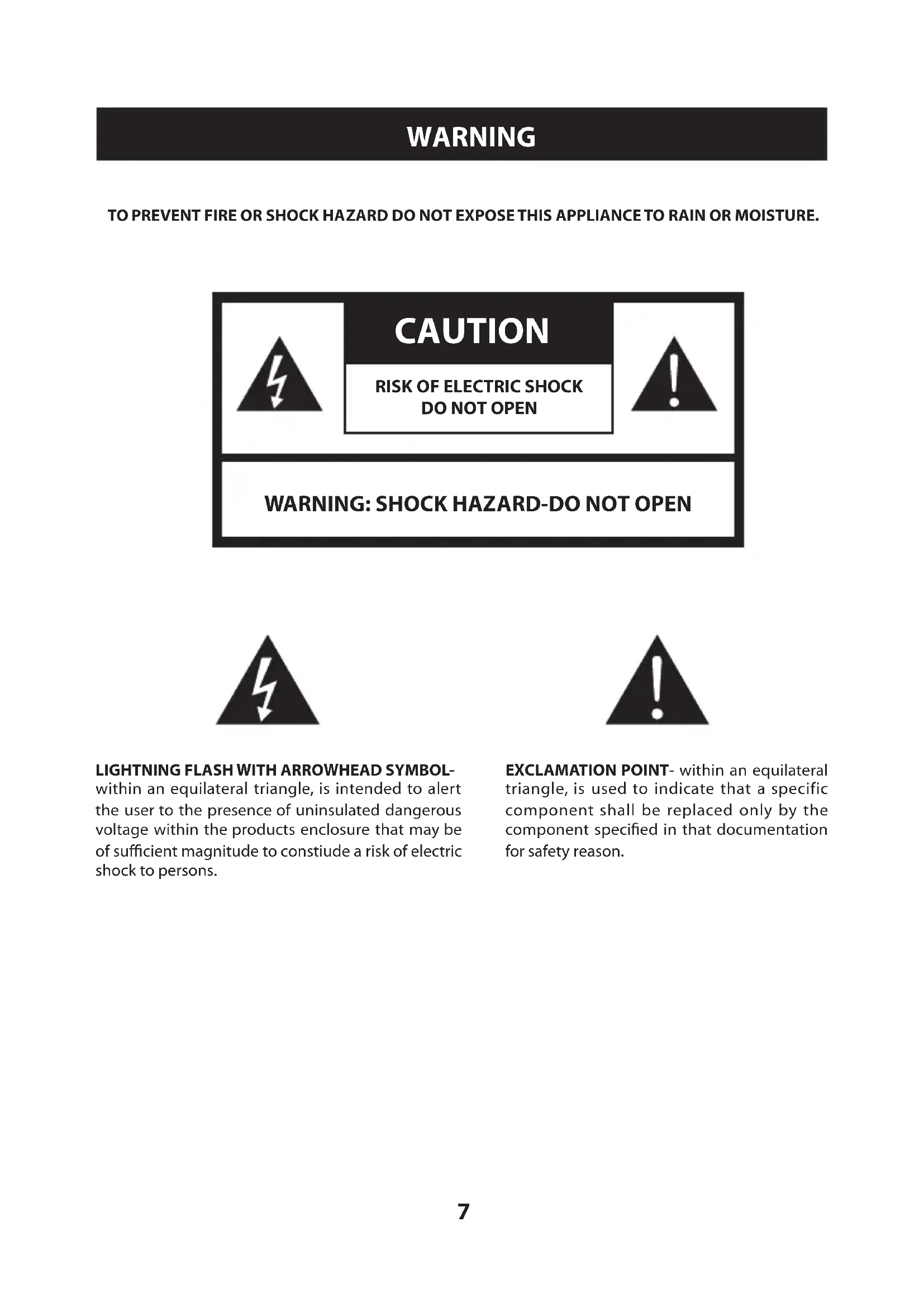

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: SHOCK HAZARD-DO NOT OPEN

LIGHTNING FLASH WITH ARROWHEAD SYMBOL-

within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constiude a risk of electric shock to persons.

EXCLAMATION POINT- within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundrytub. swimming pool or in a wet basement.
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. GROUNDING - Precautions should be taken to ensure that the grounding means of an appliance is not defeated.
10. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
11. POWER LINES - An outdoor antenna should be located away from power lines.
12. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
13. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch STANDBY and unplug the set. Reconnect after a few seconds.
14. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Power Supply

Connecting AC power

Plug the power cord into a standard AC outlet. When you connect AC power, the "00:00" will flash on the display.

Installing a battery

Installing a battery

To keep the clock running for up to eight hours during an AC power failure, insert a 9-volt battery(not supplied) in the battery compartment. For the longest life, we recommend you use an alkaline battery.

Notes:

• The display does not light when the alarm clock radio is operating only on battery power but the clock time remains in memory.
• "During an AC power failure, the alarm could be set only when the BUZZER / AUTO / STANDBY / ON switch is set to BUZZER or AUTO" (No wake up).
  • A prolonged power failure can drain the battery.

Battery notes:

• Use only fresh batteries of the required size and recommended type.
• Dispose of old batteries promptly and properly. Do not burn or bury them.
• If you do not plan to use the alarm clock radio for a month or longer, remove the batteries. Batteries can leak chemicals that can damage electronic parts.

Using your clock

Setting the clock time

Press and Hold CLOCK SET and press HOUR to adjust the hour and press MINUTE to adjust the minutes until the correct time is shown on the display.

Notes: The clock is shown in a 24 hour format.

Listening to the radio

Selecting radio

Slide the BUZZER / AUTO / STANDBY / ON switch to ON.

Tuning to a station

Adjust the TUNING control until you reach the desired station. The display shows the current radio frequency.

Turning off the radio

Slide BUZZER / AUTO / STANDBY / ON to STANDBY to turn STANDBY the radio.

Notes:

• When done, remember to slide BUZZER / AUTO / STANDBY / ON to BUZZER or AUTO so the buzzer alarm, or radio will sound at the preset alarm time.
• Adjust the VOLUME control so the alarm is loud enough to wake you up.
• Refer to "using the alarm" for details.

Using the alarm

Your alarm clock radio has a dual-alarm system that lets you set two different alarm times.

Setting alarm time

1. Slide the AL1 / AL2 / AL1+2 switch on the left side of the unit to AL1 to set ALARM 1 time or to AL2 to set ALARM 2 time. The display will show ALARM 1 or ALARM 2 according to your selection.
2. Slide the BUZZER/ AUTO / STANDBY / ON switch on left side of the alarm clock radio to BUZZER or AUTO. Refer to "Waking to Buzzer, or Radio" for details.
3. Hold ALARM SET and press HOUR to adjust hour or press MINUTE to adjust minutes until the desired alarm time is displayed for the selected alarm.

Checking alarm time

1. Slide the AL1 / AL2 / AL1+2 switch on the left side of the alarm clock radio to AL1 or AL2.
2. Hold down ALARM SET to view selected alarm time.

Selecting alarm options

Slide the AL1 / AL2 / AL1+2 switch on the left side of the unit to AL1 to activate ALARM 1, AL2 to activate ALARM 2 or AL1+2 to activate both alarms.

Notes:

•The alarm will not sound if the BUZZER/ AUTO / STANDBY/ ON switch is set to ON or STANDBY.

You can confirm this by checking to see if "ALARM 1" or "ALARM 2" shows on the display.

•The alarm will not sound when the clock radio is disconnected from AC power and powered by the backup battery only.

Waking up to a buzzer alarm

1. Slide the BUZZER / AUTO / STANDBY / ON switch to BUZZER for the buzzer alarm.
2. Set the alarm time. Refer to "setting alarm time" for details.
   The alarm buzzer will sound at the preset alarm time.

Waking up to radio

1. Slide the BUZZER / AUTO / STANDBY / ON switch to AUTO.
2. Set the alarm time. Refer to "setting alarm time" for details.
3. Adjust the VOLUME control to a setting loud enough to wake you up at the preset time.
   The radio will turn on at the preset alarm time.

Stopping an alarm

Press ALARM /SLEEP / STANDBY to stop the buzzer, or radio alarm. The alarm will sound again the next day at the preset alarm time.

Deactivating alarms

Slide the BUZZER / AUTO / STANDBY / ON switch to STANDBY to deactivate all alarms.

Snooze

When the alarm sounds at the preset time, press SNOOZE to enter snooze mode. The alarm will sound again after nine minutes.

Sleep to radio

1. Slide the AM / FM switch to AM or FM to sleep to the desired radio band to sleep to radio.
2. Slide the BUZZER / AUTO / STANDBY / ON switch to BUZZER, STANDBY or AUTO.
3. Press SLEEP. "059" and the SLEEP icon appear on the display.
4. Hold SLEEP and press MINUTE to adjust the sleep minutes.
5. Hold SLEEP and press HOUR to increase or decrease by one hour.
   Note: The maximum sleep time is 1:59.

Deactivating sleep time

To turn STANDBY radio before the sleep time expires, press the ALARM / SLEEP / STANDBY button.

Specifications

Power source:	AC 230V / 50Hz DC9V battery (optional – for clock backup)
Speaker:	8ohm 1W
Output power:	0.5W X 2
Frequency range:	FM: 88-108 MHz AM: 520-1620KHz

Don't throw the electrical and electronic appliances into the usual dustbin.

• Bring them to a collecting point.
• Some parts contained in these appliances may be dangerous for health and environment.

Imported by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Made in China

bigben INTERACTIVE

[e-mail]

ESPAÑA. [e-mail]

ITALIA, [e-mail]

www.bigben.eu

RR30

CLOCKSET ALARMSET DAY 11:30 10:1.8 MAY SOP HOUR MIN

WARNING: SHOCK HAZARE-DO NOT OPEN

PRECAUCIONES DE USO

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

RR30

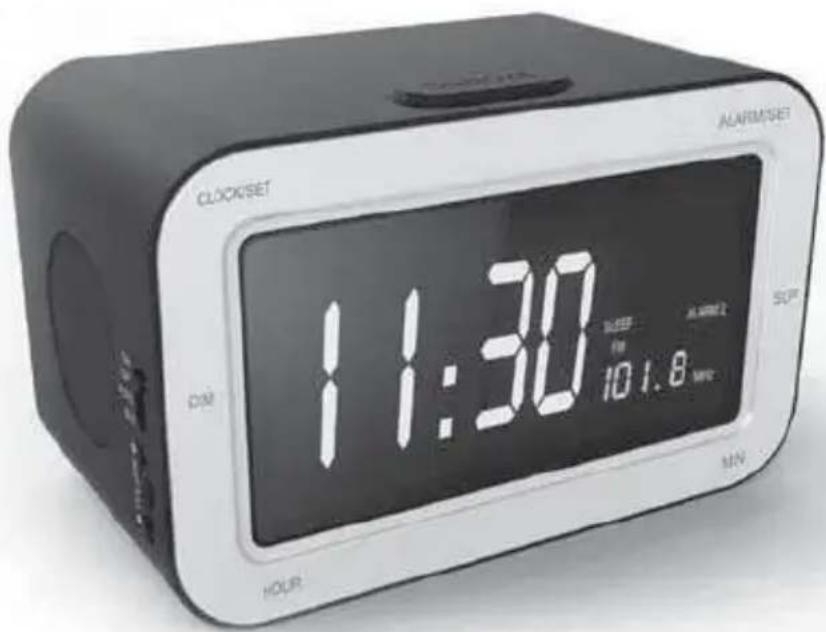

CLOCKSET ALARMSET 11:30 DIME 10:1.8 MWD SOUR HOUR MIN
