USER MANUAL BL165 ALECTO
ALGEMEEN:
(charger-goutte 35mA)
9V: 13mA
(charger-goutte 4,5mA)
CARGADOR UNIVERSAL
PILAS RECARGABLES

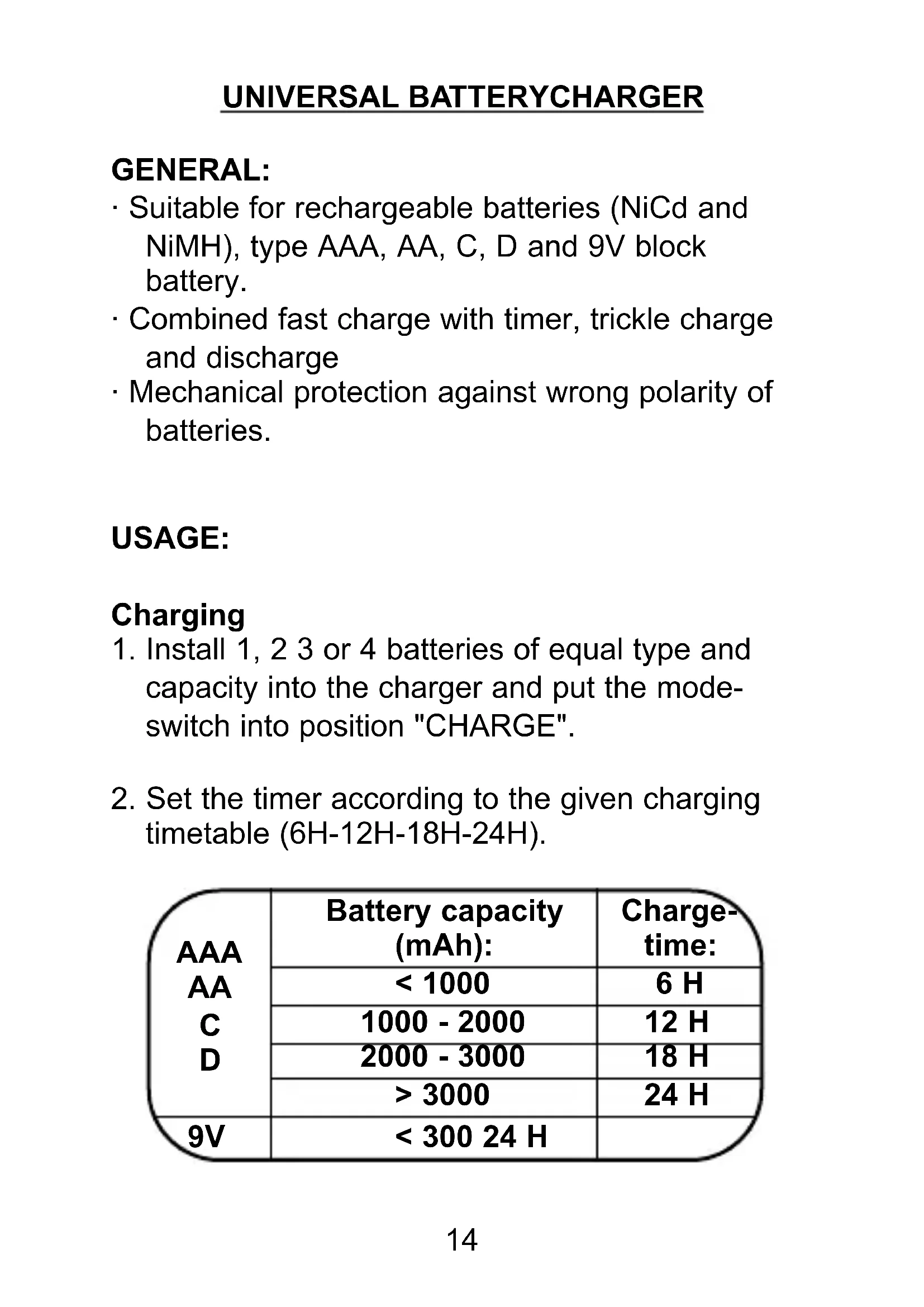

GENERAL:
- Suitable for rechargeable batteries (NiCd and NiMH), type AAA, AA, C, D and 9V block battery.
- Combined fast charge with timer, trickle charge and discharge
- Mechanical protection against wrong polarity of batteries.
USAGE:
Charging
-
Install 1, 2 3 or 4 batteries of equal type and capacity into the charger and put the mode-switch into position "CHARGE".
-
Set the timer according to the given charging timetable (6H-12H-18H-24H).
| AAA | Battery capacity (mAh): | Charge-time: |
| AA | < 1000 | 6 H |
| C | 1000 - 2000 | 12 H |
| D | 2000 - 3000 | 18 H |
| > 3000 | 24 H | |
| 9V | < 300 24 H |
- Connect the BL-165 with a 230V AC wall socket.
- The red LED lights, indicating the batteries are charged.
- After the predetermined time, the charger will switch to the trickle charge mode and the green LED will light up. In this condition the batteries can remain in the charger indefinitely.
Test:
The testmode operates with the types AAA, AA, C and D only. Place the battery into the left slot and set the modeswitch into position TEST. The test LED will light. If the LED dims then is it advisable to discharge the batteries and to charge them again.
Discharging:
Install the batteries (AAA, AA, C and D only) and set the modeswitch into position DISCHARGE position. The batteries will now be discharged. No Led will light in this condition.
Attention: after discharging, the BL-165 does not automatically switch into charge mode. You have to check whether the batteries are fully discharged (TEST-mode) and activate the charge-mode manually (set modeswitch into position CHARGE).
REMARKS:
- Suited for rechargeable batteries only.
- The testmode operates with the types AAA, AA, C and D only.
- Use the charger in dry places only and avoid moisture.
- When not in use, disconnect the charger from the mains.
- Avoid mechanical damage to the charger; consult your dealer when you suspect a defect to the charger; repairs by qualified personnel only.
- Exhausted batteries must be threaded as chemical waste.
SPECIFICATIONS:
powersupply: 230V / AC / 50 Hz
Charge voltage: 4 x 1.2V DC for AAA/AA/C/D
2 x 9V DC for 9V blockbattery
Charge current: AAA/AA/C/D: 250mA
(trickle charge 35mA)
9V: 13mA
(trickle charge 4.5mA)
