USER MANUAL 1705FL Flama

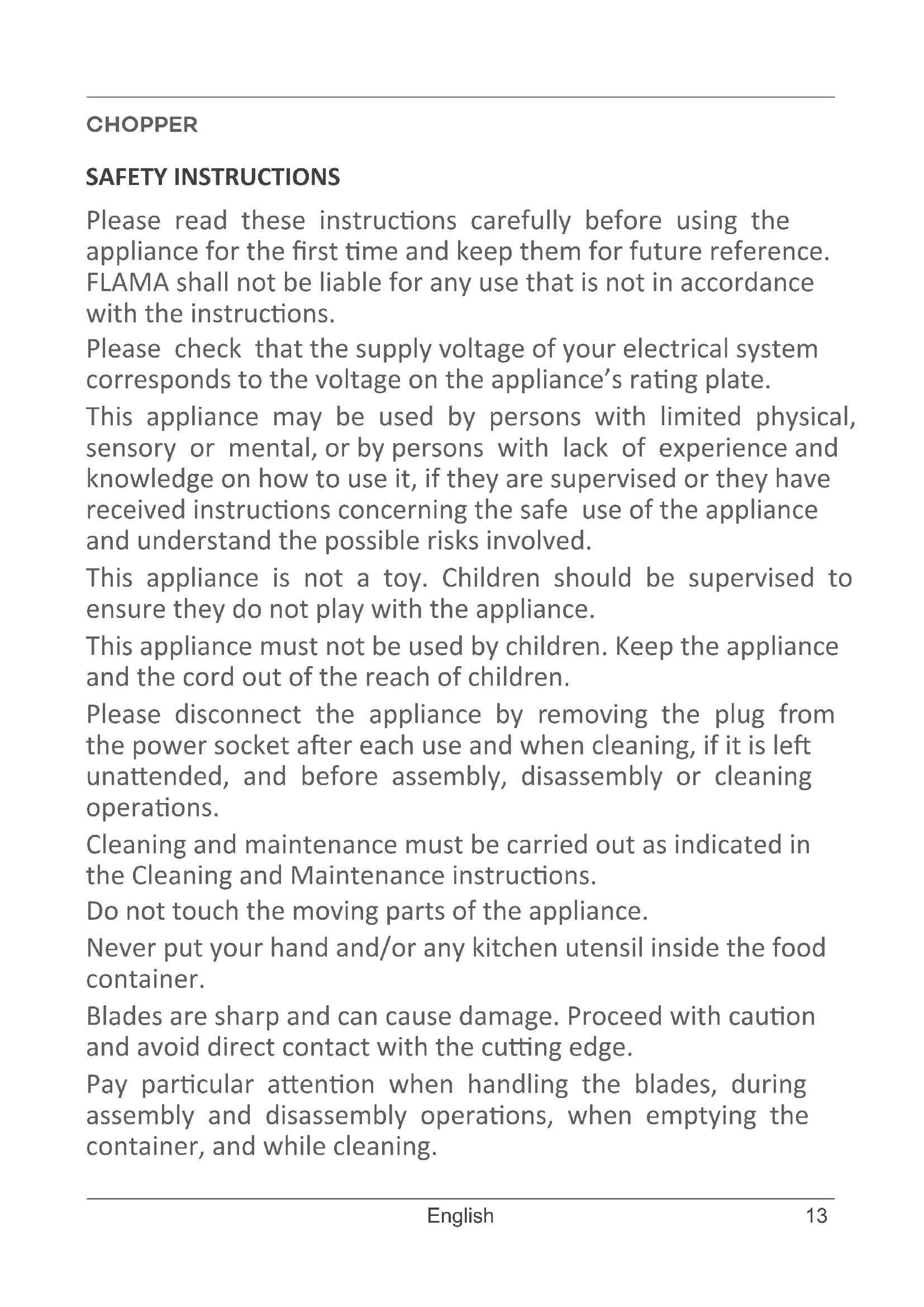

Please read these instructions carefully before using the appliance for the first time and keep them for future reference.

FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your electrical system corresponds to the voltage on the appliance's rating plate.

This appliance may be used by persons with limited physical, sensory or mental, or by persons with lack of experience and knowledge on how to use it, if they are supervised or they have received instructions concerning the safe use of the appliance and understand the possible risks involved.

This appliance is not a toy. Children should be supervised to ensure they do not play with the appliance.

This appliance must not be used by children. Keep the appliance and the cord out of the reach of children.

Please disconnect the appliance by removing the plug from the power socket after each use and when cleaning, if it is left unattended, and before assembly, disassembly or cleaning operations.

Cleaning and maintenance must be carried out as indicated in the Cleaning and Maintenance instructions.

Do not touch the moving parts of the appliance.

Never put your hand and/or any kitchen utensil inside the food container.

Blades are sharp and can cause damage. Proceed with caution and avoid direct contact with the cutting edge.

Pay particular attention when handling the blades, during assembly and disassembly operations, when emptying the container, and while cleaning.

CAUTION: Do not place hot ingredients in the container. Before preparing food, allow the food to cool down for a few minutes.

Be very careful when handling hot food as you can burn yourself.

Do not fill the container completely. Empty the container while cleaning it.

This appliance was designed to be used continuously for a maximum of 10 seconds. When this limit is exceeded, take a 1-minute cool-down break before using it again, so as not to overload the motor.

Do not use this appliance to mix glutinous food or substances, such as jam or marmalade.

Do not grind food products that are too hard (nutmeg, dried vegetables, meat with bones, sugar, coffee, ice).

Do not use the appliance if it is not working properly.

Always switch off the appliance before changing the accessory or handling parts that are moving during use.

If the power cord is damaged, have it replaced at an Authorized Flama Technical Assistance Service in order to avoid a hazard.

Any intervention other than cleaning must be carried out only by authorized FLAMA agents.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

DESCRIPTION

1. Motorized base
2. Cup
3. Blade
4. Chopper lid
5. Central column
6. Power switch

CLEANING AND MAINTENANCE

Before cleaning, remove the power cable from the electrical socket.

Never submerge the motorized base in water or any other liquid, and do not put it in the dishwasher. Clean only with a soft, damp cloth.

With the exception of the motorized base, all other accessories may be washed with lukewarm water and normal dish detergent, or they may be washed in the dishwasher so long as the temperature does not exceed 65^ (150^) .

To clean the blade (handle with care), place it under a strong flow of hot, running water. We recommend using a brush to avoid direct contact with the blade.

If any parts should become stained after contact with certain foods (such as oranges and carrots, for example), the stains can be removed using a cloth soaked in cooking oil.

All parts that come into contact with foods should be washed immediately after use.

USE AND CARE

Never run the appliance empty.

The finish and the power cable should not have any scratches or separations. Do not use the appliance unless all parts are correctly installed. If such situation should

occur, immediately unplug the appliance from the electrical socket and go to an authorized technical assistance service to perform the necessary verification.

Never submerge the motorized base in water or any other liquid.

After use, fully clean all accessories that came into contact with food; to do so, follow the suggestions and instructions described in detail in the "Cleaning and maintenance" section.

Do not use foods heated to temperatures above 50^ (122^)

The food should never exceed 2/3 of the capacity of the cup.

Do not put very watery or juicy foods, such as tomato, into the cup.

Do not attempt to chop hard (coffee beans, shells, bones, etc.) or frozen foods.

To avoid cutting yourself, do not place your fingers close to the blade. Never use your fingers to remove food debris; instead, use appropriate accessories.

Wait for the blade to come to a full stop before removing the lid.

Do not use the appliance if any installed accessories or consumables are damaged. Replace them immediately.

Do not force the appliance's working capacity.

This appliance was designed exclusively for domestic use, not for professional or industrial use.

If too many food pieces are added, or if they are too large, you will not achieve a satisfactory result.

After each maximum use period, let the appliance cool to room temperature before using it again.

WARNING: Do not use the appliance if the

motorized base, the cup, the blade, the lid or any accessory is cracked or damaged.

For better chopping action, activate the blade in pulses (1, 2, 3 system).

To obtain a fine and consistent result, if necessary, scrape down any food from the walls of the cup and place it in the center using a spatula.

Safety switch

A special safety switch located in the motor unit ensures that the appliance will only work when the lid is properly placed on the motor unit.

DISPOSING OF PACKAGING MATERIAL

Remove the appliance from the box and remove all packaging material, including labels, except for the appliance's technical information label.

The packaging protects the appliance from damage during transportation. The packaging materials are selected in accordance with environmentally compatible and recycling-related considerations and can therefore be recycled. Returning the box and all packaging materials that are no longer needed back into the material loop saves raw materials and reduces the quantity of accumulated waste.

OPERATING INSTRUCTIONS

Place the cup on the motorized base.

Attach the blade to the central column and ensure it is secure. The blade is sharp, handle with the utmost care.

Cut food into medium-sized pieces and place in cup. Make sure to adhere to the quantities shown in the "quantities and times" table.

Cover with the lid.

Plug the power cable into the electrical socket.

Turn on the appliance by vertically pressing down on the lid, in short pulses, with the palm of your hand. These presses should be short (2 seconds) and repeated until the maximum time shown in the table is reached.

If the appliance does not work, check to see if there is any food between the lid and the cup.

To stop the appliance, stop pressing down on the lid. The safety switch will stop the spinning of the blade.

Wait until the blade has come to a full stop before removing the lid.

Before removing the lid, ALWAYS unplug the power cable from the electrical socket.

Remove the lid.

Remove the blade by pressing the central button and lifting it up along with the cup.

NOTES:

• The obtained results depend on the operation time of the appliance.

• If the consistency of the processed foods worsens after a long period of use, replace the blade.

Recommended maximum quantities and times
Ingredients	Maximum quantity of food	Maximum processing time	Operating mode
Parsley 20 g	6 sec. Pressure on the lid
Onions 150 g	cut into pieces 9 sec.	sure on the lid
Shallot 150 g	cut into pieces 9 sec.	sure on the lid
Garlic	60 g cloves cut into slices	5 sec.	Pressure on the lid
Toasted bread 50 g 5 sec.	Pressure on the lid
Almonds 200 g	6 sec. Pressure on the lid
Hazelnuts 200 g	12 sec. Pressure on the lid
Walnuts 150 g	10 sec. Pressure on the lid
Gruyère cheese 150 g cut into cubes 10 sec.	Pressure on the lid
Boiled egg	200 g cut into pieces 5 sec.	Pressure on the lid
Meat	200 g cut into pieces (only lean meat)	6 sec.	Pressure on the lid

TROUBLESHOOTING

Problem Cause Solution
The appliance does not work.	The appliance is not plugged into the electrical socket.	Connect the appliance to the electrical socket.
There is a slight burning smell during operation.	First uses.	This is normal and will disappear after the first few uses.
	Motor unit is overloaded.	Adhere to the indicated quantities.
The device switches off during operation.	Motor overheating.	Unplug the appliance from the electrical socket and wait 30 minutes before plugging it in again.
The blade does not rotate.	Poor appliance assembly.	Follow the instructions in the “Use and care” section.
	Pieces are too big.	Cut the ingredients into smaller pieces.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance

must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

HACHOIR

CONSIGNES DE SECURITÉ

Retirez le couvercle.

DYSFUNCTIONNEMENTS ET RÉPARATIONS

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
