USER MANUAL Forzaspira C 130 PLUS POLTI

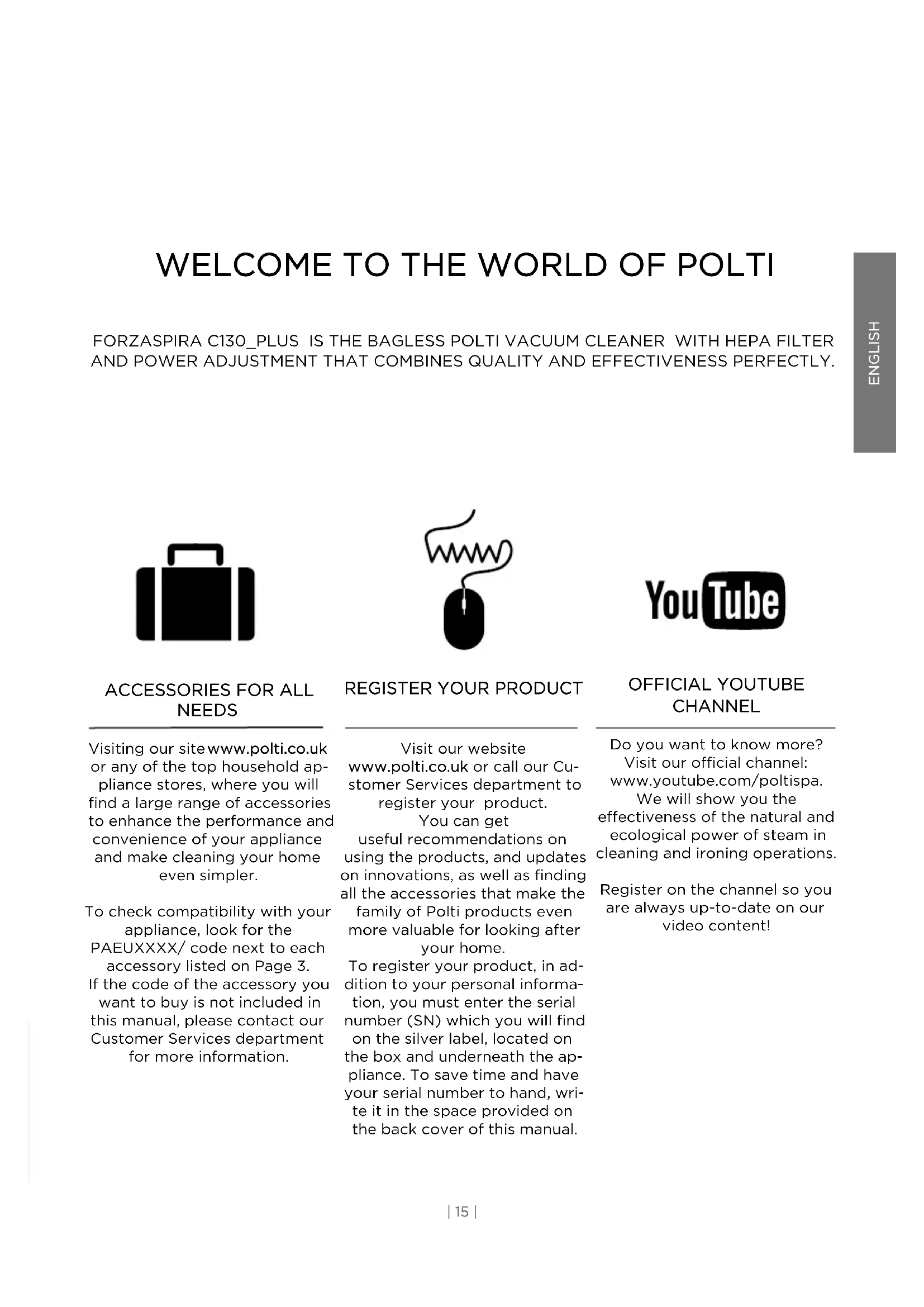

The optional accessories are on sale at all the best domestic appliance retailers, an Authorised Polti Service Centre or online at www.polti.co.uk

NEEDS Visiting our site www.polti.co.uk or any of the top household ap- pliance stores, where you will find a large range of accessories to enhance the performance and convenience of your appliance and make cleaning your home even simpler. To check compatibility with your appliance, look for the PAEUXXXX/ code next to each accessory listed on Page 3. If the code of the accessory you want to buy is not included in this manual, please contact our Customer Services department for more information. OFFICIAL YOUTUBE CHANNEL Do you want to know more? Visit our official channel: www.youtube.com/poltispa. We will show you the effectiveness of the natural and ecological power of steam in cleaning and ironing operations. Register on the channel so you are always up-to-date on our video content!

REGISTER YOUR PRODUCT

Visit our website www.polti.co.uk or call our Cu- stomer Services department to register your product. You can get useful recommendations on using the products, and updates on innovations, as well as finding all the accessories that make the family of Polti products even more valuable for looking after your home. To register your product, in ad- dition to your personal informa- tion, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the ap- pliance. To save time and have your serial number to hand, wri- te it in the space provided on the back cover of this manual.

WARNINGS IN THIS MANUAL,

APPLIANCE ITSELF. Polti S.p.A. accepts no liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try and repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• The appliance is not to be used if it has been dropped, if there are visible signs of damage.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and the power cable out of the reach of children under 8 years of age.

• Keep all packaging out of the reach of children; it is not a toy. Keep the plastic bag out of the reach of children to avoid risk of suffocation.

• This appliance is intended exclusively for indoor domestic use.ENGLISH | 17 |

• The appliance must not be left unattended if plugged in to the mains.

• Always unplug the appliance if it is not in use and before any preparation, maintenance or cleaning operation. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the fundamental precautions listed in this manual.

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload the sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the supplied plug.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short-circuiting, fire, power outage or damage to the equipment. Only use certified extensions, suitable for the power rating, that support at least 10A.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

• Do not pull or jerk the cable or expose it to stress (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid trapping the cables inENGLISH | 18 | doors and windows. Do not pull the cable tight around corners. Avoid treading on the cable. Do not pass over the cable with the appliance. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

• Do not change the plug on the power cable.

• If the power cable is damaged, it must be replaced by the manufacturer or its service agent in order to avoid all possible hazards. Do not turn on and use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Do not immerse the appliance, including the power cable and plug, in water or other liquids.

• Do not vacuum liquid substances or damp dirt.

RISKS DURING USE OF THE PRODUCT –

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not vacuum over toxic substances, acids, solvents, detergents or corrosive substances. The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not vacuum over explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• Keep all parts of your body away from the suction nozzle and from any moving or rotating parts.

• Do not use the vacuum function on people and/or animals.

• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the vacuum tubes. Do not lift the product using the dirt collector grip.

• Re-wind the cable when the appliance is not in use.ENGLISH | 19 |

• Do not put the product near sources of heat such as fireplaces, stoves and ovens.

• Do not obstruct the openings and grills on the product.

• During use, keep the product in a horizontal position on stable surfaces.ENGLISH | 20 |

CORRECT USE OF THE PRODUCT

This appliance is intended for internal home use as a vacuum of dry material, in accordance with the descriptions and instructions contained in this manual. Please read these instructions carefully and keep them. This manual is also available on the website www.polti.co.uk. Only vacuum domestic dirt. Do not use on debris or chalk, cement or residues from building sites or brick laying. Do not use on earth and sand/soil, etc. Do not use on ash, soot and combustion residues (fireplaces, barbecues, etc.). Do not use on printer, photocopier or fax toner and ink powder. Do not vacuum pointed, sharp or stiff objects. The appliance only functions correctly with the collector inserted, and complete with all its parts. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty. Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the sanctions envisaged by current legislation.

1. PREPARATION OF THE APPLIANCE

1.1 Remove the appliance from the packaging,

checking that the product is whole and that all the parts are included.

1.2 Insert the suction opening of the flexible

tube into the connector (1). To disconnect it from the appliance press the tabs and pull the flexible hose (2).

1.3 Unwind the power supply cable and insert

the plug into a suitable power socket (3).

2. CONNECTION OF ACCESSORIES

All the accessories can be connected directly to the flexible hose or to the telescopic tube. Just connect them together.

3. CLEANING HARD FLOORS

3.1 Make sure that Section 1 has been

3.2 Connect the telescopic tube to the flexible

hose and the universal floor brush to the telescopic tube. The length of the telescopic tube can be adjusted. Press the button to extend it or shorten it at will.

3.3 Move the selector located on the brush,

pressing it with a foot, to the bristles- extended position (4).

3.4 Press the switch (5). The appliance will

start to operate. You can adjust the suction power with the cursor(6).

4.1 Make sure that Section 1 has been

4.2 Connect the telescopic tube to the flexible

hose and the parquet brush to the telescopic tube. The length of the telescopic tube can be adjusted. Press the button to extend it or shorten it at will (4).

4.3 Press the switch (5). The appliance will

start to operate. You can adjust the suction power with the cursor(6).

4.4 To end suction, press the switch (5)

again. Wind the power supply cable, pulling it gently, until the yellow mark on the cable is reached. Do not unwind the cable beyond the red mark.ENGLISH | 21 |

5. CLEANING CARPETS AND RUGS

5.1 Make sure that Section 1 has been

5.2 Connect the telescopic tube to the

flexible hose and the universal floor brush to the telescopic tube. The length of the telescopic tube can be adjusted. Press the button to extend it or shorten it at will.

5.3 Move the selector located on the brush,

pressing it with a foot, to the no-bristles position (4).

5.4 Then press the switch (5). The

appliance will start to operate. You can adjust the suction power with the cursor(6).

6. CLEANING UPHOLSTERY

(mattresses, sofas, car interiors, etc.)

6.1 Make sure that Section 1 has been

suction nozzle with bristle frame to the flexible hose and pass over the surfaces. Using the mini turbo-brush on armchairs and sofas, car interiors etc., is particularly recommended for the removal of animal fur and hair, due to the mechanical action of the roller brush. The suction nozzle with bristle frame is recommended for removing the most stubborn dirt due to the action of the bristles on the surface. If not needed, the bristle frame can be removed from the suction nozzle (7). Use the lance for thorough vacuum cleaning of hard-to-reach spots such as skirting- boards and folds in sofas, armchairs, upholstered furniture and car upholstery.

6.3 Press the switch (5). The appliance will

start to operate. You can adjust the suction power with the cursor(6).

switch (5). Disconnect the power supply cable from the mains.

7.2 Unhook the dust collector from the

vacuum cleaner by pressing the dust container release button (9).

7.3 Remove the dust container lifting it by the

7.4 Press the button located on the container

to open the container and remove the dirt collected (10).

7.5 Remove the handle by turning it anti-

clockwise compared to the container, aligning the two reference arrows (11).

7.6 Remove the filter container, pull out the

filter unit and remove any remaining dirt.

7.7 Replace the filter unit in the container.

7.8 Reassemble the handle on the container

turning it clockwise, making sure to align the two arrows (11).

7.9 Reposition the dust container on the

appliance by repeating the steps described previously in the opposite order.

8. GENERAL MAINTENANCE

Ensure that the appliance is switched off and disconnected from the mains. To clean the outside of the appliance, use only a damp cloth and tap water. Do not use detergents of any type.

8.1 CLEANING THE DUST CONTAINER

- Pull out the dirt container and remove the filter unit, as described in Section 7. - Remove the container filter by turning it anti-clockwise relative to the filter unit, aligning the two reference arrows (12-13). - Remove the container sponge - Unscrew the lower part of the filter unit by turning it clockwise, relative to the upper part With the manual cursor on the handle of the flexible hose, you can intervene promptly in case of accidental suction (e.g. curtains), reducing the suction power (8).

WARNING: Since by operating the button

the lower base of the reservoir opens, it is recommended that this operation be done over a waste bin. We recommend cleaning the container after each use.

WARNING: Do not use the appliance without

the dust container complete with filter.

WARNING: Never exceed the “MAX” level

shown on the dust container, otherwise the filters will clog reducing the suction power of the appliance.ENGLISH | 22 | (14-15). - Rinse all the components under running water and let them dry. - Replace everything repeating the steps described previously in the reverse order.

8.2 REMOVING AND CLEANING THE HEPA

FILTER - Turn the grill anti-clockwise (16) and remove the filter (17). - Rinse the HEPA filter using running water only and shake gently to remove any excess dirt or water residue; before replacing the filter in the appliance, leave to dry naturally away from direct light and heat for at least 24 hours. The filters should be fully cleaned approximately twice per year.

8.3 CLEANING THE MINI TURBOBRUSH

- Turn and pull the locknut outwards (18). - Open the upper part and clean the inside of the brush (19). - Close the brush following the procedure in reverse order.

9.1 Turn off the appliance and disconnect

from the mains electricity.

9.2 Press the cable-winder button (5) to

activate the automatic winding guiding the cable gently back into the appliance.

9.3 The telescopic tube and flexible hose can

be stored on the body of the appliance by sliding the universal brush into the parking system on the appliance (20).

9.4 The small nozzle and the lance can be

attached to the telescopic tube using the accessory holder. Attach the single ring to the telescopic tube and insert the accessories in the two other rings (21).

WARNING: Check all components of the

dust collector are dry, before put them in order. We recommend cleaning the container after each use.

WARNING: Check the filters during cleaning.

Replace the filters when visibly damaged.

WARNING: Do not clean the filters with the

brush as they can be damaged, reducing their filtering capacity. Do not use detergents, do not rub the filter, and do not wash it in a dishwasher.ENGLISH | 23 |

The vacuum cleaner does not turn on. No power. Check that the appliance is connected to the power as indicated in Section 1. The vacuum has no/reduced suction. Flexible hose/telescopic tube clogged. Dust-collector over full. Dust tank not inserted correctly. The suction is set at MIN. Filters clogged Remove possible blockages from the hoses. Empty the dust collector (see

Insert the dust collector correctly (see Section 7) Increase the setting of the suction. Clean the filters, as described in

During suction from the appliance, dust comes out. Dust collector not inserted correctly. Dust-collector over full. Flexible hose not inserted correctly. Insert the dust collector correctly. Empty the dust collector. Insert the flexible tube correctly. Should the problems persist, contact an Authorised Polti Service Centre (see www.polti.co.uk for the up-to-date list) or Customer Services.WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold against to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres or contact Customer Services with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.co.uk. ENGLISH | 24 |FRANÇAIS | 25 |
