Product Type	Bagless Cylinder Vacuum Cleaner
Brand	Polti
Model	Lecologico AS 820 Compact
Dimensions (L x W x H)	approx. 35 x 25 x 25 cm
Weight	approx. 4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 W
Dust Capacity	1.5 L
Filtration System	HEPA 13 filter
Noise Level	78 dB(A)
Cord Length	6 m
Operating Radius	8 m (with hose)
Hose Length	2 m
Main Functions	Dry vacuum cleaning for carpets and hard floors
Attachments Included	Crevice tool, brush, upholstery nozzle
Bagless System	Yes, with easy-empty dust container
Filter Maintenance	Washable HEPA filter; clean every 3 months
Safety Features	Thermal overload protection, automatic shut-off
Spare Parts Availability	Replacement filters, hoses, nozzles available from Polti
Reparability	Repairable by authorized service centers; spare parts for 5 years
General Information	Compact design, suitable for small to medium homes

Frequently Asked Questions - Lecologico AS 820 Compact POLTI

How do I empty the dust container?

Press the release button on top of the container, lift it off, and empty into a trash bin. Rinse the container with water if needed, and ensure it is completely dry before reinserting.

How often should I clean the filter?

Clean the HEPA filter every 3 months or when suction seems reduced. Tap off loose dust and wash with lukewarm water. Let it dry for 24 hours before reinstalling.

Can I use the vacuum on hardwood floors?

Yes, the vacuum comes with a combination floor nozzle suitable for both carpets and hard floors. For delicate surfaces, use the brush attachment.

What does the 'thermal overload protection' mean?

If the vacuum overheats due to blockage or prolonged use, it automatically shuts off to prevent damage. Unplug, remove blockages, and let it cool for 30 minutes before restarting.

Where can I purchase replacement filters?

Replacement HEPA filters and other spare parts are available on the Polti official website or through authorized dealers. Use only genuine Polti parts for best performance.

Is the vacuum bagless? How does the dust container work?

Yes, it is bagless. The transparent dust container collects debris and can be emptied directly. For thorough cleaning, rinse with water and dry completely.

What is the noise level of this vacuum?

The noise level is approximately 78 dB(A), which is typical for a household vacuum cleaner.

How long is the power cord?

The power cord is 6 meters long, and with the hose and wand, the operating radius extends to about 8 meters.

Can the vacuum pick up liquids?

No, this vacuum is designed for dry use only. Do not use it to pick up liquids, as it may damage the motor and filter.

What should I do if the suction power decreases?

Check for blockages in the hose, wand, or floor nozzle. Also, ensure the dust container is not overfull and the filter is clean. If problem persists, contact Polti support.

USER MANUAL Lecologico AS 820 Compact POLTI

White Lecologico vacuum cleaner with coiled tube, displayed against a plain background (no text or symbols visible on the device body)

Close-up of a transparent plastic container with a black arrow pointing to its side (no text or symbols visible)

Close-up of a hand inserting a plug into a device with black arrows indicating rotation (no text or symbols)

Illustration of a hand cleaning a white vacuum cleaner with an arrow indicating the process (no text or symbols)

Close-up of a white industrial machine handle with a black arrow pointing to a component (no visible text or symbols)

Close-up of a hand using a tool to clean or adjust a white object, labeled Fig. 7 and Fig. 8 (no text on the object itself)

Close-up of a hand pressing down on a white industrial machine component (no visible text or symbols)

Person using a curling machine to lift a container, with an arrow indicating motion (no text or symbols on the device itself)

Hand holding a portable device with a bag, labeled Fig. 10 (no text or symbols on the device itself)

Close-up of a mechanical component with a hand holding an arrow, labeled Fig.11 and Fig.12 (no text or symbols on the object itself)

Exploded view diagram of a mechanical device showing internal components and a handle (no text or labels)

Close-up of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols visible)

Close-up of hands adjusting a mechanical component with directional arrows indicating motion (no text or symbols visible)

Close-up of a white robotic device with a black arrow pointing to a small component (no text or symbols visible)

Close-up of a white vacuum cleaner with black handle attachment (no visible text or symbols)

Read these instructions carefully before using the appliance.

Dear Customer,

We would like to thank you for choosing this Polti appliance.

By choosing Lecologico, you have made an excellent choice for your home and for the health of your family. Lecologico by Polti is eco-friendly and the enemy of dust, pollens, dust mites and their allergens. With its EcoActive-Filter, Lecologico traps dust in water; then the dirty water is simply poured away - with no risk of dispersing the dust into the air around you. When you've finished, you can put your Lecologico away perfectly clean. With the Polti Lecologico you can sigh with relief indeed. Its 5-stage HEPA filter system ensures that the air coming out of the vacuum cleaner is perfectly clean. The EcoActive-Filter also does away with the need for dusty bags and all the relative problems.

A complete set of accessories is provided to help you to carry out all cleaning jobs quickly and without effort. We suggest you read this instruction booklet carefully before using your Lecologico.

What is EcoActive-Filter?

EcoActive-Filter is the revolutionary “green” heart of Lecologico, because its effectiveness is based on the natural purifying force of water. Just the water flow contained in the special filter and its bubbling imprison dirt, preventing all contact with dust, and avoiding dispersal of dust back into the air.

What is the HEPA filter?

Lecologico has a special extra powerful washable HEPA filter, previously used only in professional applications requiring the utmost hygiene. This filter catches even the finest dust, pollens, dust mites and other microorganisms and is easily rinsed clean when dirty.

KEY

1) Pivoting wheels
2) Upper cover locking pins
3) Upper cover locking holes
4) Container locking pins
5) "EcoActive-Filter" water container
6) Water container handle
7) Upper cover
8) Upper cover opening button
9) Tube junction

10) Carrying handle

18b) Locking holes for air outlet filter grill

19) Hepa filter

19a) Back sponge filter

20) "EcoActive-Filter" water filter group

21) Filter cage cover

22) Float

23) Shaped sponge filter

24) Filter body with micropore sponge
25) Elbow tube locking ring
26) Elbow tube
27) Supply cable plug

KEY TO ACCESSORIES

A) Telescopic tube
A1) Telescopic tube spring button
B) Universal brush
B1) Brush selector
C) Flexible tube handle
D) Hose
E) Tube
F) Multipurpose nozzle
G) Lance for cleaning corners
H) Soft brush
I) Parquet brush

5-A) Water container cleaning brush

This unit conforms with Directive 2004/108/EC (EMC) and Directive 2006/95/EC (low voltage).

Polti S.p.A. reserves the right to change equipment or accessory specification without prior notice.

PRECAUTIONS

KEEP THESE INSTRUCTIONS

• Read these instructions carefully before using the appliance.
• Any use which does not comply with these instructions will invalidate the warranty.
• The wiring system to which the appliance is connected must always comply with the laws in force.
• Before connecting the appliance, make sure that the mains voltage is the same as the voltage indicated on the data label of the appliance and that the power outlet is connected to earth.
• Always turn off the appliance at the on/off switch before unplugging it.
• If the appliance is left unused, always disconnect it from the mains. Never leave the appliance unattended with the cable plugged into the mains.
  • Always make sure the appliance is unplugged before performing maintenance work of any kind.
• Do not pull the power cable out of the socket, but grasp the plug itself to avoid damage to the socket.
• Do not allow the power cable to be twisted, crushed, stretched, or come into contact with sharp or hot surfaces.
• Do not use the appliance if the power cable or other important parts of the appliance are damaged.
• Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire.
• If it is necessary to replace the power supply cable, please refer to the nearest Polti authorised service centre, since the use of a special tool is necessary.
• Never touch the appliance with wet hands or feet with the cable plugged into the mains.
• Do not use the appliance when barefoot.
• Do not use the appliance near washbasins, bath-tubs, showers or containers full of water.
• Never immerse the appliance, the cable or the plugs in water or another liquid.

• Use of the appliance in places where there is a danger of explosions is prohibited.

• Do not use the product with toxic substances.

• Do not lay the hot appliance on surfaces sensitive to heat.
• Do not leave the appliance exposed to wind or rain.
• Do not place the appliance near a live element, an electric stove or any other source of heat.
• Do not expose the appliance to extreme temperatures.
• Never let children or people who are not familiar with how the appliance works use it.
• Do not press the buttons hard or with a pointed object such as a pen.
  • Always rest the appliance on a stable surface.
• In case of accidental fall of the appliance it is necessary to have it checked by an authorized Service Centre as the internal safety features may have been affected.
• In case of breakdown or malfunction switch off the appliance and never attempt to disassemble it, but refer to an authorized Polti Service Centre.
• To avoid prejudicing the safety of the appliance when repairing or replacing accessories, use only original spare parts.
• Do not wind the power cable around the appliance, especially when the appliance is still hot.
• Do not use the appliance to suck up acids or solvents, as these might cause serious damage to the appliance and above all do not suck up explosive dust or liquids, as these could cause explosions on coming into contact with the inside components of the appliance.
• Do not suck up toxic substances.
• Do not suck up burning or incandescent objects such as embers, ash or other material in which combustion is taking place.
• Do not suck up detergents or other substances which could generate foam inside the water container, as this could cause malfunctioning.
• Do not vacuum up liquids.
  • Water container can be filled with tap water.
• Do not suck up materials such as cement, chalk etc. which solidify once they come in contact with water thus damaging the appliance.
• During refilling with water, switch off and disconnect the appliance from the mains.
• It is necessary to keep the unit in horizontal position during operation.
• Let the appliance cool down before cleaning it.
• Before storing the appliance make sure that it has completely cooled down.

• We recommend you use original Polti products only, as products of other brands may not be suitable for use in Polti products and could cause damage.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not use if the appliance has been dropped, has visible signs of damage or leaks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CORRECT USE OF THE PRODUCT

This appliance is intended for home use, to vacuum up solid dirt, as described and in accordance with the instructions provided in this manual. Please read these instructions carefully and keep them, as you may find them useful in future.

Polti declines all liability for any damage or accident deriving from any use of Lecologico which is not in conformity with the instructions contained in this booklet.

ATTENTION

INFORMATION FOR USERS

Directive 2002/96/EC (Waste Electrical and Electronic Equipment - WEEE): This product complies with EU Directive 2002/96/EC.

The crossed-out bin symbol on the appliance means that at the end of its useful lifespan, the product must be disposed of separately from other waste.

The user is responsible for taking the ap-

pliance to an appropriate collection facility at the end of its useful lifespan or, if purchasing a replacement, similar appliance, for leaving the old one with the reseller at the time of the purchase.

Appropriate separate collection to permit recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product.

Unlawful disposal by the owner involves the application of the administrative sanctions envisaged by current legislation.

PREPARING FOR USE

• Push the upper cover opening button (8) positioned on the upper cover (7).
• Raise the upper cover turning it upwards as shown in figure 1.
• Raise the water container handle (6) to the height of the inlet hole as shown in figure 7.
• Remove the water container (5) pulling it outwards (fig. 8).
• Pull the water filter group (20) upwards and then rotate it outwards (fig. 9/10).
• Fill the water container (5) with ordinary tap water up to the Max Water Level as in figure 2. The necessary quantity of water is 400 cc.
• Replace the filter group (20) into the water container (5) so that the elbow tube (26) is inserted between the two protuberances of the water container (fig. 13).
• Gently push the water container handle (6) until the two grooves on the handle are fitted between the two pins (4) on the appliance (fig. 14).
• Replace the upper cover (7) making the two pins (2) on the cover (7) fit into the holes (3) on the appliance, pressing the button (8) again.
• Insert the tube (E) into the tube junction (9), turning it clockwise until it locks into place (fig. 3).

FUNCTIONING

• Unwind the cable, removing its whole length from its storage compartment, by pulling the plug (27) towards you (fig. 4).
• Connect the plug to the mains socket.
• Press the ON/OFF switch (11) (fig. 5); position 1 of the indicator lights (13) on the handle will start flashing. At this point, your appliance is in standby mode (fig. 6).
• The ON/OFF switch (11) can be pressed with the foot to avoid having to bend over.
• Keep the +button (12) pressed for at least 2 seconds (fig. 6). The Lecologico will start functioning at minimum speed; the flashing indicator lights will stop flashing and remain on.
• There are four power levels. We suggest minimum level for curtains, medium-low for sofas, armchairs and pillows, medium-high for carpets and high for floors and hard surfaces (ceramic, marble etc.).
• To increase the speed, push the + button (12). Every time you press the button + (12), motor power will increase by one level.
• The increase by one level is indicated by the illumination of one further stage of the indicator lights.
  • Similarly, every time you push the - button (14),

motor power will decrease and one stage will switch off.

• To put the machine in stand-by mode, press the +button (12) for at least 2 seconds; the indicator lights (13) will start flashing again.
• Do not vacuum up any detergent or foamy substance. They could prejudice the correct functioning of the appliance.

EMPTYING AND CLEANING THE WATER CONTAINER

• Switch off the appliance at the mains switch (11) and disconnect the power supply cable from the mains.
• Disconnect the tube from the junction by turning it in the opposite direction of that indicated in paragraph "Preparation for use" (fig.3).
• Push the upper cover opening button (8) positioned on the upper cover (7).
• Raise the upper cover (7) turning it upwards as shown in figure 1.
• Raise the water container handle (6) to the height of the inlet hole as shown in figure 7.
• Remove the water container (5) pulling it outwards (fig. 8).
• Pull the water filter group (20) upwards and then rotate it outwards (fig. 9/10).
  • Empty the container (5) and rinse it.
• Unhook the elbow tube locking ring (25) by pulling it outwards (fig.11).
• Pull the elbow tube (26) from the filter body (24) until it slides off (fig.12)
• Divide all the components as described in the key and then rinse them under running water (if the sponge filter is damaged, contact a Polti Authorized Service Centre for replacement).
• Reassemble the water filter group (20) by repeating the operation in reverse order.

NOTE: before reassembling the water filter, make sure that all the parts have been properly dried.

• Replace the filter group (20) into the water container (5) so that the elbow tube (26) is inserted between the two protuberances of the water container (fig. 13).
• Gently push the water container handle (6) until the two grooves on the handle are fitted between the two pins (4) on the appliance (fig. 14).
• A special cleaning brush (5-A) is supplied for easy cleaning of the water container (5); it may also be used to clean the appliance's hose connections and the inside of tools.

NOTE: Do not use the brush for cleaning the outside of the appliance.

FLOAT ACTION

If the water becomes very dirty during use of the product, replace it in the manner described in the chapter "Emptying and Cleaning the Water Container". When the dirt sucked into the water container (5) reaches the maximum allowed level, aspiration will automatically be blocked by the special safety float (22). In this case, there will be an increase in the motor rpm.

After 10 seconds, the appliance will automatically go into stand-by mode and the four indicators (13) will start flashing.

To resume cleaning operations, following the indications in the chapter on emptying and cleaning the water container, then refill the container with water.

ATTENTION: Before starting to use the appliance, keep it disconnected from the electricity mains for at least 30 seconds, to allow for the safety system to reset.

BIO ECOLOGICO

Bioecologico is an anti-foaming and deodorising product based on natural substances; it prevents foaming inside the water filter thus ensuring correct functioning of the appliance. When diluted inside the dirt collection tank, Bioecologico also acts as an effective deodoriser while the appliance is running, and thanks to its composition which contains Tea Tree and other natural substances, it prevents unpleasant smells inside the dirt collection tank and releases a fresh clean fragrance into the environment.

Use:

• shake the bottle before use and remove the lid;
• hold the bottle upright and squeeze 5 ml into the dispenser. Stop squeezing and pour the contents of the dispenser into the dirt container on the appliance;
• add water according to the instructions of the appliance.
• use the recommended quantity of Bioecologico every time you refill the dirt collection tank.
• Recommended quantity: 5 ml

Note: a possible change in the colour of the liquid does not alter the functioning or the efficiency of the product.

Do not swallow. Keep out of the reach of children.

CONTAINS: Eugenol, Citral, Cinnamal*

Contents: 100 ml

Bioecologico is available in pine or citrus scents.

Bioecologico is on sale at your local Polti retailer or at the Polti service centres.

*May cause allergic reaction (in direct contact with the skin).

USING THE ACCESSORIES

Accessories can be connected directly to the hose (D) or to the telescopic tube (A).

USING THE TELESCOPIC TUBE (A)

To increase or decrease length, press the release button and extend or reduce length as desired.

Connect the brush to the telescopic tube. Press the selector button on the brush (B1) with your foot to adapt to a different surface being vacuumed without bending down. The position with bristles extended is recommended for all non-carpeted floors.

The position without bristles is recommended for carpets.

MULTIPURPOSE NOZZLE (F)

The multipurpose nozzle is recommended for cleaning upholstery surfaces such as the joints of sofas, armchairs, mattresses, car upholstery, etc.

LANCE FOR CLEANING CORNERS (G)

The lance (G) is recommended for thorough vacuum cleaning of hard-to-reach spots such as skirting-boards and folds in sofas, armchairs, upholstered furniture and car upholstery.

SOFT BRUSH (H)

The soft brush has soft bristles for dusting delicate surfaces such as picture frames, books, etc.

PARQUET BRUSH (I)

The parquet brush is designed to clean delicate surfaces; it has bristles and wheels in a special material to avoid damaging such surfaces.

AUTOMATIC CABLE WINDER

Before putting your vacuum cleaner away, rewind the power cable by pressing the button (15), as shown in fig.16, letting it flow gently through your hand for smooth rewinding.

USE OF THE ACCESSORIES HOLDER (16)

The accessories storage allows you to fasten the tube with the brush assembled onto the appliance body.

Repositioning on the appliance body: make the groove on the back of the brush slide into the guide of the accessories holder on the appliance (Fig.17).

CLEANING THE HEPA FILTER (19)

Clean the filters as follows:

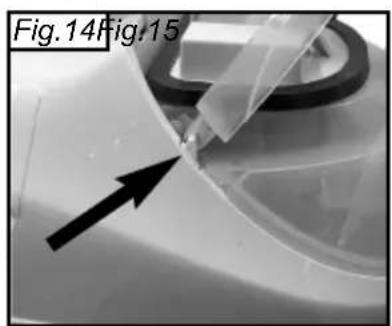

• Simultaneously pull the two opening levers of the air outlet filter (18) inwards to release the air outlet filter grill (17) (fig. 15).
• Remove the Hepa filter (19) from its seat.
• Rinse the filter under cold running water. After washing it, shake it gently to eliminate any residues of dirt and excess water.

NOTE: allow the filter to dry naturally, away from direct sources of light and heat. It is advisable to wait 24 hours before replacing the filter in the appliance.

• Replace the filter with a new one if it is torn.
• The filter should be cleaned every 4 months.

WARNING: Do not clean the filters with the brush as they can be damaged, reducing their filtering capacity.

Do not use detergents, do not rub the filter, and do not wash it in a dishwasher.

CARE OF YOUR APPLIANCE

• Before attempting any maintenance operation, make sure to always disconnect the appliance from the mains
• To clean the body of the appliance, simply use a moist cloth.

TROUBLE CAUSE SOLUTION
The vacuum cleaner does not start	Lack of voltage Check cable, plug and socket
The vacuum cleaner switches off during suction and the four indicator lights flash	The liquid level in the container is too highThe selected power is too high for the type of surface	In both cases, press the main switch (11), disconnect the electricity wire from the main and keep it disconnected for at least 30 seconds to allow for the safety device to reset.
The suction power decreases The	Nozzle, hose or accessories may be clogged, or the Hepa filter may be dirty.
