Rugged book pro - Keyboard Zagg - Free user manual and instructions

Product Type	Bluetooth Keyboard with Protective Case
Brand	Zagg
Model	Rugged Book Pro
Compatibility	iPad Pro (compatible models)
Connection	Bluetooth (pair up to 3 devices)
Power	Rechargeable lithium-polymer battery via micro-USB
Battery Life	Up to 2 years in normal use (1 hour/day without backlight)
Backlight	3 brightness levels, auto-off after 60s
Special Function Keys	Bluetooth selection (1/2/3), Home, Lock, Language, Hide/Show keyboard, Music control (previous/play/next), Volume (down/up), Mute, Power
LED Indicators	Caps Lock (solid blue), charging (on), battery (3/2/1 flashes)
Warranty	1 year (registration required)
Care and Cleaning	Soft damp cloth, disconnect before cleaning
Safety	Do not immerse, avoid liquids, do not use while driving, recycle according to local regulations
Weight (approx)	Approx. 700 g (with case)
Dimensions (approx)	Approx. 25 x 18 x 2 cm

Frequently Asked Questions - Rugged book pro Zagg

How do I insert my iPad Pro into the Rugged Book Pro keyboard?

Insert the iPad Pro at an angle so that the power and volume buttons align with their cutouts in the case. Press firmly all around to secure the iPad.

How do I turn the keyboard on and off?

Press the Power button to turn on (backlights turn on and a vibration occurs). Hold for 3 seconds to turn off.

How do I pair the Rugged Book Pro with my device?

Make sure Bluetooth on your device is turned on. Press the Bluetooth key 1, 2, or 3 (depending on the desired slot) for 3 seconds until the keyboard vibrates and backlights turn on. Select "ZAGG Rugged Book Pro" from the Bluetooth list.

How do I switch between multiple paired devices?

Simply press the corresponding Bluetooth key (1, 2, or 3) to instantly switch between paired devices.

How do I check the keyboard battery level?

Press Fn + battery key. The LED flashes: 3 times = full, 2 times = about half, 1 time = low. You can also check iPad widgets or the mophie app.

How do I charge the Rugged Book Pro?

Plug the included micro-USB cable into the charging port and the other end into a 5V USB port. The LED turns on while charging and turns off when fully charged.

What should I do if the keyboard stops responding?

Restart your device, turn the keyboard off and on. If the problem persists, forget the Bluetooth device and re-pair. Recharge the keyboard to reset the Bluetooth module.

How do I clean the keyboard?

Use a slightly damp soft cloth. Never use liquid or aerosol cleaners. Disconnect the cable before cleaning.

How do I turn the backlight on or off?

Press Fn + backlight key (sun symbol). Press repeatedly to cycle through the 3 brightness levels or turn off the backlight.

What is the battery life of the Rugged Book Pro?

The lithium-polymer battery can last up to 2 years in normal use (about 1 hour per day without backlight). Using the backlight reduces battery life.

USER MANUAL Rugged book pro Zagg

Keyboard Instructions

See the important Health and Safety information on page 7 before using this product.

Warranty Registration

Your ZAGG Rugged Book Pro™ comes with a one-year manufacturer's warranty. In order to activate the warranty, you must register your Rugged Book Pro as well as keep your purchase receipt. If you purchased your Rugged Book Pro from ZAGG.com, ZAGG has already registered it and has a copy of your proof of purchase.

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.zagg.com/faq

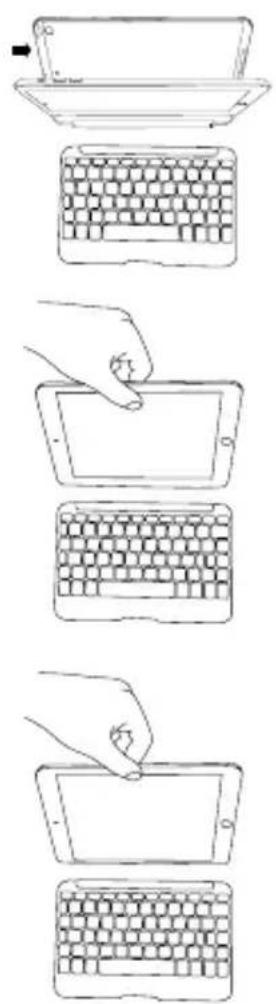

Because the power and volume control buttons on your iPad Pro sit higher than on other devices, you need to take extra care when inserting it into the Rugged Book Pro cover. To do this, follow these instructions:

1. Insert your iPad at an angle such that the power and volume control buttons fit into their respective cutouts on the Rugged Book Pro cover.
2. Set the rest of your iPad into the cover and press it in. Press all around your iPad to ensure it has seated properly.
3. To easily remove your iPad from the case, separate the case from the keyboard, and then gently roll the rubber overmold away from the edges while pressing the tablet from behind. Grasp your tablet's exposed side and lift/pull away from the Rugged Book Pro.

POWERING ON AND OFF

To turn your Rugged Book Pro on, press the power button. The keyboard backlights will turn on and begin pulsing for about two seconds while the keyboard powers up. To turn your Rugged Book Pro off, press and hold the power button for three seconds. The keyboard backlights will pulse for about two seconds and then turn off, indicating your Rugged Book Pro has turned off.

DISCONNECTING YOUR KEYBOARD

Your Rugged Book Pro features a case that protects your iPad even when it's not connected to your keyboard. When you'd like to use the case without the keyboard, there are three ways you can switch to your onscreen keyboard:

1. Press the Keyboard Hide/Show button. Pressing this button will disengage the Rugged Book Pro keyboard and allow you to use your iPad's on-screen keyboard. Press the Keyboard Hide/Show button again when you are ready to use your Rugged Book Pro's keyboard.
2. Turn off the Bluetooth® connection from your iPad.
3. Turn your Rugged Book Pro keyboard off.

PAIRING YOUR ZAGG Rugged Book Pro

Your Rugged Book Pro can pair with up to three Apple, Android, or Windows devices at once. Pairing your Rugged Book Pro is easy; just follow these instructions:

1. Ensure your device's Bluetooth connection is on.
2. Press your Rugged Book Pro's 1, 2, or 3 key for three seconds. The key being used will light and begin pulsing, indicating your Rugged Book Pro is in pairing mode.
3. Your device will display "ZAGG Rugged Book Pro" as an available pairing option. Select it and complete any other pairing steps based on your device.
4. Repeat steps 2-3 to pair your Rugged Book Pro with up to two more devices. When paired with one or more other devices, simply press 1 or 2 or 3 to toggle between them.
5. Once paired, the Bluetooth key will stop pulsing and fade to off. Once begun, if the Rugged Book Pro doesn't complete pairing after 60 seconds, it will abort the process. If this happens, repeat steps two and three.

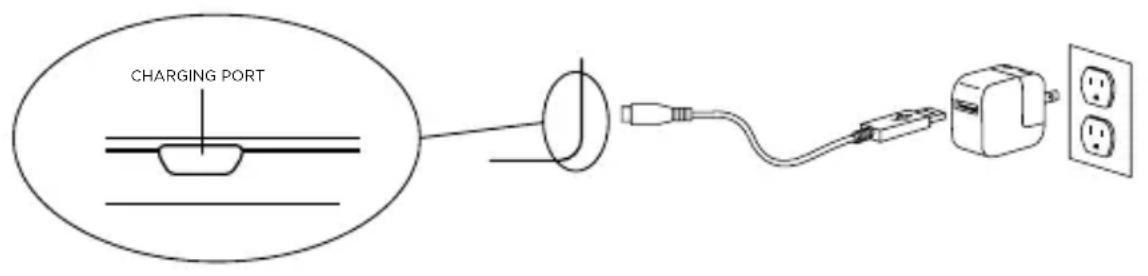

CHARGING

Your Rugged Book Pro features a powerful lithium polymer battery that lasts for up to two years of normal use between charges*. It comes with a charging cable you can use to charge your keyboard quickly and conveniently. To charge your Rugged Book Pro, follow these steps:

1. Plug the micro USB connector into the charging port.
2. Plug the regular USB connector into any 5V USB outlet. The Caps Lock LED on your Rugged Book Pro will light to indicate your keyboard is charging. This LED will turn off when your keyboard is fully charged.
3. Remove the micro USB connector and enjoy your Rugged Book Pro for up to two years before you need to charge it again.

*Normal use is approximately one hour of use per day without the backlit feature. Using the backlit feature will impact battery life and require more frequent charging.

BATTERY LIFE

There are three ways to check your Rugged Book Pro's remaining battery power. First, you can open your iPad's widgets and see it displayed as a percentage there. Second, you can download the mophie® Power app from your favorite app store. The mophie app will walk you through installation and how to use the app to check your battery life. Third, you can press fn + the battery key. This will cause the LED indicator to flash one of the following three ways:

1. Three flashes = full battery life.
2. Two flashes = approximately half battery.
3. One flash = low battery. When your Rugged Book Pro reaches critical battery level, the LED will flash once every five minutes.

To help preserve battery life, your Rugged Book Pro will enter sleep mode if left on and not used for several minutes; press any key to wake it. The Rugged Book Pro's battery has no memory and may be charged whenever you wish. For optimal battery life, turn your Rugged Book Pro off when not in use for a prolonged time.

SPECIAL FUNCTION KEYS

Your Rugged Book Pro keyboard has been designed with the following special function keys to give you more control over your favorite devices:

1 BLUETOOTH 1 - Pairs your Rugged Book Pro with your preferred device. If you have paired with a second or third device (see below) press2 or $3 to instantly switch between devices.
2 BLUETOOTH 2 - Pairs your Rugged Book Pro to a second device. If you have paired with other devices press 1 or 3 to instantly switch between them.
3 BLUETOOTH 3 - Pairs your Rugged Book Pro to a third device. If you have paired with other devices press \ 1or\2 to instantly switch between them.
□ HOME - Displays your device's home screen.
LOCK - Activates and deactivates your device's sleep mode.

LANGUAGE SYMBOL - Toggles between keyboard languages (if active on your device).
KEYBOARDHide/SHOW-Hides or shows your device's on-screen keyboard.

PREVIOUS TRACK - Skips to the previous track on your selected playlist.
PLAY/PAUSE - Starts or pauses your current playlist.
NEXT TRACK - Skips to the next track on your selected playlist.
MUTE - Mutes your device's audio.
VOLUME DOWN - Decreases your device's volume.
VOLUME UP - Increases your device's volume.
POWER - Turns your Rugged Book Pro keyboard on and off.

caps CAPS LOCK - Activates the Caps Lock feature. When Caps Lock is on a blue indicator light will remain lit until it is turned off. To turn Caps Lock off, press Caps again.

SPECIAL FUNCTION KEYS CONTINUED

FN + BACKLIGHT SYMBOL - Pressing the fn + once will turn on the backlights, pressing them again will turn off the backlights.

NOTE: The backlights will automatically turn off after a couple seconds if not used. Begin typing again to activate them.

delete FN+ DELETE - Press fn + delete to forward delete.

TROUBLESHOOTING

If your device doesn't respond to your Rugged Book Pro, there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your device.
2. Turn your Rugged Book Pro off and back on.
3. Forget and re-pair your Rugged Book Pro.
4. If your Rugged Book Pro cannot establish or maintain a Bluetooth connection, reset the Bluetooth module by charging your keyboard.
5. If, after charging, your keyboard doesn't operate correctly, please contact ZAGG's customer service.

For more help please see our FAQ section at: www.zagg.com/faq

To reach a trained customer service representative, please use one of the following:

zagg.com/support/contact.php | [e-mail]

1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers

For unparalleled scratch protection for your iPad, we recommend ZAGG's InvisibleShield®.

©2016 ZAGG Inc All Rights Reserved

PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA

Apple® and iPad Pro™ are trademarks of Apple Inc., registered in the U.S. and other countries.

Android is a trademark of Google Inc.

Windows is a trademark of Microsoft Corporation in the U.S. and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ZAGG Inc is under license. Other trademarks and trade names are those of their respective owners.

mophie is a trademark of mophie inc.

ZAGG, InvisibleShield, and Rugged Book ProTM are trademarks of ZAGG Inc.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

Please read the precautions and operation information before using your keyboard or any accessories that accompany it. Retain this information for future use.

1. Take frequent breaks when using your keyboard. If you experience any discomfort, pain, tingling, numbness, or burning in your neck, shoulders, arms, wrists, hands, or any other part of the body, stop using your keyboard and consult a physician.
2. Use only micro USB chargers in connection with your keyboard.
3. Do not attempt to service your keyboard.
4. Do not disassemble or attempt to disassemble your keyboard.
5. Do not crush or puncture your keyboard.
6. Do not immerse your keyboard in water.
7. Do not put your keyboard in contact with water or other liquids as they could cause a short circuit, fire, or electric shock that could result in injury, death, or property damage.
8. Do not use liquid or aerosol cleaners or solvents on or near your keyboard. Clean only with a soft, dry cloth. Disconnect any cords before cleaning the keyboard.
9. Do not use your keyboard while operating a motorized vehicle, including automobile, boat, or airplane. Doing so could put you and others at risk of serious injury, death, or property damage.
10. Do not use or place your keyboard near any heat sources including, but not limited to, radiators, heat registers, stoves, other appliances, campfires, or barbeque grills.
11. To reduce the risk of fire or electric shock, wire or connect your keyboard to products only in the manner instructed in the documentation included herewith. Do not attempt to modify or adjust any ports. Any improper connections or adjustments may cause damage.
12. When you are ready to discard your keyboard, recycle your keyboard in a manner consistent with electronic recycling requirements or recommendations in your geographic area.
