USER MANUAL BordBar TF 14 DOMETIC

WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. TF14_OPM_EMEA16.book Seite 4 Donnerstag, 27. Juni 2019 4:38 16EN BordBar TF14 Safety instructions

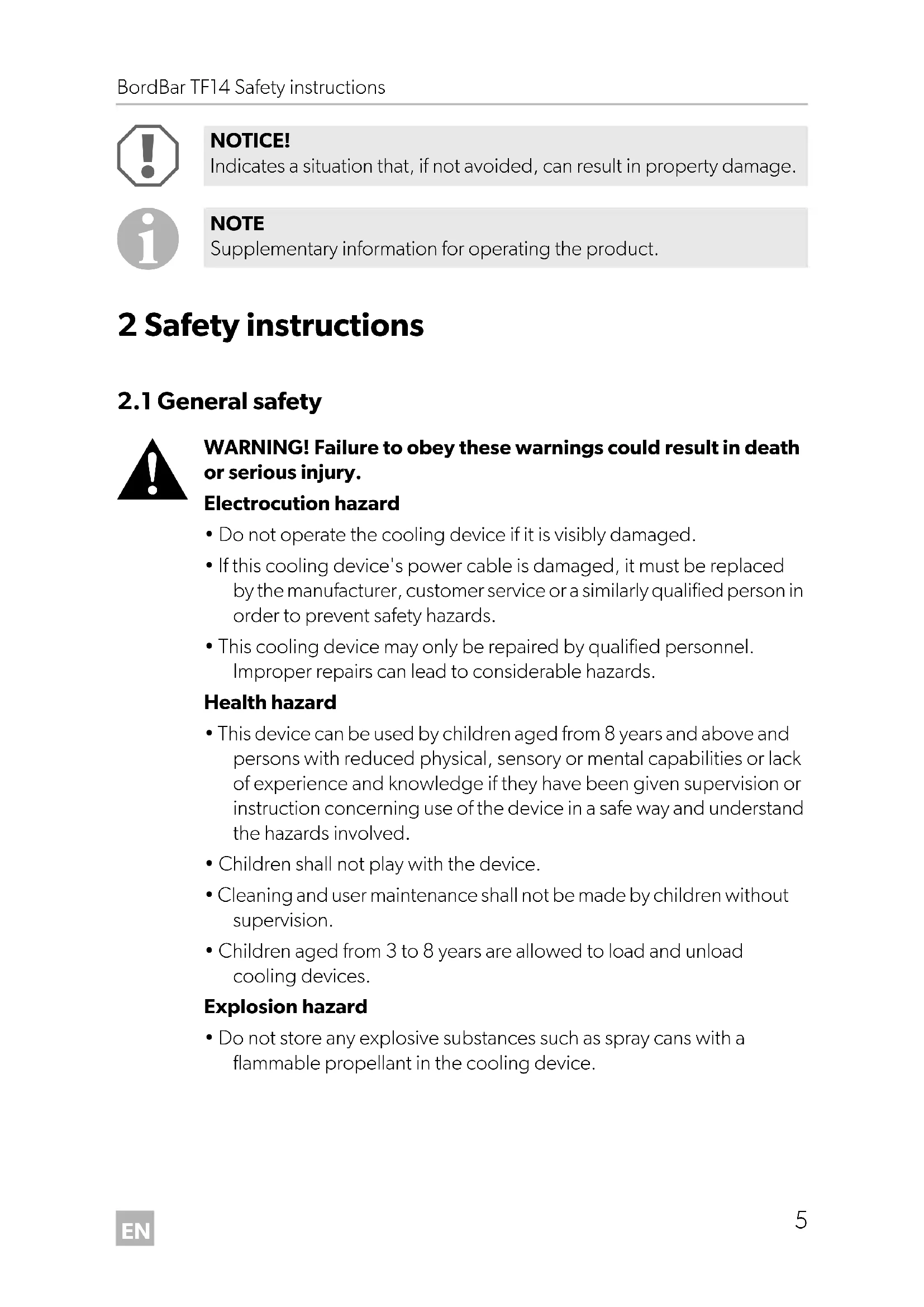

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Do not operate the cooling device if it is visibly damaged.

• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload cooling devices. Explosion hazard

• Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. TF14_OPM_EMEA16.book Seite 5 Donnerstag, 27. Juni 2019 4:38 16EN Safety instructions BordBar TF14

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use Health hazard

• Food may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

• Only connect the cooling device to a DC power supply in the vehicle with the DC cable.

• Never pull the plug out of the socket by the cable.

• Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.

• Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the cooling device safely

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the cooling device, ensure that the power supply line and the plug are dry. Health hazard

• Opening the cooling devicefor long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or drip onto other food. TF14_OPM_EMEA16.book Seite 6 Donnerstag, 27. Juni 2019 4:38 16EN BordBar TF14 Scope of delivery

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the door open to prevent mould developing within the device.

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.

• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Risk of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components. Do not place the cooling device in closed compartments or areas with none or minimal air flow.

• Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluids.

• Never immerse the cooling device in water.

4Accessories Available as accessories (not included in the scope of delivery): 5 Intended use The cooler is suitable for cooling foodstuffs. The device has been designed for use with a 12 Vg vehicle electrics socket of a car (cigarette lighter), boat or caravan. The appliance may also be used for camping use. The appliance shall not to be exposed to rain. It can be used as a box or cupboard.

6 Technical description The cooler is suitable for mobile use. If can cool goods to max. 25 °C under the ambient temperature or keep them cool. Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan. Pockets on the outside provide additional storage space. Note that objects stored in them are not cooled. Description Ref. no.Voltage monitor (12 V, 5 A) 9600000446Mains adapter (230 V – 12 V) 9102600030 CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool. NOTE To operate the device using a 220 – 240 V AC mains supply, we recommend using a rectifier. TF14_OPM_EMEA16.book Seite 8 Donnerstag, 27. Juni 2019 4:38 16EN BordBar TF14 Operation

• Choose a well ventilated location which is protected from direct sunlight.

• Allow warm food to cool down first before placing it in the cooling device to keep cool.

• Do not open the cooling device more often than necessary.

• Do not leave the cooling device open for longer than necessary. WARNING! Fire hazard!

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. CAUTION! Health hazard! Food may only be stored in its original packaging or in suitable containers. NOTICE!

• Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers NOTE Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 11). TF14_OPM_EMEA16.book Seite 9 Donnerstag, 27. Juni 2019 4:38 16EN Operation BordBar TF14

➤ Place the cooler on a firm base. ➤ Connect the 12 V connection cable into the cigarette lighter socket or a 12 V socket in the vehicle ✓ The cooler starts cooling the interior. ➤ To switch off the cooler, disconnect the plug.

7.3 Connecting to vehicle power

NOTE Like every cooling device, your cooler must be properly ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. NOTE If you connect the cooling device to the vehicle power, remember that you may have to turn on the ignition to supply it with power. TF14_OPM_EMEA16.book Seite 10 Donnerstag, 27. Juni 2019 4:38 16EN BordBar TF14 Troubleshooting

8 Troubleshooting 9 Cleaning and maintenance

➤ Occasionally clean the device interior and exterior with a damp cloth. ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged. ➤ Clean the lid seal regularly. Fault Possible cause Suggested remedyYour cooler does not work (plug is inserted).There is no voltage flowing from the 12 V socket (cigarette lighter) in your vehicle.The ignition must be switched on in most vehicles for voltage to flow at the cigarette lighter.The cooler does not cool (plug is inserted).The inner fan or the cooling element is defective.This can only be repaired by an authorised customer services unit.Operation with a 12 V socket (cigarette lighter):The ignition is on and the cooler is not working.Pull the plug out of the socket and make the following checks.The cigarette lighter socket is dirty. This results in a poor electrical contact.If the plug of your cooler becomes very warm in the cigarette lighter socket, either the socket must be cleaned or the plug has not been assembled correctly.The fuse of the 12 V plug has blown.Replace the fuse (5 A) in the 12 V plug (fig. 2 1, page 3). The vehicle fuse has blown.Replace the vehicle's 12 V socket fuse (usually 15 A). (Please refer to the operating manual of your vehicle.) WARNING! Electrocution hazard Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler. TF14_OPM_EMEA16.book Seite 11 Donnerstag, 27. Juni 2019 4:38 16EN Guarantee BordBar TF14

10 Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.For repair and warranty processing, please include the following documents when you send in the device:• A copy of the receipt with purchasing date• A reason for the claim or description of the fault 11 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. 12 Technical data BordBar TF14Ref. no.: 9600000499Gross capacity: 14 litresConnection voltage: 12 VgPower consumption: 36 WCooling capacity: max. 25 °C under ambient temperature Dimensions: fig. 3, page 3 Weight: 4.6 kgTesting/certification:
